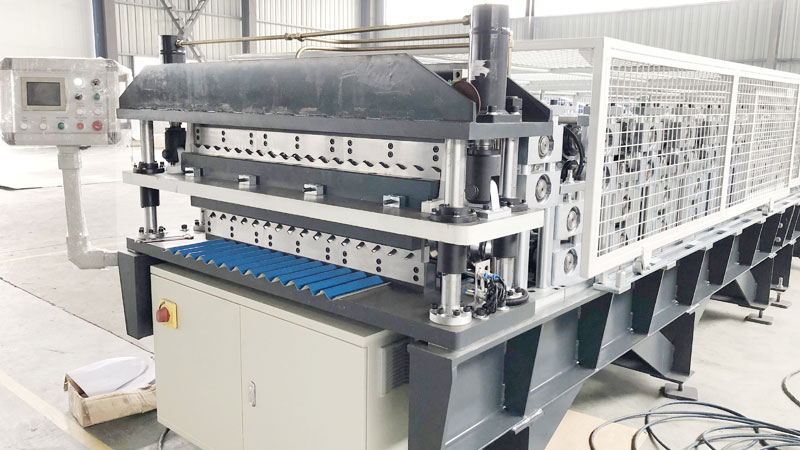

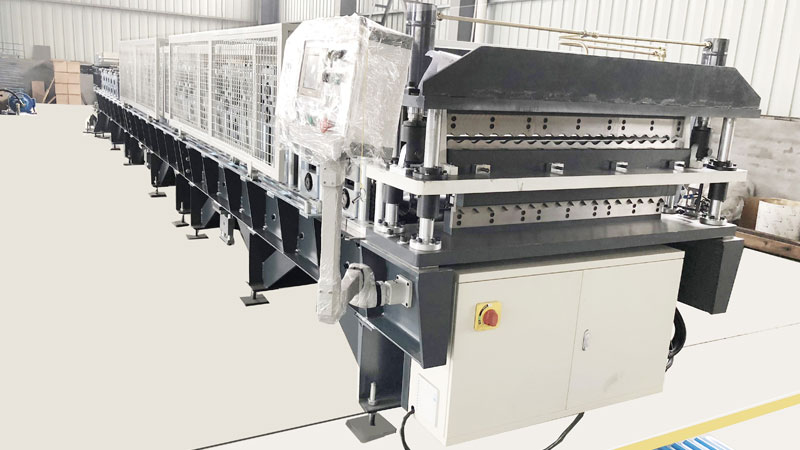

Features and advantages of High Speed Double Deck Roll Forming Machine


  •  With 2 layers of guiding tables, roll forming and cutting to length systems, it can produce 2 profile sheets on one machine.

  •  Fast and easy changeover between 2 profiles: operate on PLC screen, no need change or adjust any roller tooling.

  •  Save both space and cost for user.

  •  Production speed: 20/30/40/50/60 m/min optional.

  •  Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  •  Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  •  Hangzhou Roll Forming Machine Technology Co., Ltd has all kinds of double deck roll forming machines for sale at the reasonable price!

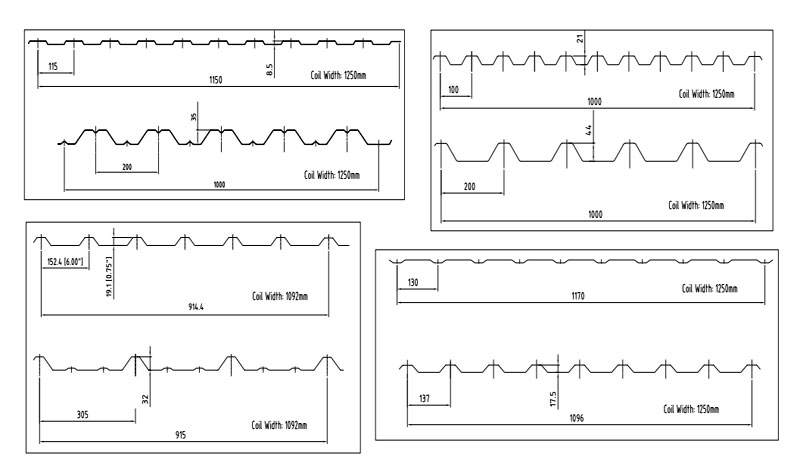

Profile Drawings

High Speed Double Deck Roll Forming Machine Profile Drawing

High Speed Double Deck Roll Forming Machine Profile Drawing

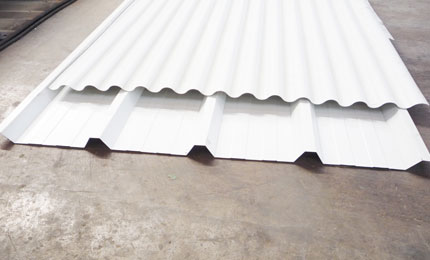

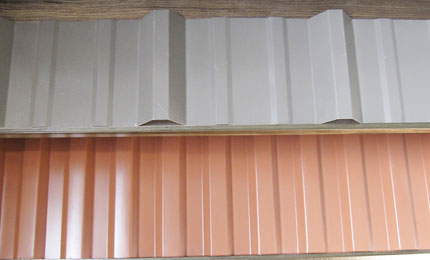

Finished Panels


Finished panelsFinished panels

Finished panels



Working Flow of High Speed Double Deck Roll Forming Machine


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Front Shear(optional)

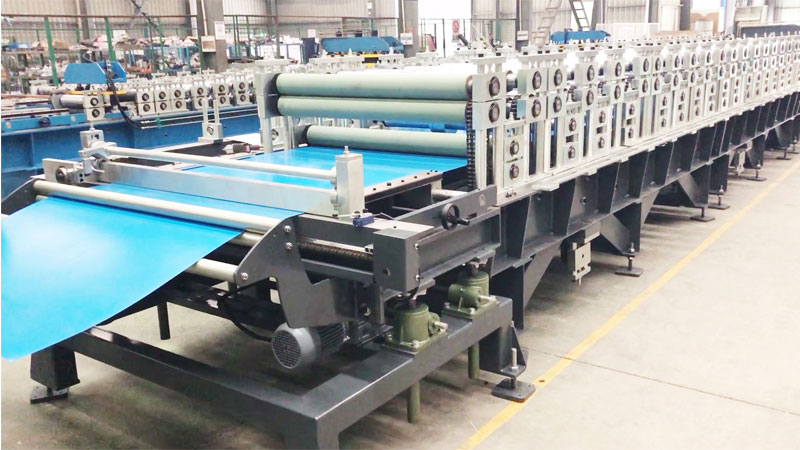

  • Feeding and Guiding Table

  • Filming Covering (optional)

  • Roll Forming System

  • Post-Cutting to length (Hydraulic/Motor

  • Output Manual Supporter/Stackmaster(optional)

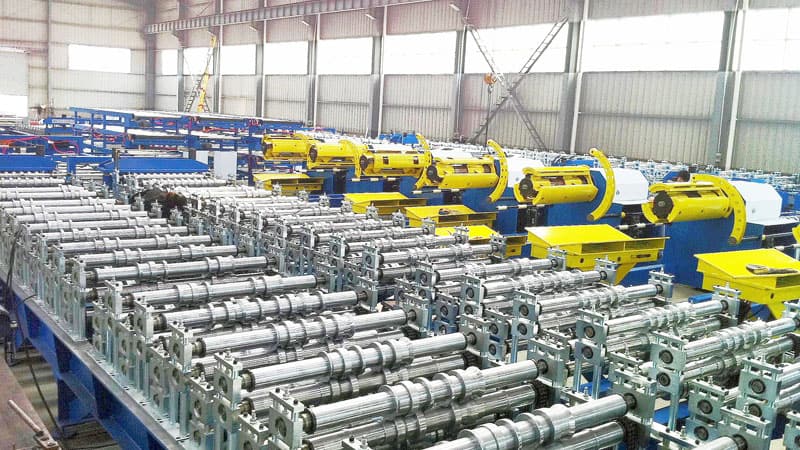

Roll Forming Line Layout

Roll Forming line layout


Suitable Raw Material

Material typeColor coated Steel, Galvanized Steel, and Aluminum sheet
Thickness0.3-0.7(mm)
Yield Strength230-300/350/550-675(MPa) optional
Width1200/1220/1250(mm) as profile requests


Production Line Components and Parameters

1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Front Shearoptional
3. Double layer Feeding and Guiding Table
4. double layer Filming Coveringoptional
5. double layer Roll Forming System: 20/30/45/ 60m/minoptional
6. double layer Post-Cutting to lengthHydraulic
7. Output Manual Supporter/Automatic Stackeroptional
Stackmaster(Output direction) Lateral/Longitudinal (optional)
8. Safety cage                optional
9. Post cuttingMotor/hydraulic (optional)
10. Output SystemManual supporter/ Auto Stacker (optional)
Auto Stacker(Output direction) Lateral/Longitudinal (optional)
11. Hydraulic systemPower supply for post-cutting system
12. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requests)


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1 x 40' (+1x20’) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
