Trapezoidal Profile Roofing Sheet Making Machine Introduction


This machine is used to make trapezoidal profile panels. A trapezoidal roof profile has a ribbed trapezoidal-shape pattern across the panel. Trapezoidal rib roofs are popular with producers because the shape makes them very material-efficient (a high strength-to weight ratio). This makes for a very cost-effective profile. The shadows of the trapezoidal shapes offer clean lines whether installed vertically, diagonally, or horizontally. They also possess good structural characteristics and can carry design loads well (e.g. for snow and wind uplift).


Features and Advantages of Trapezoidal Profile Roofing Sheet Making Machine


1. Fully automatic trapezoidal profile roofing sheet roll forming machine, specially designed for forming various sizes and specifications trapezoidal profile roofing sheet and wall panel, under mass-production.

2. Production speed: 20/30/40/50/60 m/min optional.

Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

3. Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.

4. Certified with Multi-Patents; CE Certified, EUROPEAN quality standard.

5. Most of the hot & popular profiles models, we have ready roofing tile roll forming machines in stock for prompt delivery.

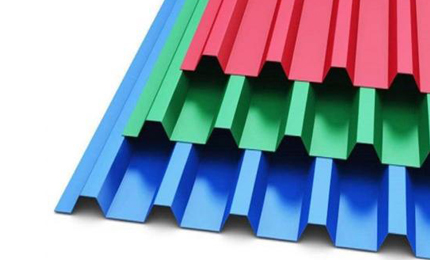

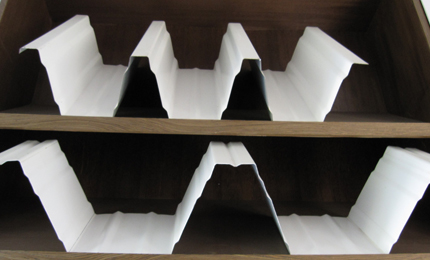

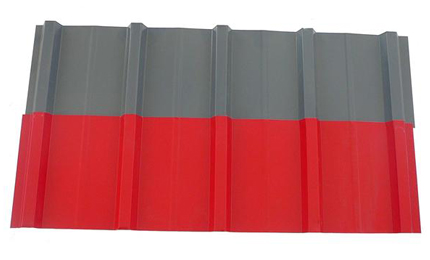

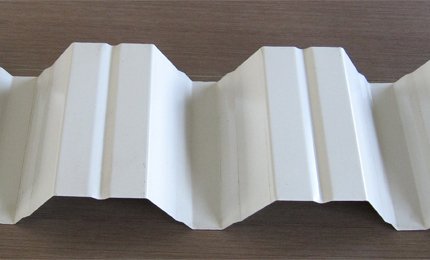

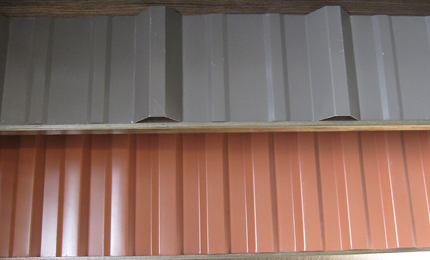

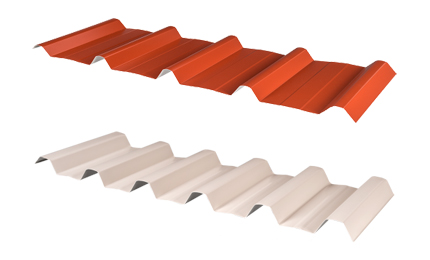

Finished Panels


Finished PanelsFinished Panels


Finished PanelsFinished Panels

Finished PanelsFinished Panels


Popular Roofing Profile Drawings

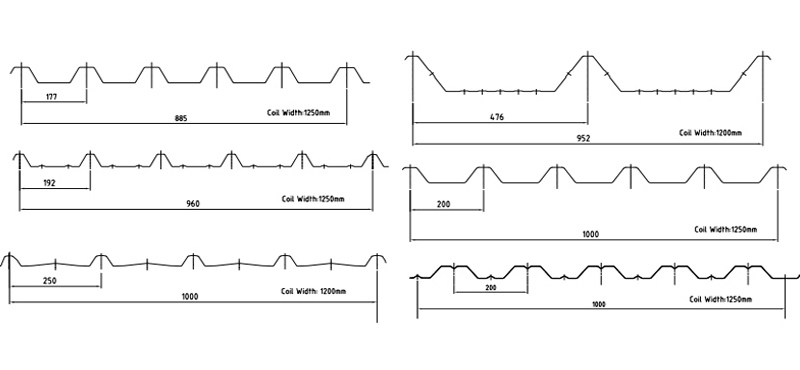

Trapezoidal Profile Roofing Sheet Roll Forming Profile Drawing

Working Flow of Trapezoidal Profile Roofing Sheet Making Machine


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Filming Covering (optional)

  • Roll Forming System

  • Post-Cutting to length (Hydraulic/Motor)

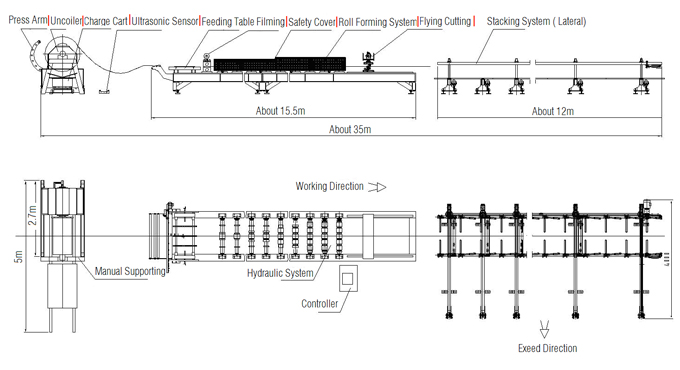

Roll Forming Line Layout


Roll Forming Line Layout


Products Application


This profile is designed for commercial and industrial roofing; which is suitable for low pitch roofing as well as curved roofing.

Sheets with higher ribs and bold ribs, making exceptionally attractive and high-performance roofing and cladding product for various Light Steel structure construction, civil-construction and mansions Building.

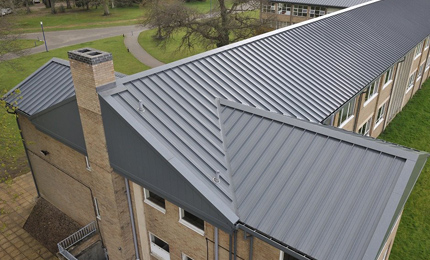

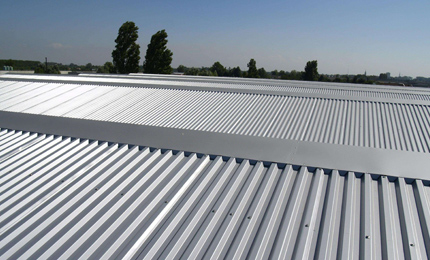

Trapezoidal Profile Roofing Sheet Roll Forming Machine ApplicationTrapezoidal Profile Roofing Sheet Roll Forming Machine Application

Trapezoidal Profile Roofing Sheet Roll Forming Machine ApplicationTrapezoidal Profile Roofing Sheet Roll Forming Machine Application

Trapezoidal Profile Roofing Sheet Roll Forming Machine ApplicationTrapezoidal Profile Roofing Sheet Roll Forming Machine Application


Suitable Raw material


Material type: Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel

Thickness: 0.3-0.7(mm)

Yield Strength: 230-300/350/550-675(MPa) optional

Width: 1200/1220/1250(mm)


Production line Components and Parameters

Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
Filming covering deviceoptional
Front shearoptional
Lubricating deviceno need
Roll forming system20/30/40/50/60 m/min (optional)
Safety coveroptional
Post cuttingMotor/hydraulic (optional)
Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for decoiler /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Related Trapezoidal Profile Roofing Sheet Making Machine
Video
Hangzhou Roll Forming Technology Co., Ltd - China, founded in 2003, is a professional manufacturer of high-end, non-standard construction machinery and equipment.
