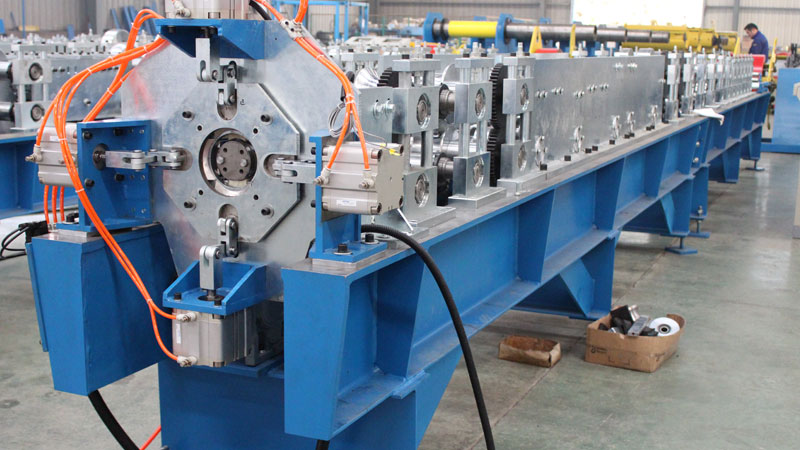

Round Downspout Roll Forming Machine

Round Downspout Machine
Round Downspout Machine
Round Downspout Machine
Round Downspout Roll Forming Machine
Round Downspout Roll Forming Machine
Round Downspout Roll Forming Machine
Round Downspout Roll Forming Machine
Round Downspout Roll Forming Machine

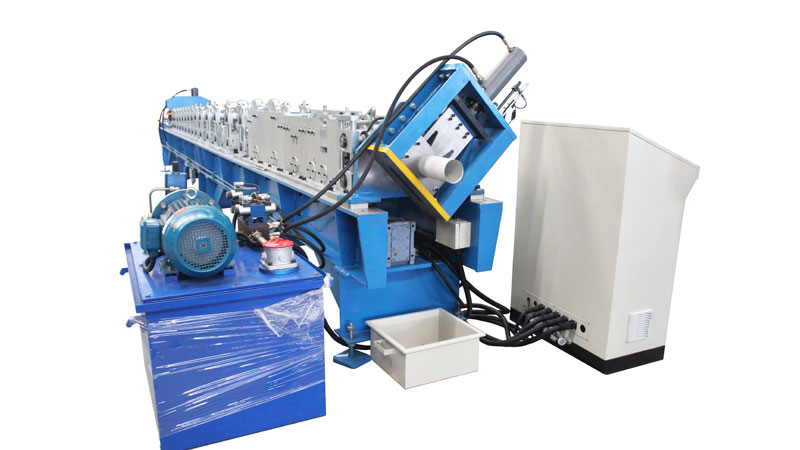

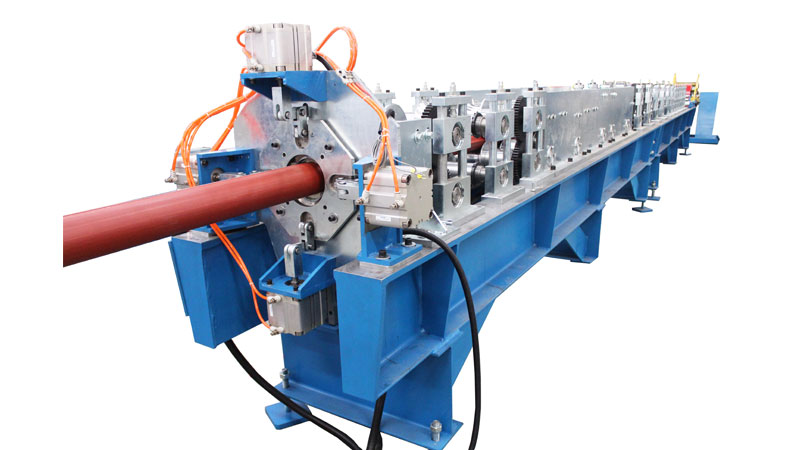

Round Downspout Roll Forming Machine Introduction


This machine is used to make round downspout. A downspout is a pipe that runs vertically along the side of the home. It is connected at the top to a hole in the gutter channel.Downspout carrys rainwater from a roof to a drain or to ground level.


Features and Advantages of Round Downspout Roll Forming Machine


  • Fully automatic continuous rolling forming machine for round down spout under mass-production.

  • Production speed: 15 m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

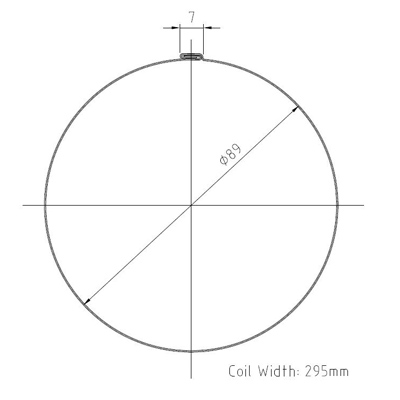

Round Down Pipe Profile Drawings


Round Down Pipe Profile Drawings


Round Downspout Roll Forming Machine Working Flow


  • Ecoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

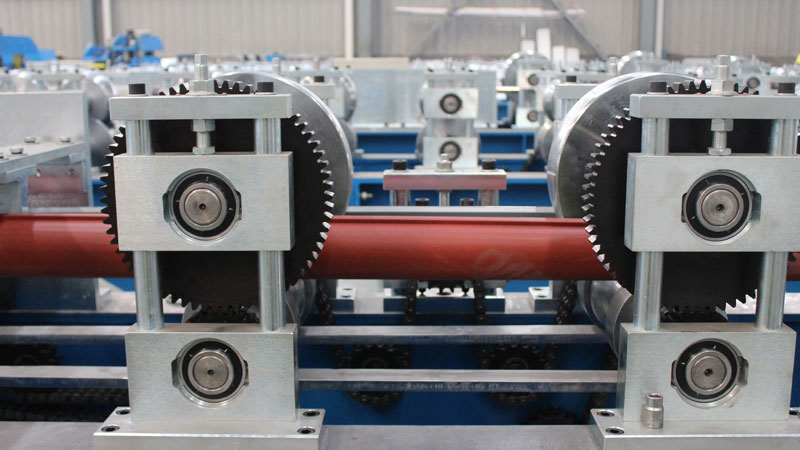

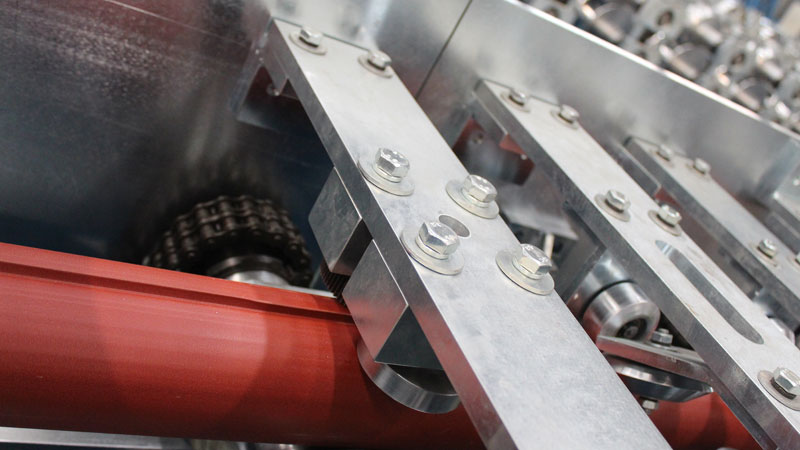

  • Roll Forming System

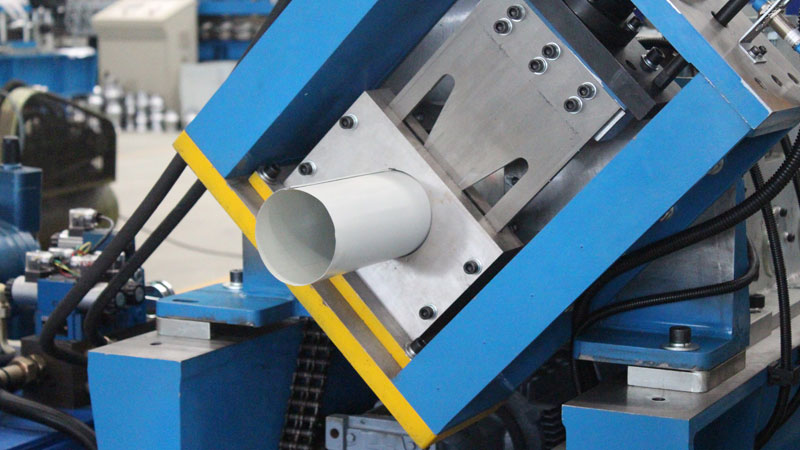

  • Post-Cutting to length (Hydraulic)

  • Output Supporter

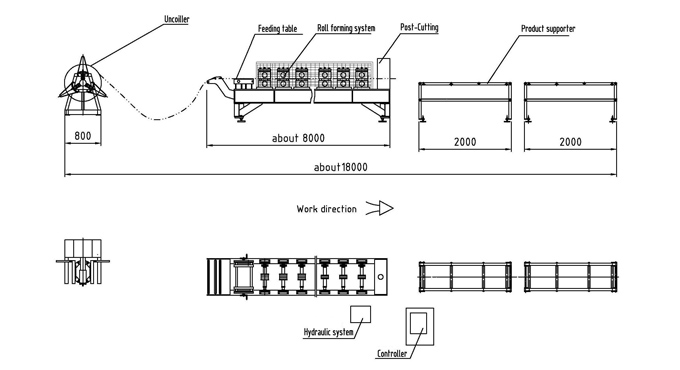

Round Downspout Forming Line Layout


Round Downspout Forming Line Layout

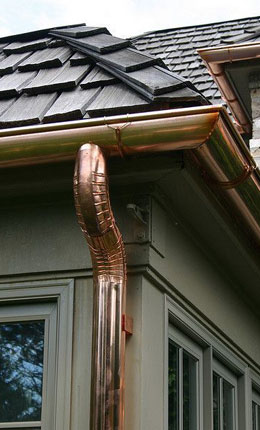

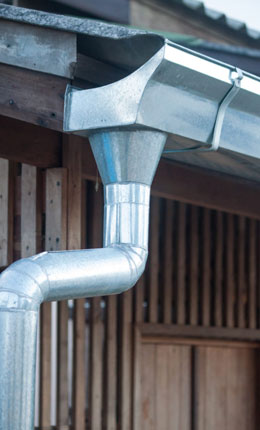

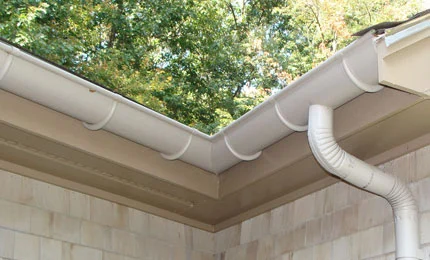

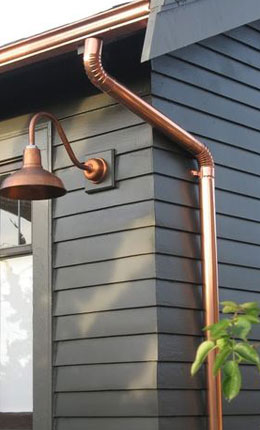

Round Downspout Roll Forming Machine Application


Roofing down spout pipes are very important assets to prevent water damage to walls and foundations by channeling water away from its base foundation.


Also prevents house leaks and protects painted surfaces by reducing exposure to water.


Application

ApplicationApplicationApplication


Suitable Raw Material


Material type: Color coated Steel

Thickness: 0.5-0.6(mm)

Yield Strength: 230-300 (MPa)

Width: 295 (mm) as profile requests


Production line Components and Parameters


1. Decoiler             2t/3t/5t Motor/hydraulic motor/passive (optional)
2. Front shear                  optional
3. feeding and guiding unit
4. Roll forming system         15 m/min
5. Safety cover               optional
6. Post cutting             hydraulic
7. Output supporter
8. Hydraulic systemPower supply for decoiler /post-cutting system
9. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)



Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 10t
Dimension(L*W*H) about 25*2.5*2m
LOADING SIZENormally need 1x 40’ (+1x 20') container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
