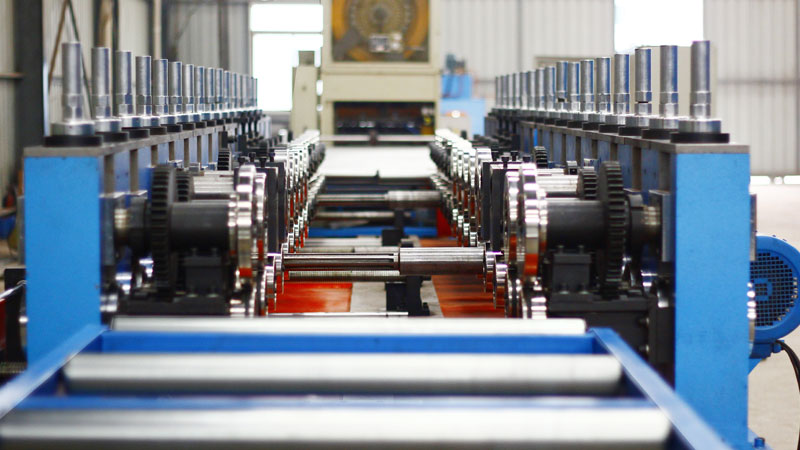

Features and Advantages of Cable Tray Roll Forming Machine


  •  It can produce cable trays and caps from 50-350mm.

  •  Fast and easy operation to change between different sizes. Adopts cantilever shafts forming structure. Forming tooling is assembled on cantilever shafts. When we need to change sizes, we just need to change spaces between left/right shafts, without changing any spacers station by station.

  •  Both manual and Motor Adjusting size modes are available for choice

  •  Adopts combined cutting blades

  •  High-speed TOP grade production line: Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for choice to improve production speed greatly.

  •  Both underground pit and overground accumulating devices are available for choice. If the ground pit is not allowed, no problem! This production line can run without any foundations or underground pit accumulators.

  •  Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  •  Most of the hot & popular profiles models, As a cable tray roll forming machine China manufacturer, we have ready cable tray punching machines in stock for prompt delivery.

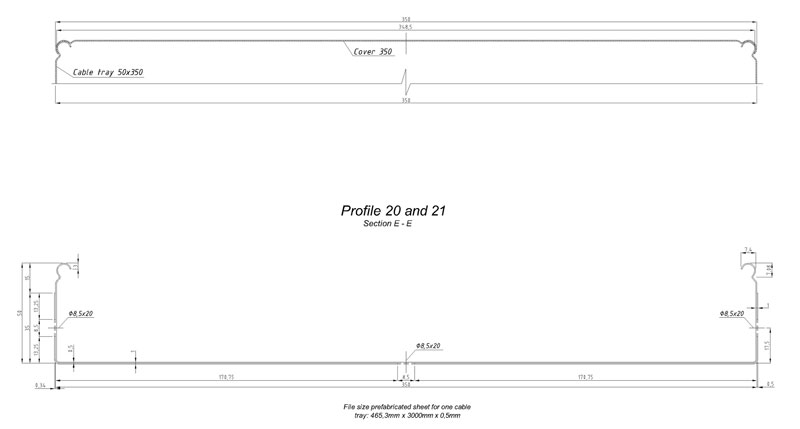

Tray & Cover Profile Drawings

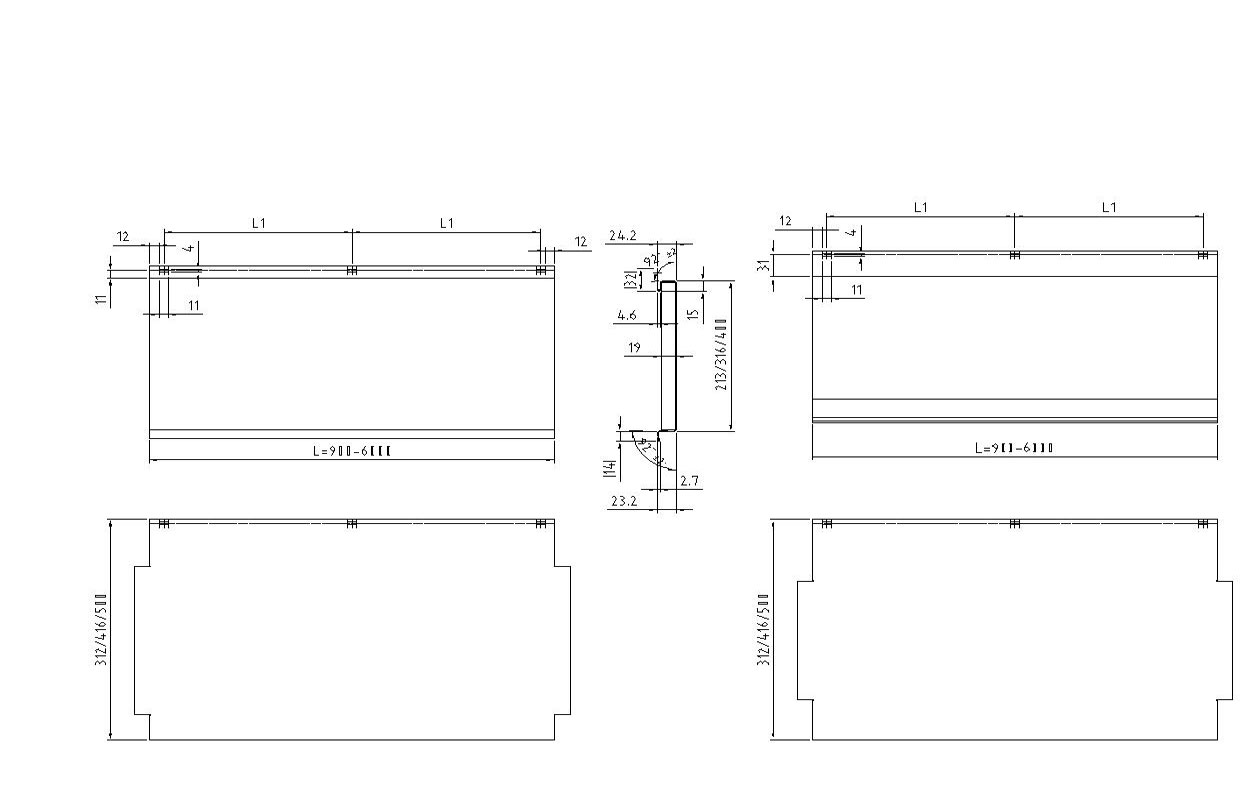

Cable Tray Roll Forming Machine PROFILE DRAWING


Finished Panels

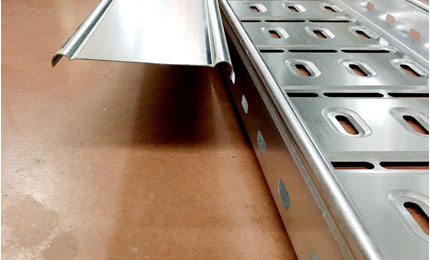

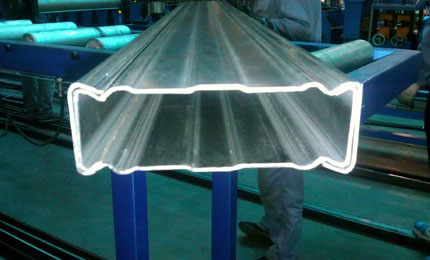

Finished panels Finished panels

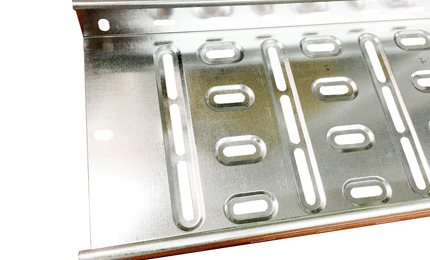

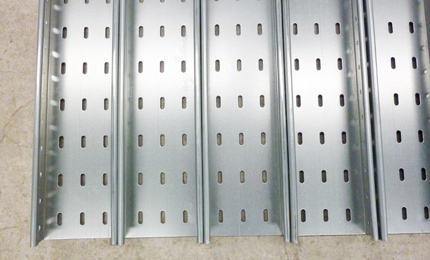

Finished panels tray samples

tray samples


Cable Tray Roll Forming Machine Working Flow


  • Decoiler & leveling unit

  • Steel sheet sensor

  • Punching system

  • Ervo feeding system

  • Under ground pit / over ground accumulator

  • Feeding table and guiding unit

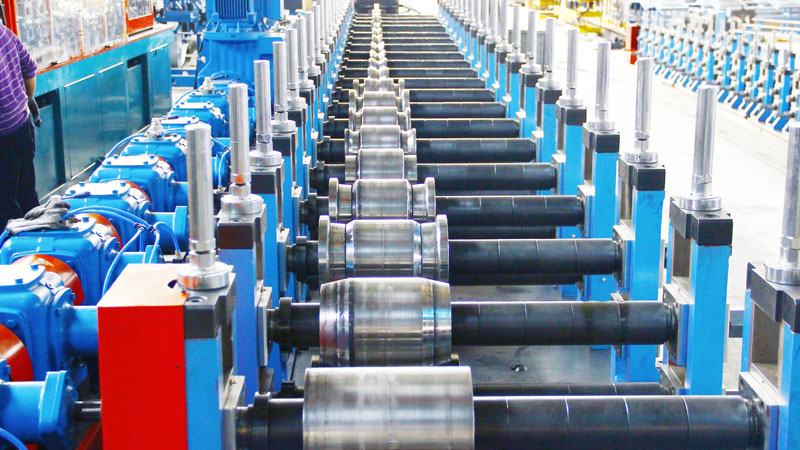

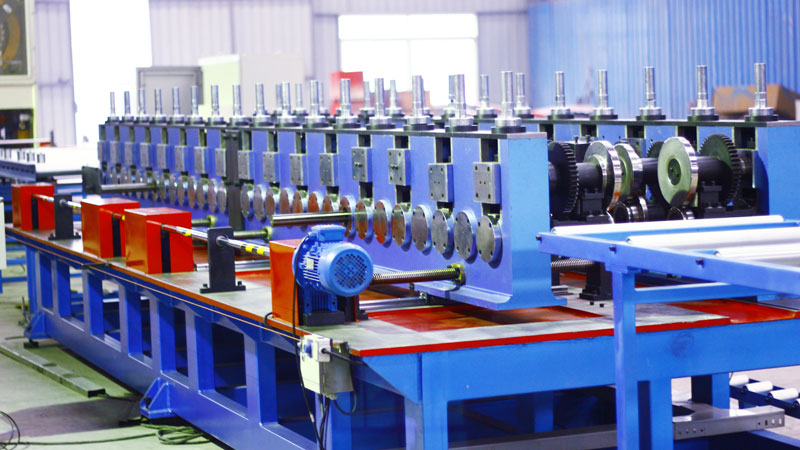

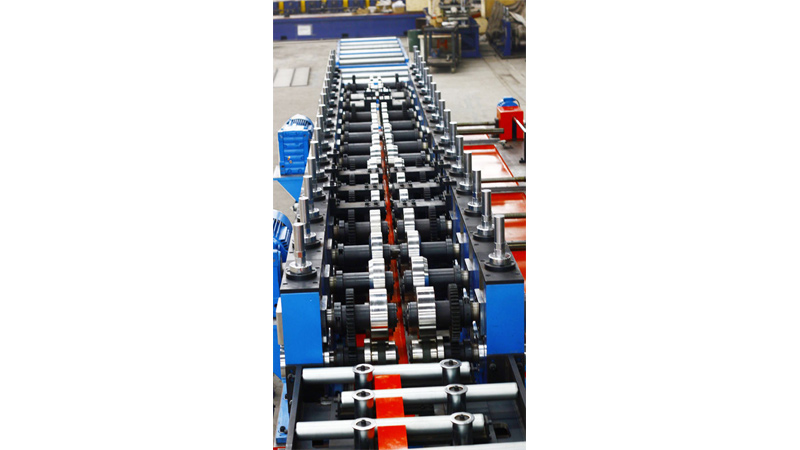

  • Roll forming system

  • Cutting to length

  • Micro-step enlargement device

  • Logo printer

  • Output supporter

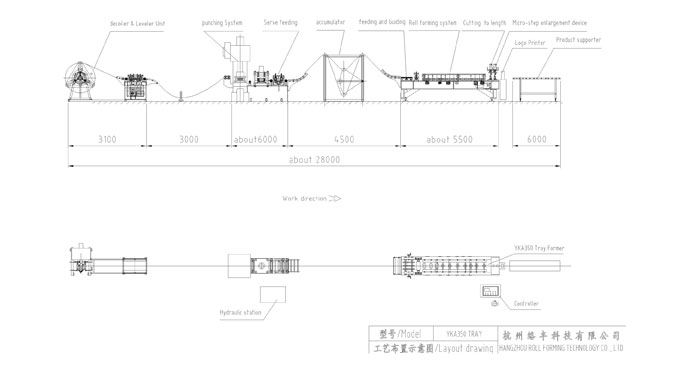

Cable Tray Roll Forming Line Layout

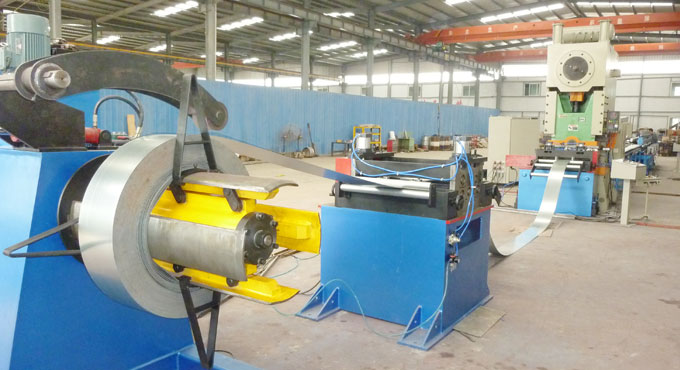

Layout

layout


Suitable Coil Sheet Material


Suitable materialGalvanized Steel
Barrier Thickness0.5-0.7/0.8-1.2 (mm)
Yield Strength230-300 (MPa)
Widthas profile requests



Production Line Components and Parameters

1. Decoiler:3t/5t/8t/10t
2. leveling device
3. Holes punching device
4. Servo Feeding Device
5. under ground pit/ over ground accumulating unitoptional
6. feeding and guiding device
7. Roll forming system20/min; line production speed: About 11m/min
8. cutting to length device
9. Micro-step enlargement device
10. logo printer
11. Output Automatic supporter
12. Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )


Related Information

Machine ConditionFully New, A Grade quality
Panel Shape            As profile drawing and customer’s requirements
Operator needed1-2 people
Power Supply            220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 25t
Dimension(L*W*H) about 32*3*2m
LOADING SIZENormally need 2 x 40' (+1x20’) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
