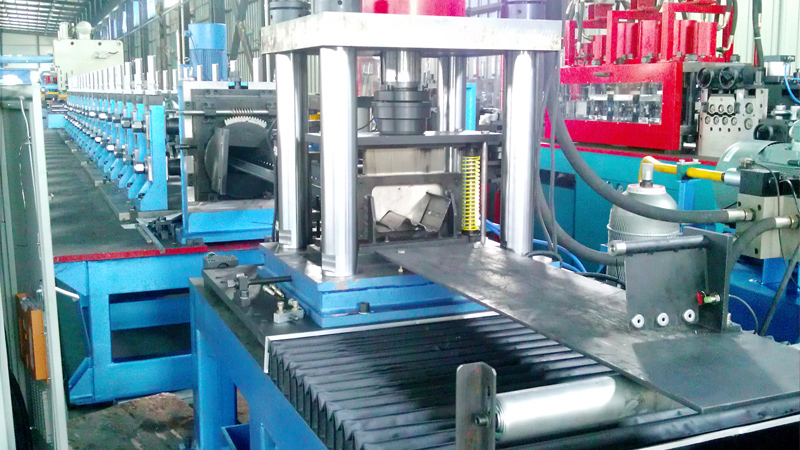

Heavy Duty Shelf Column Roll Forming Machine

Our heavy-duty shelf column roll forming machine has been widely used in the production of city shelves, storage shelves, super heavy shelves, and other profiles of cold roll forming. Adopting industrial control PLC and man-machine operation interface, this heavy plate rolling machine can effectively realize production automation. By inputting parameters such as hole spacing, product length and quantity, punching, molding, and cutting can be completed at one time during production.


Able to conduct continuous production without shutdown, these heavy plate rolling machines can ensure stable product quality with accurate sizes. With the help of machines in this series, you can not only lower the production cost of your shelf column roll racks but also greatly improve the working efficiency. In short, with multiple functions, our heavy plate rolling machines can be combined with different production needs so as to make the enterprises in the fierce market competition become more competitive.

Features and Advantages of Heavy Duty Shelf Column Roll Forming Machine

  • Cassette-type platform and quick-change machine base for multi-profile purposes are available for choice.

  • Both underground pit and overground accumulating devices are available for further selections.

  • Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.

  • With a non-stop punching, flying cutting system, this heavy plate rolling machine can reach the production speed of 30m/min.

  • Patents under both CE Certified and EUROPEAN quality standards

  • Ready heavy plate rolling machines in stock for prompt delivery.


Suitable Coil Sheet Material for Heavy Duty Shelf Column Roll Forming Machine

  • Suitable material: Cold/hot Rolled Steel, Galvanized Steel

  • Thickness: 1.0-2.0 (mm)

  • Yield Strength: 230-300 (MPa)

  • Width: As profile requests


Production Line Components and Parameters of Heavy Duty Shelf Column Roll Forming Machine

Decoile3T/5T/8T
Leveling device
Underground pit/ overground accumulating unitoptional
Servo Feeding Device
Holes punching device
Ground pit/ overground accumulating unitoptional
Guiding device

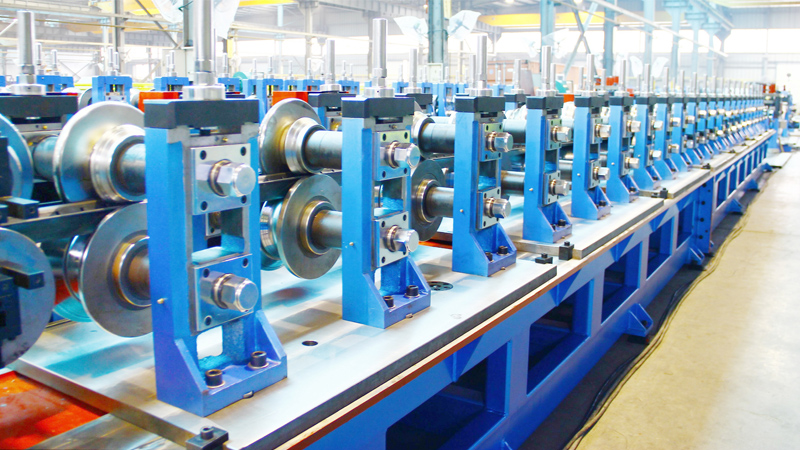

Roll forming system10-30m/min (adjustable)
Post cutting deviceflying cutting, tracking cutting and stop to cut are available for choice
Output SystemManual supporter/ Auto Stacker (optional)
Auto Stacker(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for holes punching /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )


Working Flow of Heavy Duty Shelf Column Roll Forming Machine

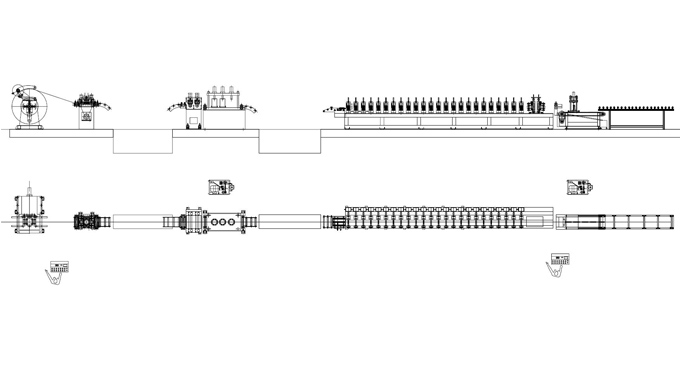

Decoiler - Leveling device - Ground pit/ overground accumulating unit (optional) - Servo feeding device - Hole punching device - Ground pit/ overground accumulating unit (optional) - Guiding unit  - Roll Forming System - Post-Cutting to length(flying cutting, tracking cutting, and stop to cut are available for choice)layout drawing

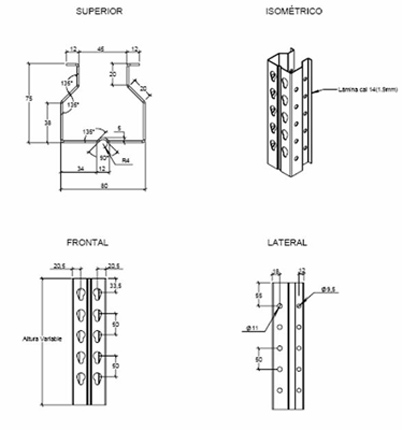

Rack Profile Drawings

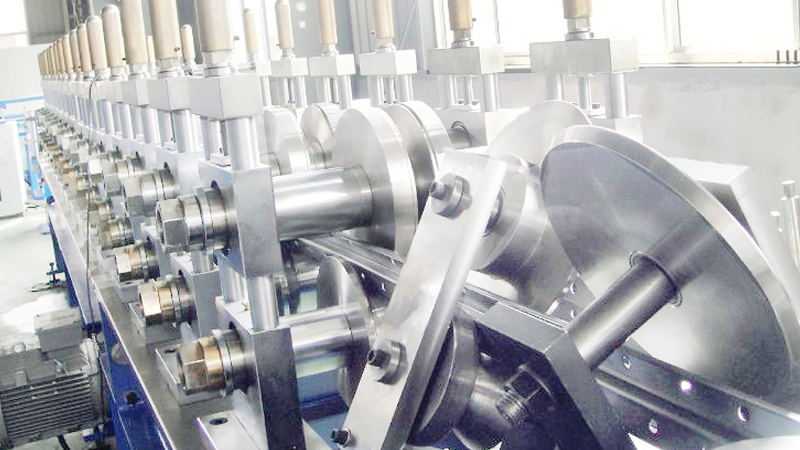

Heavy Plate Rolling Machine

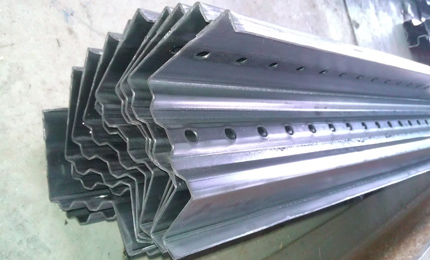

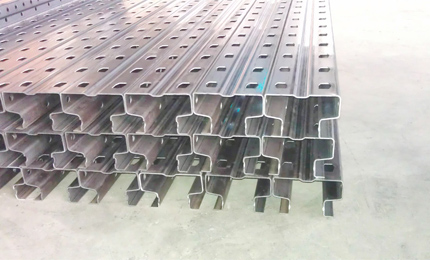

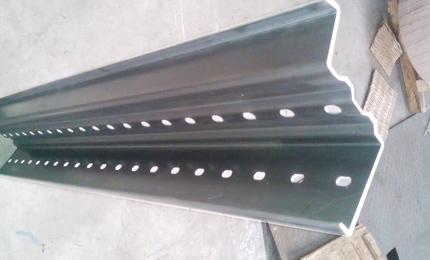

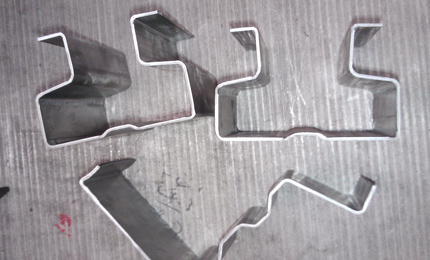

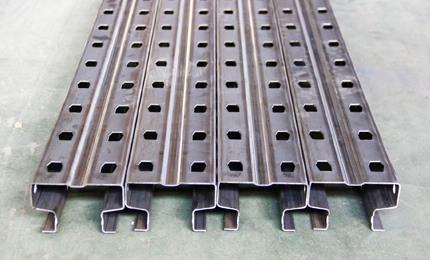

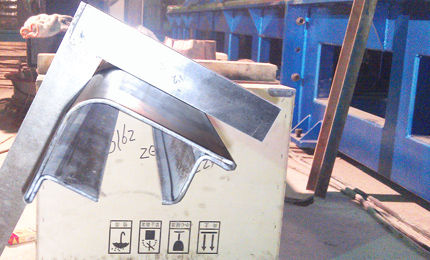

Finished Panels by Heavy Duty Shelf Column Roll Forming Machine

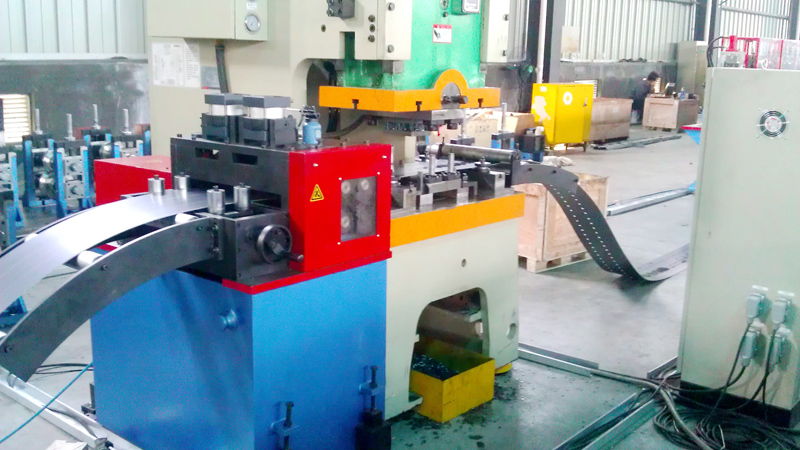

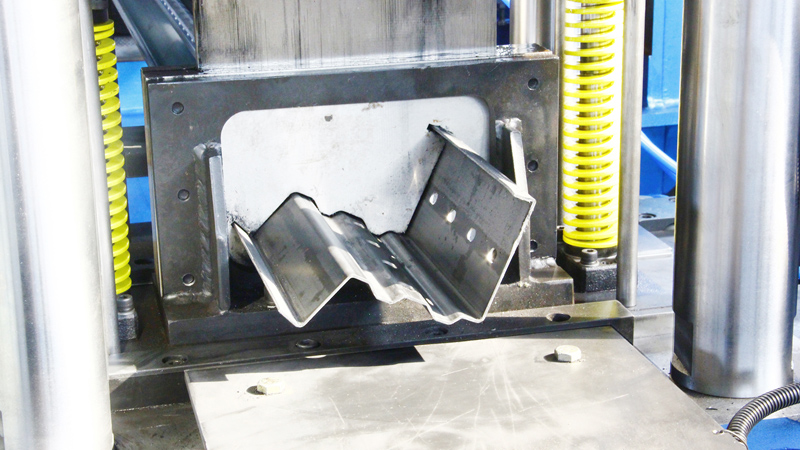

Heavy Plate Rolling MachineHeavy Plate Rolling Machine

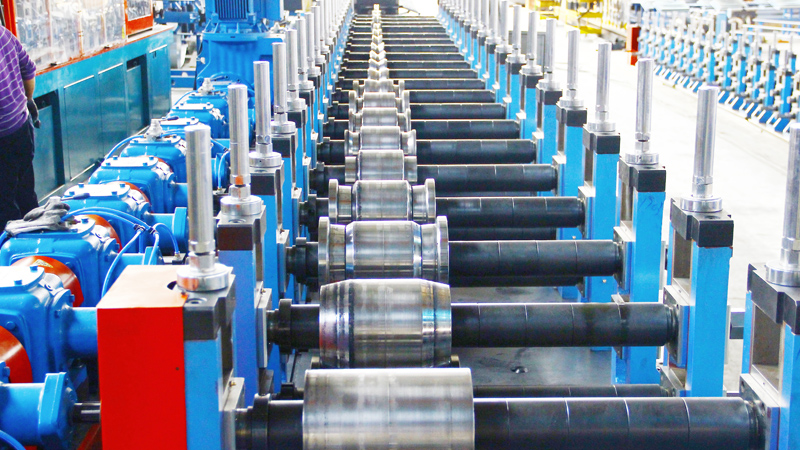

Heavy Plate Rolling MachineHeavy Plate Rolling Machine

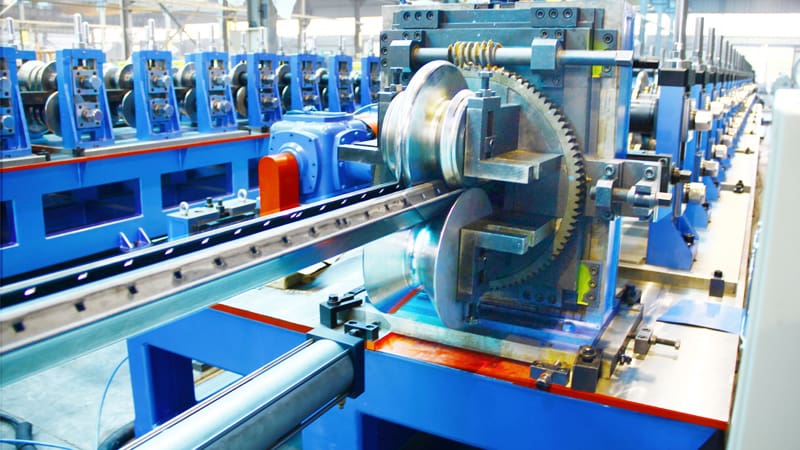

Heavy Plate Rolling MachineHeavy Plate Rolling Machine

Heavy Plate Rolling Machine


Specification of Heavy Duty Shelf Column Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weightabout10-20T
Dimension(L*W*H) about 30*3*2m
LOADING SIZENormally need 2 x 40' container
Equipment Colornormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
