High Speed Roofing Tile Making Machine

The high-speed roofing tile roll forming machine is for continuously roll forming and pressing step tiles sheets. The step length of this series can be set up and the depth of each step is adjustable. Its production speed of this series is about 8-10 m/min. Similar to other wall sheet roll forming machines, this high-speed roof tiling equipment is also certified with multiple patents. In addition, prompt delivery is also available.


Raw Materials for Roof Tile Machine

Material type:  Color coated Steel, Aluminum sheet

Thickness: 0.4-0.6(mm)

Yield Strength: 230-350 MPa optional

Width: 1200/1220/1250(mm)


Production Line Components and Parameters of Roof Tile Machine

1.Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2.Filming covering deviceoptional
3.Front shearoptional
4.Lubricating deviceno need
5.Roll forming systemindividual standing column structure
6.Safety coveroptional

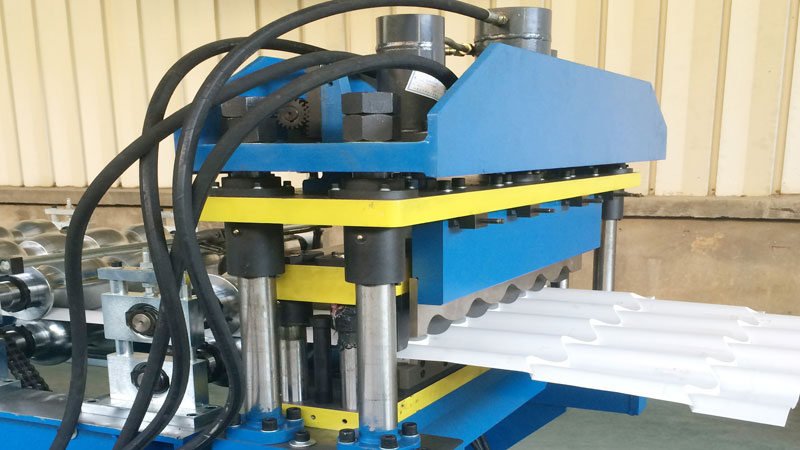

7.Step pressing unitStep length, depth, head & end length is adjustable
8.Post cuttinghydraulic
9.Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
10.Hydraulic systemPower supply for decoiler /post-cutting system
11.Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Step Roof Tile Line Layout

Step Roof Tile Line Layout


Working Flow of High-Speed Roofing Tile Making Machine

The working flow of our roof tiling equipment for sale usually goes as follows: Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System

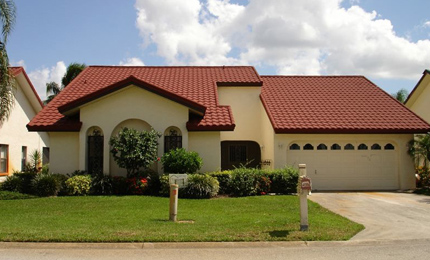

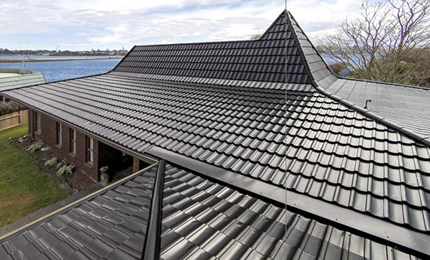

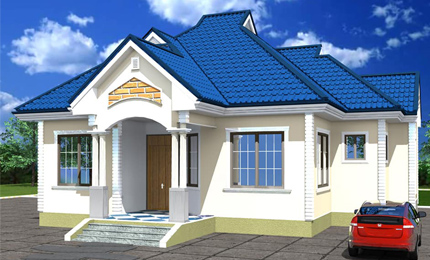

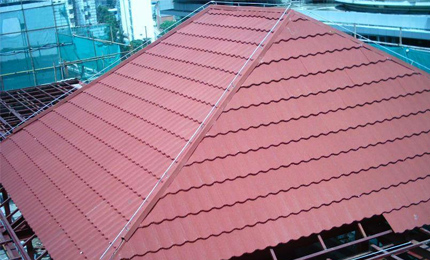

Advantages Of Tile Roof

Metal Roofing tiles perform the elegant style of traditional roof tile and suit every architectural design. What's more, it is much more convenient and takes a shorter time for installation.

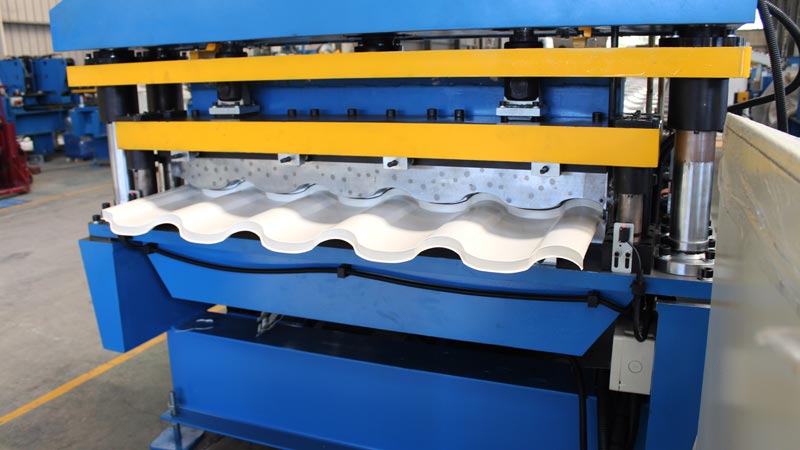

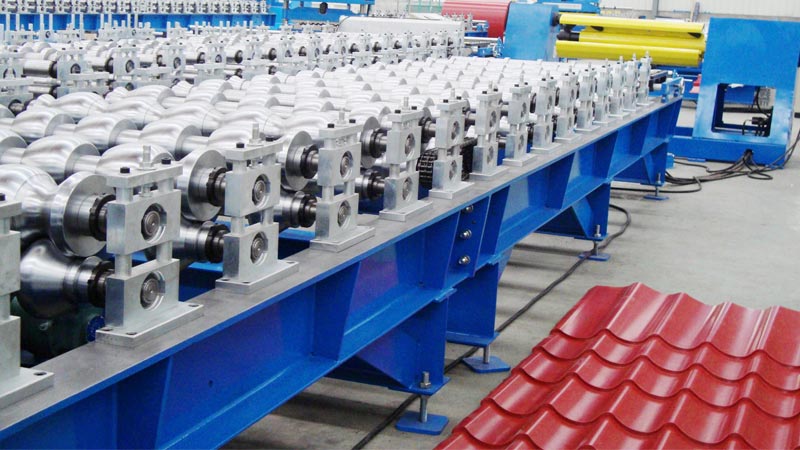

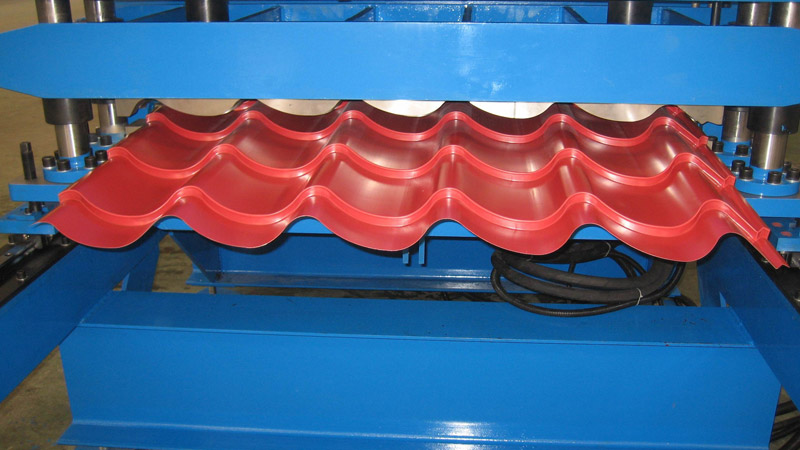

Roof Tile Forming MachineRoof Tile Forming Machine

Roof Tile Forming MachineRoof Tile Forming Machine

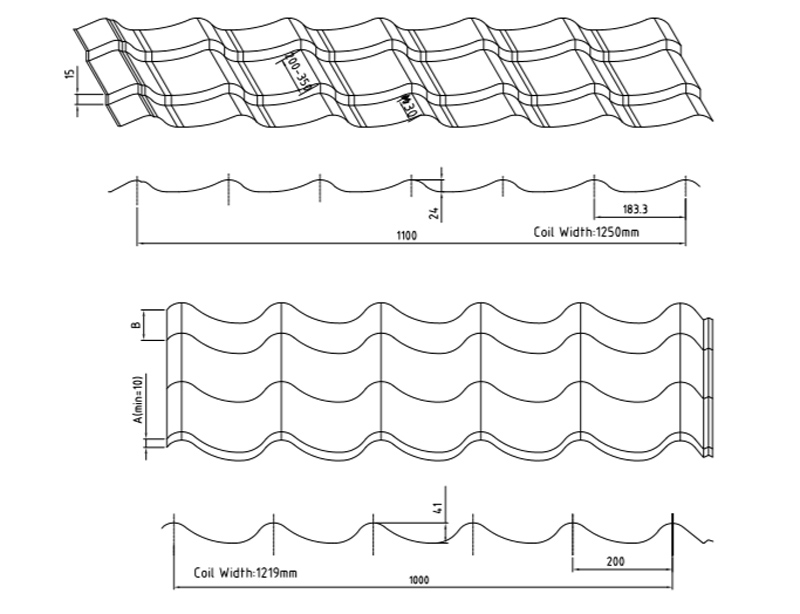

Roofing Tile Drawings


Roof Tile Forming Machine

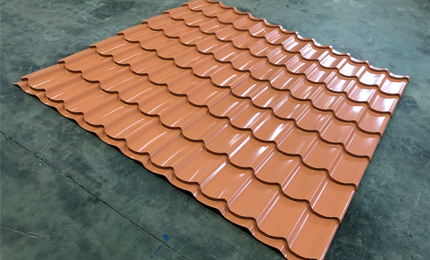

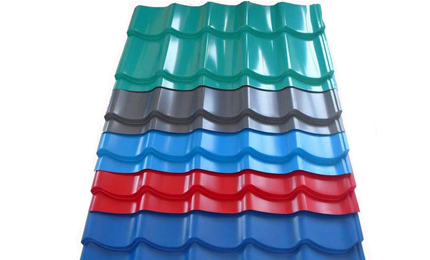

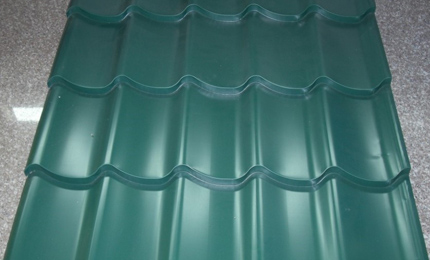

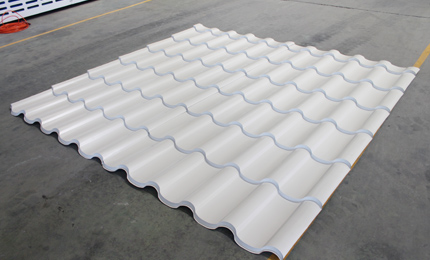

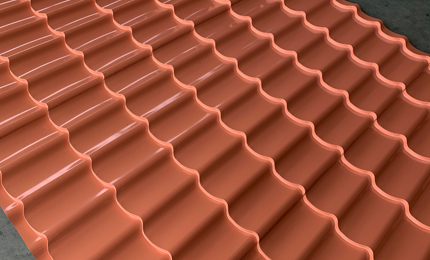

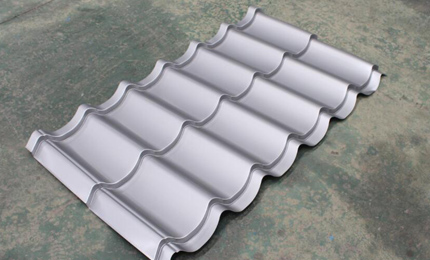

Finished Roofing Tiles by High-Speed Roof Tiling Equipment


Roof Tile Forming MachineRoof Tile Forming Machine

Roof Tile Forming MachineRoof Tile Forming Machine

Roof Tile Forming MachineRoof Tile Forming Machine

Specifications of Roof Tile Machine for Sale

Machine ConditionFully New,A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension  (L*W*H)about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
