C Purlin Roll Forming Machine

The C channel forming machine produced by Hangzhou Roll Forming Technology is manufactured with advanced technologies. Not only does this series have a beautiful design, but it is also greatly economical and practical. This C purlin forming machine series uses the industrial-grade computer motion control system to assist its intelligent digital operation interface. With the superior humanized design, our C channel roll forming machine is easy to use. Produced by Hangzhou Roll Forming Technology Co., Ltd, one of the professional C purlin machine manufacturers in China, this C purlin machine series possess both stable performance and reliable quality!


Features and Advantages of C Purlin Roll Forming Machine

  • Fully automatic continuous C profile purlin roll forming machine for both heavy and light-duty use.

  • Adopts changing spacers to make multi sizes profiles sections.

  • Inline flexible punching system integrated

  • Pre-cutting and Post cutting is optional: If need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.

  • If profile sizes are not so many, post-cutting can improve profile quality greatly.

  • Forming speed: 12-15 m/min

  • Certified with Multi-Patents: CE Certified, EUROPEAN quality standard

  • For most hot & popular models, we have ready c purlin forming machines in stock for prompt delivery.


Suitable Coil Sheet Material for C Purlin Roll Forming Machine

Suitable material:
Cold/hot Rolled Steel, Galvanized Steel
Thickness:
2.0-3.0(mm)
Yield Strength:
230-300 (MPa)
Width:
as profile requests


Production Line Components and Parameters of C Purlin Roll Forming Machine

1. Decoiler3t/5t Motor/hydraulic motor/passive (optional)
2. Feeding table
3. Leveling device
4. Holes punching deviceas profile requests

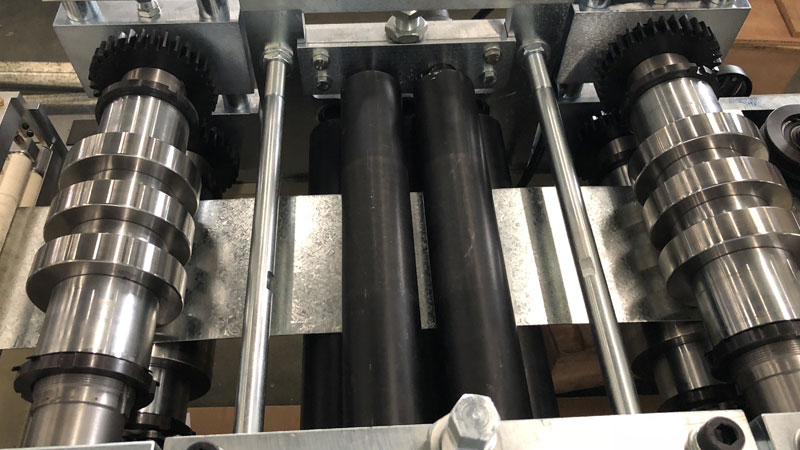

5. Roll forming system12-15m/min
6. Safety coveroptional
7. Post cutting device
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for holes punching /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )

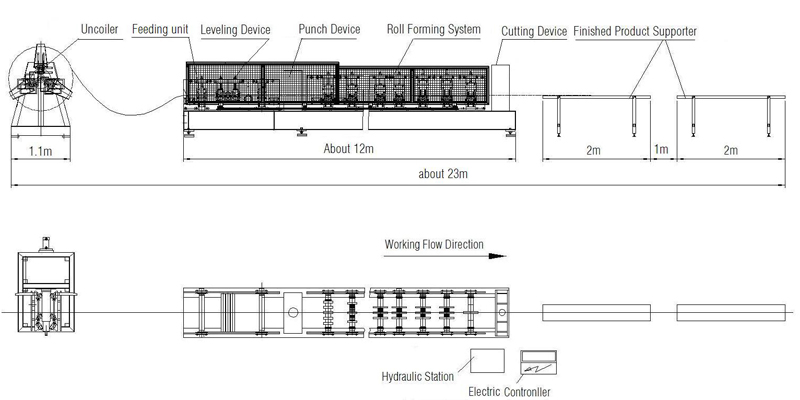

C Purling Making Line Layout

Making Line Layout of C Purlin Forming Machine


Working Flow of C Purlin Roll Forming Machine

Pre-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)


Post-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)

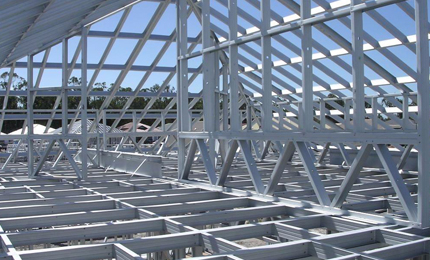

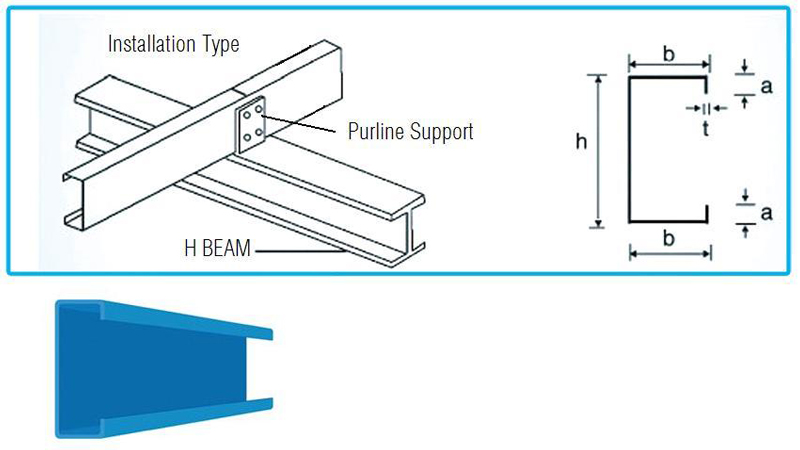

C Purlin Installation

C Channel Purlins for Sale Installation

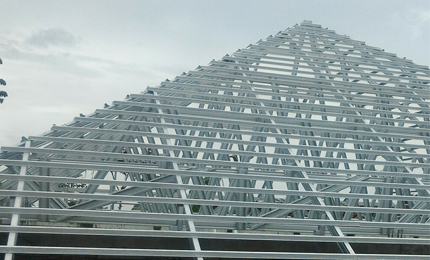

C Purlin Roll Forming Machine Application

C-shaped steel is widely used in purlins and wall beams of steel structures, and can also be combined into lightweight roof trusses and brackets. In addition, most C channel purlins for sale can also be used for columns, beams, and arms in the manufacture of mechanical light industries. As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel building materials are used more and more widely.

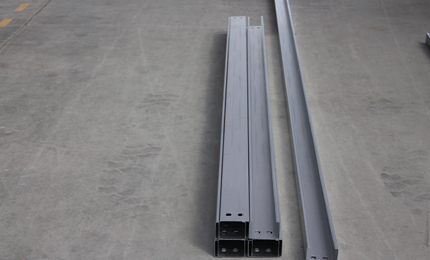

C Channel Purlins For SaleC Channel Purlins For Sale

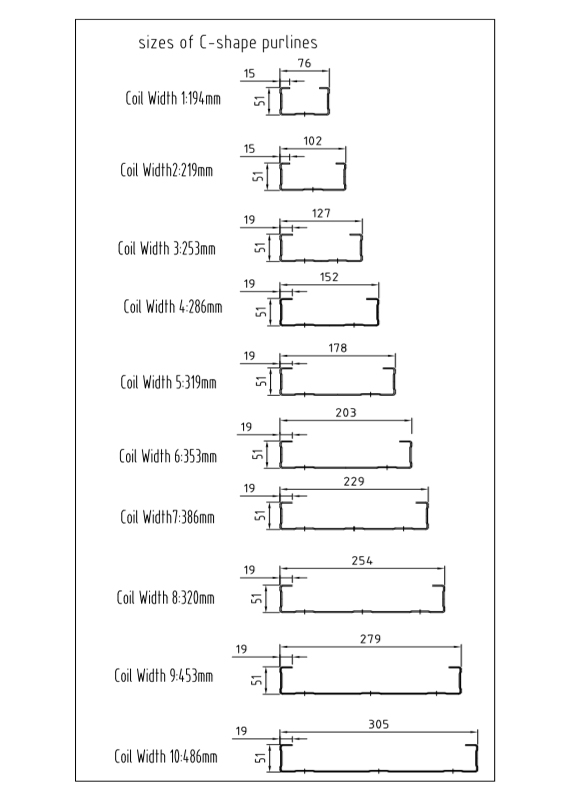

Popular C Purlin Profile Drawings

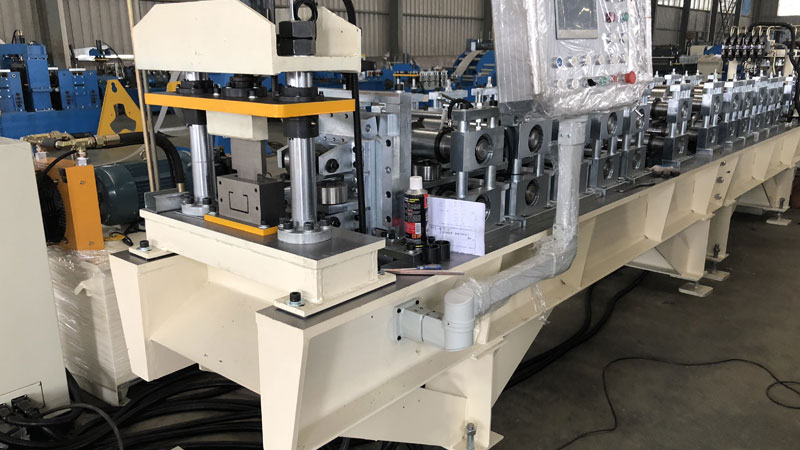

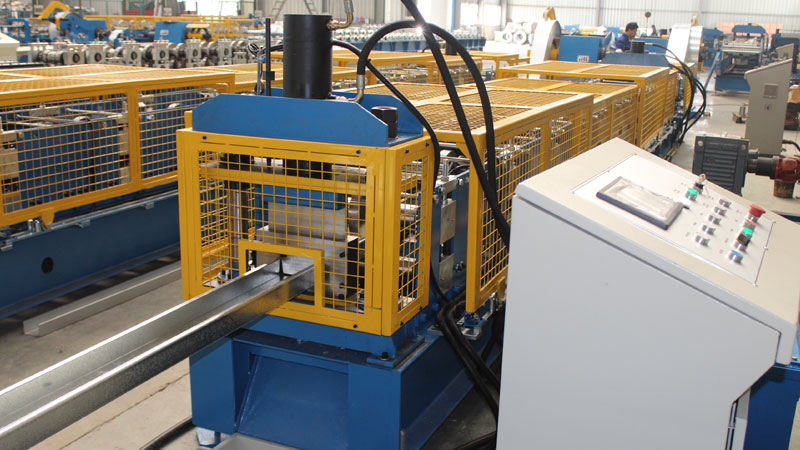

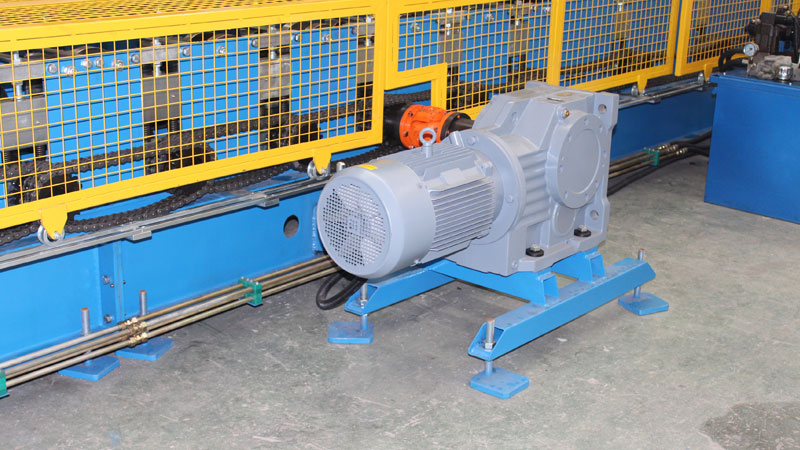

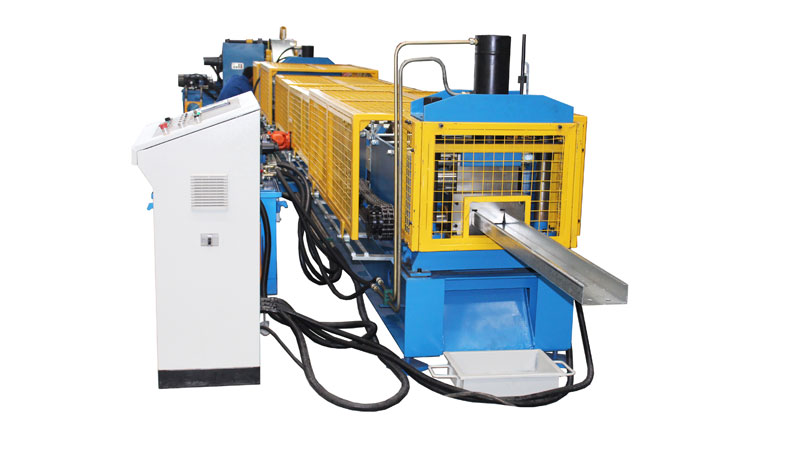

C Purlin Machine ManufacturersC Purlin Machine Manufacturers

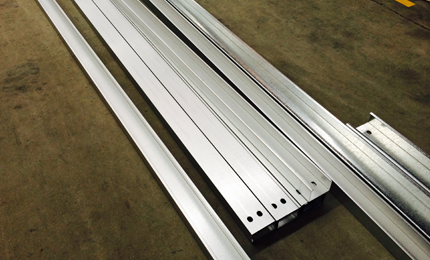

C Purlin Images

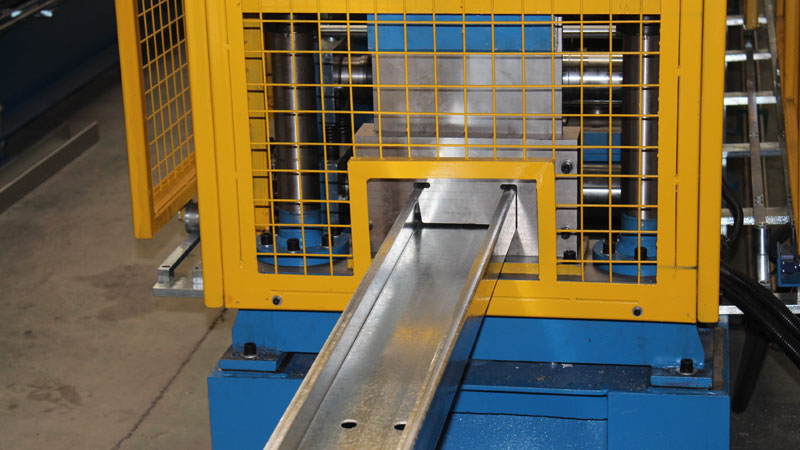

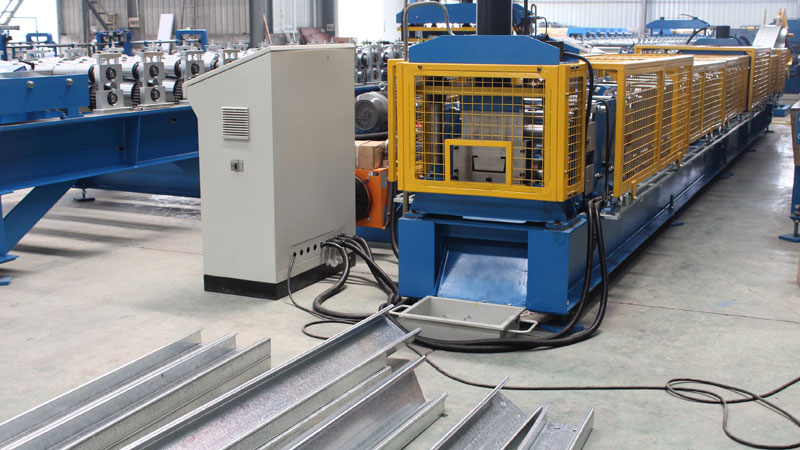

The below C purlin images will show you some finished C purlin panels completed by our C-Purlin roll forming machines.

C Purlin ImagesC Purlin Images

C Purlin ImagesC Purlin Images

C Purlin ImagesC Purlin Machine


Specification of C Purlin Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout12t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP)container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
