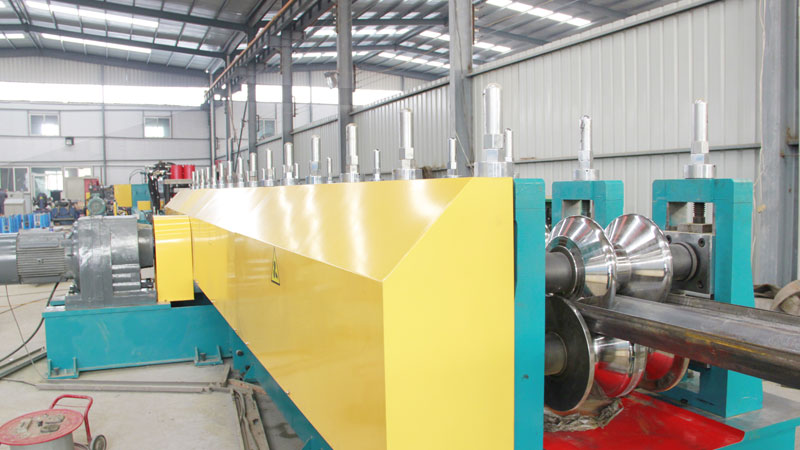

Highway Guardrail & Fence Post Roll Forming Machine

Highway Guardrail Roll Forming Machine
Highway Guardrail Roll Forming Machine
Highway Guardrail Roll Forming Machine
Highway Guardrail Roll Forming Machine Manufacturers
Highway Guardrail Forming Machine
Highway Guardrail Machine
Fence Post Roll Forming Machine

Features and Advantages of Highway Guardrail & Post Roll Forming Machine


  • Cassette type quick-change Machine base for multi-profile purposes: 2-wave barriers, 3-wave barriers, and standing posts.

  • High-speed TOP grade production line: Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for choice to improve production speed greatly.

  •  The Max line production speed can reach 20m/min: barrier 30-40 Ton/8 hours and post 10-12 ton/8hours

  • Both underground pit and overground accumulating devices are available for choice.

  •  Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

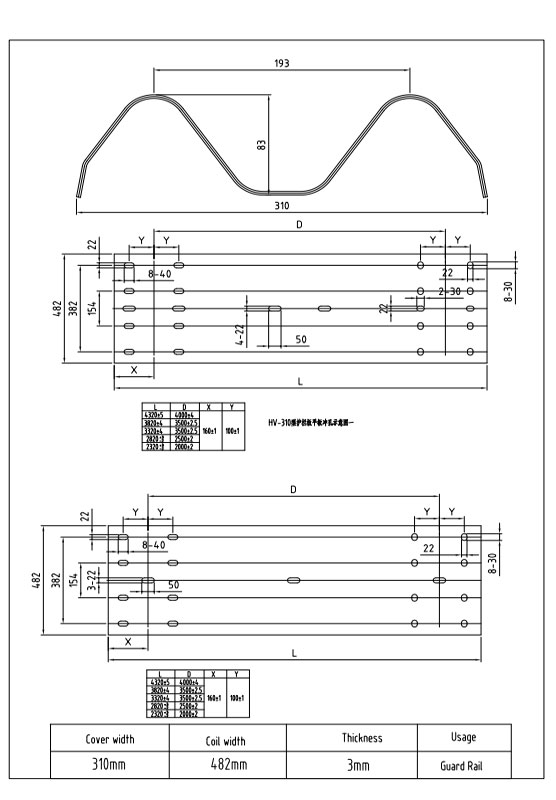

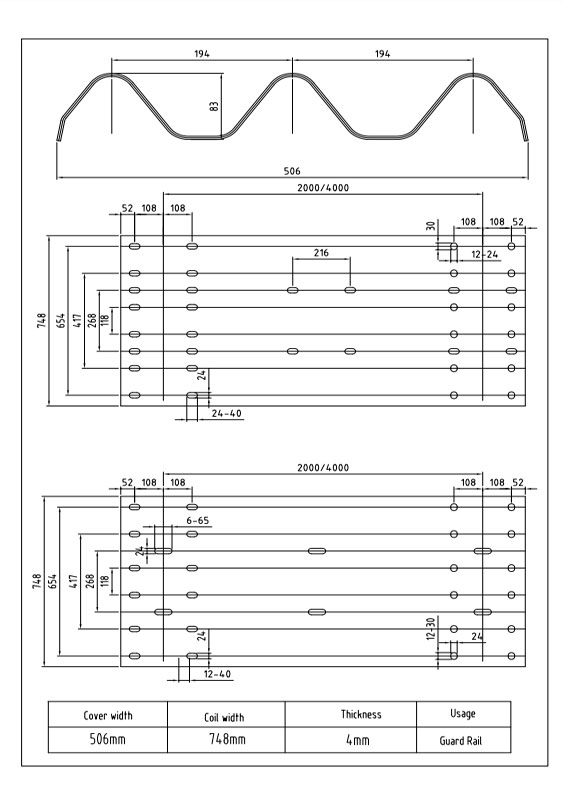

Profile Drawings

Highway Guardrail&PostRoll Forming line profile drawing  Highway Guardrail&PostRoll Forming line profile drawing

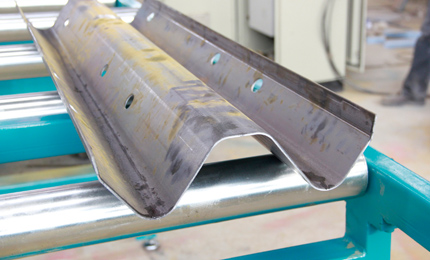

Finished Panels

Barrier SamplesEnd Sample

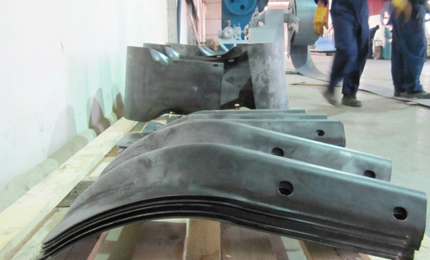

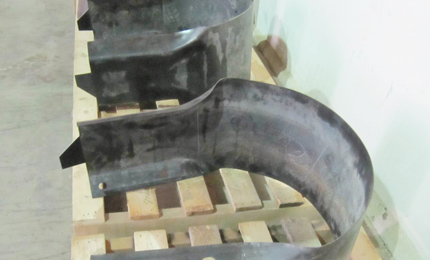

End Samples


Highway Guardrail & Post Roll Forming Machine Working Flow


  • Uncoiler

  • Leveling device

  • Cutting coil ends and butt-welding device

  • Ground pit/ over ground accumulating unit

  • Servo feeding device

  • Hole punching device

  • Ground pit/ over ground accumulating unit

  • Feeding and guiding unit

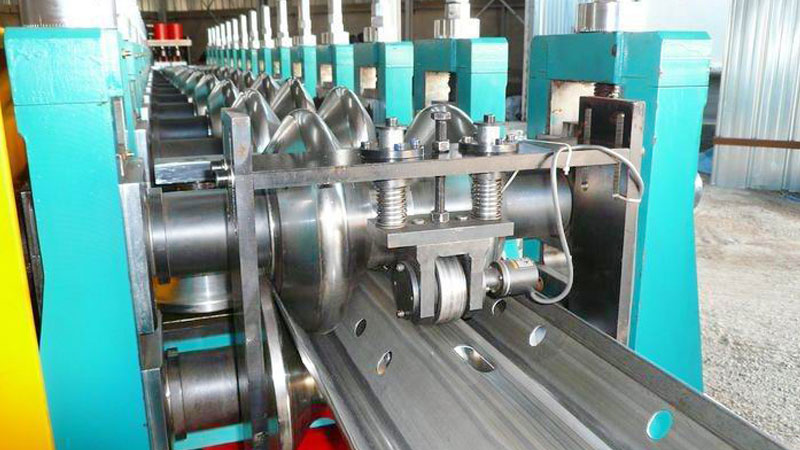

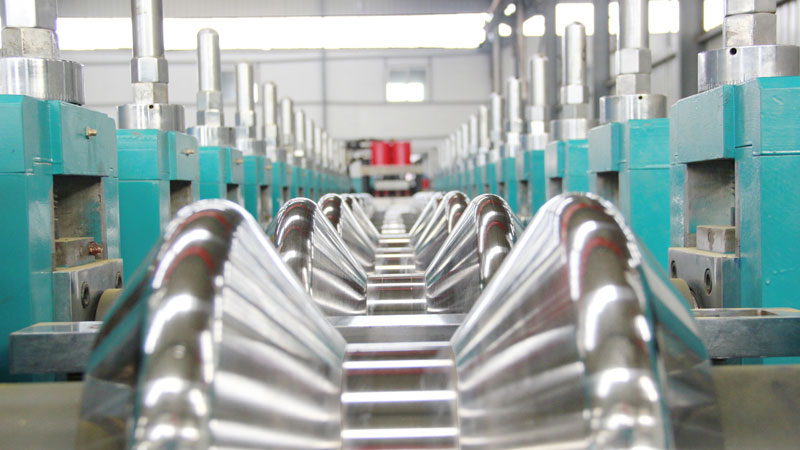

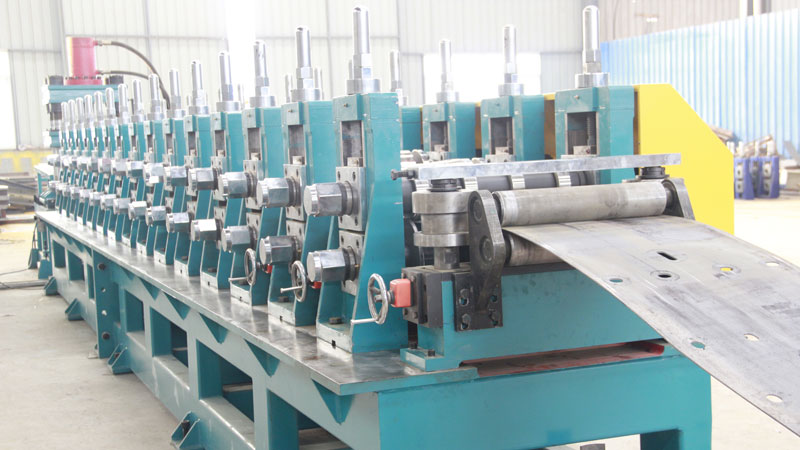

  • Roll Forming System

  • Straighter

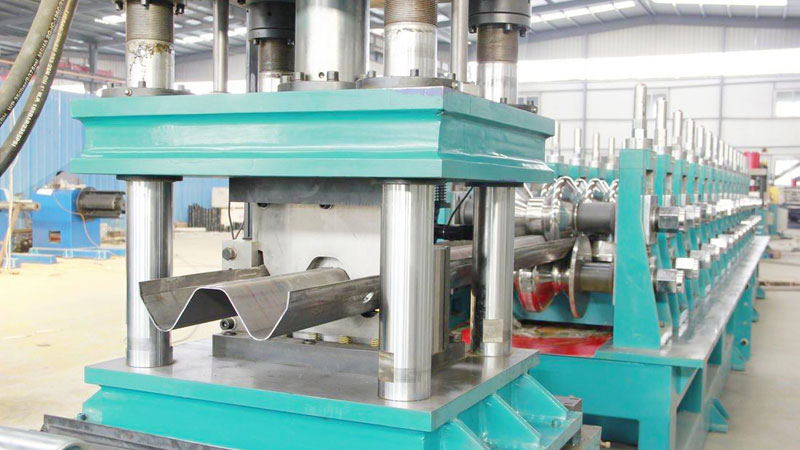

  • Flying tracking Cutting to length

  • Output Automatic Stacker

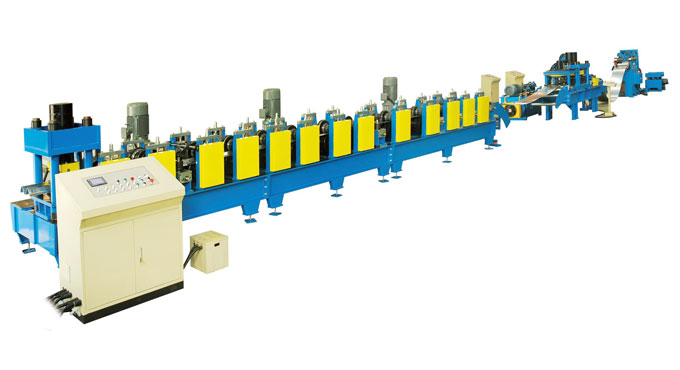

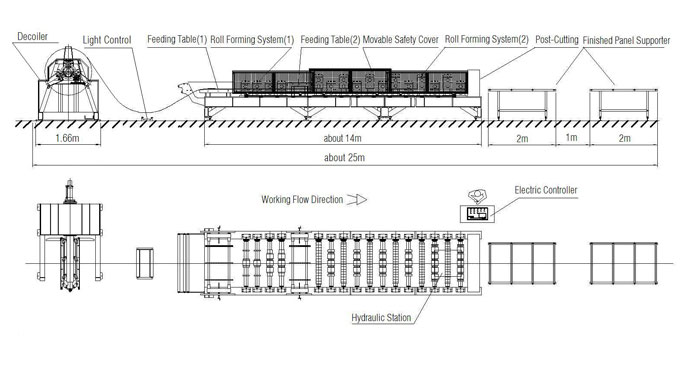

layout

layout


Suitable Coil Sheet Material

Suitable materialCold/hot Rolled Steel, Galvanized Steel
Barrier Thickness3.0 (mm)
Post thickness5.0(mm)
Yield Strength230-300 (MPa)
Widthas profile requests


Production Line Components and Parameters

1. Decoiler5t/8t/10t/15t
2. leveling device
3. coil ends butt-welding device
4. under ground pit/ over ground accumulating unitoptional
5. Servo Feeding Device
6. Holes punching device
7. ground pit/ over ground accumulating unitoptional
8. feeding and guiding device
9. Roll forming system10-30m/min (adjustable)
10. straighter
11. flying cutting deviceno-stop, tracking
12. Output Automatic StackerLateral/Longitudinal (optional)
13. Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )


Related Information

Machine ConditionFully New, A Grade quality
Panel Shape            As profile drawing and customer’s requirements
Operator needed1-2 people
Power Supply            220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 40t
Dimension(L*W*H) about 32*10*2m
LOADING SIZENormally need 3 x 40' (+1x20’) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
