Features and Advantages of Crash Barrier Roll Forming Machine


  • Cassette type quick-change Machine base for multi-profile purposes: 2-wave barriers, 3-wave barriers, and standing posts for choice.

  • Both underground pit and overground accumulating devices are available for choice.

  • If the ground pit is not allowed, no problem! This equipment line can run without any foundations or underground pit accumulators.

  • Forming Speed: 20m/min, line production speed 10-17m/min; 25-35 T/8 hours

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

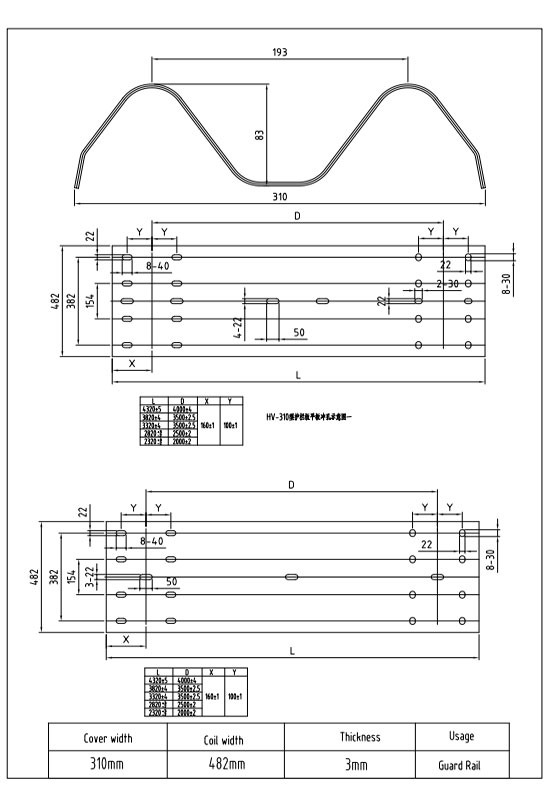

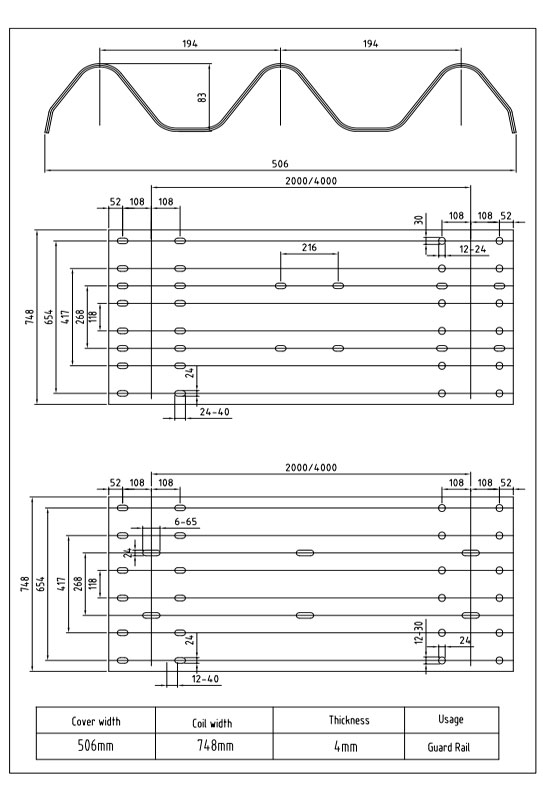

Profile Drawings



Crash barrier Roll Forming Machine profile drawing   Crash barrier Roll Forming Machine profile drawing

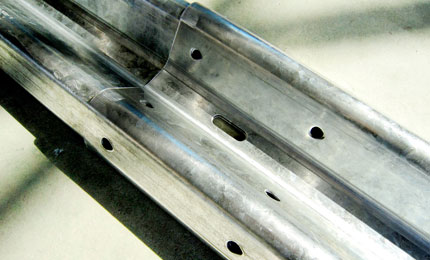

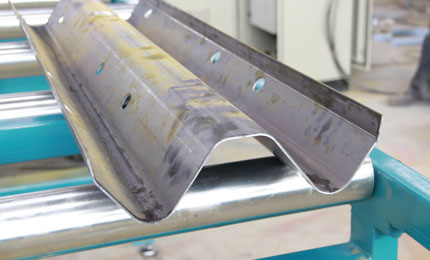

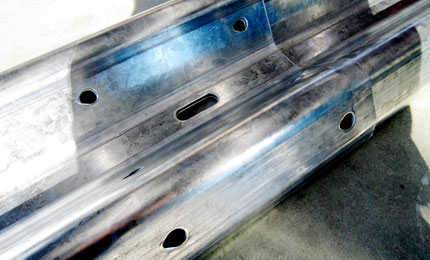

Finished panels



Finished panels




Crash Barrier Roll Forming Machine Working Flow


  • Uncoiler

  • Leveling device

  • Servo feeding device

  • Hole punching device

  • Ground pit/ over ground accumulating unit

  • Feeding and guiding unit

  • Roll Forming System

  • Post cutting to length

  • Output Automatic Stacker

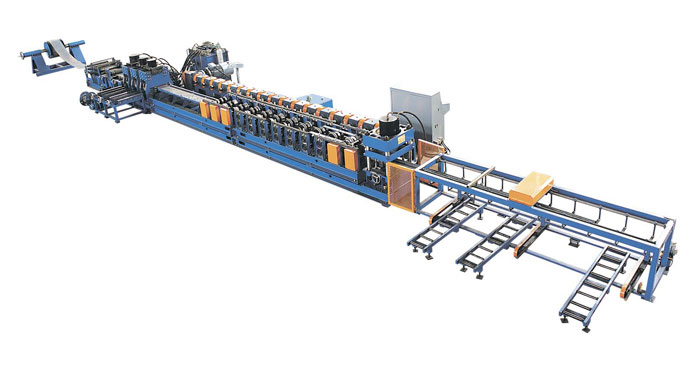

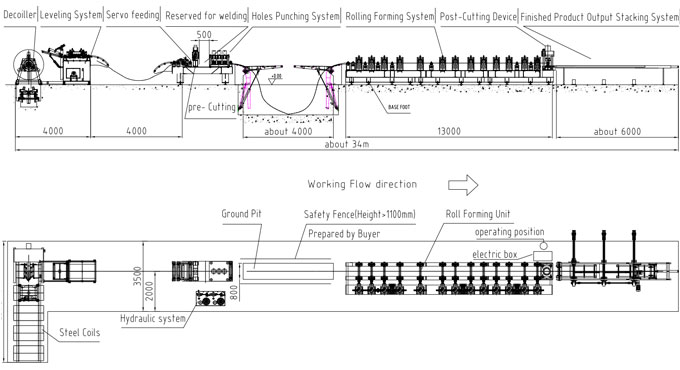

layoutWORKING FLOW

Suitable Coil Sheet Material

Suitable materialhot Rolled Steel, Galvanized Steel
Barrier Thickness3.0 (mm)
Yield Strength230-300 (MPa)
Width482/748mm as profile requests


Production Line Components and Parameters

1. Decoiler5T/8T/10T
2. leveling device
3. Servo Feeding Device
4. Holes punching device
5. ground pit/ over ground accumulating unit(optional)
6. feeding and guiding device
7. Roll forming system10-30m/min (adjustable)
8. post cutting device
9. Output Automatic Stacker: Lateral/Longitudinal(optional)
10. Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested)


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 people
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 35t
Dimension(L*W*H) about 30*6*2m
LOADING SIZENormally need 3 x 40' (+1x20’) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
