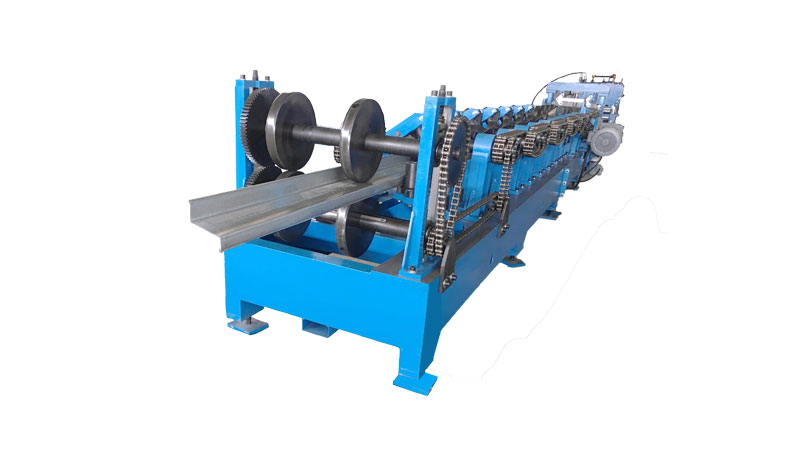

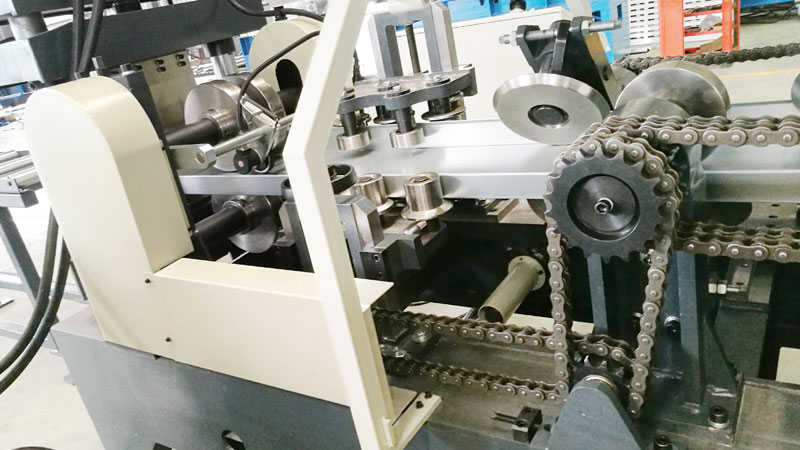

Z Purlin Roll Forming Machine

Z Purlin Roll Forming Machine Introduction


This is Z-shaped steel forming machine. Z-shaped steel is a common cold-formed thin-walled steel with a thickness of 1.6-3.0mm and a cross-sectional height of 120-350mm. Cold-formed Z-shaped steel has the advantages of adjustable size and large compressive strength. It is widely used in automobiles, railway vehicles, building doors and windows, transportation, shelves, electrical cabinets, highway guardrails, building steel structures, containers, steel formwork and scaffolding, solar energy Bracket shipbuilding, bridges, transmission towers, steel sheet piles, cable trays, agricultural machinery, furniture, storage, guide rails, keel steel, vegetable greenhouses, pipeline supports, municipal construction and other fields.


Features and Advantages of Z Purlin Roll Forming Machine

  • Fully automatic continuous Z profile purlin roll forming machine for both heavy and light-duty use.

  • Adopts changing spacers to make multi sizes profiles sections.

  • Inline flexible punching system integrated

  • Pre-cutting and Post cutting is optional:


    If we need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.


    If profile sizes are not so many, post cutting can improve profile quality greatly.

  • Forming speed: 12-15 m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

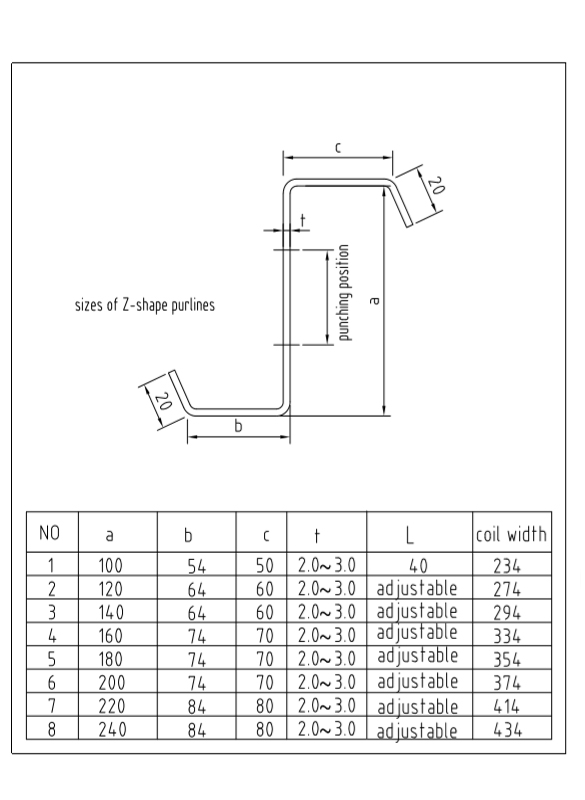

Popular Z Profile Drawings

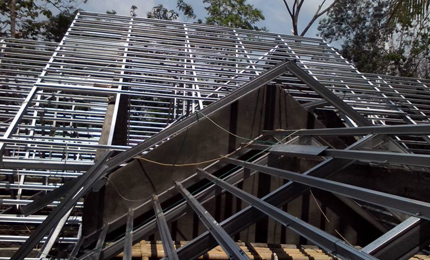

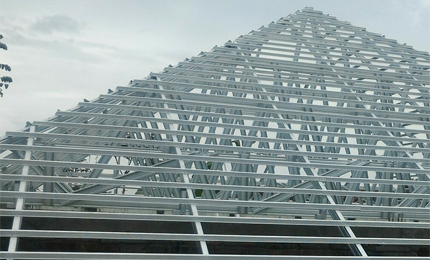

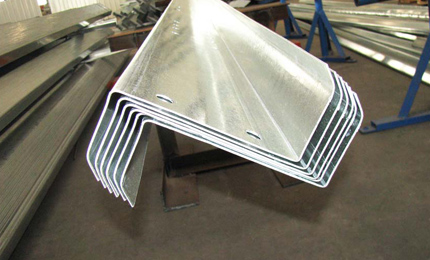

Finished Panels


Finished PanelsFinished Panels

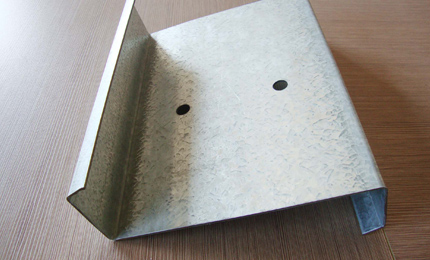

Finished Panels

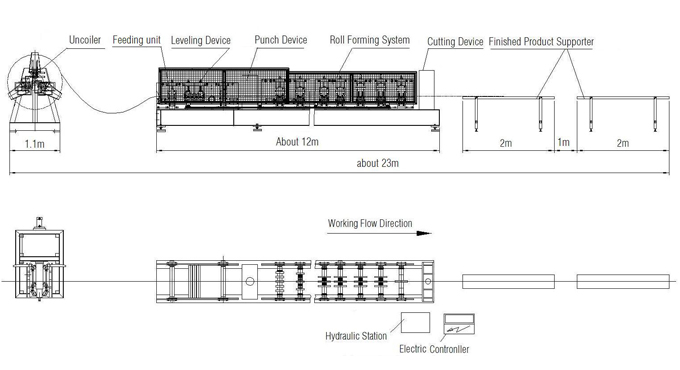

Working Flow

Pre-cutting flow:



Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)



Post-cutting flow:



Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)

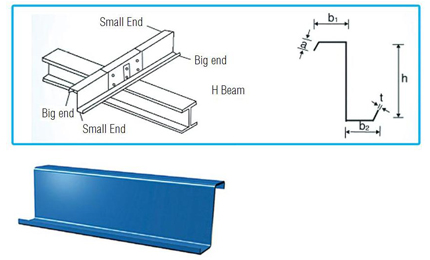

Installation Type of  Panel Structure Purlin Roll Forming Machine


C Steel InstallationZ Installation



Panel Structure Purlin Roll Forming Machine Application

As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel building materials are used more and more widely.

It suits for various Light Steel structure construction, civil-construction and mansions building.


Panel Structure Purlin Roll Forming Machine ApplicationPanel Structure Purlin Roll Forming Machine Application


Suitable coil sheet Material

Suitable material:    Cold/hot Rolled Steel, Galvanized Steel

Thickness:    2.0-3.0(mm)

Yield Strength:   230-300 (MPa)

Width:  as profile requests


Production line Components and Parameters

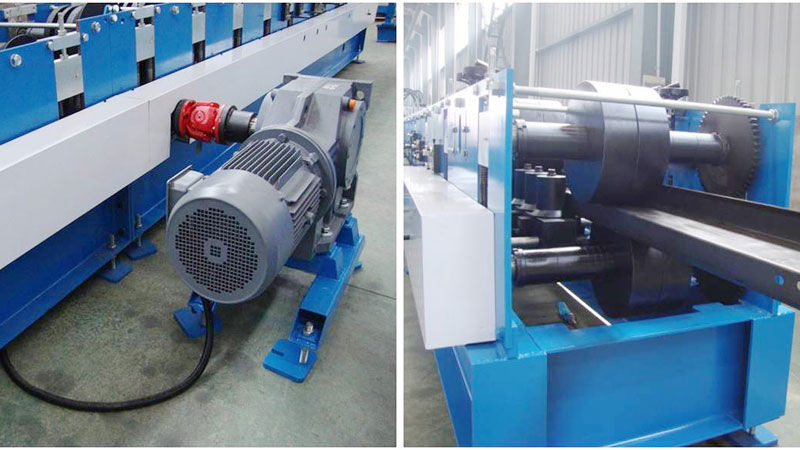

Decoiler3t/5t Motor/hydraulic motor/passive (optional)
Feeding table
Leveling device
Holes punching deviceas profile requests
Roll forming system12-15m/min
Safety coveroptional

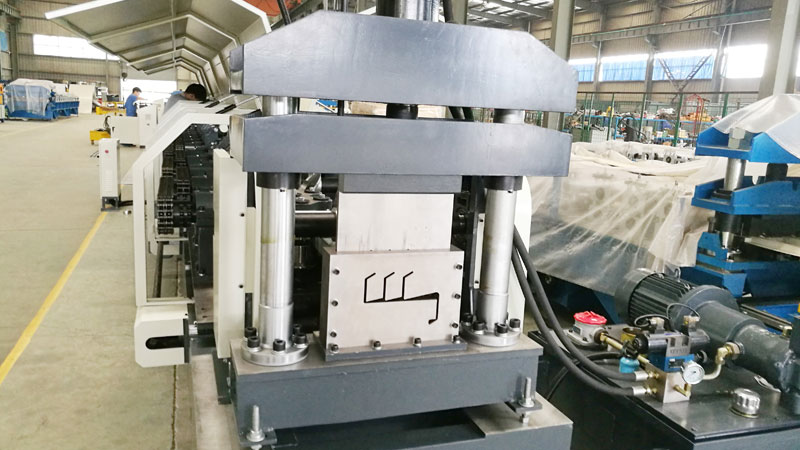

Post cutting device
Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for holes punching /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )


Related information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout12t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP)container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Related Z Purlin Roll Forming Machine
Video
Hangzhou Roll Forming Technology Co., Ltd - China, founded in 2003, is a professional manufacturer of high-end, non-standard construction machinery and equipment.
