The cold roll forming machine is the equipment for continuously processing metal sheets of a coil, a strip, by a multi-pass forming roller which is a plastic processing process to form a specific section profile.
Hangzhou Roll forming Trecinogy Co.，Ltd is a professional forming machine manufacturer and exporter of all kinds of standard and nonstandard roll forming machinery. We offer various sheet metal and coil metal roll forming machines such as shelf and roll forming machines, downspout roll foming machines, double layer roll forming machines,roof sheeting machine,and manual corrugated iron roller for sale with the reliable process, high productivity, high reliability.
Our roll forming equipment consists of decolier machine, feeding table, guiding equipment, roll forming system, post-cutting system (electric o hydraulic), controlling system and hydraulic station. Wide variety of cold-formed steel, from the sub-section shape, with open, semi-closed and closed, the main products of roll forming machine are cold-formed channel steel, angle steel, Z section steel, cold-formed corrugated steel, pipe, square tube, rectangular tube, welded tube-shaped, rolling shutter doors and so on. Steel cross-section shape can be designed: size, accuracy, and length can flexibly be adjusted according to need, all supplied by length or double length, improve maternal utilization. Production processes can also be matched with the punch, so as to meet different requirements.If you want to know about the roofing sheet roll forming machine price and products, please contact us!
With Light control
Separate Hydraulic station and control
|Adopting a guiding bar and sliding block to control the width and position of the steel sheet. The sheet is guided in the correct position and runs to the roll forming equipment.
|Roll Forming System
|1. Roof rolling machine frame: welding structure with blasting treatment
2. The roller is made by high-quality no.45 steel with hard chrome-painted
3. Roller inner supporting structure type: guiding column
4. Planetary gear speed reducer motor-driven, back/forward roller driven by a chain, part of upper/lower rollers driven by gear.
5. Adjust the screw bar manually to adjust the distance between upper/lower rollers for different thicknesses of the sheet.
|Punching die and Cutting Device
|1. The cutting blade material of roof making machine is Cr12 with quenched treatment, there is no material wasted.
2. The power of cutting is provided by a Hydraulic station.
|To support the finished panels manually and the length of each piece is 2 meters, two pieces.
|Electrical Control System
With PLC control and frequency speed adjusting technology to realize the automatic production
|1. Provide power to cutting.
2. Adopts separated hydraulic station
3. Main valve adopts China brand.

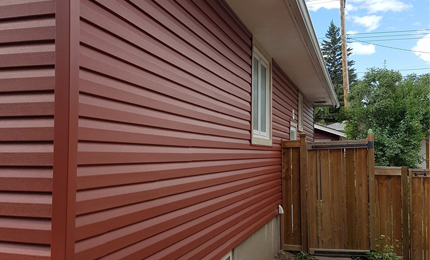

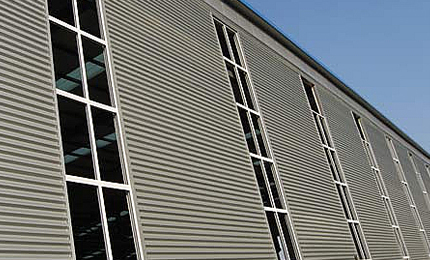

Normally the thickness of the roof/wall panel ranges from 0.23mm to 1mm. If customers want to make the thicker panels, we can also design the machine.

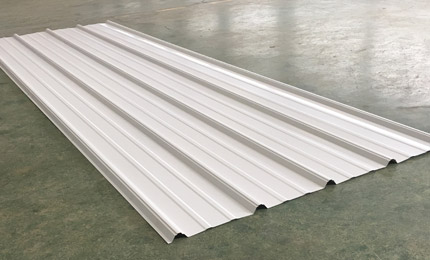

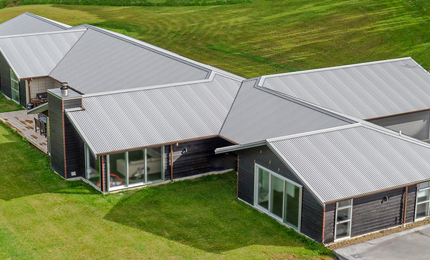

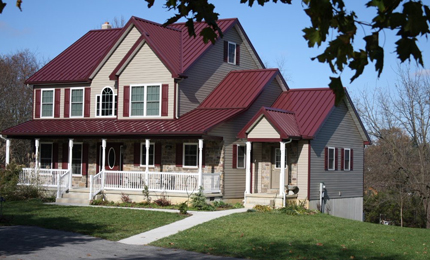

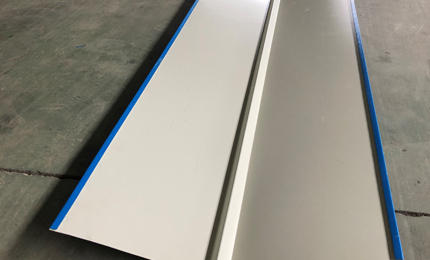

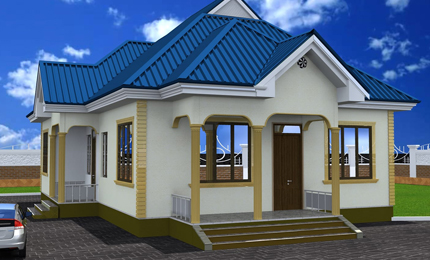

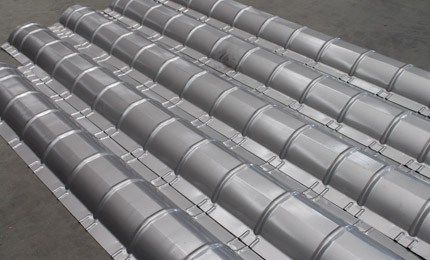

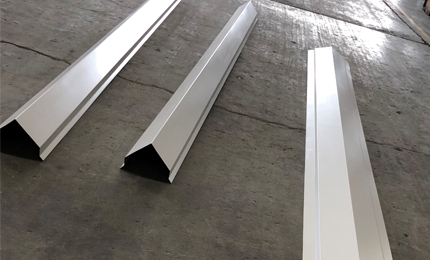

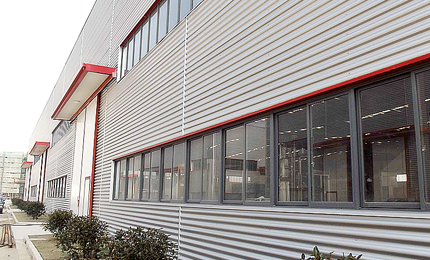

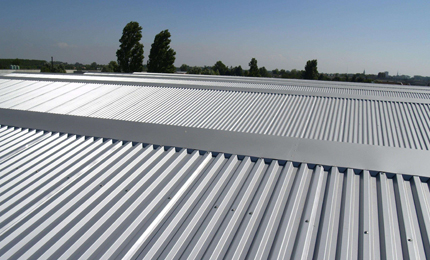

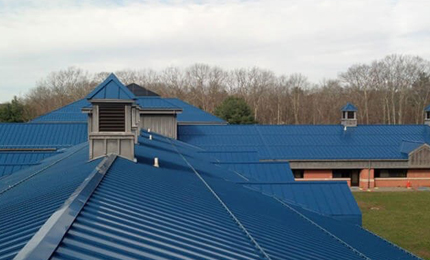

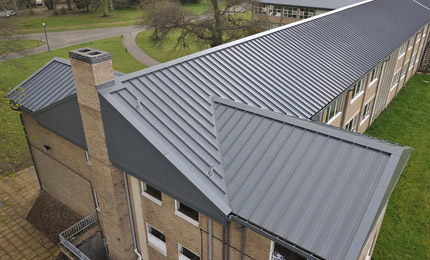

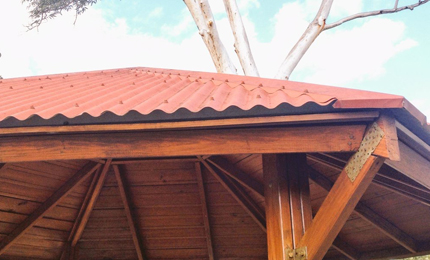

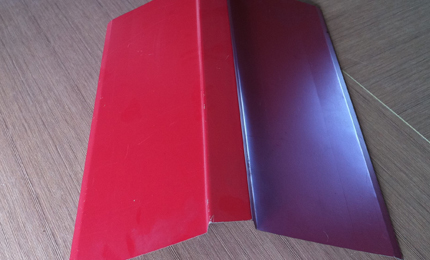

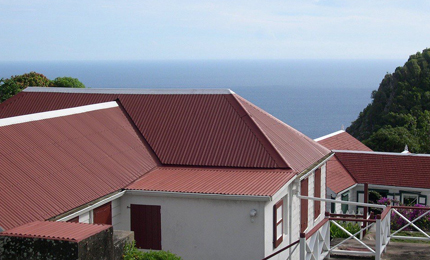

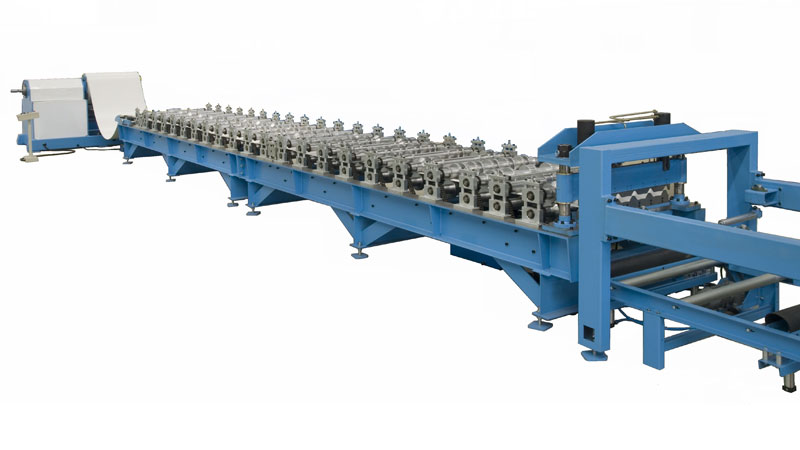

Our roll forming machine line makes trapezoidal panels, corrugated panels, standing seam panels, metal roof tiles, AG panels, PBR panels, ridge capping and so on. We have many types of roof panel machines, including metal roof machines, iron sheet roll forming machine, and aluminum roofing sheet making machine. We also design and manufacture rolling line according customers' profile drawings.
We have some popular rolling machines in stock. It takes about 45 days if customers need customize machines.

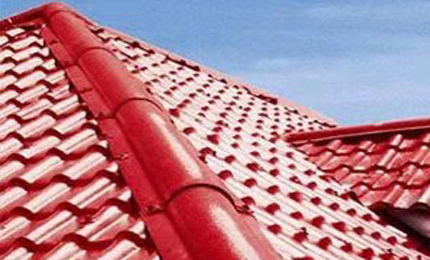

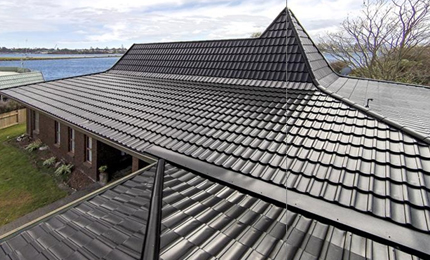

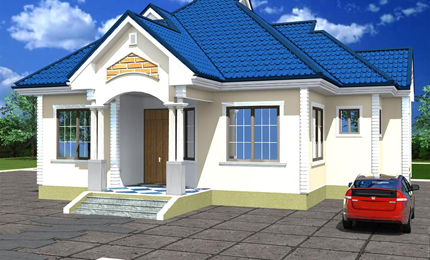

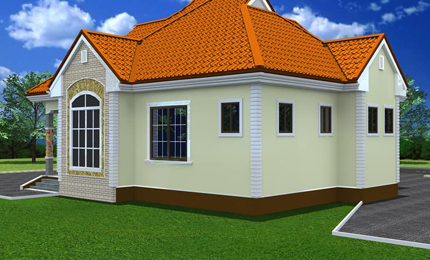

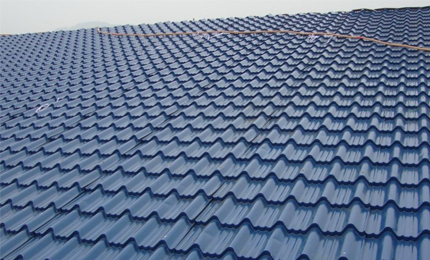

We can design and manufacture metal roof tile making machines according to customers' own profile drawings. It takes about 45 days if customers need to customize machines.
We can design and manufacture rolling line for aluminum panel.
