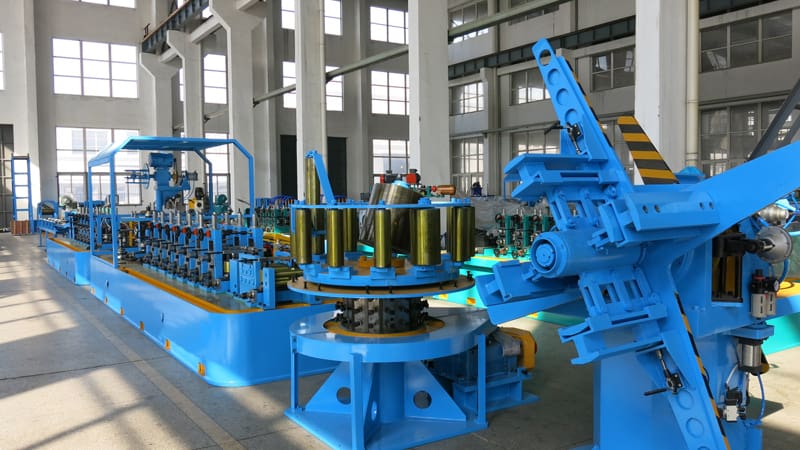

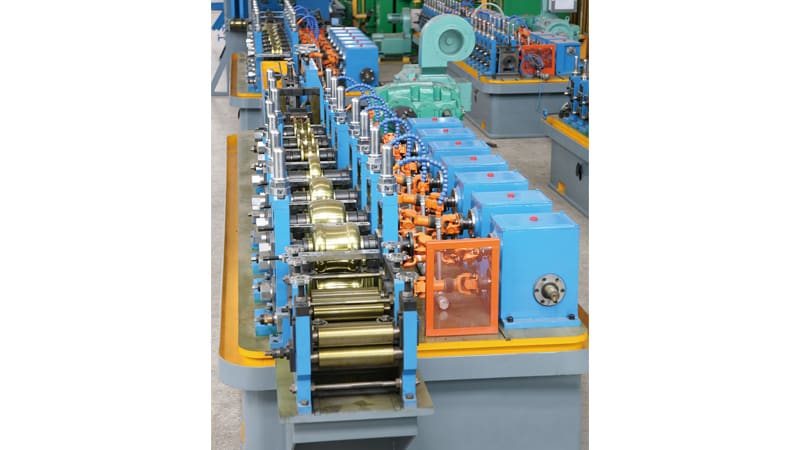

Our Tube Mill Line is mainly used for making a square, round square, rectangular and other shapes of carbon steel, stainless steel, and other alloy steel pipes. Hangzhou Roll Forming Technology Co., Ltd. is a professional tube mill line china manufacturer supplying tube mill machines for tubes of all kinds of shapes and thickness. We have ready high-speed tube mill machines in stock, you are welcome to get a quick quote!

Layout Drawing of Tube Mill Line

                      Layout Drawing of Tube Mill Line


Working Flow of Tube Mill Production Line


Working Flow of Tube Mill Line

  • Decoiling

  • Shear and butt welding

  • Accumulator

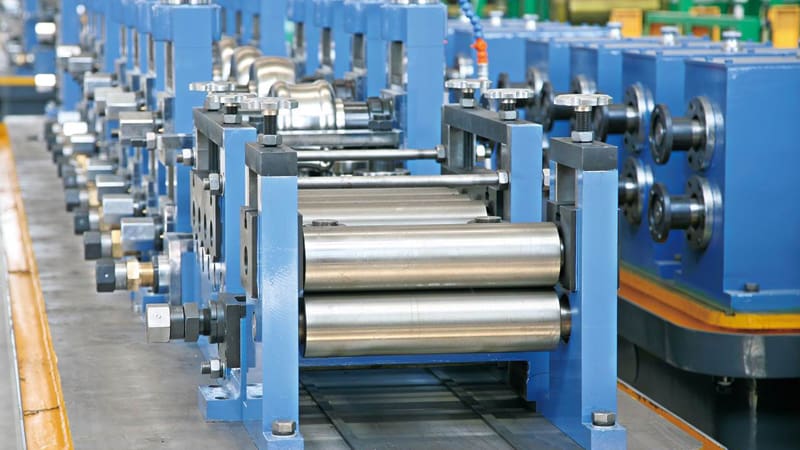

  • Roll forming

  • High frequency ERW

  • Removing burrs

  • Cooling

  • Sizing

  • Flying saw

  • Warehousing

Main Technical Parameters (For reference only, will be as requests)


A: suitable strip coils

  • Suitable material: Carbon steel coil;

  • Alloy Steel Coil; API5L X42-X80

  • (For reference only, will be as requests)

  • Suitable strip width range: 13mm-2261mm

  • Wall Thickness: 0.2mm-22mm


B. Finished products

  • Pipe O. D. φ4mm-φ720mm

  • Thickness: 0.2mm-22mm

  • Square tube: 6mmx6mm-600mmx600mm, thickness: 0.3mm-22mm

  • Length: 6m-12m

  • Length tolerance:+/-3mm


C. Equipment data (for reference only)

  • Production speed: 20-120m/min

  • Direction: Left to right or right to left from operator's side(as requests by customer)

  • Capacity: 10,000 ton/year-180, 000 ton/year

  • Electricity input power: 50kW-1400kW

  • Foundation: 40m–400m (length) x 3.8m-40m (width)

  • Weight: About 30ton–300ton.

  • Operator: 6-8 people (as size requests)


Technical parameters of Tube Mill Line

ModelRound pipeSquare pipeThicknessSpeed
mmmmmmm/min
RFT-12Ф4-Ф12
0.2-0.5120
RFT-16Ф6-Ф16
0.2-0.8120
RFT-20Ф8-Ф206x6-15x150.3-1.0120
RFT-25Ф10-Ф257x7-19x190.3-1.5120
RFT-32Ф12-Ф329x9-25x250.5-2.0120
RFT-50Ф20-Ф5015x15-39x390.8-3.0120
RFT-76Ф32-Ф7625x25-59x591.2-4.0120
RFT-89Ф42-Ф8935x35-70x701.5-4.5110
RFT-114Ф48-Ф11440x40-90x901.5-4.570
RFT-140Ф60-Ф14050x50-110x1102.0-5.060
RFT-165Ф76-Ф16560x60-130x1302.0-6.055
RFT-219Ф89-Ф21970x70-170x1702.0-8.050
RFT-273Ф114-Ф27390x90-210x2103.0-10.045
RFT-325Ф140-Ф325110x110-250x2504.0-12.740
RFT-377Ф165-Ф377130x130-280x2804.0-14.035
RFT-406Ф219-Ф406170x170-330x3306.0-16.030
RFT-508Ф273-Ф508210x210-400x4006.0-18.025
RFT-660Ф325-Ф660250x250-500x5006.0-20.020
RFT-720Ф355-Ф720300x300-600x6006.0-22.020

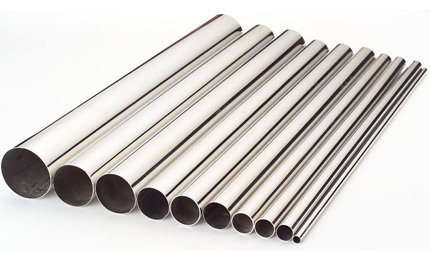

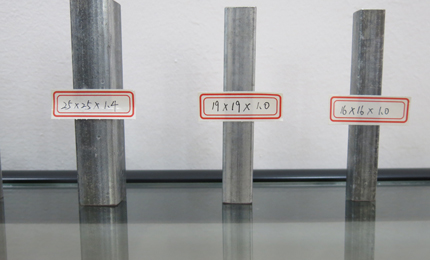

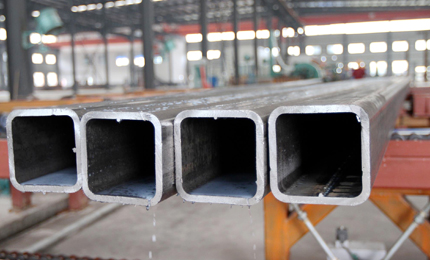

Finished tubes

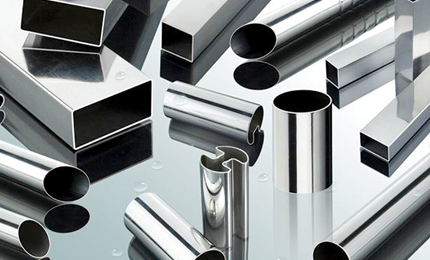

Applications of Tube Mill Line


Applications


Related Information of Tube Mill Line

Machine ConditionFully New, A Grade quality
SizeAs requests
Power Supply220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 30ton-300ton
Dimension40m–400m (length) x 3.8m-40m (width)
LOADING SIZENormally need 4-30 x 40' containers
Equipment Colornormally Blue/Green/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Related Tube Mill Line

Tube For Steel Structure and Transportation

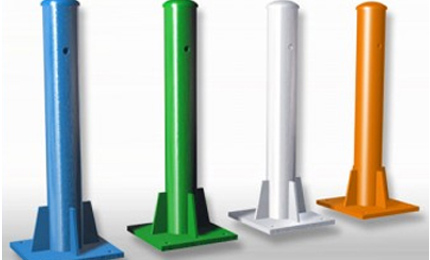

1-Tube for Steel Structure

Tube for Steel Structure Machine
Tube for Steel Structure Equipment

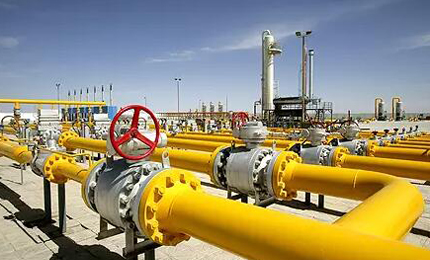

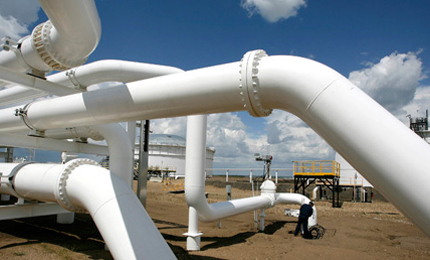

2-Tube for Transportation

Tube for Transportation machine
Tube for Transportation equipment
Tube for Transportation roll forming Machine
Transportation machine
Transportation equipment
Transportation roll forming Machine

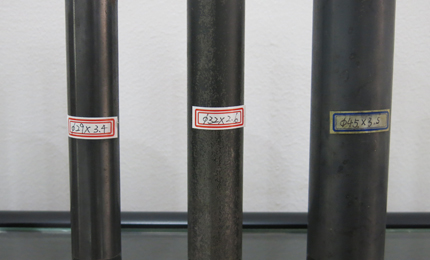

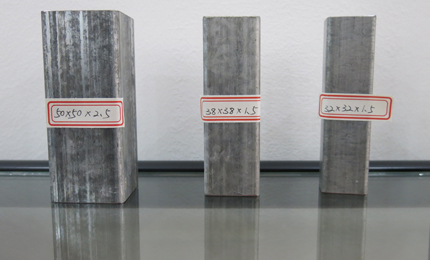

3-Finished tubes

Finished tubes equipment
Finished tubes machine
