Rolling Shutter Door Roll Forming Machine

This machine is used to make various rolling shutter door panels. Our rolling shutter door machine not only forming the panels, but also has the function of punching hole and embossing. And the profile of the panels can be customized.

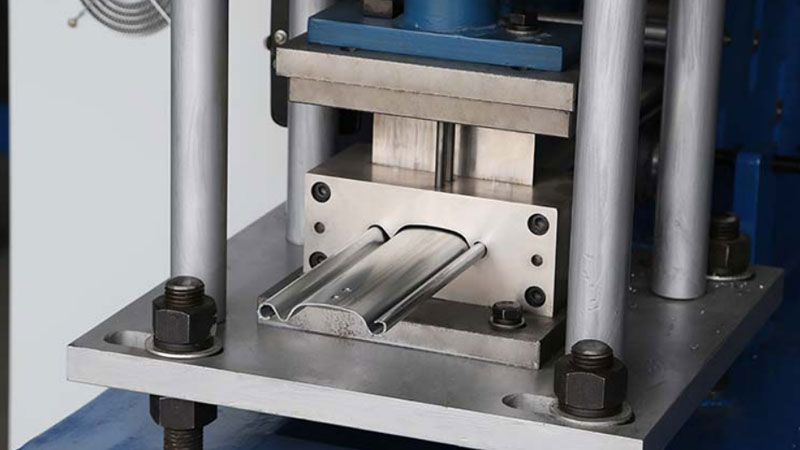

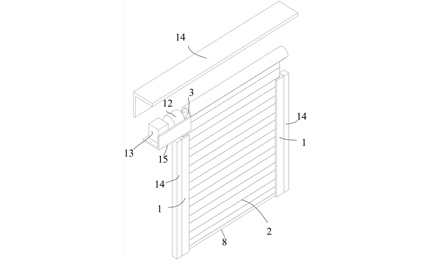

Roll shutter door is a multi-joint movement of the door piece in series together, in the fixed slide, with the upper part of the door scroll as the center of rotation up and down the door. Roll shutter door is usually widely used in shops, garages, and industrial buildings.


Rolling shutter door has the effect of level space like the wall, it by curtain board, seat board, guideway, support, reel, box body, control box, roll door machine, limiter, door lintel, manual speed release close device, button switch, and insurance device many parts are composed, general installation is in the place that inconvenience build wall.

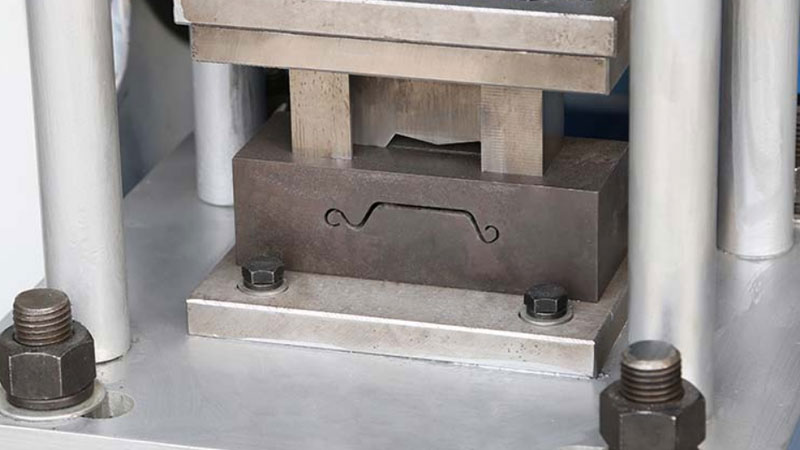

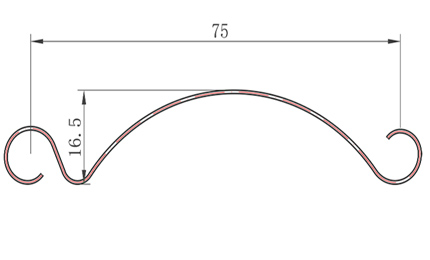

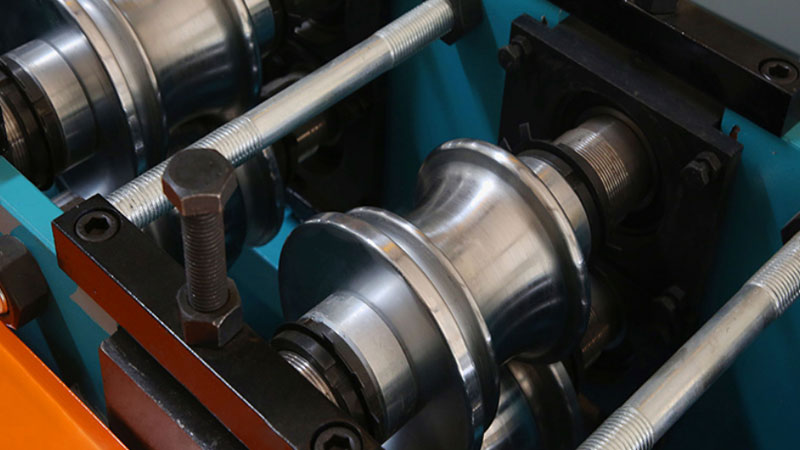

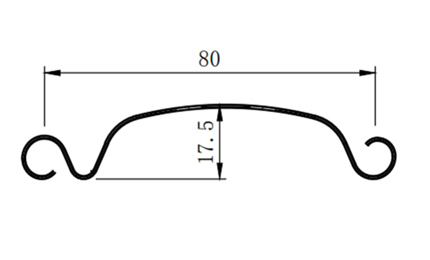

Roll Shutter Door Profile Drawings

Roll Shutter Door Profile DrawingsRoll Shutter Door Profile Drawings

Features and Advantages of Rolling Shutter Door Roll Forming Machine


  • Roll Shutter Door Roll Forming line, specially designed for forming a rolling shutter door panel, under mass-production.

  • Production speed: 20/30/40/50/60 m/min optional.

  • Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  • Cassette-type platform quick-change Machine base for multi-profile purposes is available for choice.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • For most hot & popular profile models, we have ready garage door roll formers in stock for prompt delivery.



Working Flow


Pre-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)


Post-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)



Rolling Shutter Door Roll Forming Line Layout

Roll Shutter Door Roll Forming Line Layout

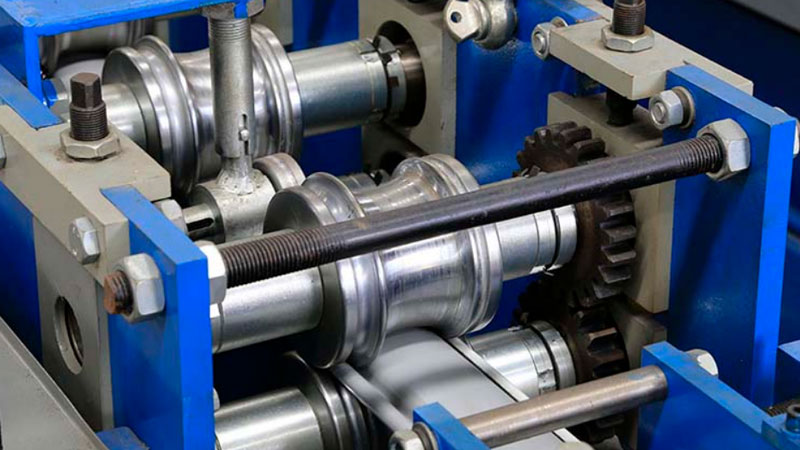

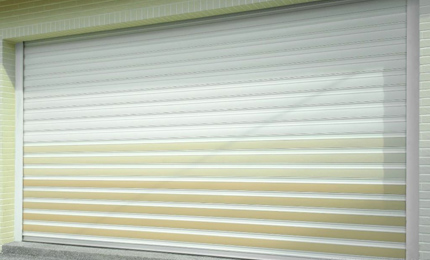

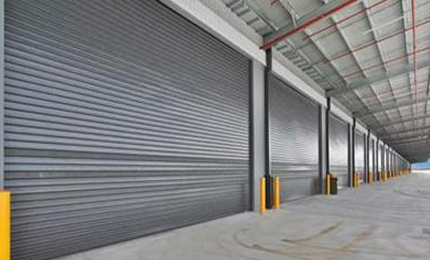

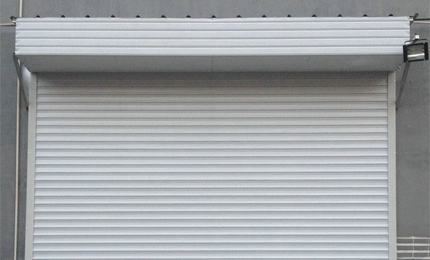

Rolling Shutter Door Roll Forming Machine Application


Rolling Shutter Door Roll Forming Machine ApplicationRolling Shutter Door Roll Forming Machine Application

Rolling Shutter Door Roll Forming Machine ApplicationRolling Shutter Door Roll Forming Machine Application

Rolling Shutter Door Roll Forming Machine Application


Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests


Production Line Components and Parameters


1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device     optional
3. Front shear                optional
4. Lubricating device         no need
5. Roll forming system         20/30/40/50/60 m/min (optional)
6. Safety cover             optional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)



Related Information

Machine Condition yFully New, A Grade qualit
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1 x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
