Door Frame Roll Forming Machine

Door Frame Making Machine Introduction


This machine is used to make various frames. Our machine is for manufacture of steel window frame, steel door frame, bronze window frame, bronze door frame, fire rated window/door frame and so on.

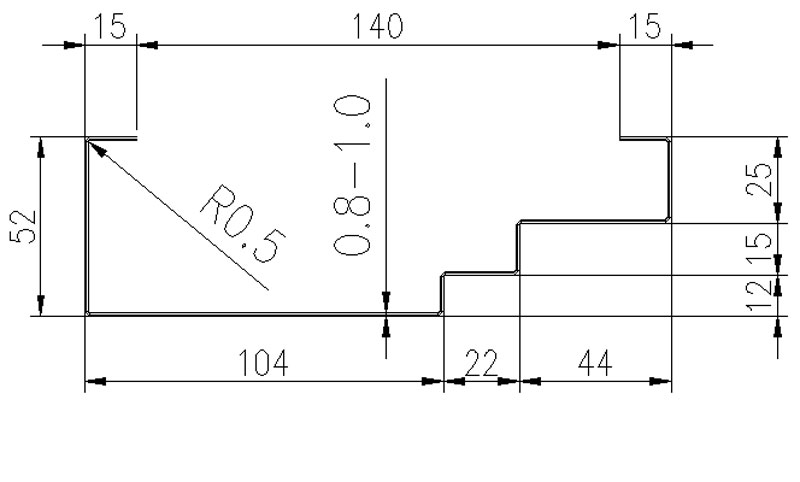

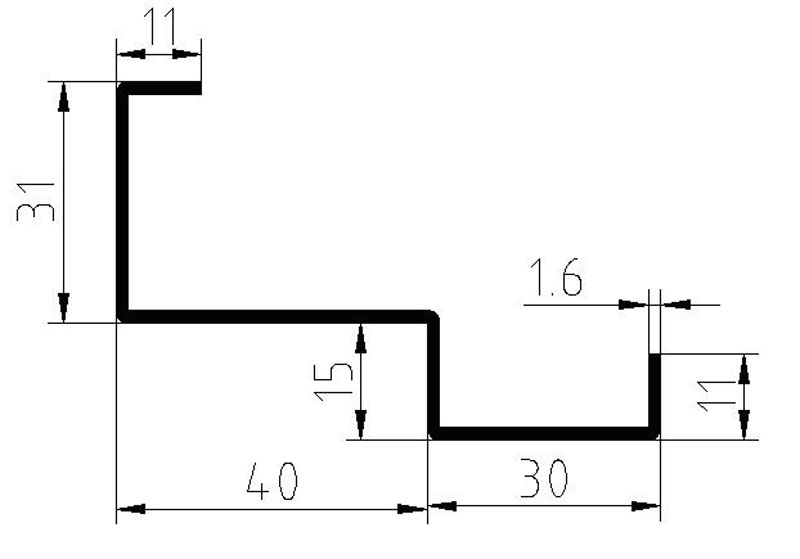

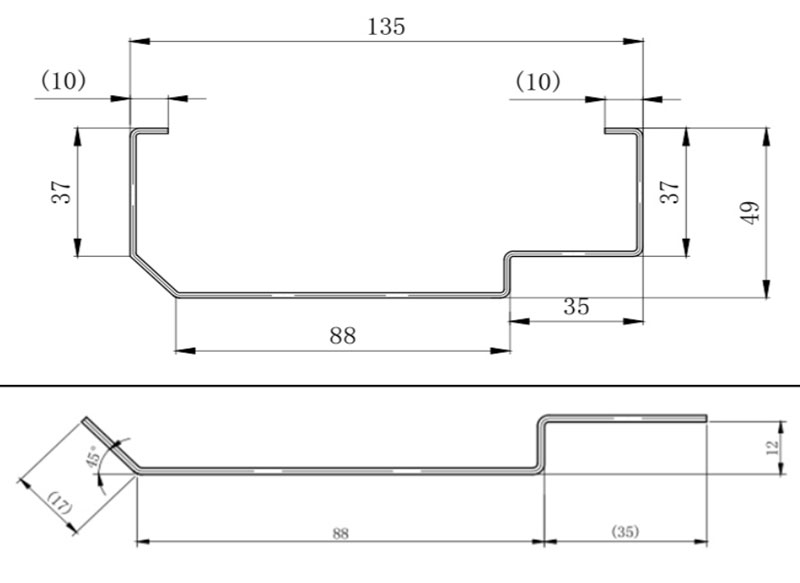

Door Frame Profile Drawings

Profile drawingsProfile drawings

Profile drawings

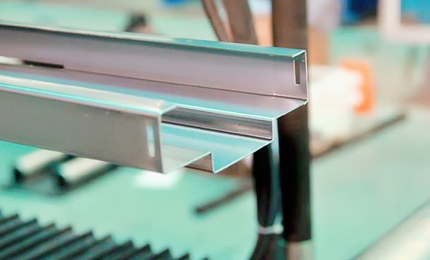

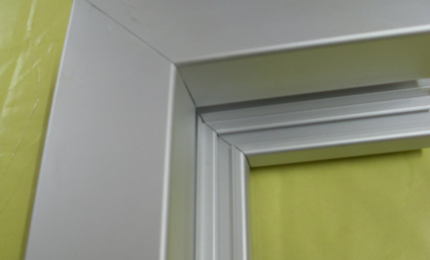

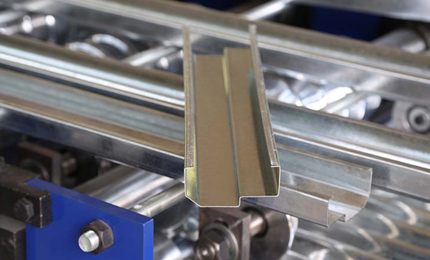

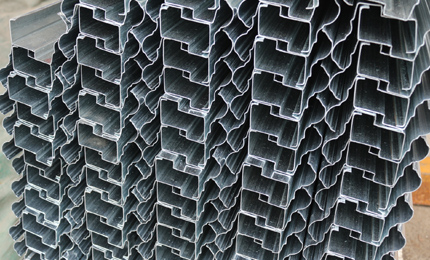

Finished Panels


Finished PanelsFinished Panels

Finished Panels


Features and Advantages of Door Frame Roll Forming Machine


  • Ground pit/over ground accumulating unit, non-stop hole punching unit and flying tracking cutting and automatic stacking devices are available for choice to improve production speed greatly.

  • Cassette type platform quick change Machine base for multi-profile purposes is available for choice.

  • With fully automatic non-stop standard configurations, the Max production speed can reach 30 m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.


Door Frame Roll Forming Machine Working Flow

  • Decoiler

  • Leveling device

  • Ground pit/ over ground accumulating unit (optional)

  • Servo feeding device

  • Hole punching device

  • Ground pit/ over ground accumulating unit (optional)

  • Guiding unit

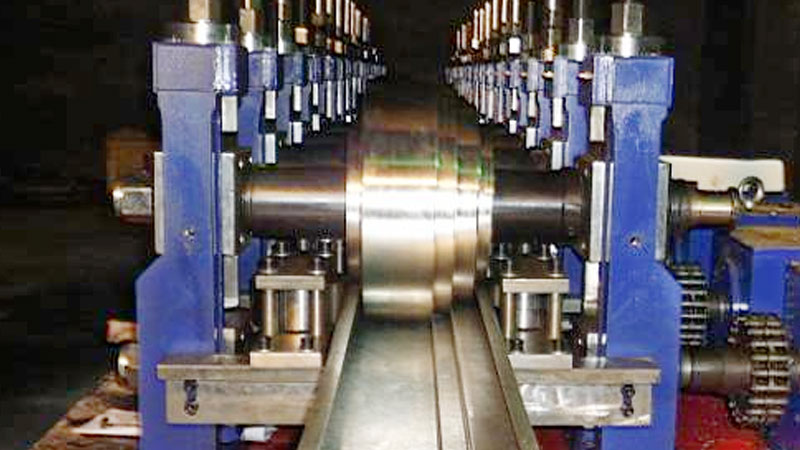

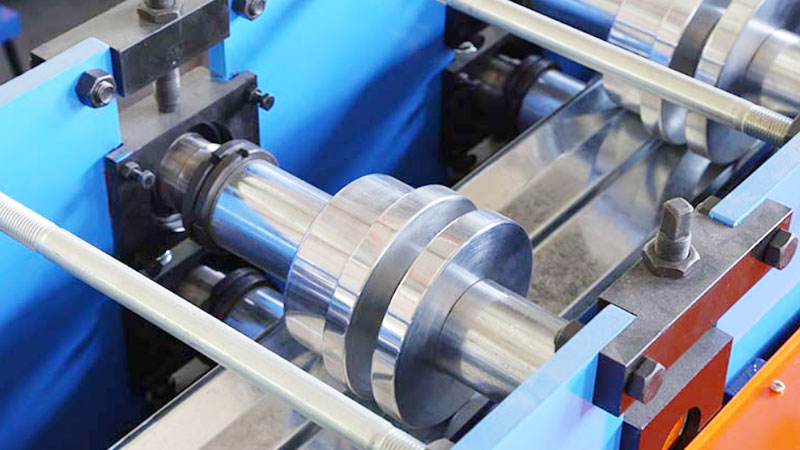

  • Roll Forming System

  • Post-Cutting to length(flying cutting, tracking cutting and stop to cut are available for choice)

  • Output Manual Supporter/Auto Stacker(optional)

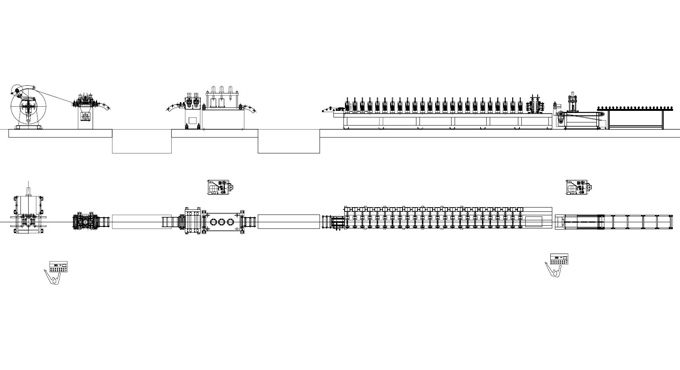

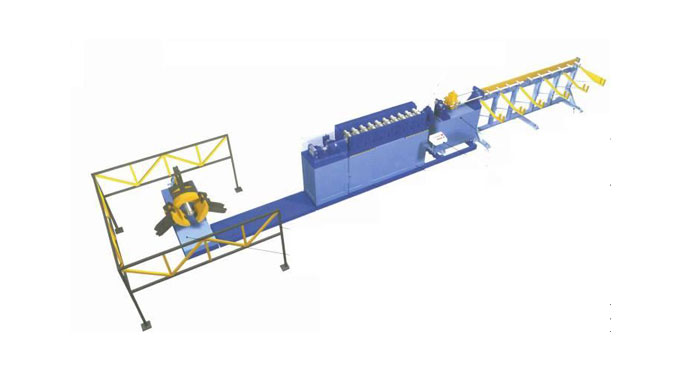

Door Frame Roll Forming Line Layout

layout

Door Frame Roll Forming line layout


Installation Type


Installation Type



Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests


Production Line Components and Parameters


1. Decoiler3t/5t/8t
2. leveling device
3. ground pit/ over ground accumulating unit(optional)
4. Servo Feeding Device
5. Holes punching device
6. ground pit/ over ground accumulating unit(optional)
7. Guiding device
8. Roll forming system  20/30m/min
9. Post cutting deviceflying cutting, tracking cutting and stop to cut are available for choice
10. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
11. Hydraulic systemPower supply for holes punching /post-cutting system
12. Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested)



Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 2 x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
