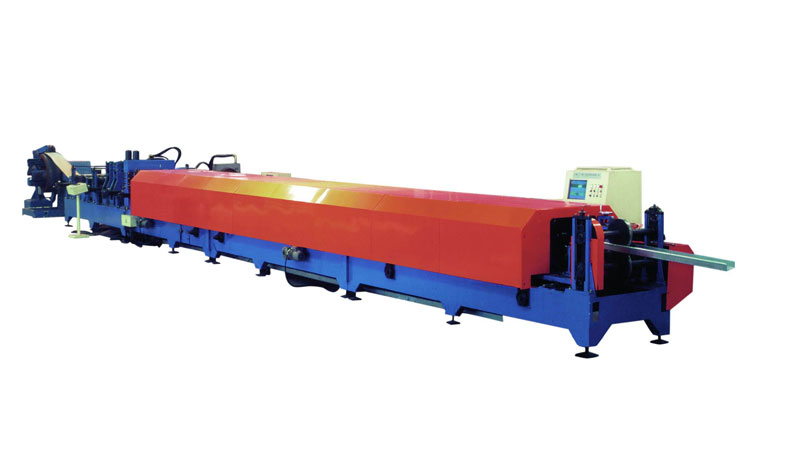

Modular Purlin Roll Forming Machine

Nobody can resist this series of structure roll formers, as it not only has a shining machine appearance but also holds a reasonable structure and design for producing light-duty profiles. Our modular purlin roll forming machines are famous for their excellent performance and fast working speed (the maximum production speed can reach 30m/min). The Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting are available for further choices so as to improve production speed.


Normally, when it comes to the manufacturing of profiles in different sizes, 2 changing modes will be available for choice:

a) automatic changeover on PLC

b) Manual changing spacers


Regarding the production of C & Z profiles, 3 changing modes are available for choice:

a) Automatic changeover on PLC

b) Cassette type platform quick-change Machine base

c) Manual changing roller tooling modes





Features
Components and Parameters
Working Process
Projects

Suitable Coil Sheet Material for Modular Purlin Roll Forming Machine

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.5-1.0(mm)/1.0-2.0(mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests

Production Line Components and Parameters of Modular Purlin Roll Forming Machine

1. Decoiler 3t/5t Motor/hydraulic motor/passive (optional)
2. Guiding system
3. leveling device
4. Holes punching unit         as profile requests
5. Roll forming system       20- 30m/min
6. Safety cage             optional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for holes punching /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )



Specification of Modular Purlin Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP)container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing

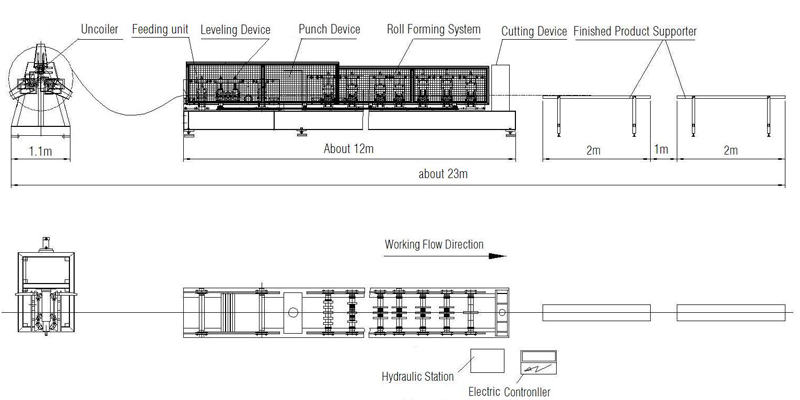

Modular Purlin Roll Forming Machine Working Flow

Modular Purlin Roll Forming Machine Working Flow

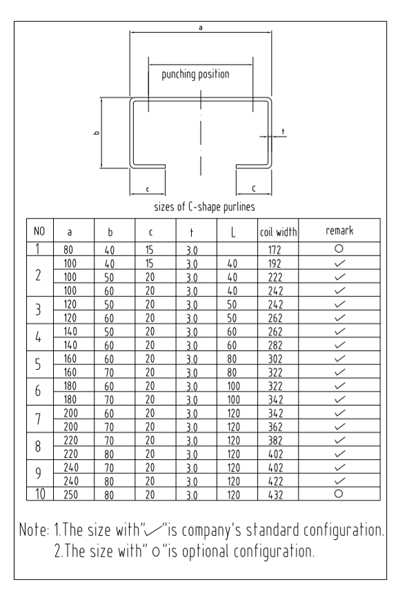

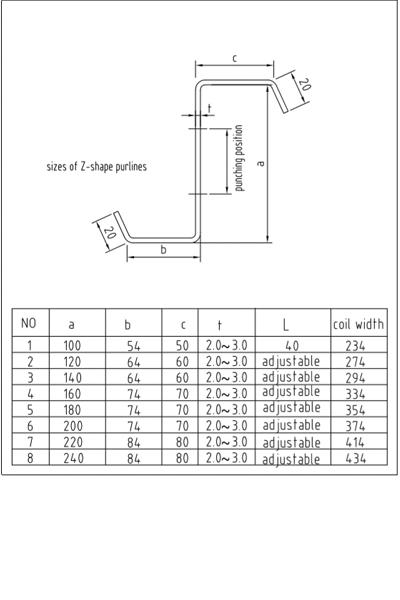

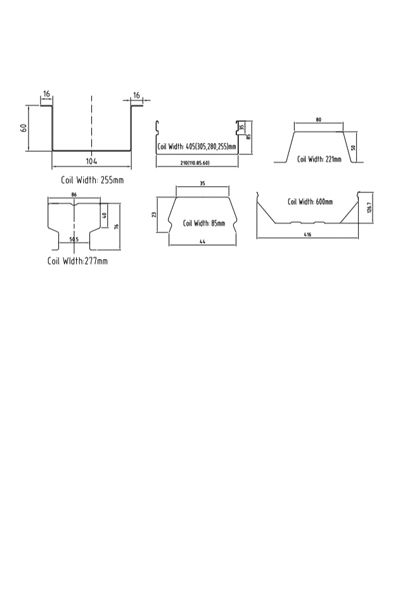

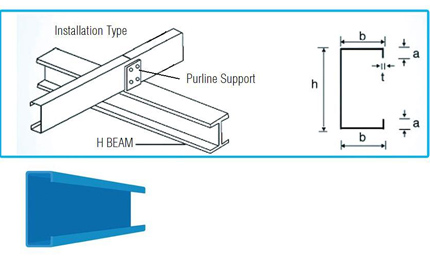

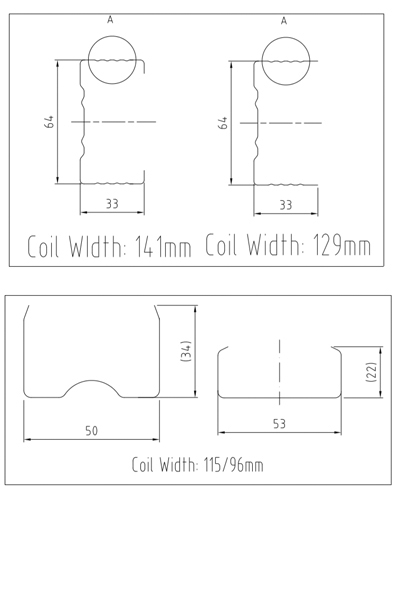

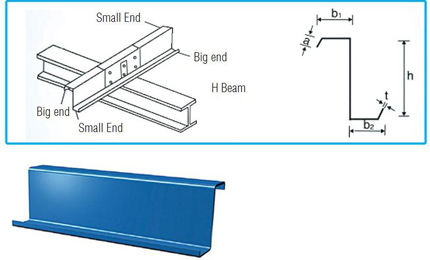

Popular C U Z M Profile Drawings


Modular Purlin Roll Forming MachineModular Purlin Roll Forming Machine

Modular Purlin Roll Forming MachineModular Purlin Roll Forming Machine

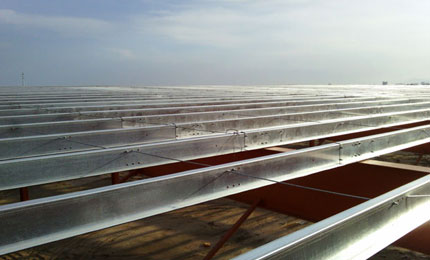

Installation of Modular Purlin

Modular Purlin Roll Forming MachineModular Purlin Roll Forming Machine


Modular Purlin Roll Forming Machine Application

This standing column structure is especially for thin light C Z U M profiles for building or decoration of various light steel structure construction, civil-construction, and mansions building.


Modular Purlin Roll Forming Machine

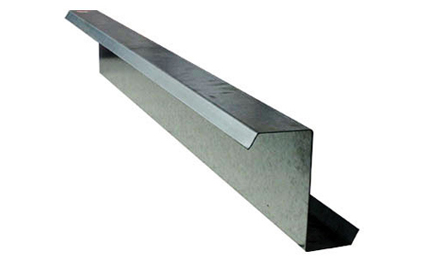

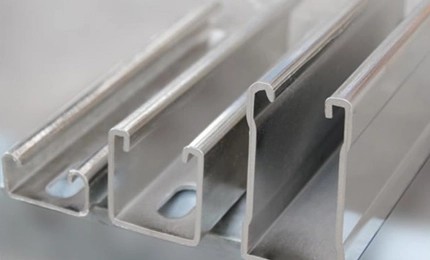

Finished Panels by Modular Purlin Roll Forming Machine
