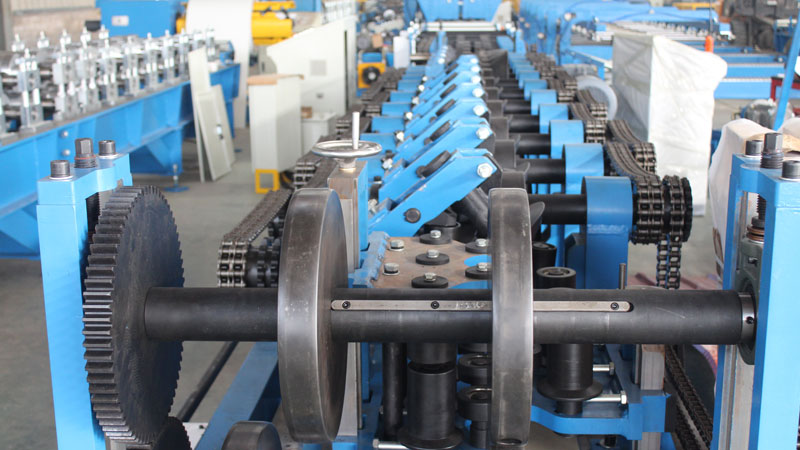

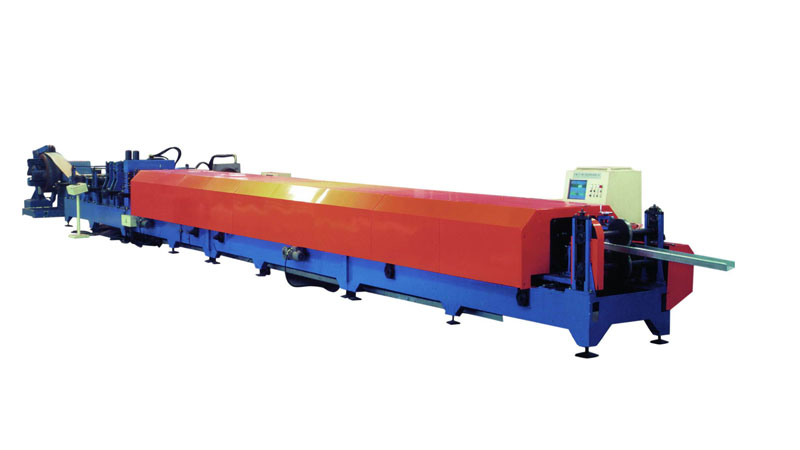

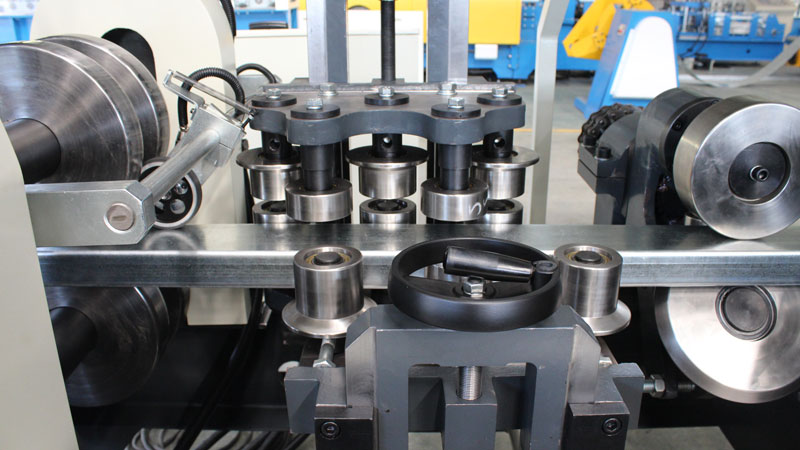

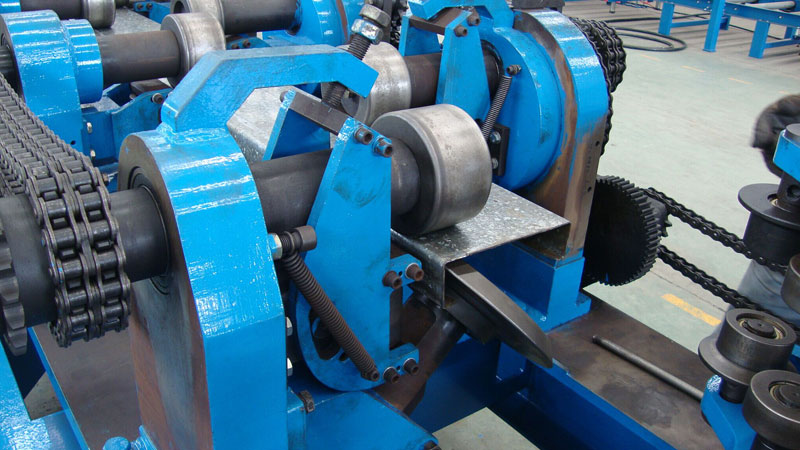

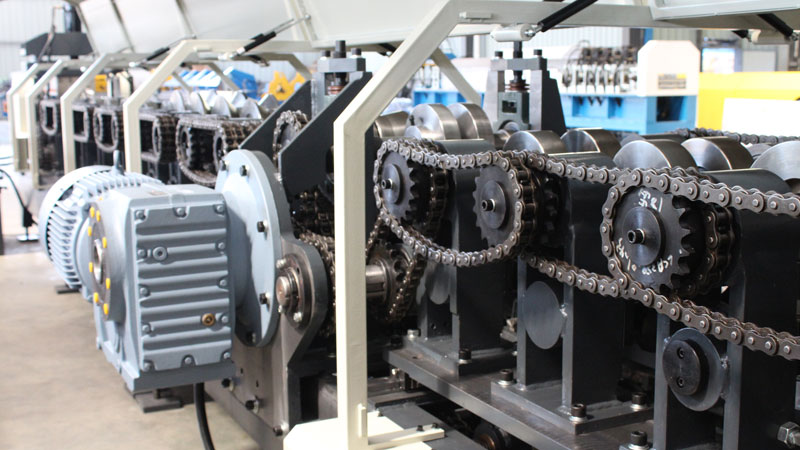

Fully Automatic CZ Purlin Roll Forming Machine

The fully automatic C/Z steel integrated machine is also called the C/Z interchange molding machine, and C and Z interchange purlin machine. The fully automatic CZ purlin machine provides users with highly automated purlin forming equipment that can realize the interchange production of C/Z two models and various specifications purlins in a short time by PLC computer control. The production process of the fully automatic C and Z interchange purlins is completely automatic, and there is no need to change the forming rollers when changing the specifications. The invention of the C&Z purlin forming machine has changed the history of processing C and Z different purlins by using two different C and Z equipment, saving users lots of investment cost and space.


As one of the most professional C/Z purlin machine manufacturers in China, we are honored to provide you with high-quality C profile steel roll forming machine and Z purlin roll forming machine. Welcome to consult us for more information.

Features and Advantages of Fully Automatic C&Z  Purlin Roll Forming Machine

  • Fully automatic multi-size adjusting on PLC screen.

  • Fully automatic C & Z changeover mode on PLC screen.

  • High Forming speed: 30m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.


Suitable Coil Sheet Material for Fully Automatic C&Z Purlin Forming Machine

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 1.6-3.2(mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests


Production Line Components and Parameters of FullyAutomatic C&Z Purlin Forming Machine

1. Decoiler-leveler integrated unit 3t/5t automatic
2. Servo Feeding unit
3. hole punching unit
4. over ground accumulator(optional)
5. Pre-cutting to length
6. Roll forming system      30m/min
7. Safety cage               closed type
8. Output System           Automatic Stacker
9. Hydraulic systemPower supply for pre-cutting and hole punching system
10. Electric control systemindustrial computer communicates with PLC through RS485 connector. The system use WINDOWS2000 with soft ware IFIX

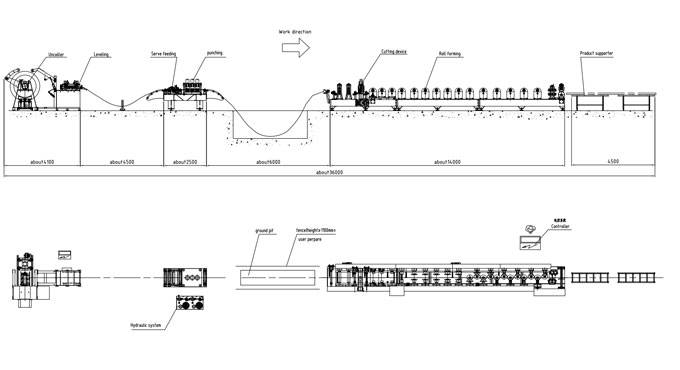

Working Flow of Fully Automatic C&Z  Purlin Roll Forming Machine

layout

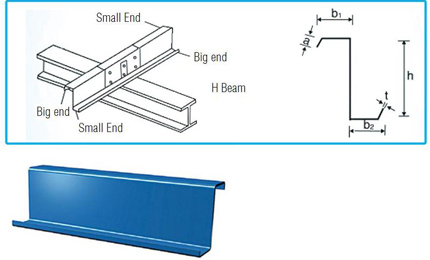

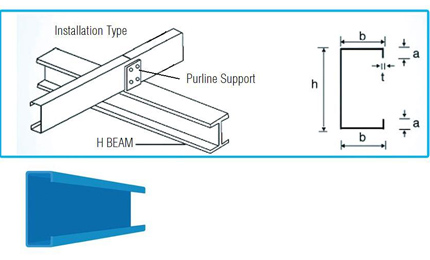

C/Z Purlins Installation

Automatic Roll Forming MachineAutomatic Roll Forming Machine


Which is Stronger: Z purlin or C purlin?

From the viewpoint of loading capacity, Z purlin is normally seen as much stronger than C purlins, as the Z steel purlins have better integrity and can be overlapped continuously. Thus, when it comes to constructing metal buildings with continuous spans, it is better to use Z purlins; whereas, regarding the building of supporting walls, C purlins will be much more favored as they can be installed and calculated more easily. As a professional forming machine manufacturer, Hangzhou Roll Forming Technology can provide you with high-quality fully automatic CZ roll forming machines that can produce both purlin styles to better meet your needs.


C&Z Purlin Application


Automatic Roll Forming MachineAutomatic Roll Forming MachineAutomatic Roll Forming Machine

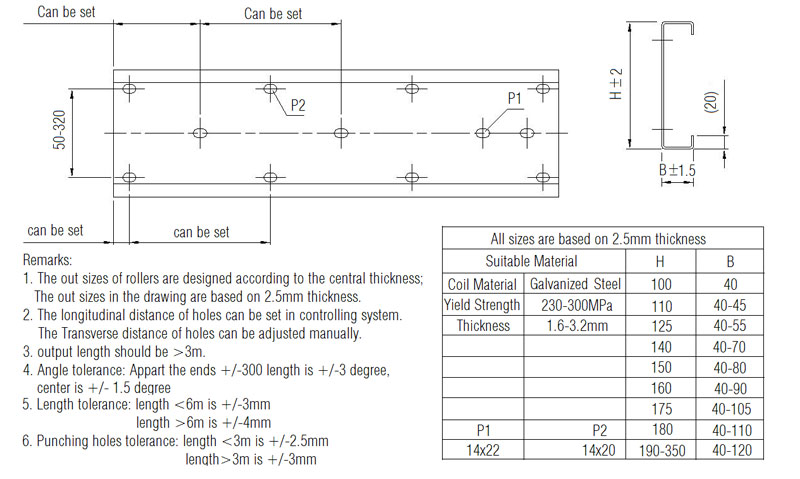

C/U/Z/M Profile Drawings



Automatic Roll Forming Machine

Automatic Roll Forming Machine

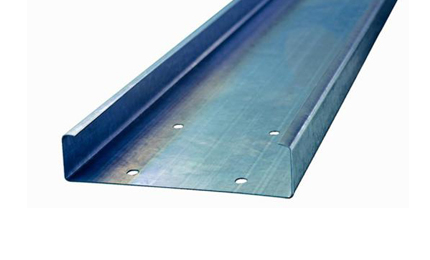

Finished C&Z Purlins by C&Z Purlin Forming Machine


Automatic Roll Forming MachineAutomatic Roll Forming Machine


Specification of C&Z Purlin Forming Machine

Machine ConditionFully New, A-Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout25T
Dimension(L*W*H) about 45*3*2m
LOADING SIZENormally need 2x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
