Gutter Roll Former for Sale


This drip edge roll former is used to make gutter. Gutter systems have a slight downward pitch toward the corners of the home, encouraging rainwater or snowmelt to flow “downhill” through the gutters and into the downspouts. A downspout is a pipe that runs vertically along the side of the home. It is connected at the top to a hole in the gutter channel.


Features and Advantages of Gutter Roll Former for Sale


  • Fully automatic continuous drip edge roll former for sale, suitable for roofing gutter profile under mass-production.

  • Production speed of drip edge roll forming machine: 15/20/30m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

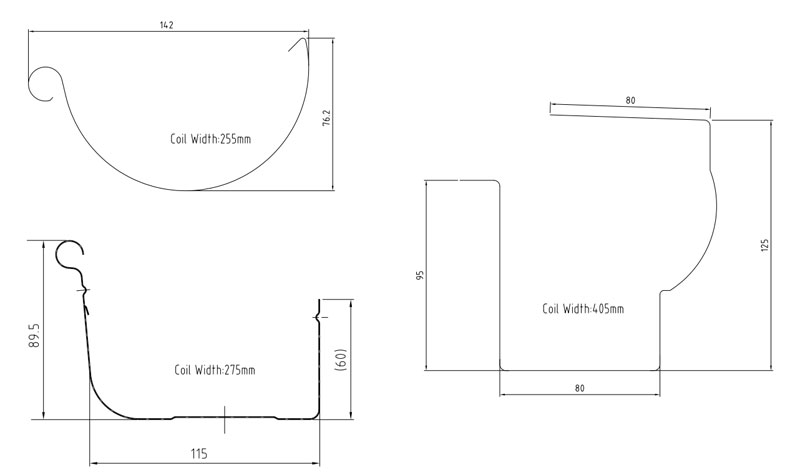

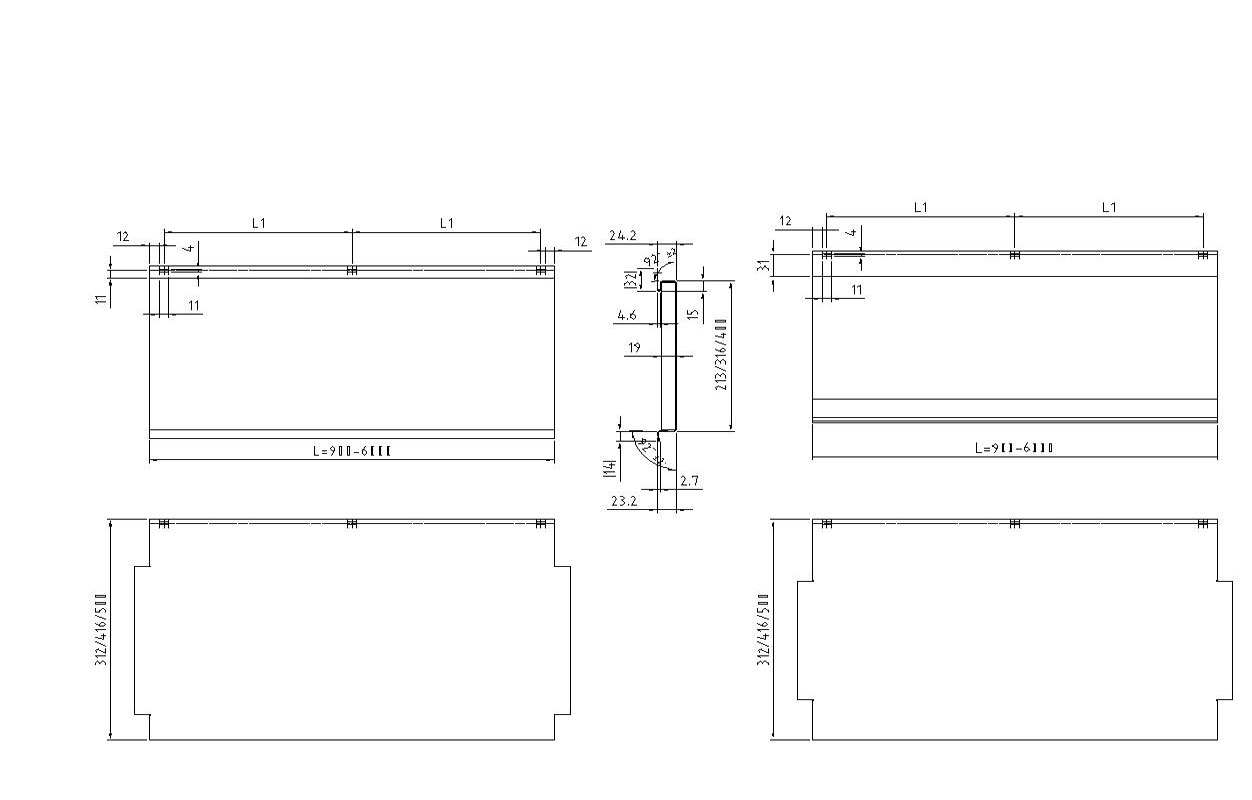

Popular Gutter Profile Drawings


profile drawing


Finished Gutter Samples


samplessamples




Gutter Roll Former Working Flow


  • Feeding and Guiding Table

  • Filming Covering (optional)

  • Roll Forming System

  • Post-Cutting to length (Hydraulic/Motor)

  • Output Manual Supporter/Stackmaster(optional)

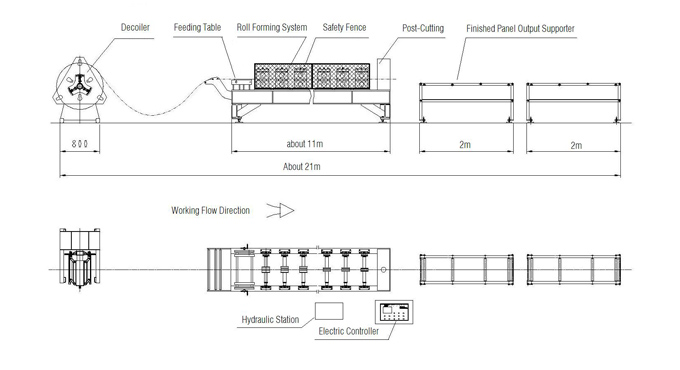

Gutter Roll Forming Line Layout

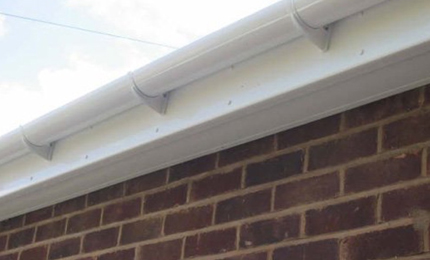

Gutter Roll Former Application


Roof Guttering and down spout pipes are very important assets to any house.

A gutter system prevents water damage to walls and foundations by channeling water away from its base foundation.

A good gutter system also reduces erosion, prevents house leaks and protects painted surfaces by reducing exposure to water.


applicationapplication



Suitable Raw Material


Material type: Color coated Steel, Aluminum sheet

Thickness: 0.3-0.6(mm)

Yield Strength: 230-300/350 (MPa) optional

Width: 461 (mm) as profile requests

Production line Components and Parameters


Production Line Components and Parameters of Drip Edge Roll Forming Machine


1. Decoiler            2T/3T/5T Motor/hydraulic motor/passive (optional)
2. Filming covering device     optional
3. Front shear                 optional
4. Lubricating device            no need
5. Roll forming system         15/20/30 m/min
6. Safety cover             optional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )



Related Information of Drip Edge Roll Former for Sale

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 7t
Dimension(L*W*H) about 20*2.5*2m
LOADING SIZENormally need 1x 20' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
