Cut To Length Line

Cut To Length Line Machine
Cut To Length Line Machine
Cut To Length Line Machine
Cut To Length Line For Sale
Coil Cut To Length Line
Cut To Length Machine For Sale
Cut To Length Machine Manufacturers
Length Cutting Machine

Function of Cut To Length Line


It is used for cutting steel coils into certain length sheets.


Technical parameter of Cut To Length Line

Suitable materialAluminum/Hot rolled/cold rolled/galvanized/stainless steel coils .
Material thickness0.3-25 mm(as requests)
Max. material width500-2000 mm
Line speed10 – 50 m/min
Shearing speed20－23 cuts/min.（length: 2000 mm）
Shearing blade materialCr12MoV
Hardness of shearing bladeHRC 58 – 60

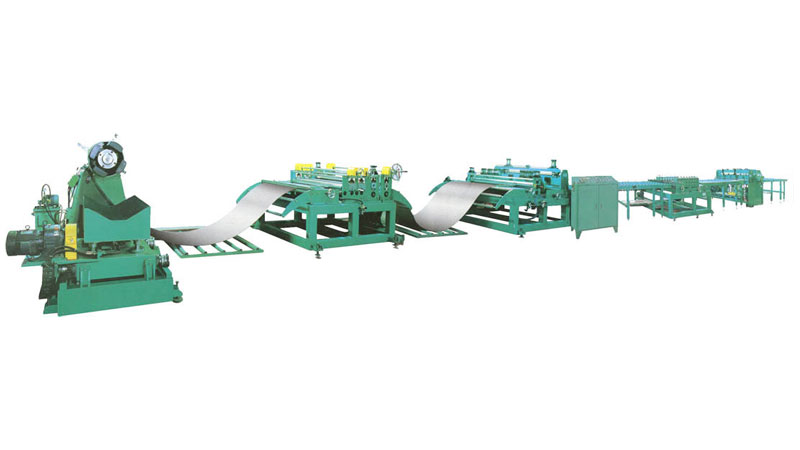

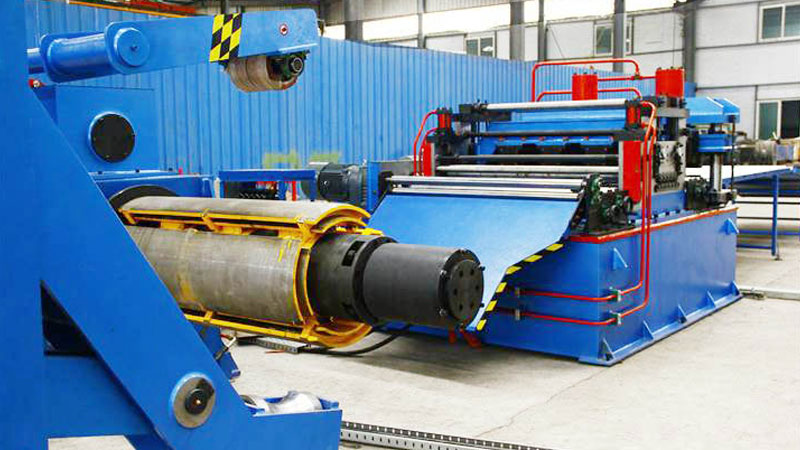

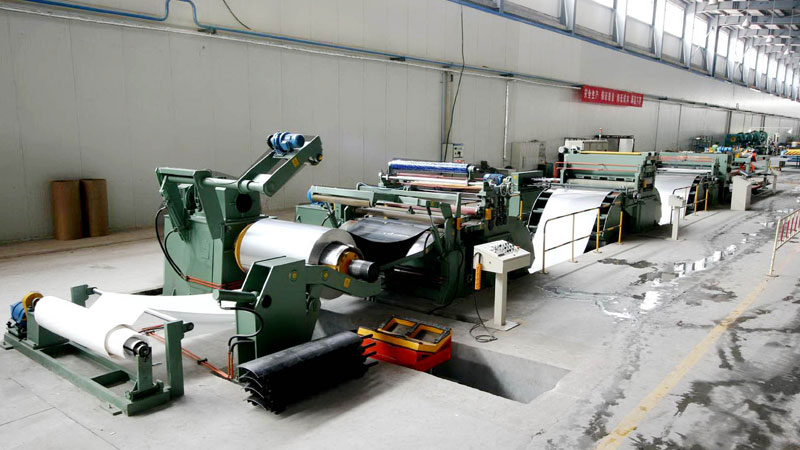

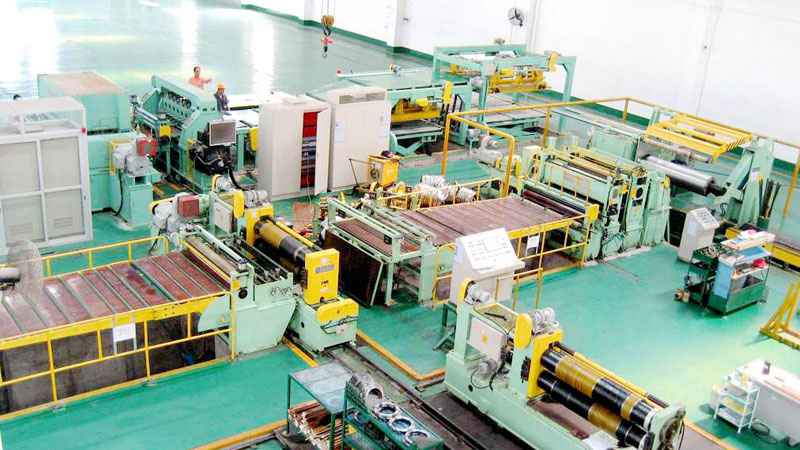

Production line Components of Cut To Length Line


  • Coil car

  • Decoiler

  • Leading material device

  • Leveling machine

  • Storage structure

  • Deviation-correcting device

  • Servo transmission system

  • Waste edge cutting device

  • Re-coiler for waste strip

  • Lateral cutting device

  • Blowing device

  • Stackmaster

  • Hydraulic system and controlling system


Related information of Cut To Length Line

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer's requirements
Operator Needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 25 t
Dimension(L*W*H) about 35*7*3m
Loading SizeNormally need 2-3x 40' (+ 1x 20') container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)

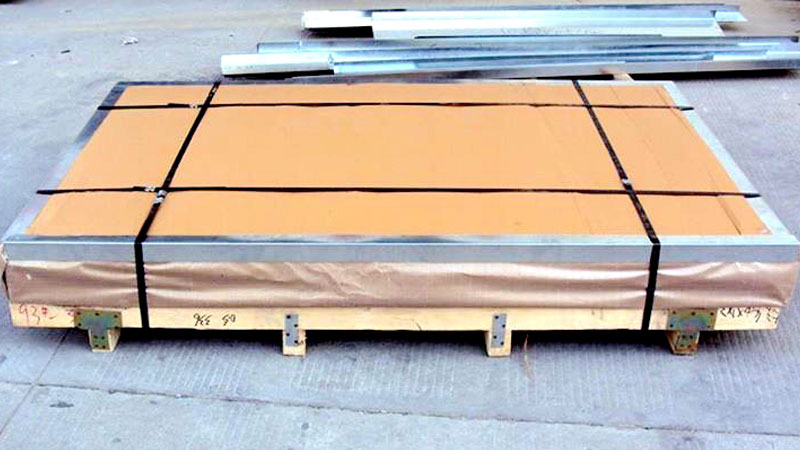

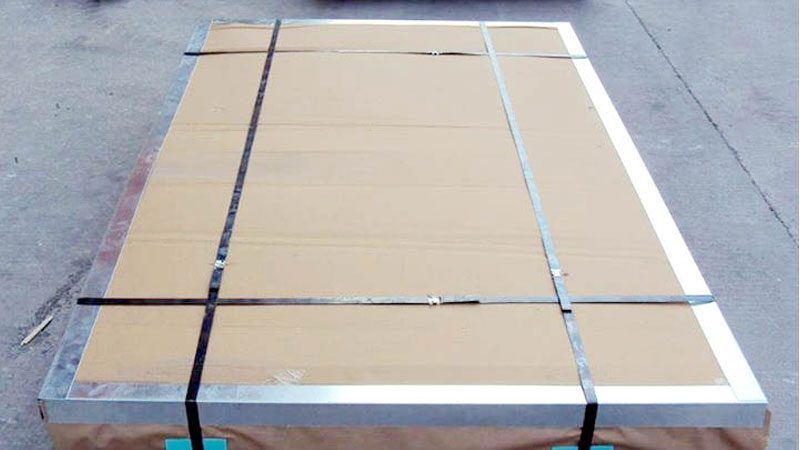

PackingStandard and careful export packing
