Housing Post Structure Purlin Forming Machine

Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine
Housing Post Structure Purlin Forming Machine

Features and Advantages of Housing Post Structure Purlin Forming Machine


  • Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting are available for choice to improve production speed greatly.

  •  Between multi sizes profiles, 2 changing modes are available for choice:

  • a) automatic changeover on PLC

  • b) Manual changing spacers

  •  Between C & Z profiles, 3 changing modes are available for choice:

  • a) Automatic changeover on PLC

  • b) Cassette type platform quick-change Machine base

  • c) Manual changing roller tooling modes.

  • With full automatic non-stop standard configurations, the Max production speed can reach 30m/min

  • High speed full automatic continuous C U Z M steel forming machine for both heavy and light duty use.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

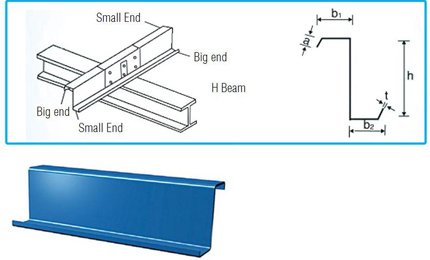

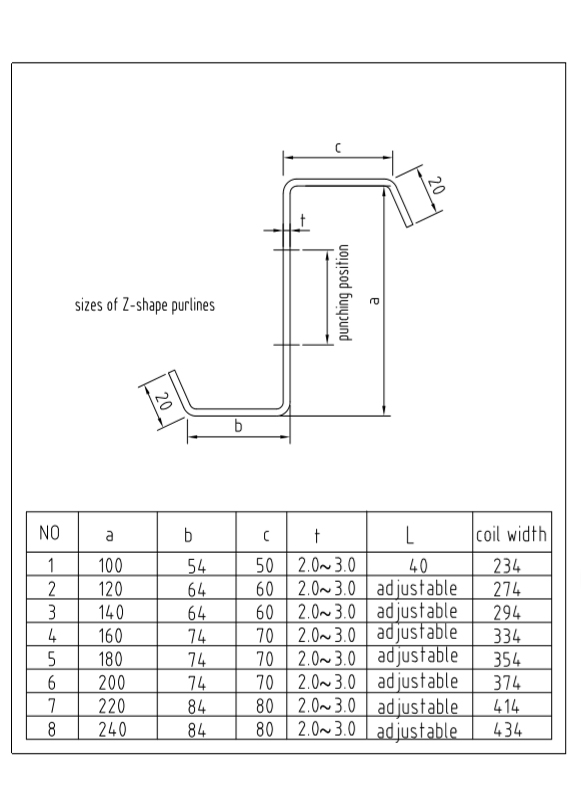

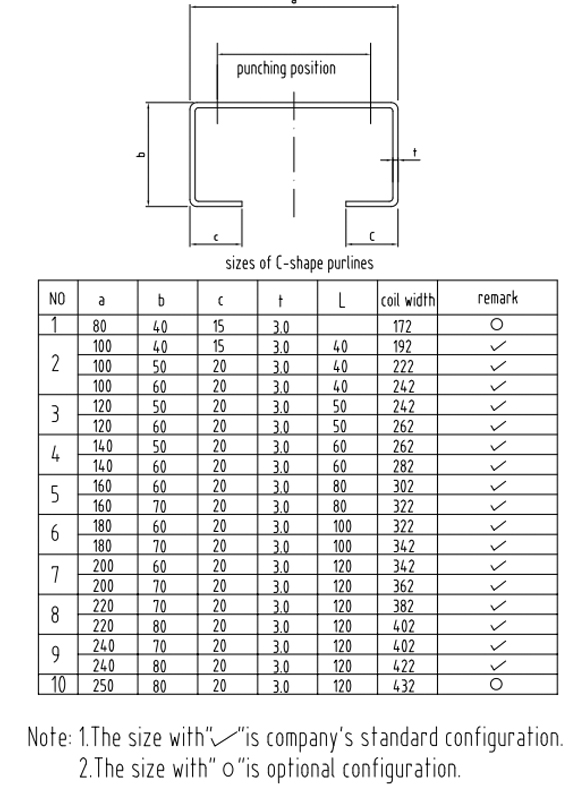

Popular C U Z M Profile Drawings

Popular C U Z M Profile DrawingsPopular C U Z M Profile Drawings

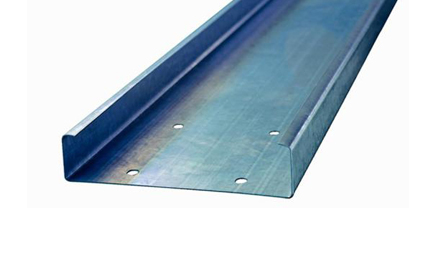

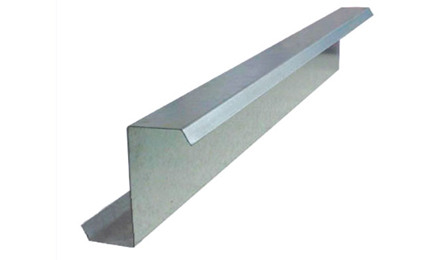

Finished Panels


Finished PanelsFinished Panels

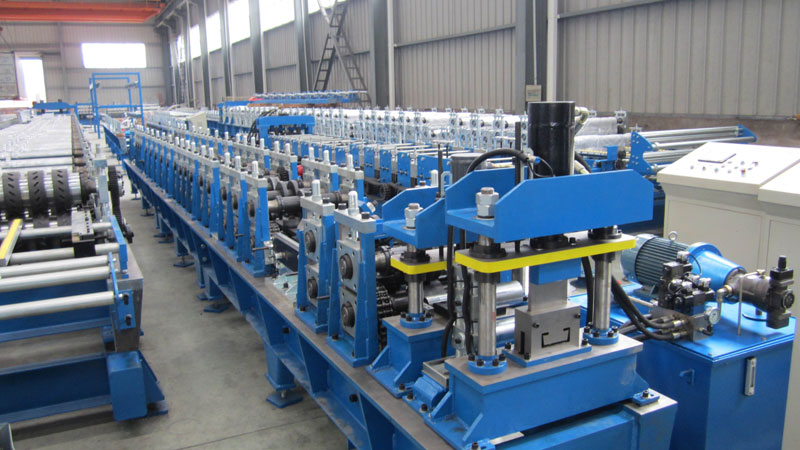

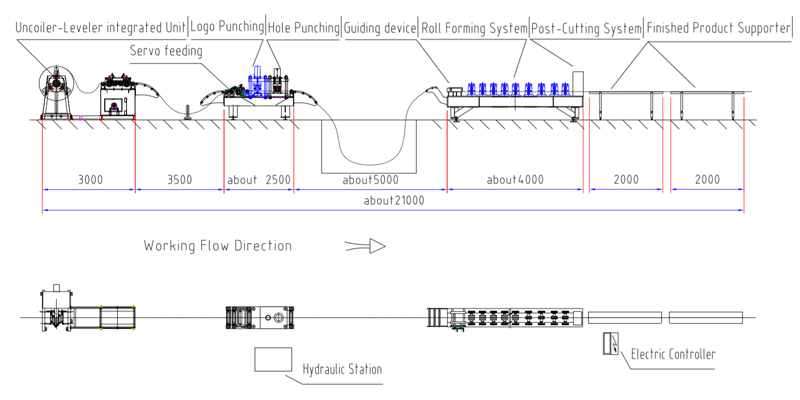

Housing Post Structure Purlin Forming Machine Working Flow


  • Decoiler-leveler integrated unit

  • Servo Feeding

  • Logo punching/ printing machine

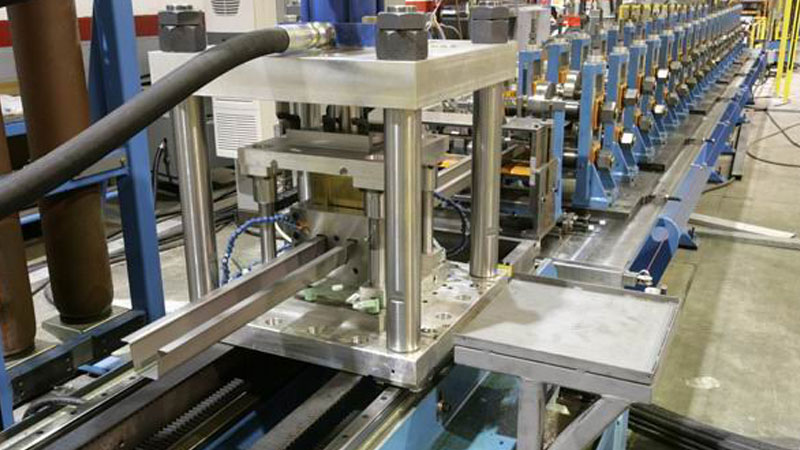

  • Hole punching unit

  • Ground pit/ over ground accumulating unit

  • Guiding device

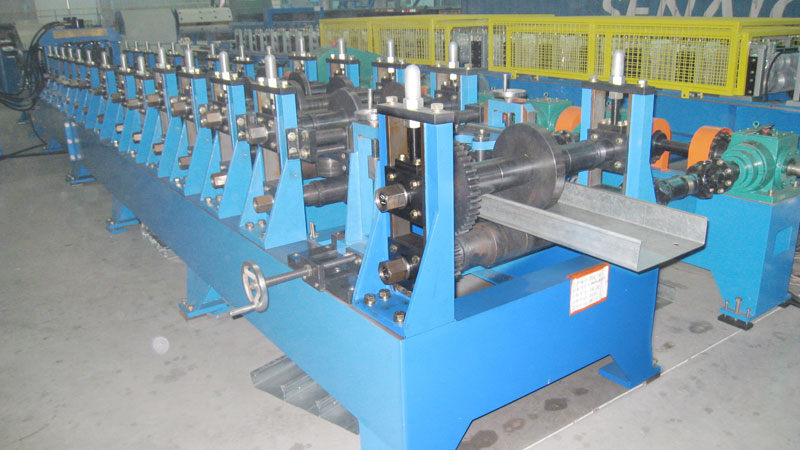

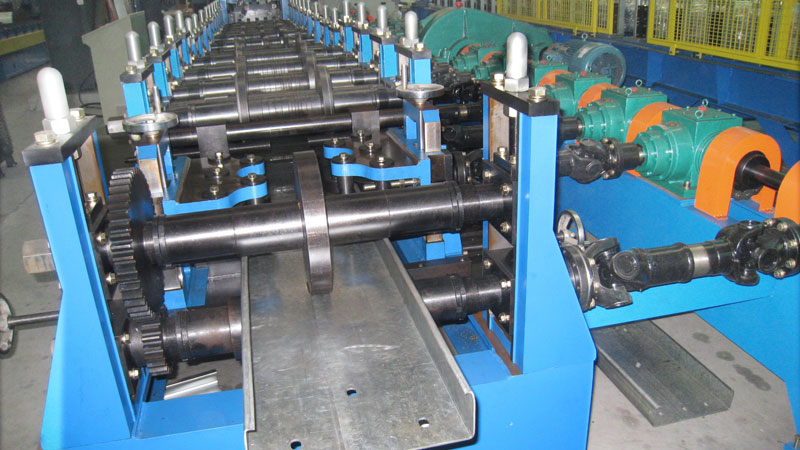

  • Roll Forming System

  • Post-Cutting to length

  • Output Manual Supporter/Auto Stacker(optional)

Housing Post Structure Purlin Forming Machine Working Flow

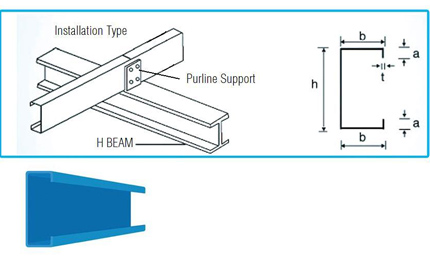

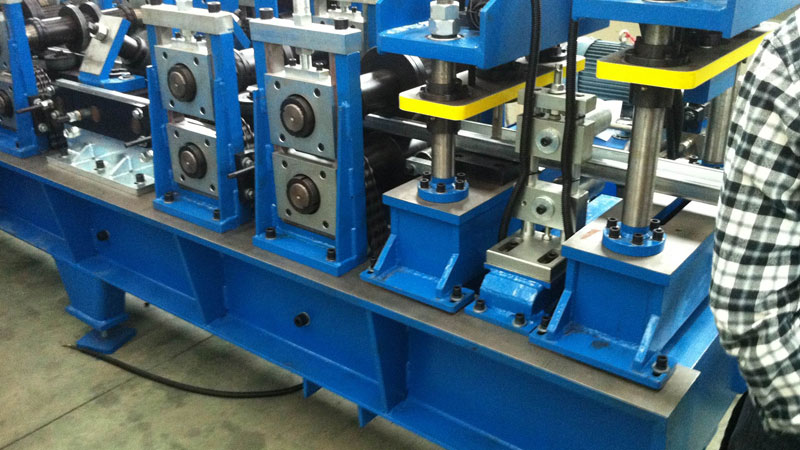

Installation Type

Installation TypeInstallation Type

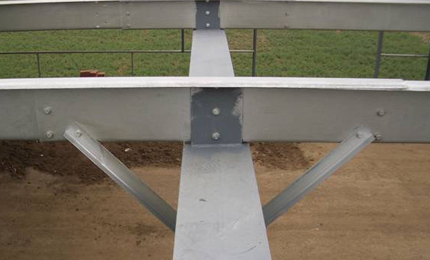

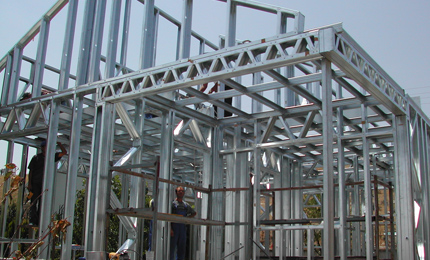

Housing Post Structure Purlin Forming Machine Application

C Z U M purline and other steel building materials is becoming to be indispensable in various Light Steel structure construction, civil-construction and mansions building.


Housing Post Structure Purlin Forming Machine ApplicationHousing Post Structure Purlin Forming Machine Application


Suitable Coil Sheet Material

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 2.0-3.0(mm)/3.0-6.0(mm)

Yield Strength: 230-300 (MPa)

Width: 172-482(mm) as profile requests


Production Line Components and Parameters


1. Decoiler-leveler integrated device 3t/5t
2. Servo Feeding Device
3. Holes punching device
4. Guiding device
5. Roll forming system      20-30m/min
6. Safety cage               optional
7. Post cutting device
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for holes punching /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)



Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout15t
Dimension(L*W*H) about 30*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP)container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
