Features and Advantages of CASSETTE Quick Changeover Roll Forming Machine


  • No profiles limitations like double layer forming machine, it suits various narrow, wide, thin or thick profiles like single formers.

  • Quick and easy changeover method, no need to change any tooling or cutting blades.

  • Different from double layer roll former, Cassette type quick-change realize multi-profile purpose by changing forming tooling sets installed on a second Machine base.

  • Max forming speed can reach 60m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

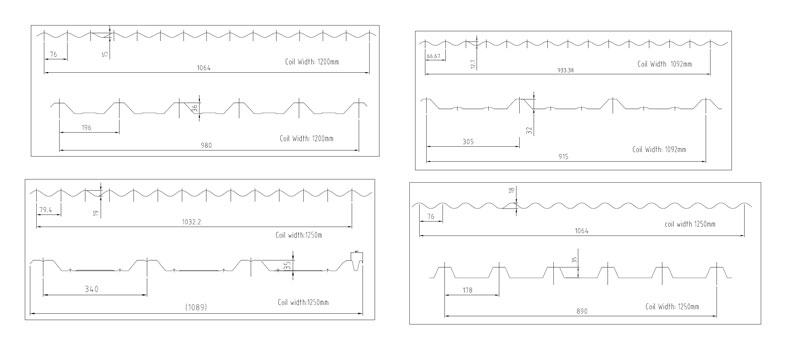

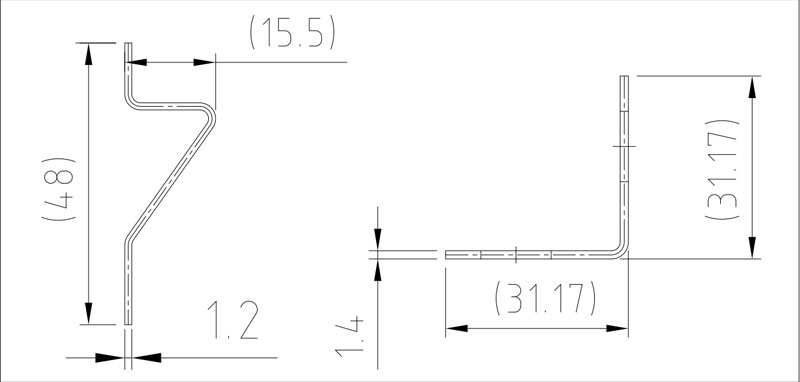

Rack Profile Drawings

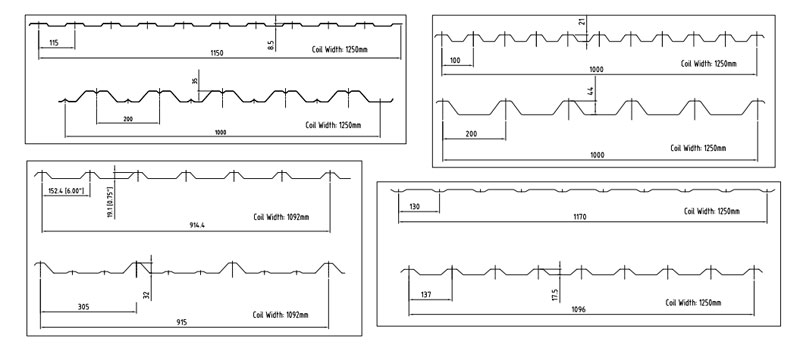

Profile drawings

Profile drawings

Profile drawings

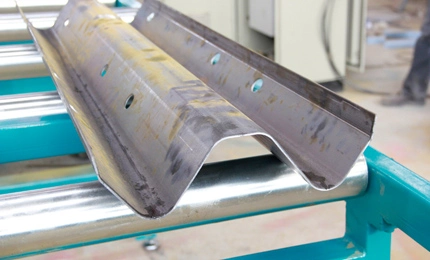

Finished Panels


Finished panelsFinished panels


Working Flow of CASSETTE Quick Changeover Roll Forming Machine



  • Decoiler

  • Leveling device (optional as profile requests)

  • Servo feeding device (optional as profile requests)

  • Hole punching device  (optional as profile requests)

  • Ground pit/ over ground accumulating unit  (optional as profile requests)

  • Guiding unit

  • Roll Forming System

  • Post-Cutting to length(flying cutting, tracking cutting and stop to cut are available for choice)

  • Output Manual Supporter/Auto Stacker(optional)

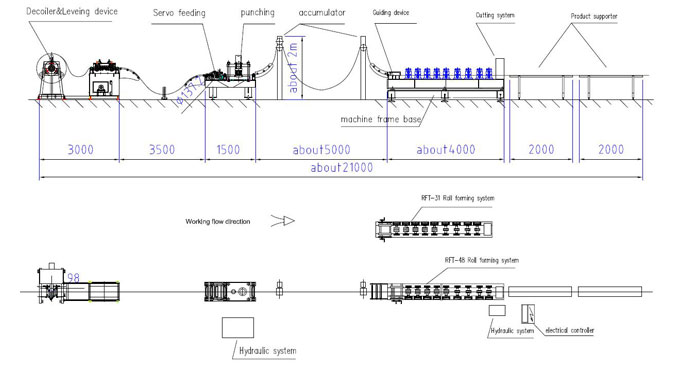

layout


Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel, colored steel

Thickness: 0.3-0.7/ 0.7-1.2/1.0-2.0/2.0-3.0/3.0-6.0 (mm)

Yield Strength:  230-300 (MPa)

Width: as profile requests


Production line Components and Parameters

1. Decoiler  3t/5t/8t/10t/15t
2. leveling device(optional as profile requests)
3. Servo Feeding Device(optional as profile requests)
4. Holes punching device(optional as profile requests)
5. ground pit/ over ground accumulating unit(optional as profile requests)
6. Guiding device
7. Roll forming system        20/30/40/50/60 m /min (optional as requests)
8. Safety cage             optional
9. Post cutting deviceflying cutting, tracking cutting and stop to cut are available for choice
10. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
11. Hydraulic systemPower supply for holes punching /post-cutting system
12. Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested)


Related information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 20t
Dimension(L*W*H) about 30*3*2m
LOADING SIZENormally need 2 x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
