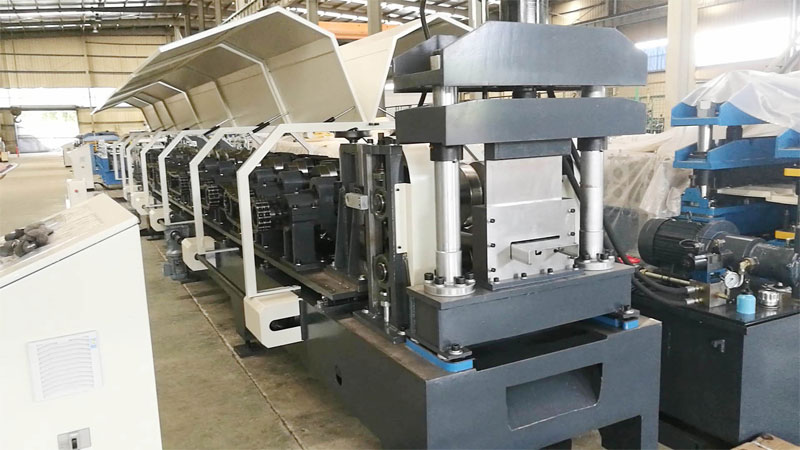

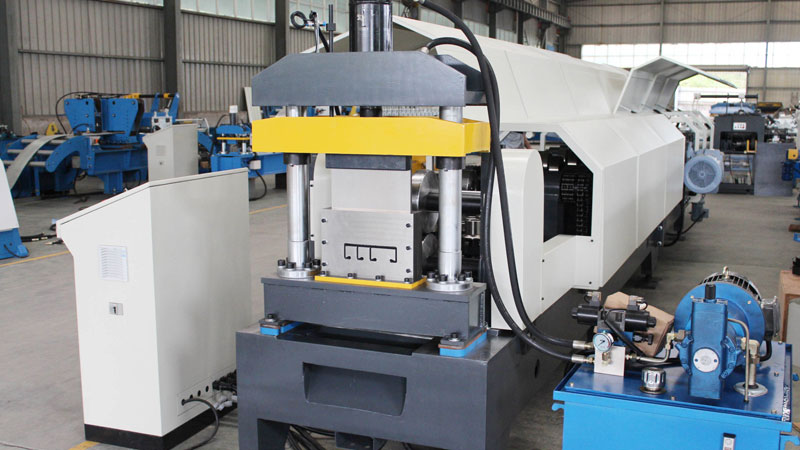

Semi-Auto C/Z Purlin Roll Forming Machine Introduction


Semi-Automatic C/Z Purlin Machine for Sale uses the same set of equipment to produce various specifications of C/Z purlin through semi-automatic simple stepless adjustment, without changing the forming rollers when changing specifications. If want to change C to Z(Z to C), need to change the rollers position manually. The production process adopts automatic control mode, which can automatically punch, cut and form according to the parameters of the purlin length, vertical hole distance and number entered.


Features and Advantages of Semi-Auto C/Z Purlin Roll Forming Machine for Sale


  • Automatic multi-size adjusting can be finished quickly on PLC screen.

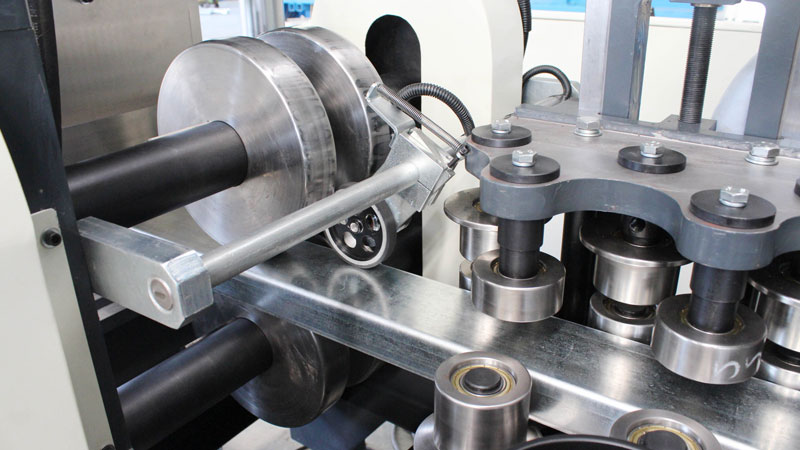

  • C & Z profile changeover job can be finished very easily and quickly under the help of the C/Z changeable device.

  • Just need to switch the specific stations tooling to a different position, thus it can produce both C and Z purline.

  • Forming speed: 30m/min; Production speed 15m/min

  • It saves much cost than a full automatic C/Z exchangeable line but can realize all functions.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

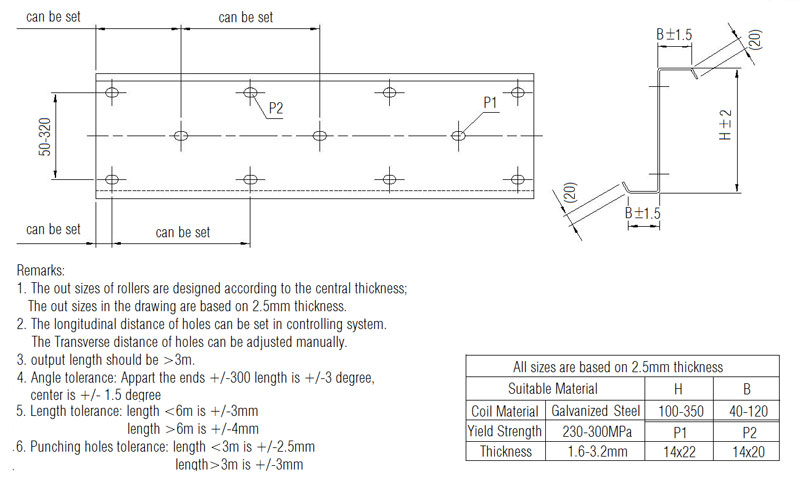

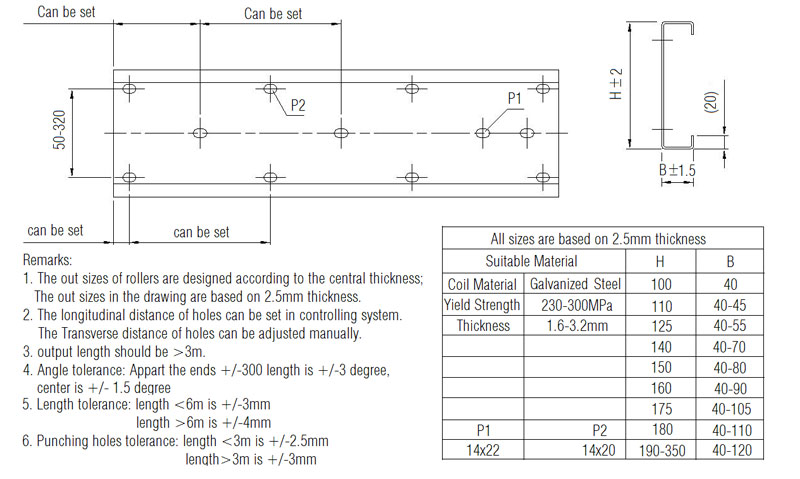

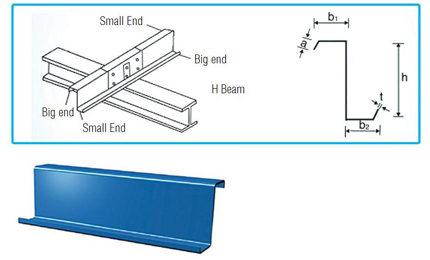

C U Z M Profile Drawings of Purlin Machine for Sale


profile drawingprofile drawing

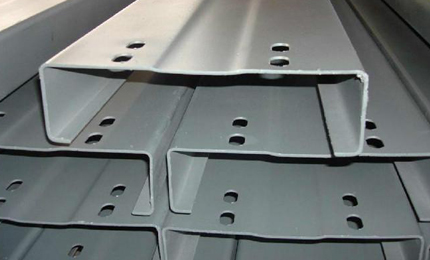

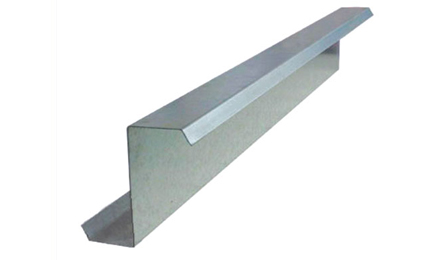

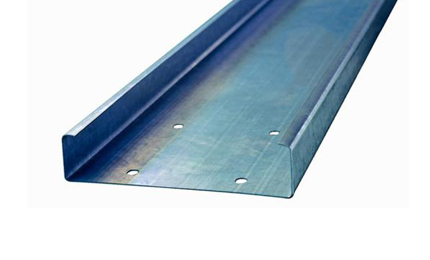

Finished Panels Processed by Purlin Machine for Sale


Finished PanelsFinished Panels

Finished PanelsFinished Panels


Semi-Auto C/Z Purlin Roll Forming Machine Working Flow


  • Decoiler-leveler integrated unit

  • Servo Feeding

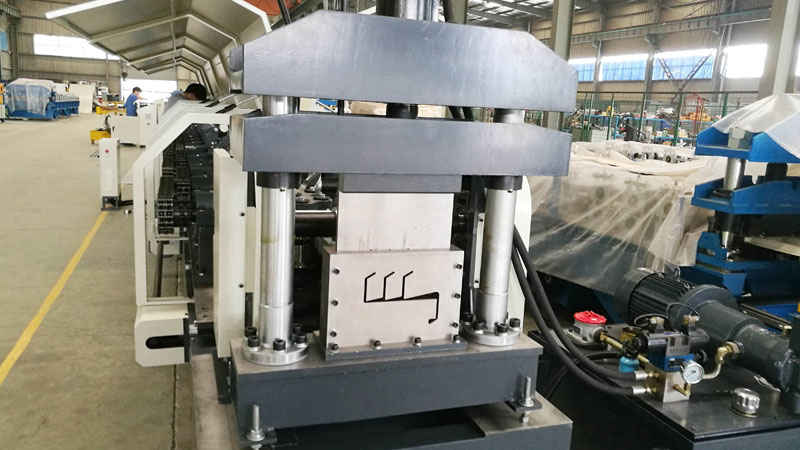

  • Hole punching unit

  • Guiding device

  • Pre-cutting to length

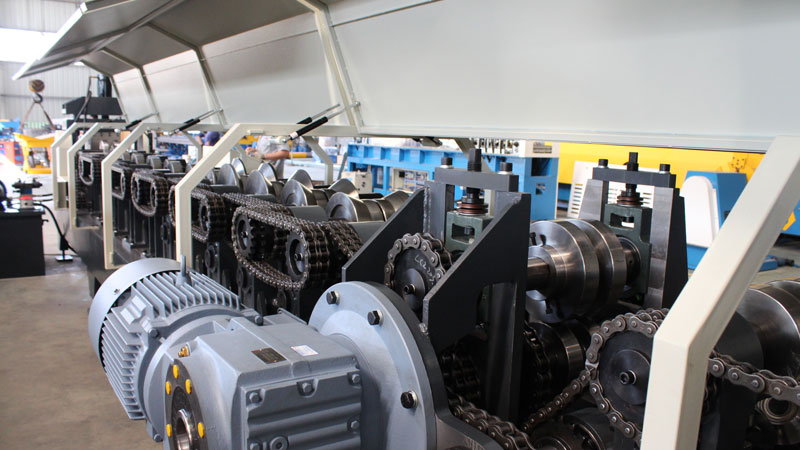

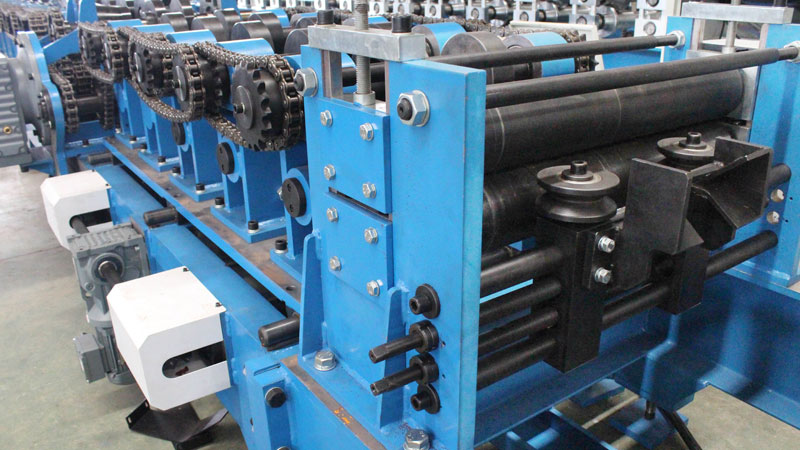

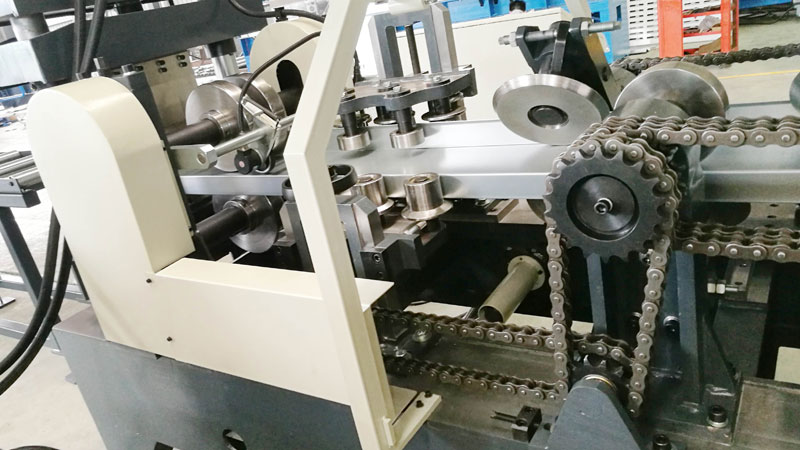

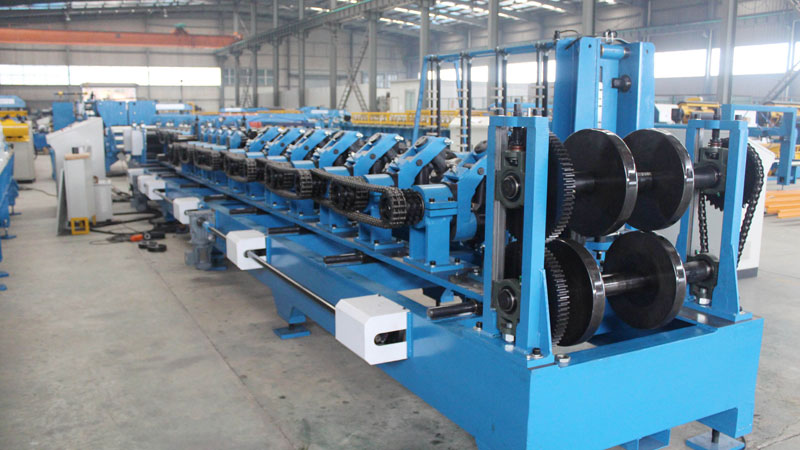

  • Roll Forming System

  • Output Manual Supporter/Auto Stacker(optional)

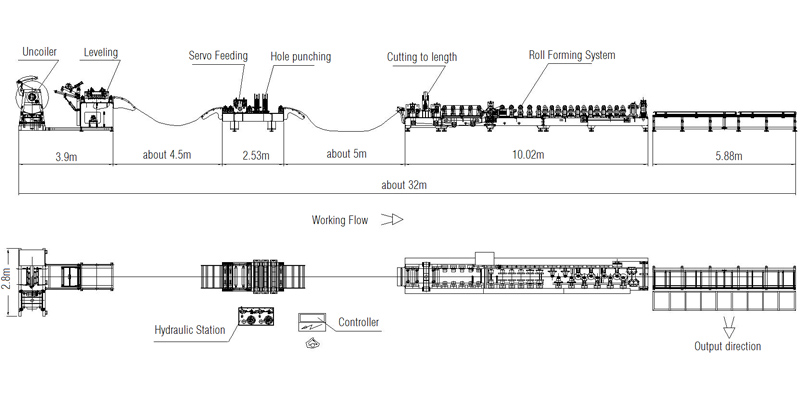

Semi-Auto C/Z Purline Roll Forming Machine Working Flow

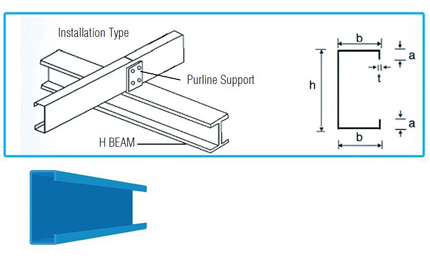

Installation Type



Installation TypeInstallation Type

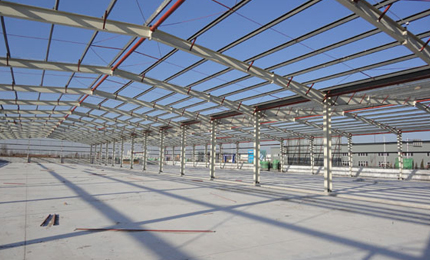

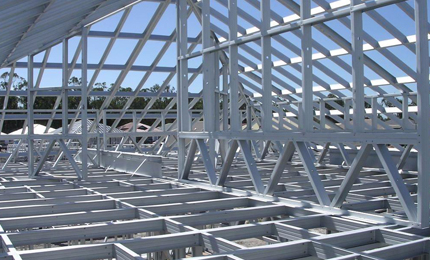

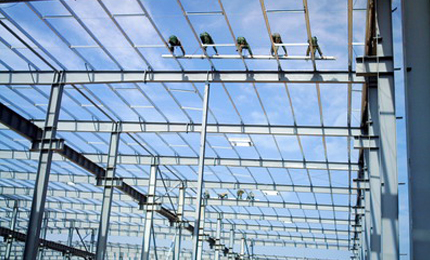

Semi-Auto C/Z Purline Roll Forming Machine Application


Semi-Auto C/Z Purline Roll Forming Machine ApplicationSemi-Auto C/Z Purline Roll Forming Machine Application

Semi-Auto C/Z Purline Roll Forming Machine Application


Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 1.6-3.2(mm)

Yield Strength:  230-300 (MPa)

Width:  as profile requests


Production line Components and Parameters


1. Decoiler-leveler integrated unit 3t/5t automatic
2. Servo Feeding unit
3. hole punching unit

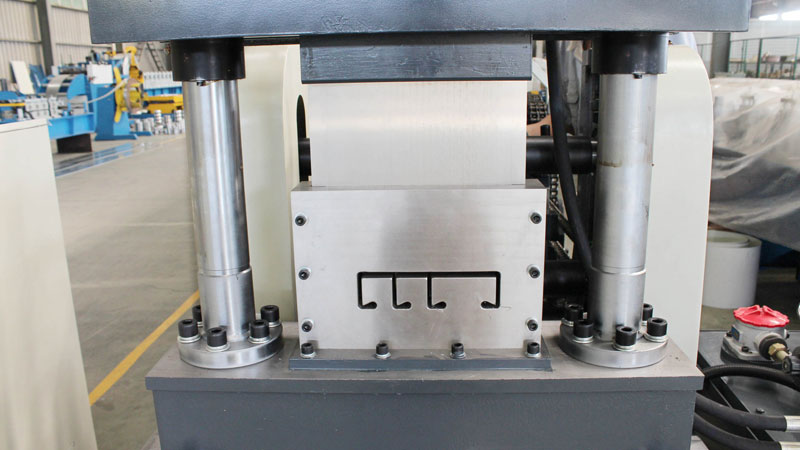

4. Pre-cutting to length
5. Roll forming system        20-30m/min
6. Safety cage              optional
7. Output System            Automatic Stacker
Stackmaster(Output direction) Lateral/Longitudinal (optional)
8. Hydraulic systemPower supply for pre-cutting and hole punching system
9. Electric control systemMITSUBISH



Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout25t
Dimension(L*W*H) about 45*3*2m
LOADING SIZENormally need 2x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
