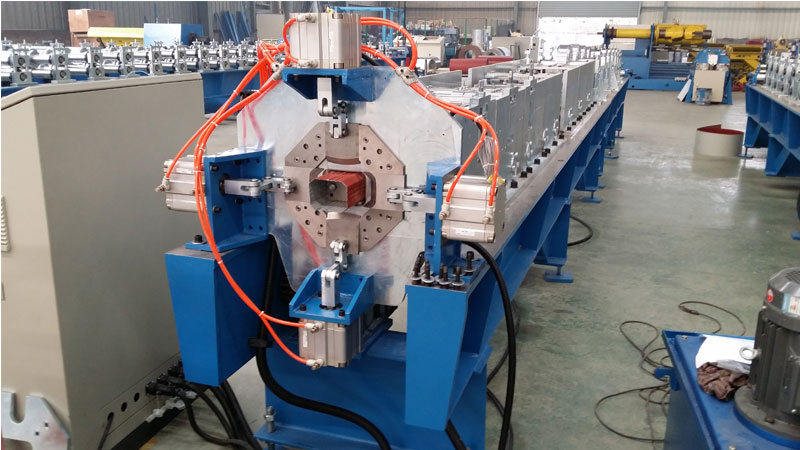

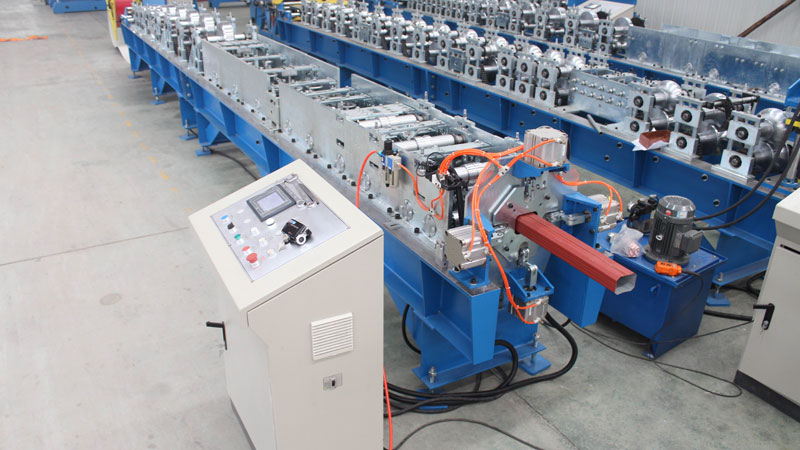

Rectangular Downpipe Forming Machine

Downpipe Forming Machine
Downpipe Forming Machine
Downpipe Forming Machine
Downpipe Machine
Downpipe Machine For Sale
Downpipe Roll Forming Machine
Rectangular Downspout Roll Forming Machine
Rectangular Downspout Roll Forming Machine
Rectangular Downspout Roll Forming Machine

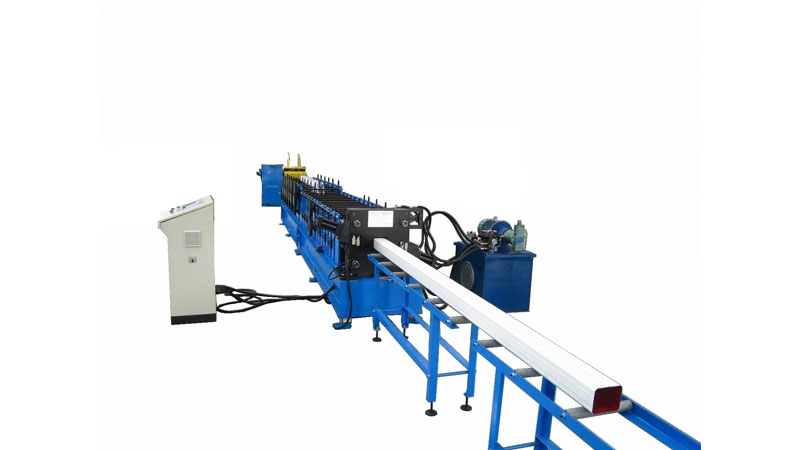

Rectangular Downpipe Forming Machine Introduction


This machine is used to make rectangular downspout and square downspout. A downspout is a pipe that runs vertically along the side of the home. It is connected at the top to a hole in the gutter channel.Downspout carrys rainwater from a roof to a drain or to ground level.


Features and Advantages of Rectangular Downspout Roll Forming Machine


  • Fully automatic continuous rolling forming machine for round downspout under mass-production.

  • Production speed: 15 m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

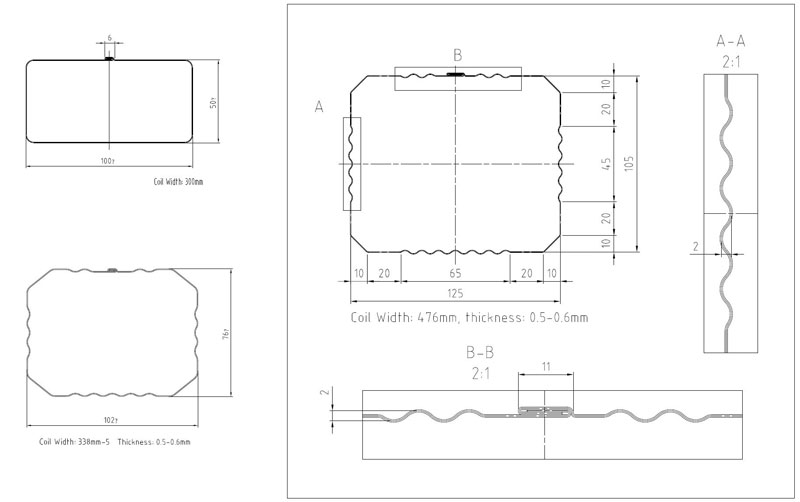

Profile Drawing


profile drawing

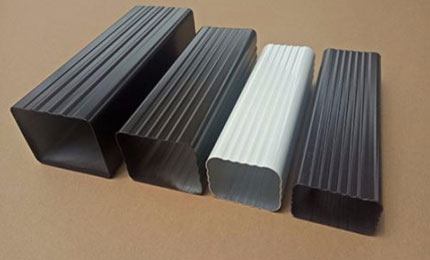

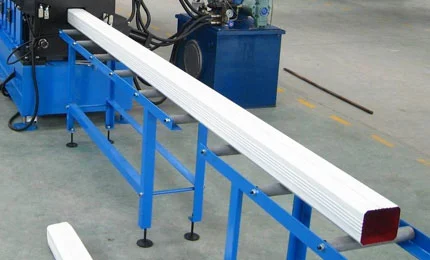

Downspout Sample


3 Downspout sample3 Downspout sample


Rectangular Downspout Working Flow

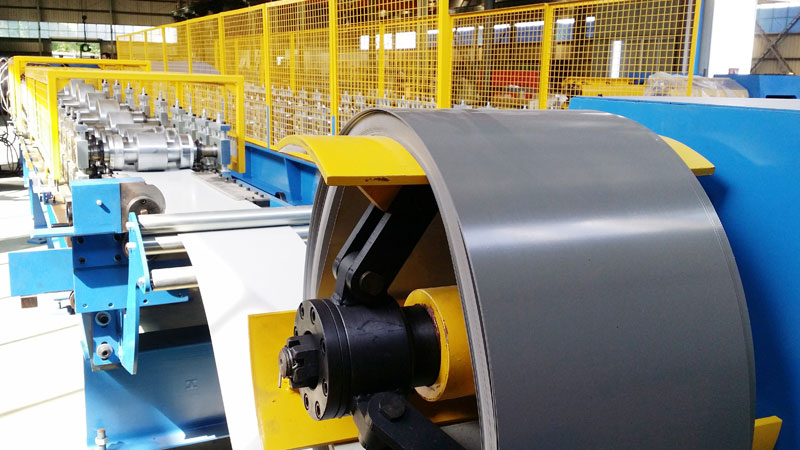

  • Decoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Roll Forming System

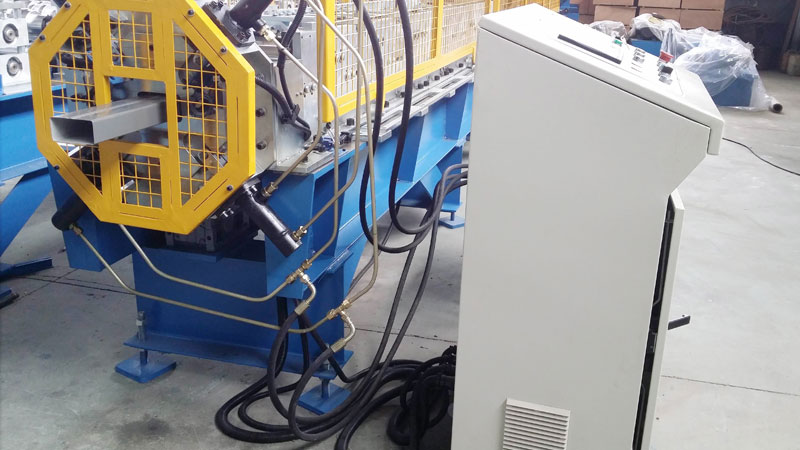

  • Post-Cutting to length (Hydraulic)

  • Output Supporter


Rectangular Downspout Forming Line Layout

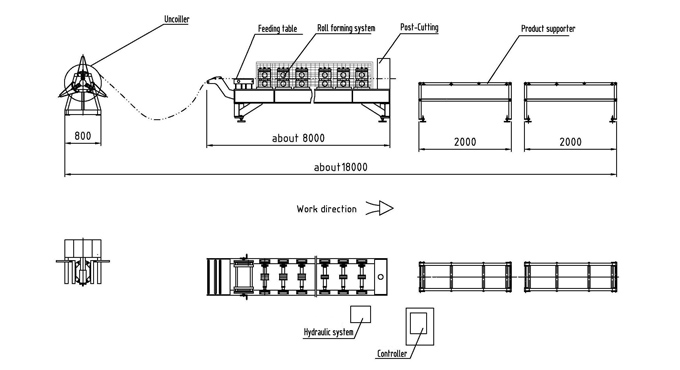

Round Downspout Forming Line Layout

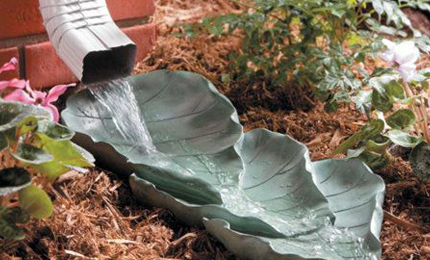

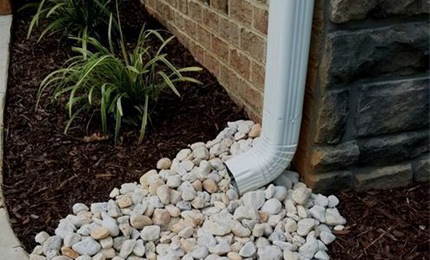

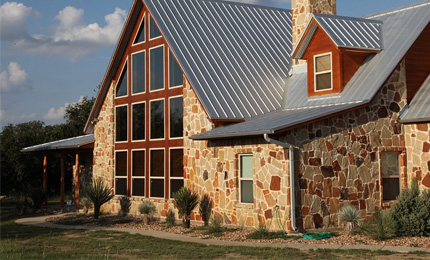

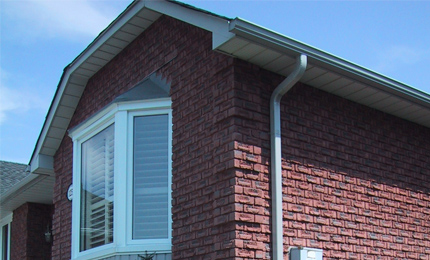

Rectangular Downspout Roll Forming Machine Application


Roofing down spout pipes can prevent house leaks and water damage to walls & foundations, also protects painted surfaces by channeling water away from its base foundation.


Rectangular Downspout Roll Forming Machine ApplicationRectangular Downspout Roll Forming Machine Application

Rectangular Downspout Roll Forming Machine Application



Suitable Raw Material


Material type: Color coated Steel

Thickness: 0.5-0.6(mm)

Yield Strength: 230-300 (MPa)

Width: 370/425 (mm) as profile requests

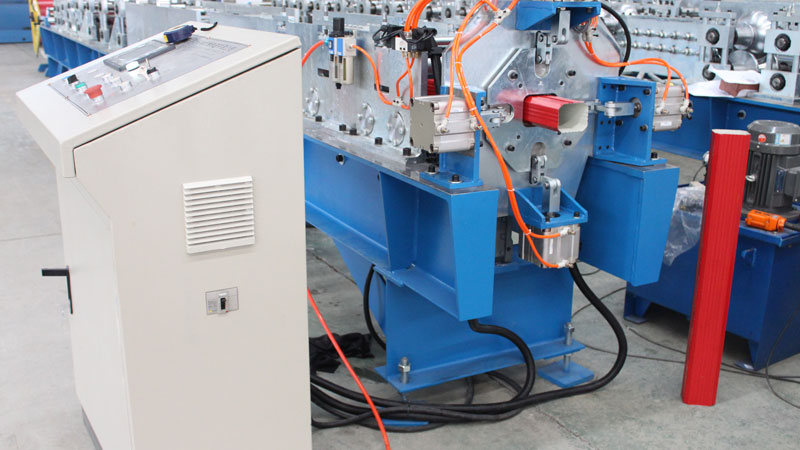

Production Line Components and Parameters


1. Decoiler            2t/3t/5t Motor/hydraulic motor/passive (optional)
2. Front shear                  optional
3. feeding and guiding unit
4. Roll forming system          15 m/min
5. Safety cover               optional
6. Post cutting                hydraulic
7. Output supporter
8. Hydraulic systemPower supply for decoiler /post-cutting system
9. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )



Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 10t
Dimension(L*W*H) about 25*2.5*2m
LOADING SIZENormally need 1x 40’ (+1x 20') container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
