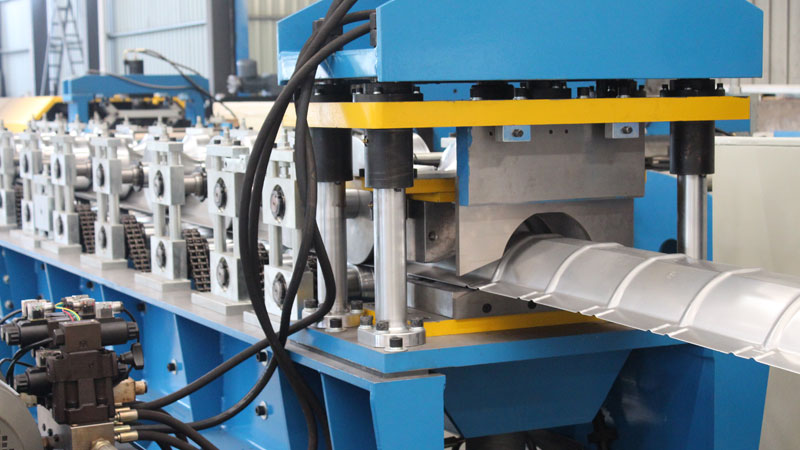

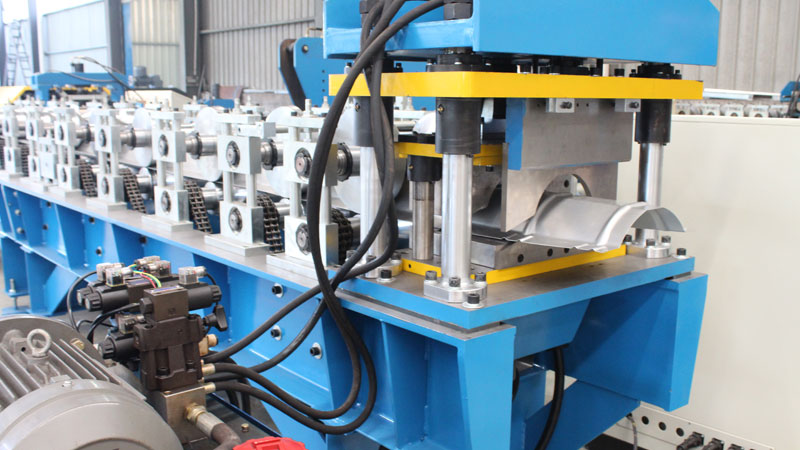

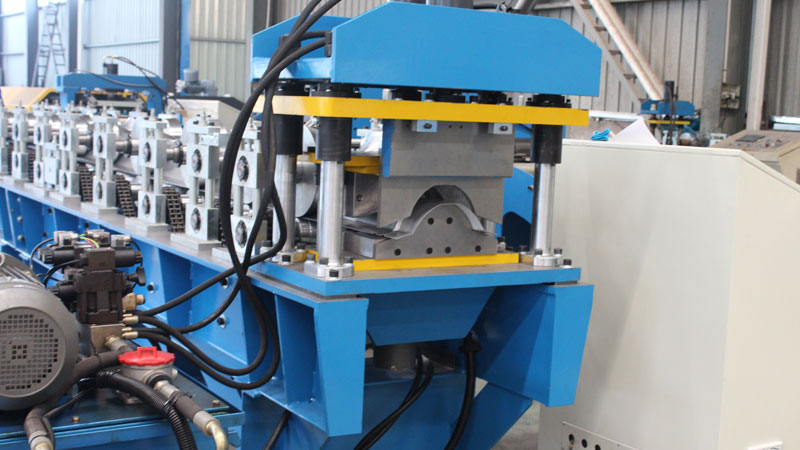

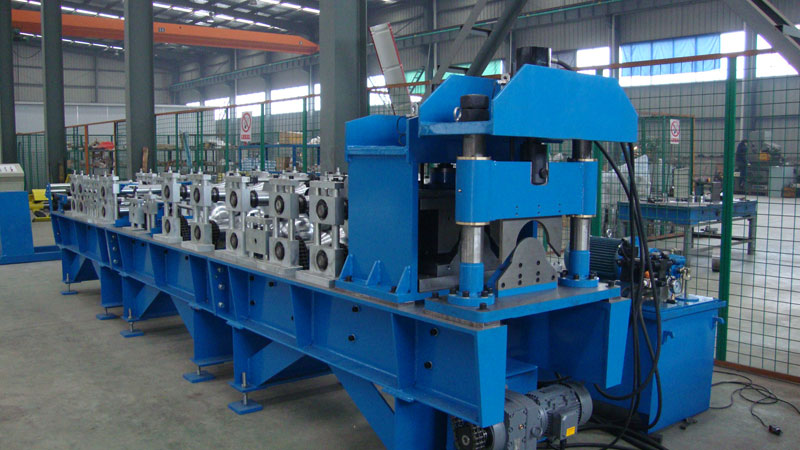

Ridge Cap Roll Forming Machine Introduction


This machine is used to make ridge capping. Ridge capping is a critical part of the structure of a roof. Ridge capping is placed along the peak of a roof to cover where the roof sheets meet. Roll-top ridge capping is a rolled product that is made to specific dimensions and cut to requested lengths. We manufacture both standard size ridge capping roll forming machines and also manufacture customized roll froming machines.


Features and Advantages of Ridge Capping Roll Forming Machine


  • Fully automatic continuous rolling forming machine for various sizes and specifications ridge capping under mass-production.

  • Production speed: 15/20/30 m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready roof tiles manufacturing machines in stock for prompt delivery.

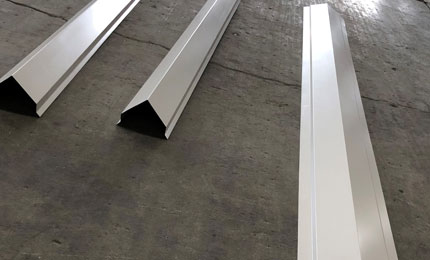

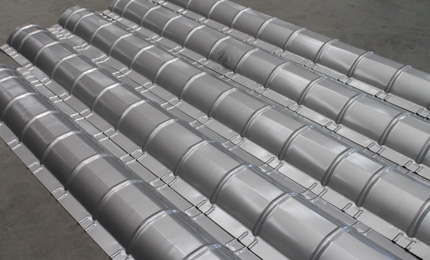

Finished Panels


Finished panelsFinished panels

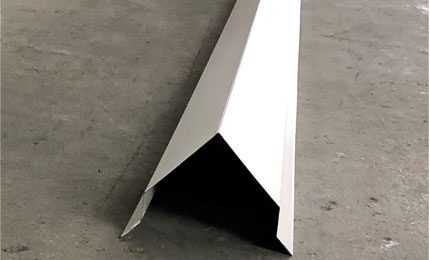

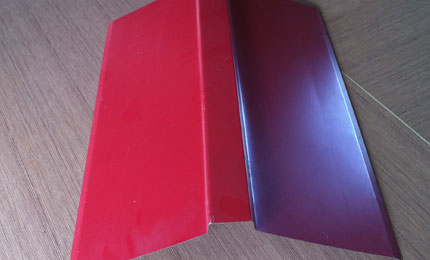

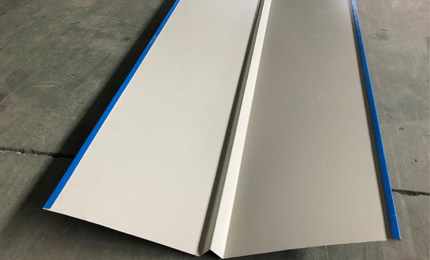

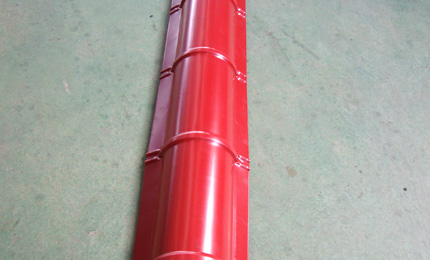

Finished panelsRidge Capping Samples

Ridge Capping SamplesRidge Capping Samples

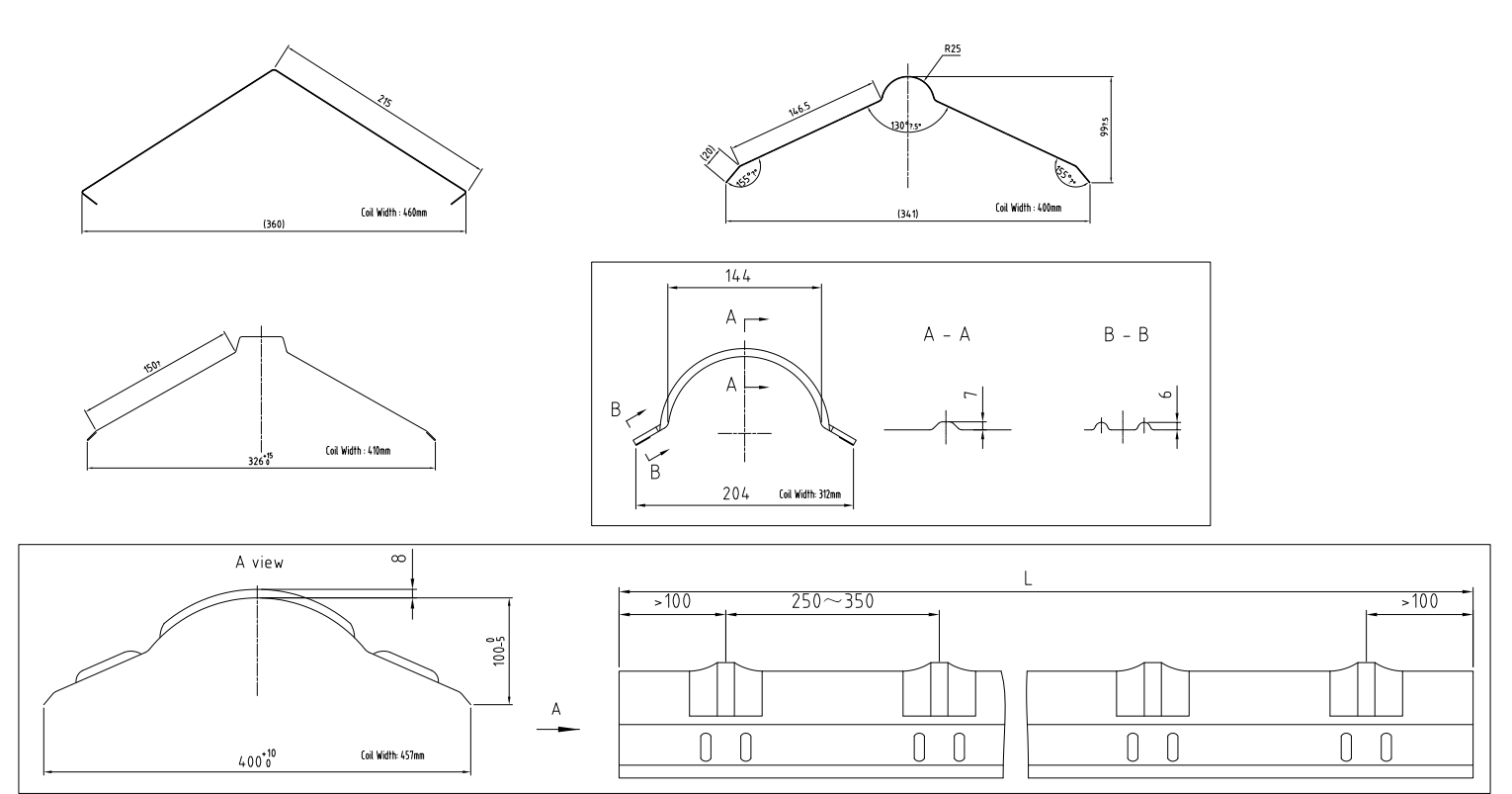

Popular Ridge Capping Profile Drawings

Ridge Capping Roll Forming Machine profile drawing


Working Flow of Ridge Capping Roll Forming Machine


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Filming Covering (optional)

  • Roll Forming System

  • Step Punching unit(as profile requests)

  • Post-Cutting to length (Hydraulic/Motor

  • Output Manual Supporter/Stackmaster(optional)

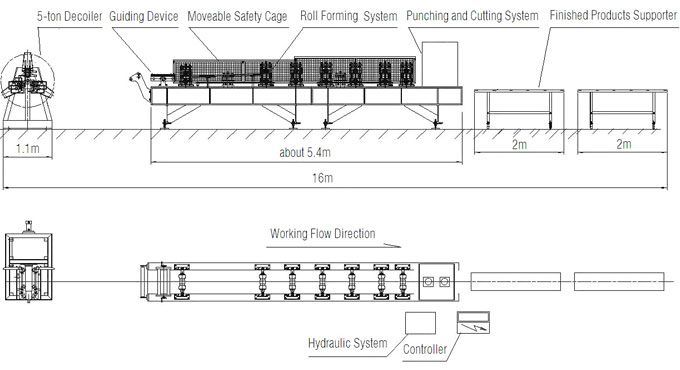

Ridge Capping Making Line Layout Drawing

layout

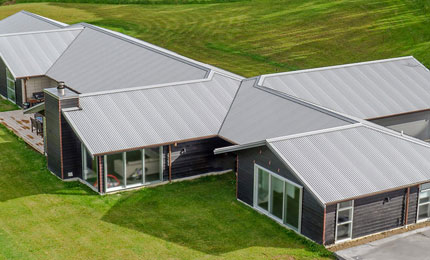

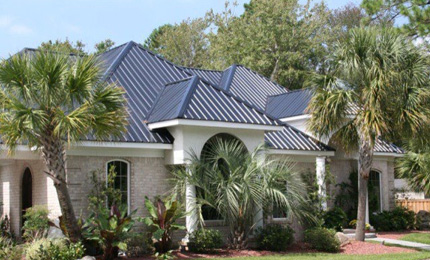

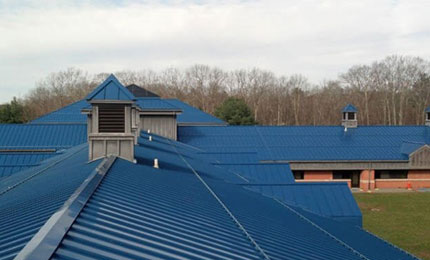

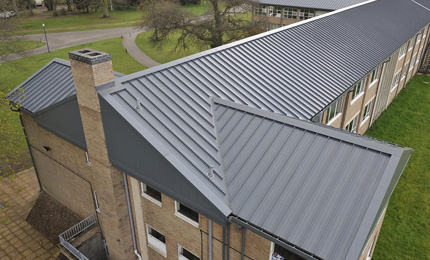

Products Application

Roof ridge caps produced using this machinery are used for a variety of light steel structure construction and large building projects.


ApplicationApplication


Suitable Raw Material


Material type: Color coated Steel, Aluminum sheet

Thickness: 0.3-0.6(mm)

Yield Strength: 230-300/350 (MPa) optional

Width: 385 (mm) as profile requests


Production line Components and Parameters

1. Decoiler                    2t/3t/5t Motor/hydraulic motor/passive (optional)
2. Filming covering device       optional
3. Front shear              optional
4. Lubricating device           no need
5. Roll forming system         15/20/30 m/min
6. Safety cover            optional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systeMITSUBISH/ SIEMENSE/AMS (optional or as requested )


Related Information

Panel ShapeAs profile drawing and customer’s requirements
Operator needed1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 8t
Dimension(L*W*H) about 20*2.5*2m
LOADING SIZENormally need 1x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
