Single Side Hydraulic Decoiler

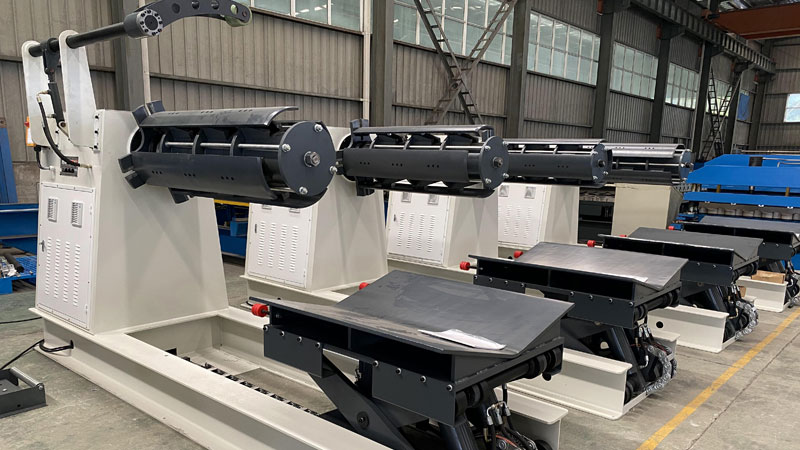

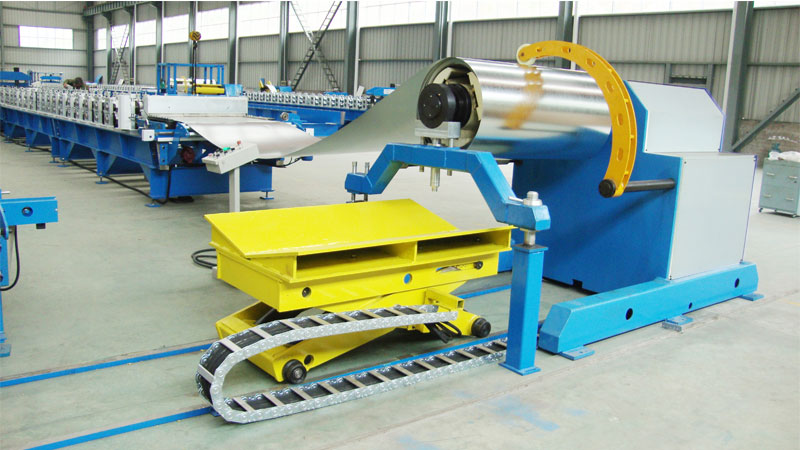

The decoiler adopts cantilever type structure. It Includes machine frame, cantilever type extension, decoiler driving system (by motor), Hydraulic system, and electric control system, Etc., with the function of install and unwind the coil.

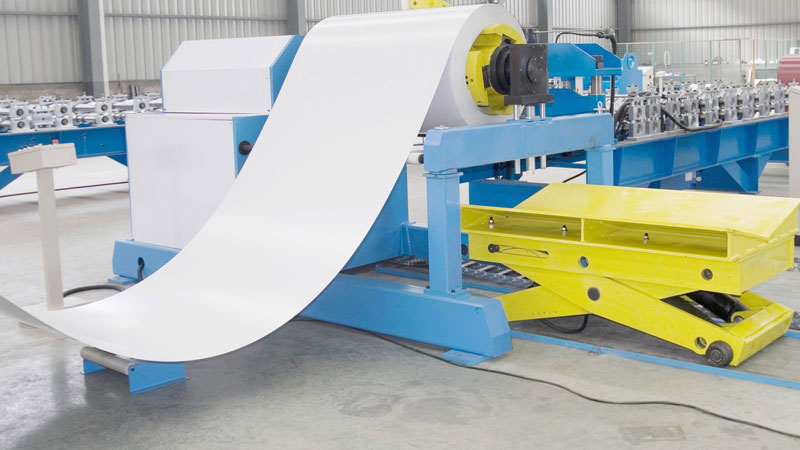

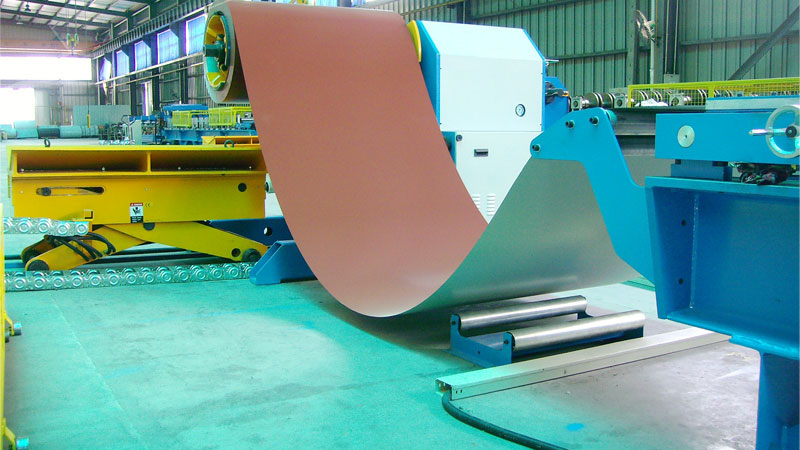

With arm-type decoiler, the machine is composed of main frame, arm-type hydraulic expanding axis, motor releasing of transmission system, coil car, hydraulic system, PLC control system, which are used to realize the function of coil loading and unloading. The decoiler is feeding work in the production line for roll forming machine.


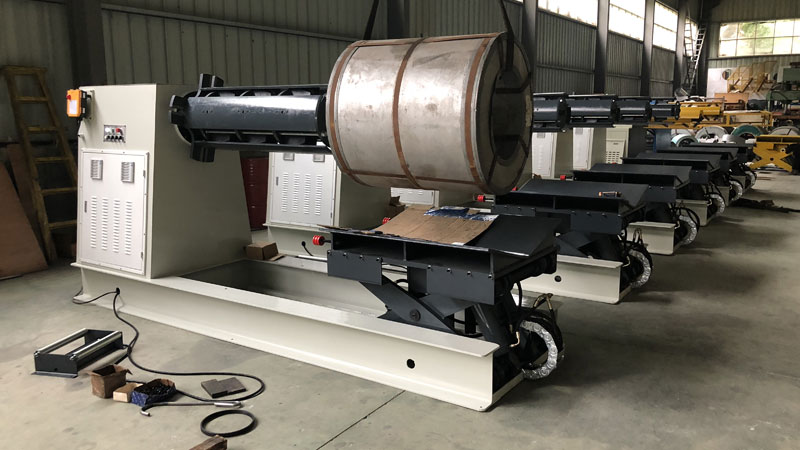

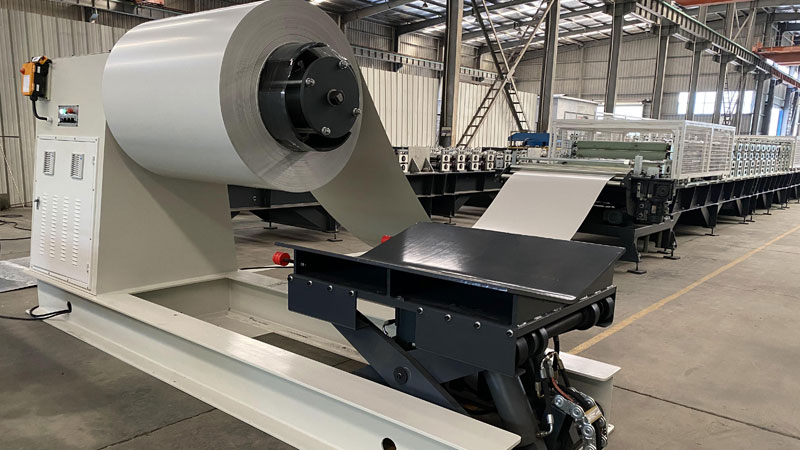

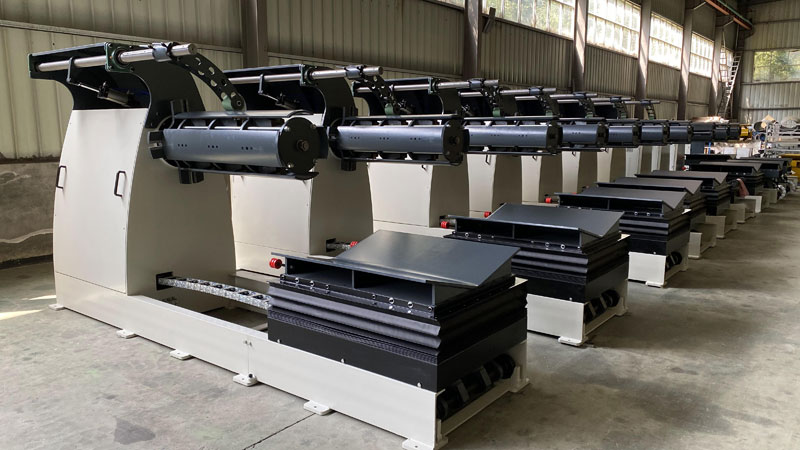

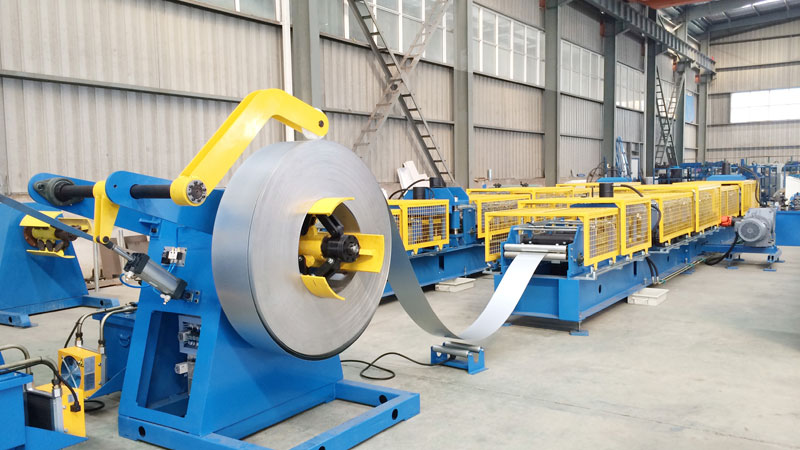

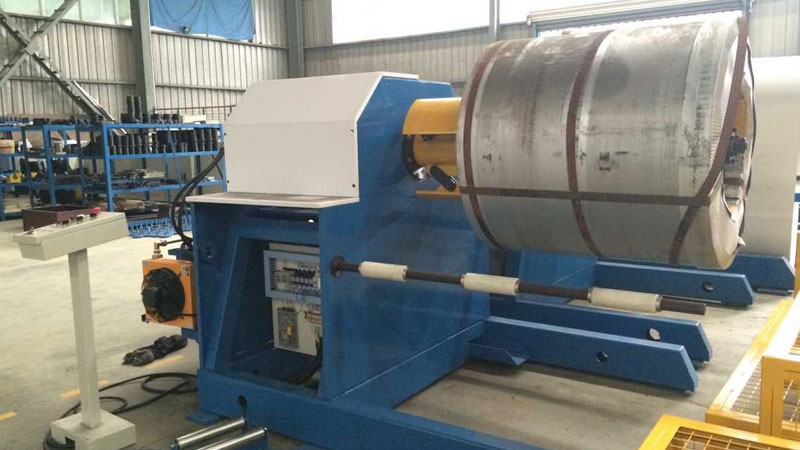

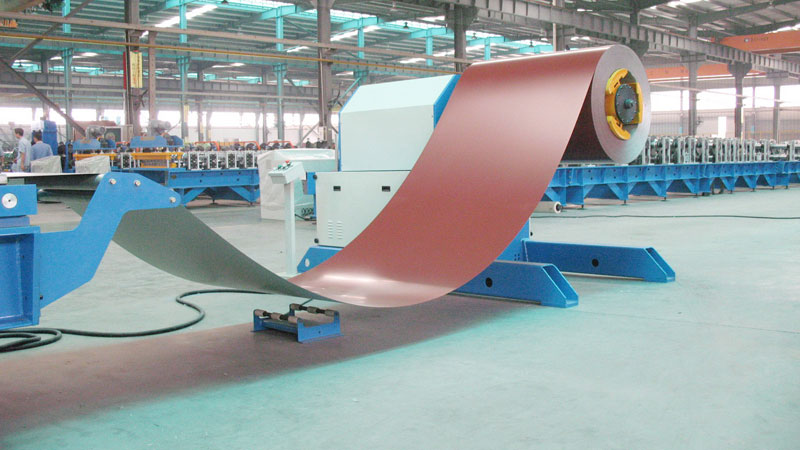

Characteristic of Structure of the Machine


  • The frame using beam steel and Shot blasted process after welding.

  • Shaft of the cantilever type extension cope: Φ465-Φ515,controlled by the valve hydraulic system, and the mechanical parts.

  • Separately working,through reducer by Chain driving the shaft to decoiling or recoiling the coil material. When working assort with the forming machine,the decoiler uncoiling the coil actively, controls the uncoiling speed by ultrasonic sensor.

  • Using separately hydraulic system to supporting the working of the decoiler.

  • Set separately electric control system,realized the extension the center shaft of uncoiler machine, and driving the shaft forward, backward, and step motion forward and backward. The ancillary shoring is for supporting the main uncoiling machine to make the decoiler'sbearing capacity become larger.

  • The ancillary shoring is for supporting the main uncoiling machine to make the decoiler's bearing capacity become larger.


Series Product Differences of Single Side Hydraulic Decoiler


ItemRFT-5TCPRFT-8TCPRFT-10TCPRFT-15TCPremark
Capacity5000Kgs8000Kgs10000Kgs15000Kgs
ID of the coilφ508mmφ508mmφ508mmφ508mmextension cope: Φ465-Φ515
Width of the coil1000-15501000-15501000-15501000-1550
Max. O.D. of the coilφ1350mmφ1350mmφ1350mmφ1350mm
orφ1750mmorφ1750mmorφ1750mmorφ1750mm
Speed of decoiling≤45m/min≤45m/min≤45m/min≤45m/minmandrel running speed: 23r/min
Power of the motor5.5KW5.5KW7.5KW7.5KW
Hydraulic power3KW3KW3KW3KW
The hydraulic PressureMax20MpaMax20MpaMax20MpaMax20Mpa
Power Source requirement3 phase AC400V/50Hz3 phase AC400V/50Hz3 phase AC400V/50Hz3 phase AC400V/50Hz380V to 460V 50Hz/60Hz can be customized
Maximum working current22A22A27A27A
Short-circuit current6KA6KA6KA6KA
Pressing armOptional/Pneumatic/HydraulicOptional/Pneumatic/HydraulicOptional/Pneumatic/HydraulicOptional/Pneumatic/Hydraulic
Manual supportingWithout this configurationWithout this configurationStandard configurationStandard configuration
Overall dimensions4100*1100*2150mm4100*1150*2150mm4200*1800*2000mm4200*2100*2100mm
Weight4050Kgs4100Kgs5300Kgs5600Kgs
Working directionOptionalOptionalOptionalOptionalRight to Left/Left to Right
Hydraulic coil cartOptionalOptionalOptionalOptional
