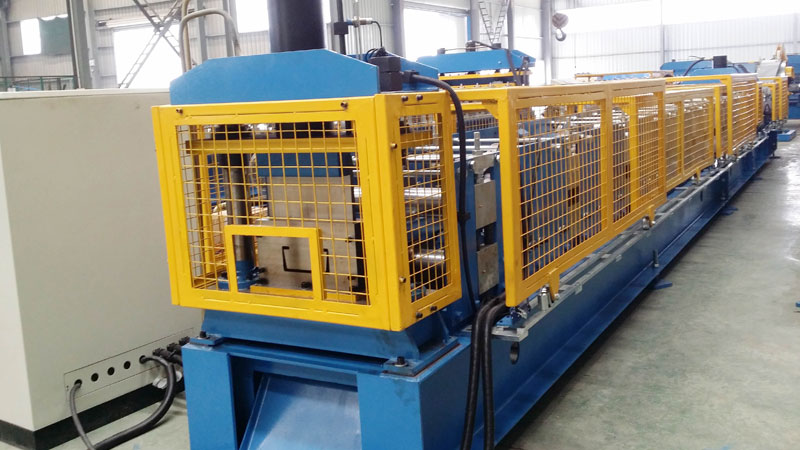

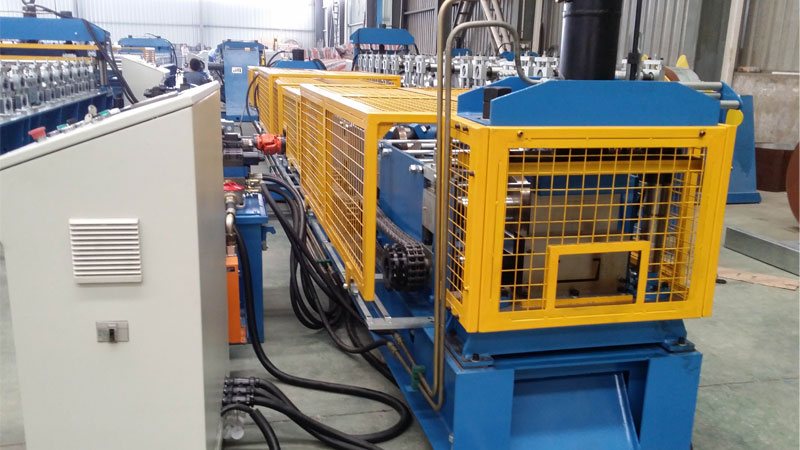

Features and Advantages of Panel Structure Purlin Roll Forming Machine

  • Fully automatic continuous C U Z M steel forming machine for both heavy and light-duty use.

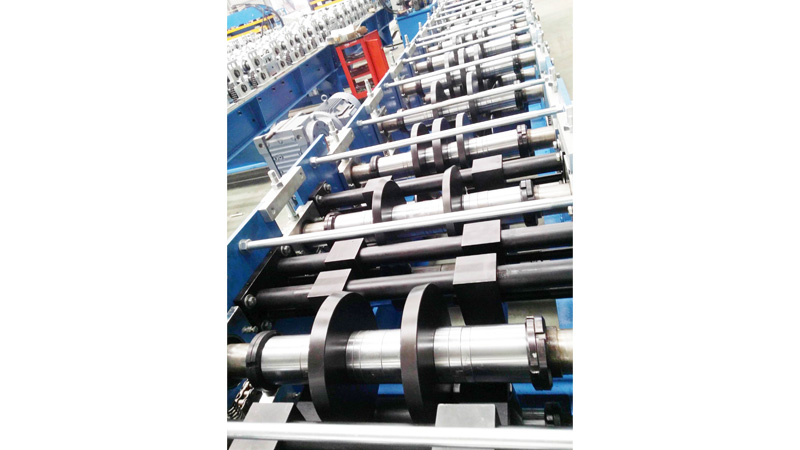

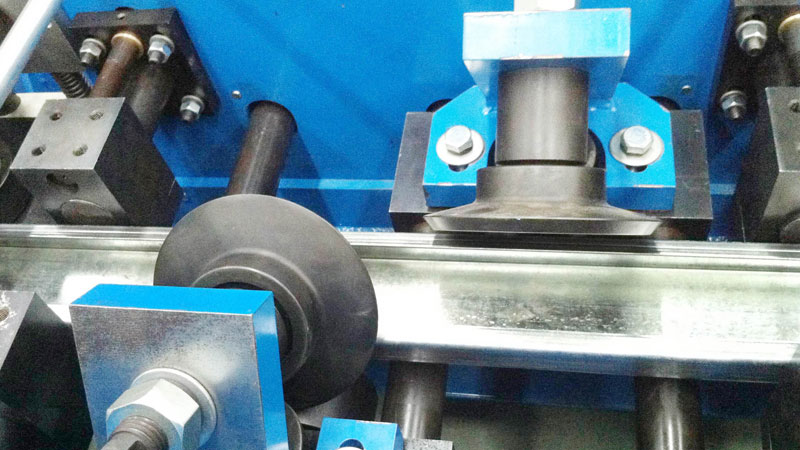

  • Adopts changing spacers to make multi sizes profiles sections.

  • Inline flexible punching system integrated

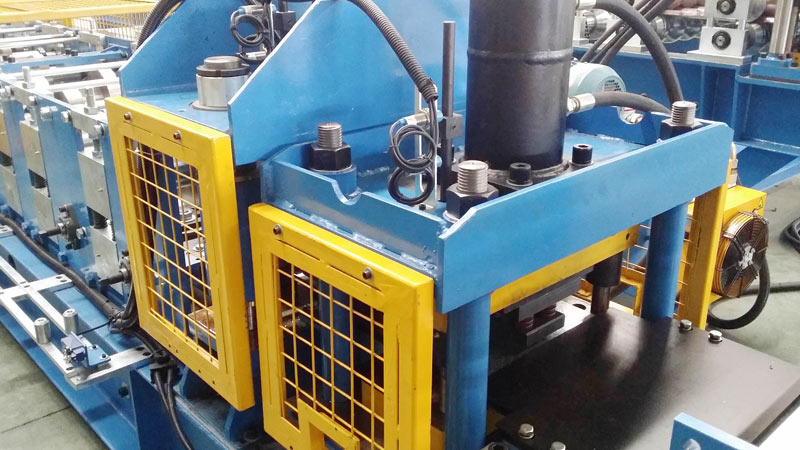

  • Pre-cutting and Post cutting is optional


If we need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.


If profile sizes are not so many, post cutting can improve profile quality greatly.


  • Forming speed: 12-15 m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

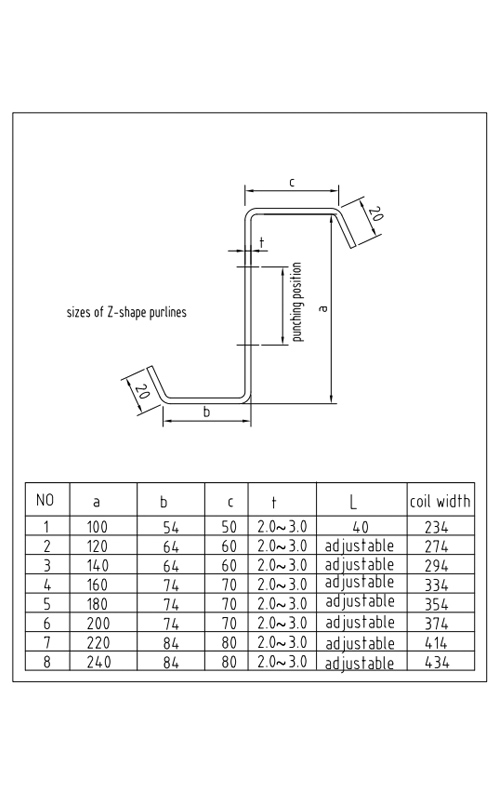

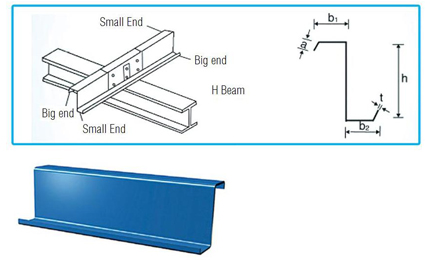

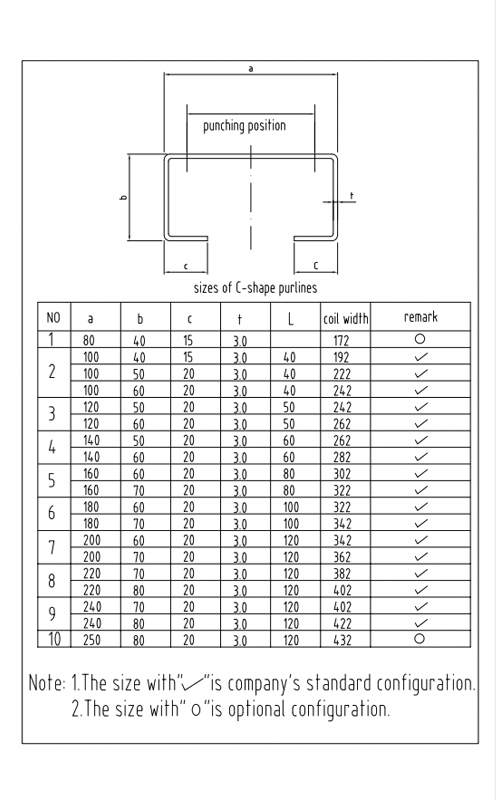

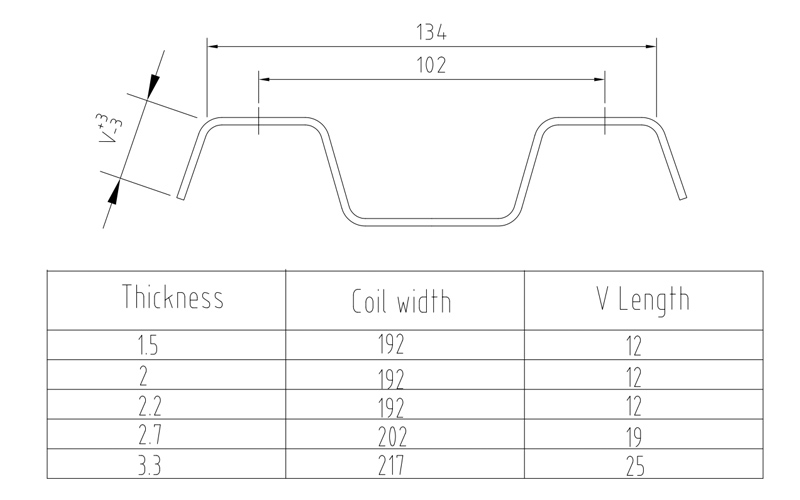

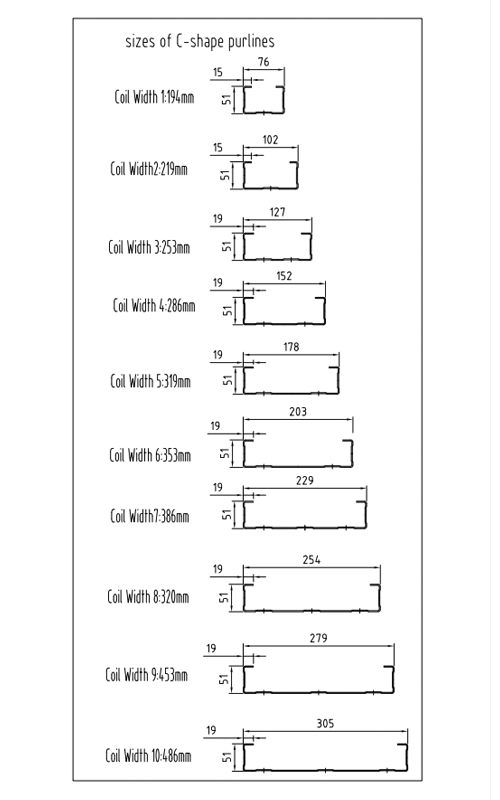

Popular C U Z M Profile Drawings


Popular C U Z M Profile drawings

Popular C U Z M Profile drawings

Popular C U Z M Profile drawings

Popular C U Z M Profile drawings

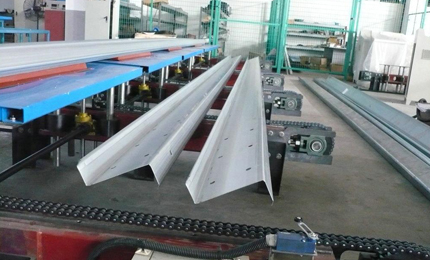

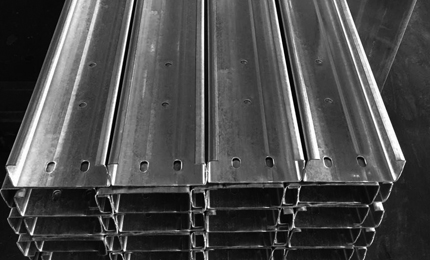

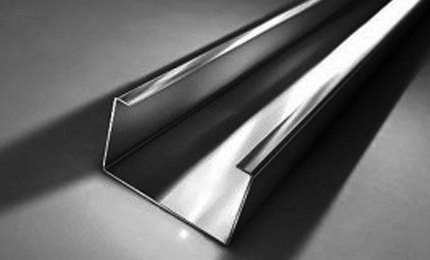

Finished Panels


C SampleC Samples


Z Sample


Working Flow of Panel Structure Purlin Roll Forming Machine


Pre-cutting flow:



Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)



Post-cutting flow:



Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)

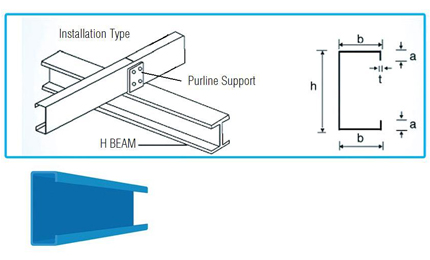

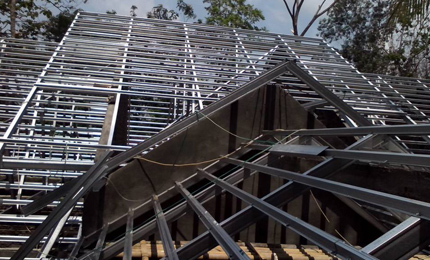

Installation Type of  Panel Structure Purlin Roll Forming Machine


C Steel InstallationZ Installation



Panel Structure Purlin Roll Forming Machine Application

As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel building materials are used more and more widely.

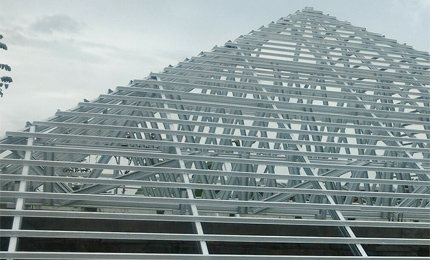

It suits for various Light Steel structure construction, civil-construction and mansions building.


Panel Structure Purlin Roll Forming Machine ApplicationPanel Structure Purlin Roll Forming Machine Application


Suitable coil sheet Material

Suitable material:    Cold/hot Rolled Steel, Galvanized Steel

Thickness:    2.0-3.0(mm)

Yield Strength:   230-300 (MPa)

Width:  as profile requests


Production line Components and Parameters

Decoiler3t/5t Motor/hydraulic motor/passive (optional)
Feeding table
Leveling device
Holes punching deviceas profile requests
Roll forming system12-15m/min
Safety coveroptional
Post cutting device
Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for holes punching /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )


Related information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout12t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP)container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Related Panel Structure Purlin Roll Forming Machine
Video
Hangzhou Roll Forming Technology Co., Ltd - China, founded in 2003, is a professional manufacturer of high-end, non-standard construction machinery and equipment.
