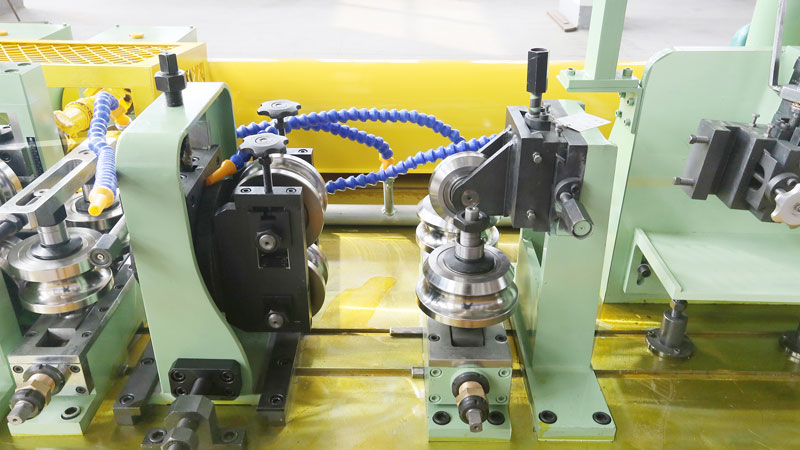

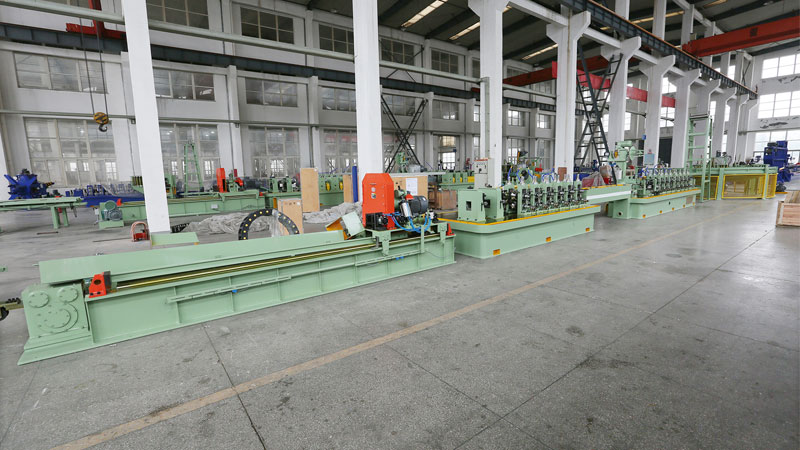

High Speed Tube Mill Line
High Speed Tube Mill Line

High Speed Tube Mill Line is used to produce tube diameter between φ4mm to φ50mm. The top working speed can be 120m/min to 130m/min.


Working Flow of High Speed Tube Mill Line



  • Decoiling

  • Shear and butt welding

  • Accumulator

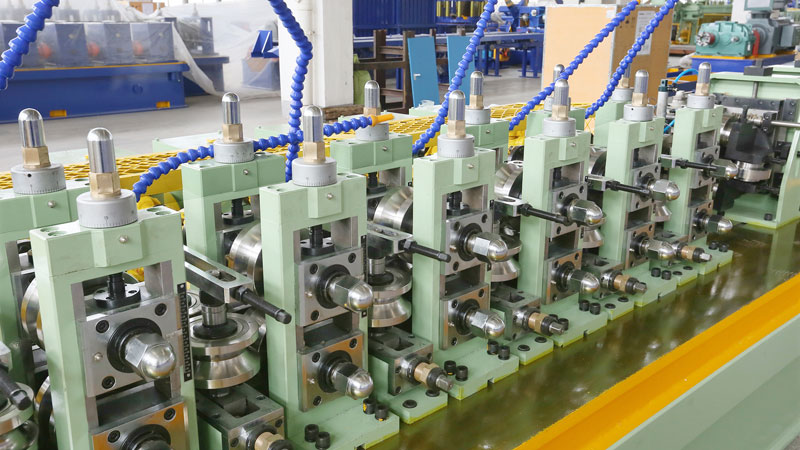

  • Roll forming

  • High frequency ERW

  • Removing burrs

  • Cooling

  • Sizing

  • Flying saw

  • Conveying

  • Downloading

  • Packing

  • Warehousing

Main technical parameters (For reference only, will be as requests):

A: suitable strip coils

1. Suitable material: Carbon steel coil;

Alloy Steel Coil; API5L X42-X80

(For reference only, will be as requests)

2. Suitable strip width range: 13mm-157mm

3. Wall Thickness: 0.2mm-22mm


B. Finished products

1.Pipe O. D. φ4mm-φ50mm

2.Thickness: 0.2mm-3mm

3.Square tube: 6mmx6mm-39mmx39mm, thickness: 0.3mm-3mm

Length: 6m-12m

Length tolerance:+/-3mm


C. Equipment data (for reference only)

Production speed: 120-130m/min

Direction: Left to right or right to left from operator's side(as requests by customer)

Capacity: 10,000 ton/year-15, 000 ton/year

Electricity input power: 50kW-65kW

Foundation: 40m–50m (length) x 3.8m-4m (width)

Weight: About 30ton–300ton.

Operator: 6-8 people (as size requests)


High Speed Tube Mill Line Technical parameters


ModelRound pipeSquare pipeThicknessSpeed
mmmmmmm/min
RFT-12Ф4-Ф12
0.2-0.5120-130
RFT-16Ф6-Ф16
0.2-0.8120-130
RFT-20Ф8-Ф206x6-15x150.3-1.0120-130
RFT-25Ф10-Ф257x7-19x190.3-1.5120-130
RFT-32Ф12-Ф329x9-25x250.5-2.0120-130
RFT-50Ф20-Ф5015x15-39x390.8-3.0120-130

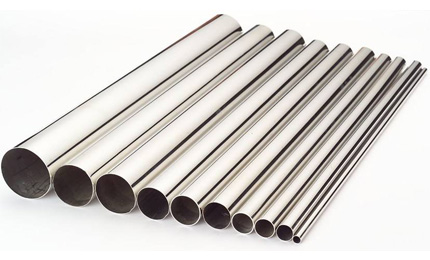

Finshed Tube

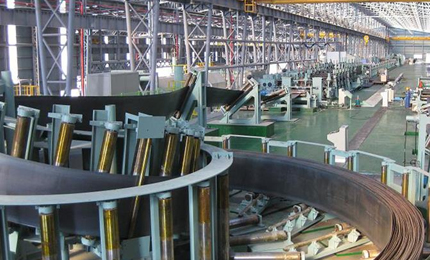

High Speed Tube Mill Line Applications




Related Information

Machine ConditionFully New, A Grade quality
SizeAs requests
Power Supply220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 30ton-300ton
Dimension40m–400m (length) x 3.8m-40m (width)
LOADING SIZENormally need 4-30 x 40' containers
Equipment Colornormally Blue/Green/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
