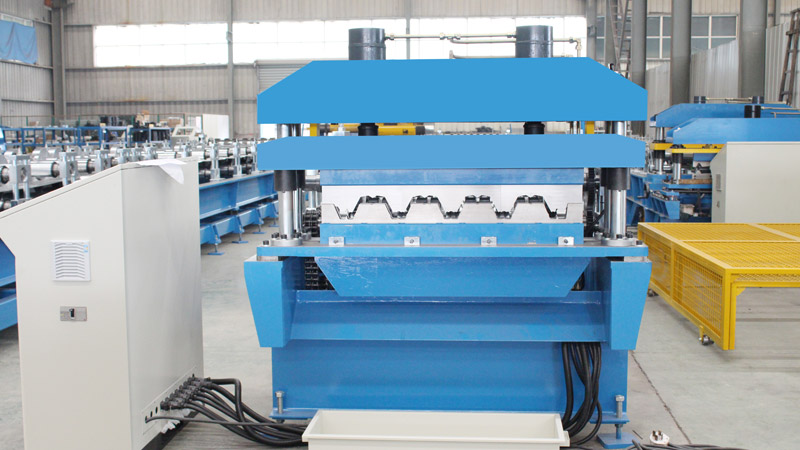

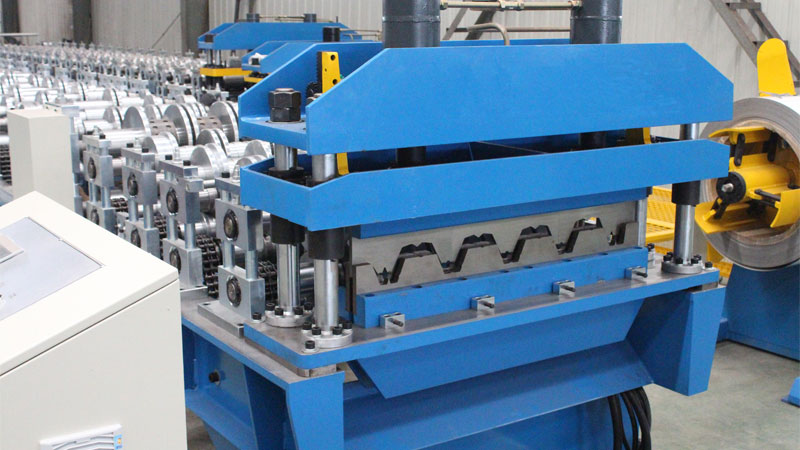

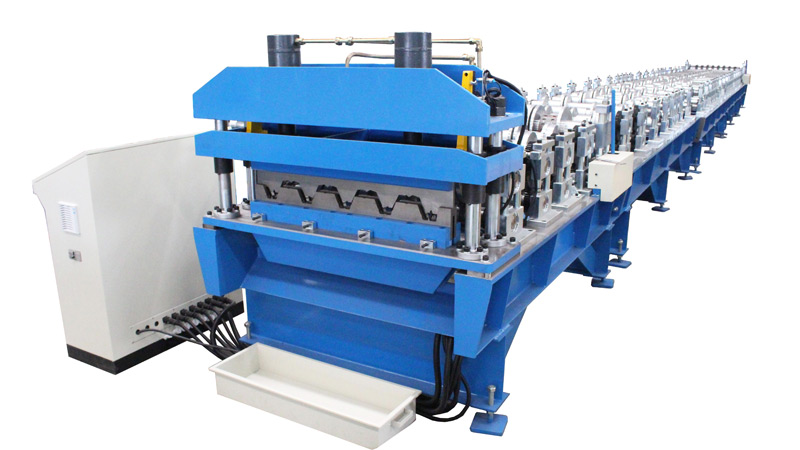

Floor Deck Roll Forming Machine Introduction


This machine is used to make metal deck. Metal deck is also called floor bearing steel plate. The floor bearing steel plate produced by our roll forming machine is used for floor slabs, which has the characteristics of high peak and high strength, and has high production automation and low cost.

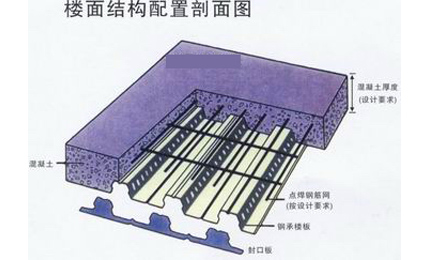

The steel floor support plate produced by our roll forming machine is simple in shape, large in waviness and high in strength. After installation, the spot welded reinforcement mesh is laid and combined with the concrete on-site pouring, which has good adhesion. In high-rise buildings, both the steel formwork can be omitted and the floor load can be reduced. Under the premise of achieving the same bearing capacity, the amount of steel used in the project is reduced, which saves investment.


Our floor bearing steel plate roll forming machine is mainly composed of unwinding machine, feed introduction platform, forming host, punching device, forming cutting device, hydraulic station, computer control cabinet and so on.


Features and Advantages of Floor Decking Roll Forming Machine


1.Fully automatic continuous decking forming machine.

2. Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.

3.Production speed: 20/30/40/50/60 m/min optional.

Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

4. Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

5. Most of hot & popular profiles models, we have a variety of ready metal deck forming machines in stock for prompt delivery.

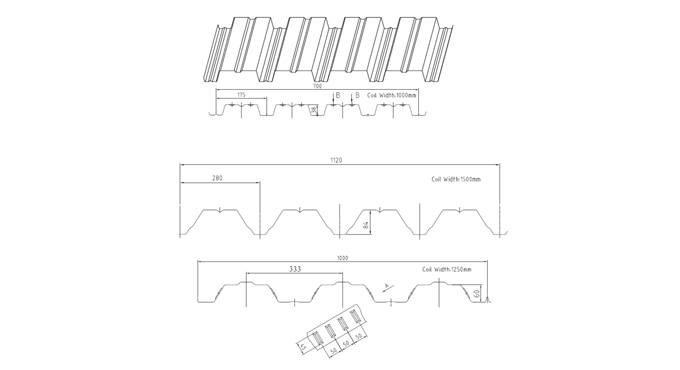

Popular Decking Profile Drawings

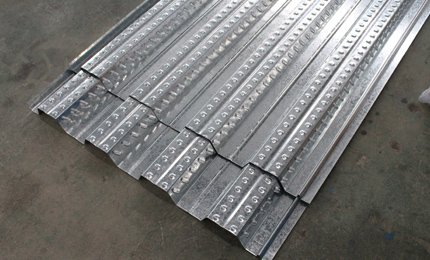

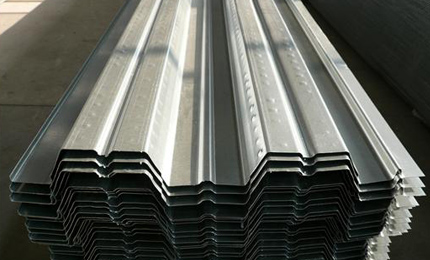

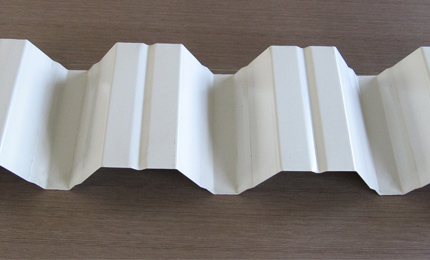

Finished Panels


Finished PanelsFinished Panels

Finished Panels

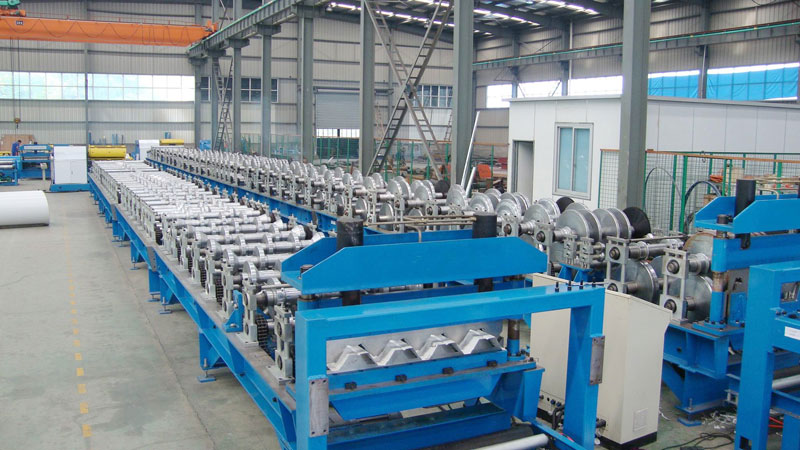

Working Flow of Floor Decking Roll Forming Machine


  • Coil Charging Car (optional)

  • Decoiler

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Lubricating unit (optional)

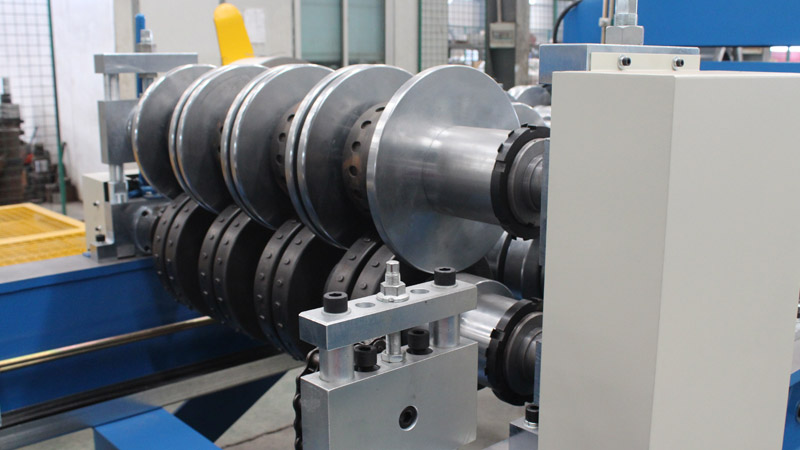

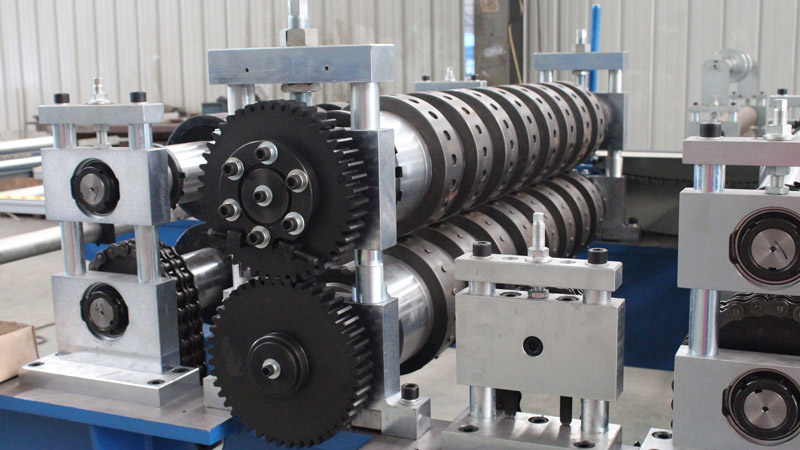

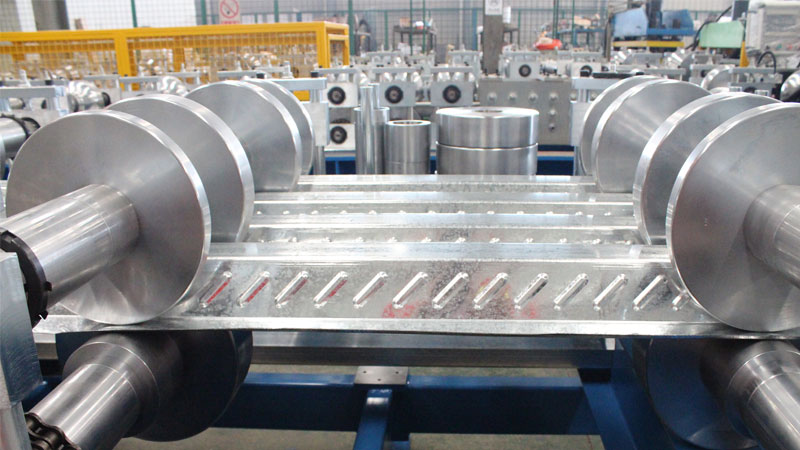

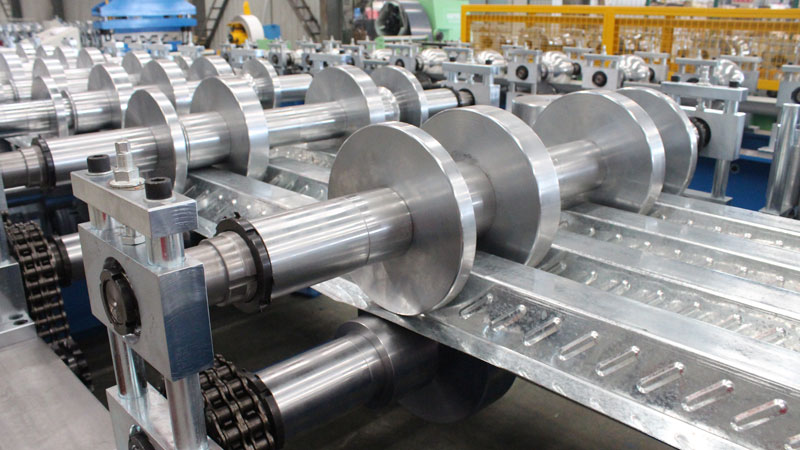

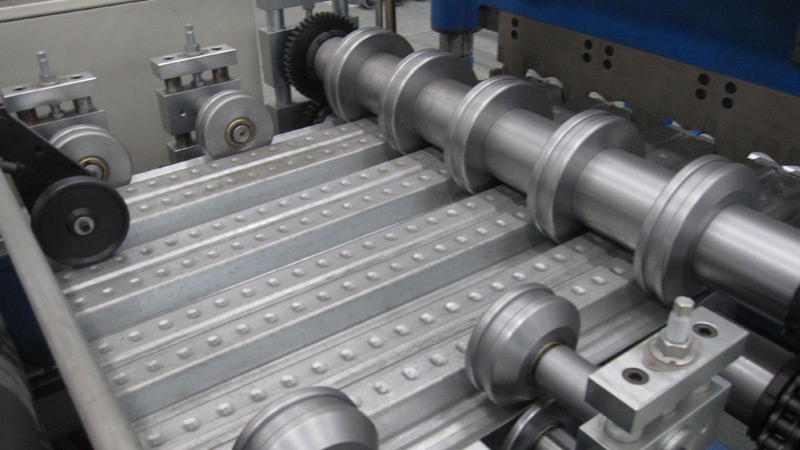

  • Roll Forming System

  • Post-Cutting to length (Hydraulic/Motor)

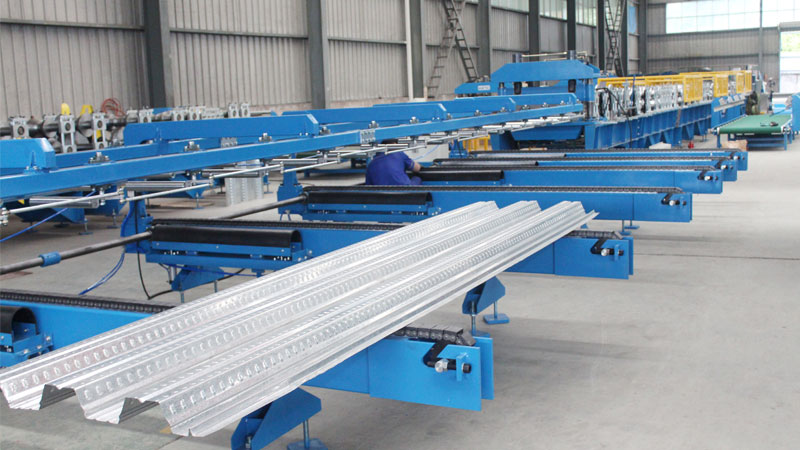

  • Output Manual Supporter/Auto Stacker(optional)

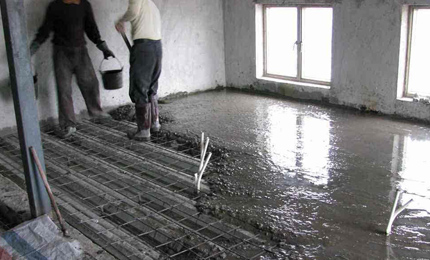

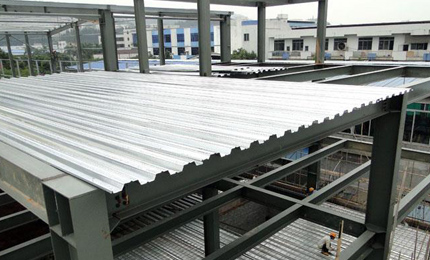

Floor Decking Roll Forming Machine Application


For production of heavy duty capacity decking with various profile and patterns. Suits for various Light Steel structure construction, civil-construction and mansions building.


Floor Decking Roll Forming Machine ApplicationFloor Decking Roll Forming Machine Application

Floor Decking Roll Forming Machine Application


Suitable Coil Sheet Material


Suitable material: Colored/ Stainless/Galvanized Steel, Aluminum sheet

Thickness: 0.75-1.25(mm)

Yield Strength: 230-300/350 (MPa) (optional)

Width: 1200/1220/1250/1500(mm)


Production line Components and Parameters

1.Decoiler8t/10t/15t Motor/hydraulic motor/passive (optional)
2.Filming covering deviceno need
3.Front shearoptional
4.Lubricating deviceoptional
5.Roll forming system20/30/40/50/60 m/min (optional)
6.Safety coveroptional
7.Post cuttingMotor/hydraulic (optional)
8.Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9.Hydraulic systemPower supply for decoiler /post-cutting system
10.Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply:220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout25t
Dimension(L*W*H) about 40*3*2m
LOADING SIZENormally need 2x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
