R Panel Roll Former

As its name suggests, the series of R panel roll former is mainly used to make R panels, which is one of the most commonly used metal siding and roofing panels on commercial steel frame buildings. Conducting strict quality control over the whole manufacturing process, Hangzhou Roll Forming Technology Co., Ltd. offers high-quality R panel roll forming machines with different specification choices at great prices. Feel free to contact us at any time for more information about the siding panel machine.

Features and Advantages of R Panel Roll Former

  • PBR panel roll former, specially designed for forming roofing sheet, siding panel, floor decking, under mass-production.

  • Production speed: 20/30/40/50/60 m/min optional.

  • Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  • Cassette type platform quick change Machine base for multi-profile purposes is available for choice.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard.

  • Most of hot & popular profiles models, we have a variety of ready R panel machines in stock for prompt delivery.


Suitable Raw material for R Panel Roll Former

Material type: Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel

Thickness: 0.3-0.7(mm)

Yield Strength: 230-300/350/550-675(MPa) optional

Width: 1038,1055,1092 (mm)


Production Line Components and Parameters of R Panel Roll Former

1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device       optional
3. Front shear                optional
4. Lubricating device           no need
5. Roll forming system          individual standing column structure
6. Safety cover                optional
7. Step pressing unit     Step length, depth, head & end length is adjustable
8. Output SystemManual supporter/ Automatic Stacker (optional)
9. Stackmaster(Output direction) Lateral/Longitudinal (optional)
10. Hydraulic systemPower supply for decoiler /post-cutting system
11. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)

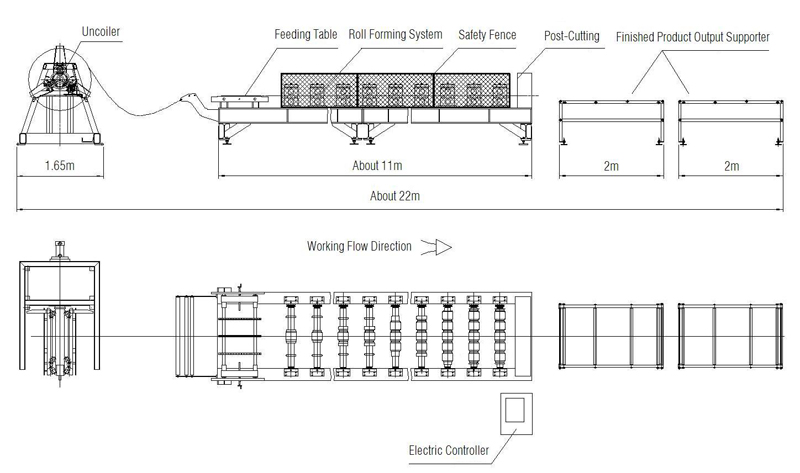

R Panel Roll Former line layout



R Panel Roll Former Working flow

The general working flow for the R panel roll former is similar to the other roll forming machine series produced by Hangzhou Rollforming. It can be divided into the following steps:  Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table- Filming Covering (optional) - Roll Forming System - Post-Cutting to length (Hydraulic/Motor) - Output Manual Supporter/Stackmaster(optional)

R Panel Roll Former Application

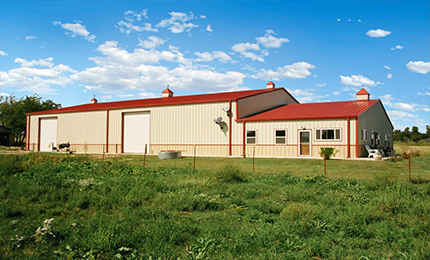

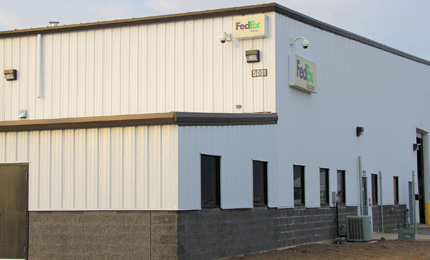

R-Panel is a low-maintenance, durable alternative to conventional roofing.  R-Panels also come in a wide variety of eye-pleasing colors that can complement the look and feel of your current building or your design ideas for a new build. PBR-Panels include a larger overlap section (purlin bearing leg) between panels that give the metal roofing sheets more strength.  The PBR results in the same 36” coverage as the R-Panel. R-Panels & PBR Panels are designed primarily for commercial, industrial, and steel frame building applications. They both offer versatility and can be used for sidewalls as well as metal roofing panels.

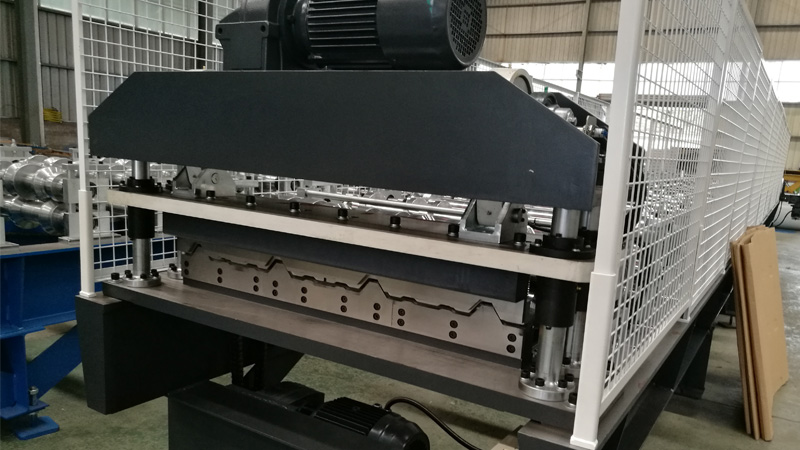

R Panel Roll FormerR Panel Roll Former

R Panel Roll FormerR Panel Roll Former

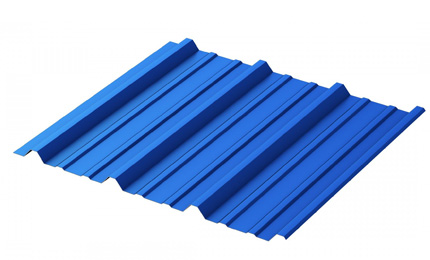

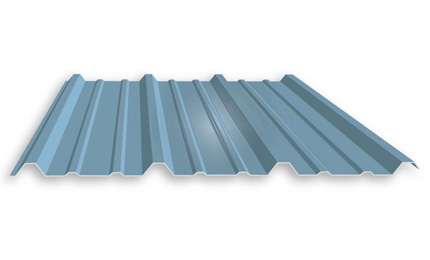

R Panel Profile

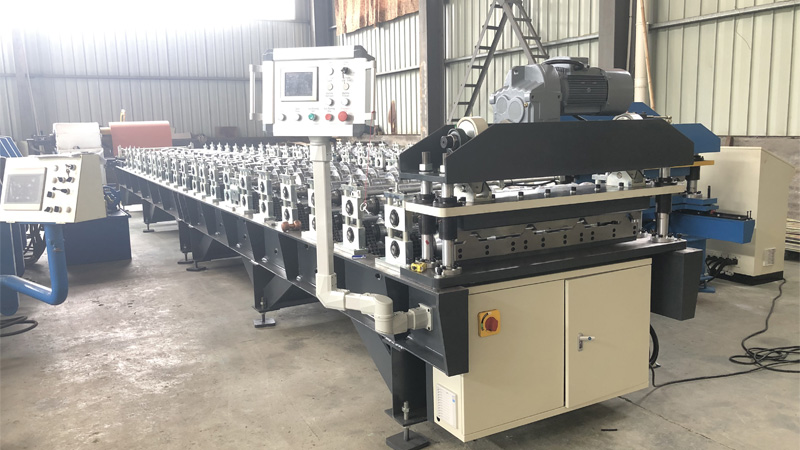

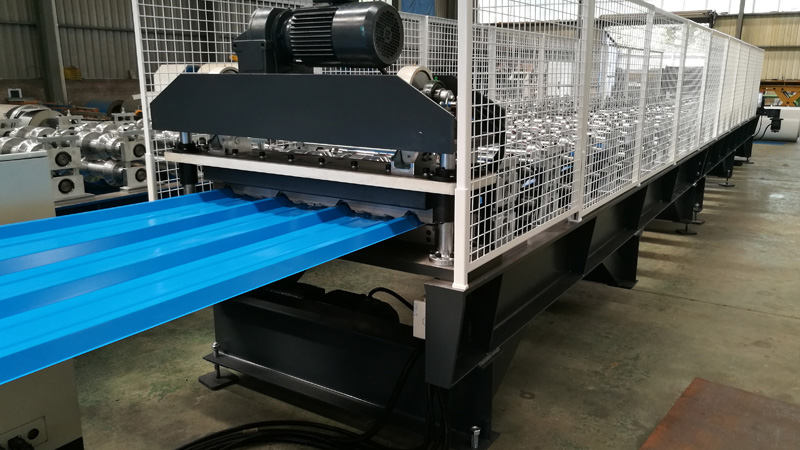

R Panel Roll Former

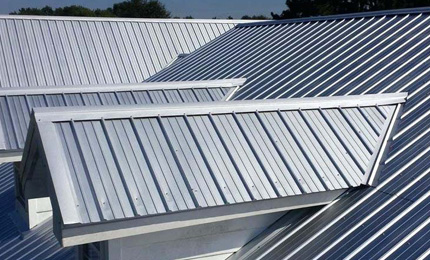

Finished R Panel Metal Roof by R Panel Roll Former

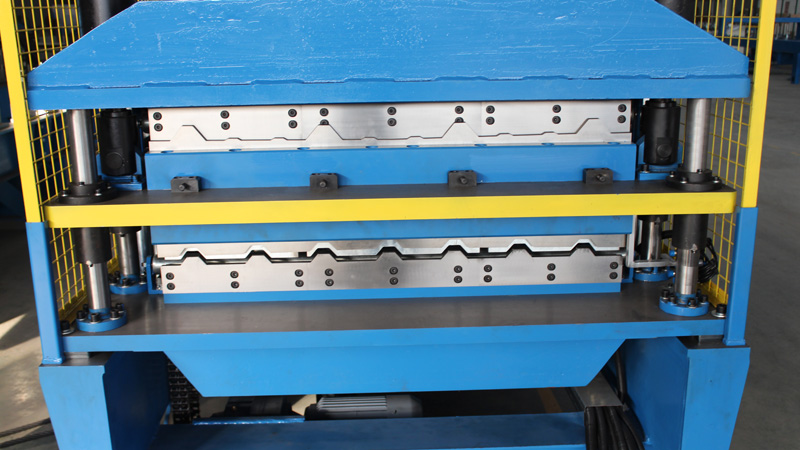

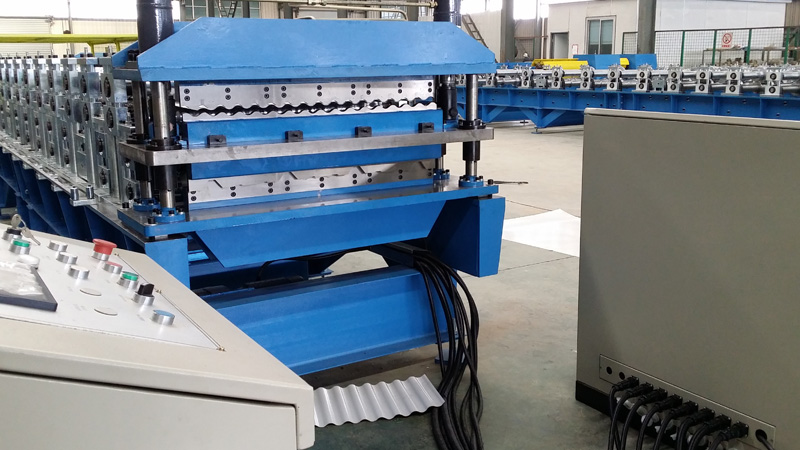

R Panel Roll FormerR Panel Roll Former

R Panel Roll FormerR Panel Roll Former


Specification of R Panel Roll Former

Machine ConditionFully New, A-Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
