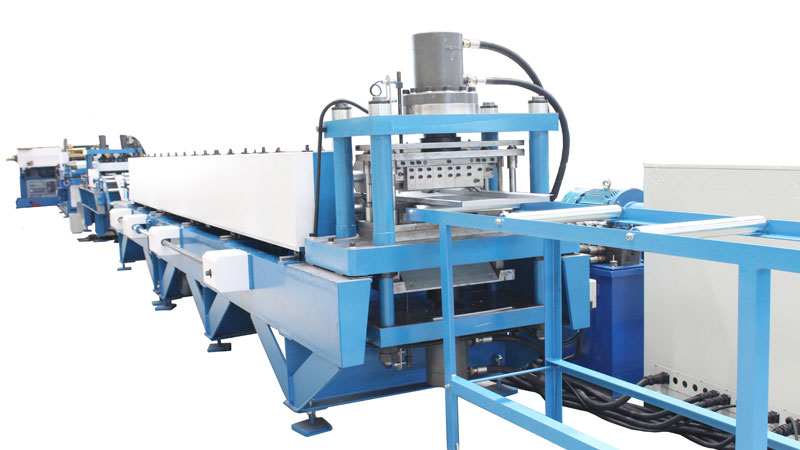

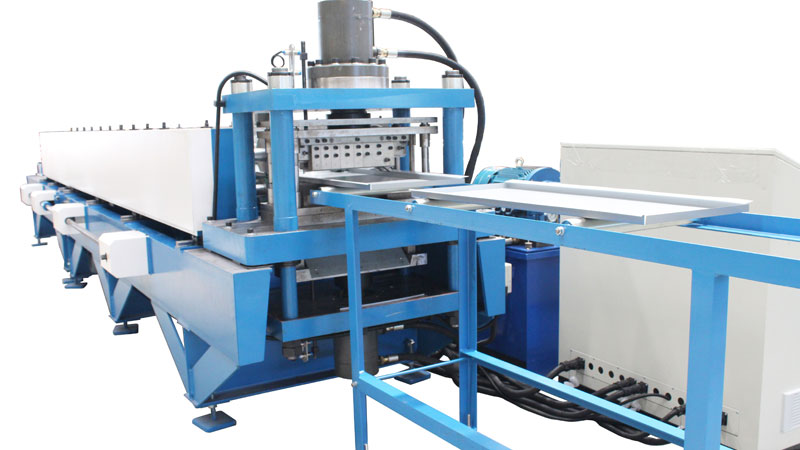

Shelf Panel Roll Forming Machine Introduction


This machine is used to make metal panel shelves.We also call this profile as box profile. The size and material of panel shelf can be customized as customers' request.


Features and Advantages of Shelf Panel Roll Forming Machine



  • Fully automatic continuous rolling forming machine for Box Profile under mass-production.

  •  Production speed: 15m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

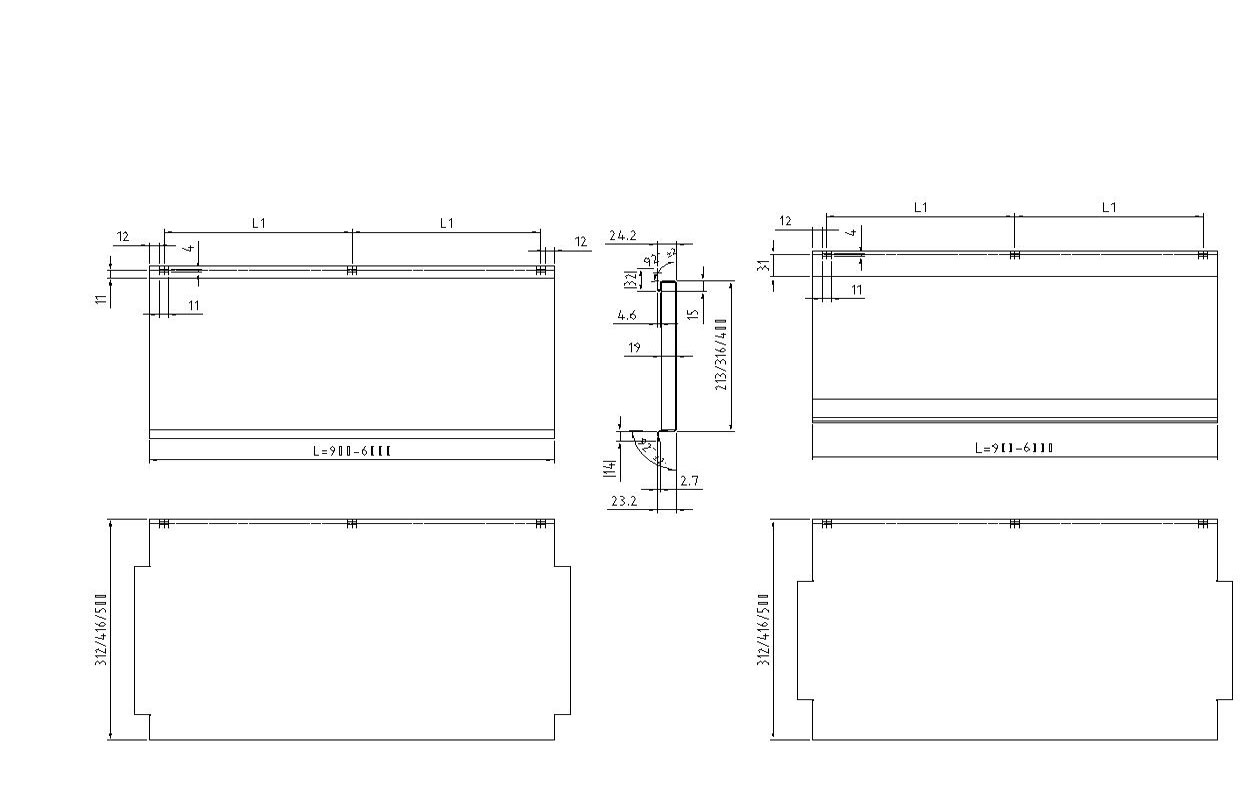

Box Profile Drawing

Box Profile Roll Forming Machine Profile Drawing

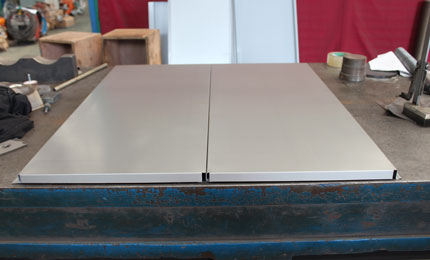

Finished Samples


 Finished Samples

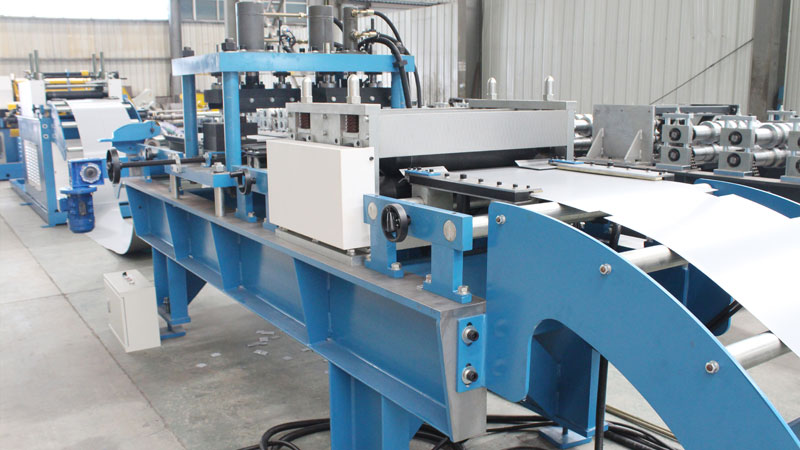

Shelving Panel Roll Forming Machine Working Flow


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Leveling

  • Punching

  • Servo Feeding

  • Feeding and Guiding Table

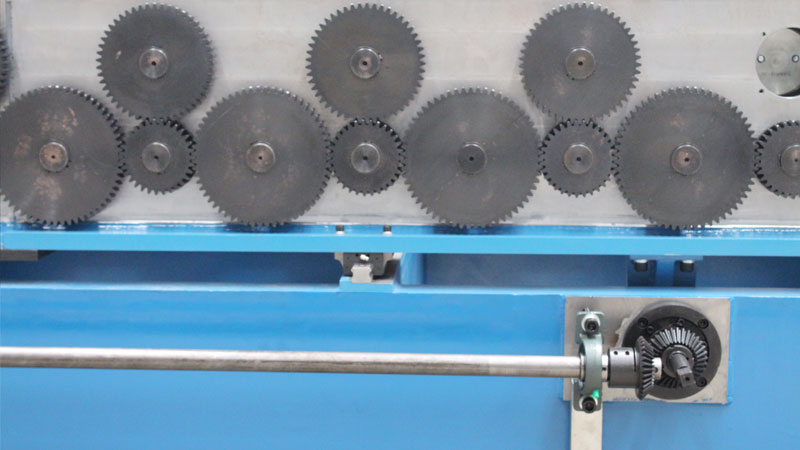

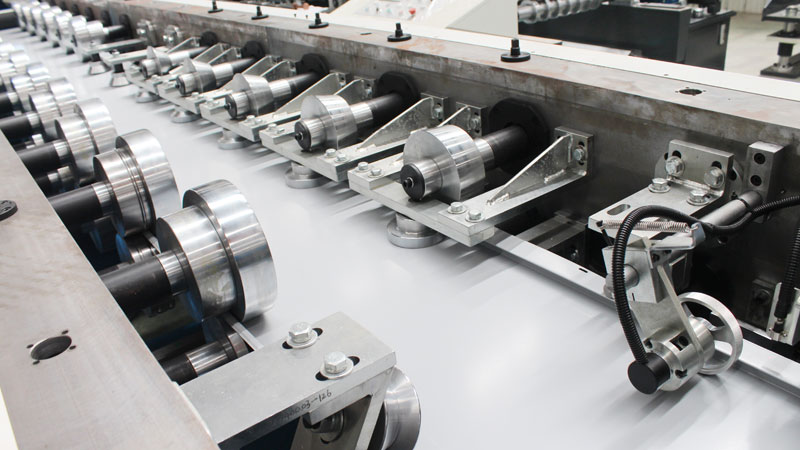

  • Roll Forming System

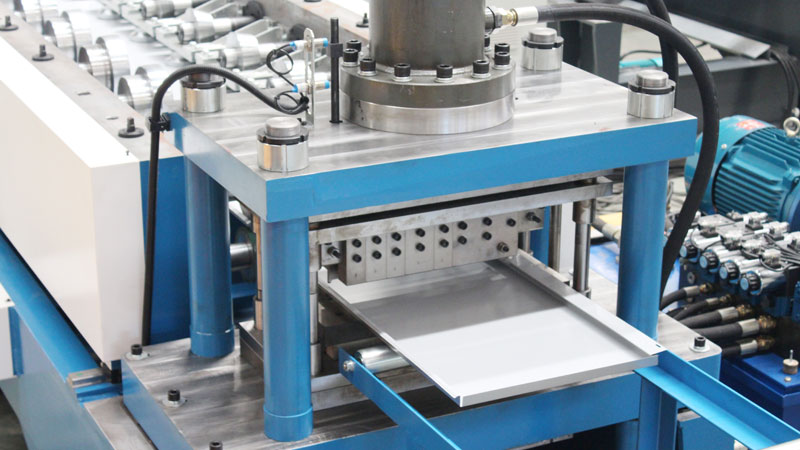

  • Post-Cutting with Folding

  • Output Manual Supporter/Stackmaster(optional)

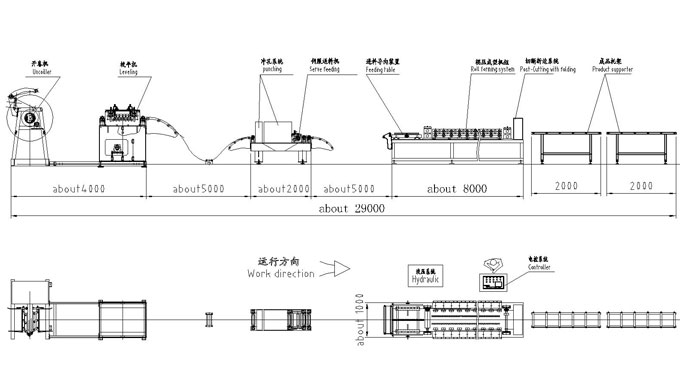

Gutter Roll Forming Line Layout

Gutter Roll forming line layout


Suitable Raw Material

Material typeColor coated Steel, Aluminum sheet
Thickness0.6-1.0(mm)
Yield Strength230-300/350 (MPa) optional
Width312/416/500 (mm) as profile requests


Production Line Components and Parameters of Shelving Panel Roll Forming Machine

1. Decoiler2t/3t/5t Motor/hydraulic motor/passive (optional)
2. Punching System
3. Servo Feeding Device
4. Lubricating deviceno need
5. Roll forming system15 m/min
6. Safety coveroptional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Related Information of Shelving Panel Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel Shape            As profile drawing and customer’s requirements
Operator needed

2 persons

Power Supply            220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 30*2.5*2m
LOADING SIZENormally need 2x 20' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
