Solar Photovoltaic Support Rolling Machine

Solar PV Support Forming Machine
Solar PV Support Forming Machine
Solar PV Support Forming Machine
Solar Photovoltaic Support Rolling Machine
Solar Photovoltaic Support Rolling Machine

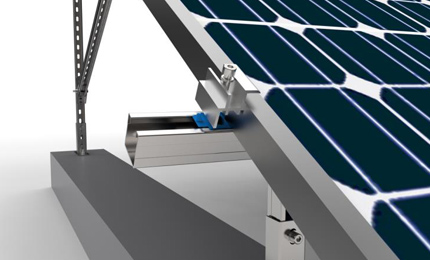

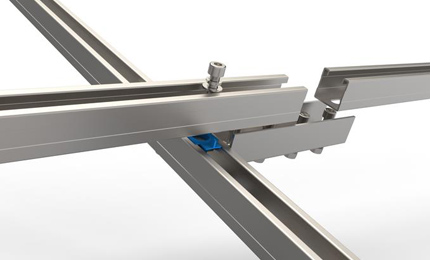

Double-in-roll c-shaped steel photovoltaic bracket is mainly applicable to the ground photovoltaic power station and concrete flat-roof photovoltaic power station. The bracket has a strong adjustable ability, high structural strength, beautiful shape, standard bending angle, accurate hole position, straight angle, accurate size, complete specifications, and economical price, which can meet most of the needs of customers. Double-in-roll c-shaped steel is a special C profile steel. It can also be used for kinds of shelves, ceiling frames, drywall partition, steel structure building, and so on.


Features and Advantages of Solar Photovoltaic Support Rolling Machine


  • Fully automatic continuous Solar Photovoltaic Support roll forming machine for both heavy and light duty use.

  • Adopts changing spacers to make multi sizes profiles sections.

  • Inline flexible punching system integrated

  • Pre-cutting and Post cutting is optional:

  • If need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.

  • If profile sizes are not so many, post cutting can improve profile quality greatly.

  • Forming speed: 12-15 m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

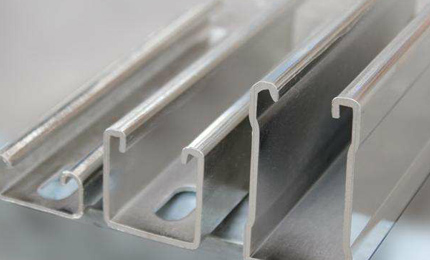

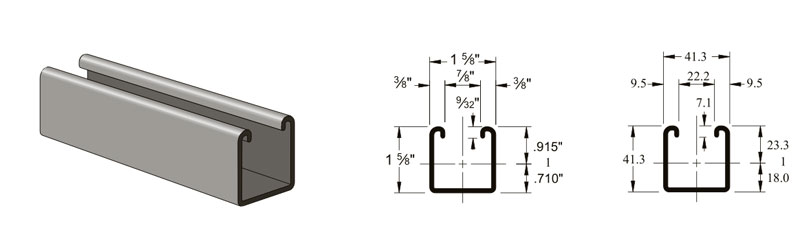

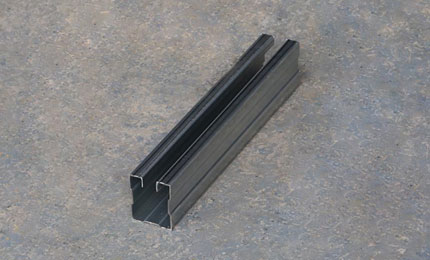

Profile Drawings

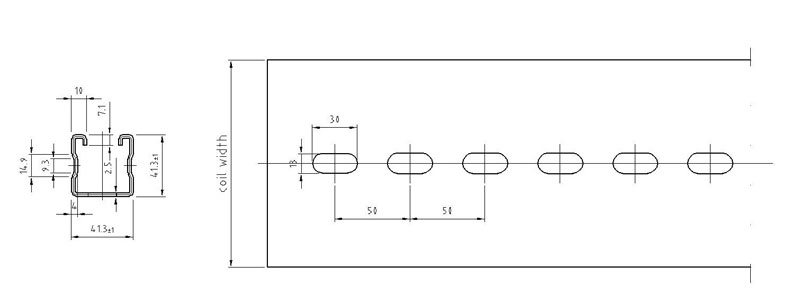

profile drawing

profile drawing

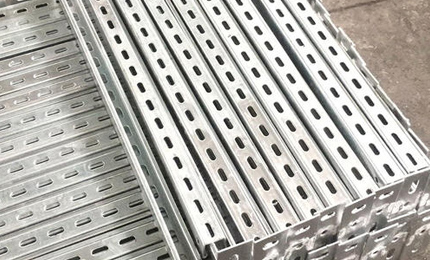

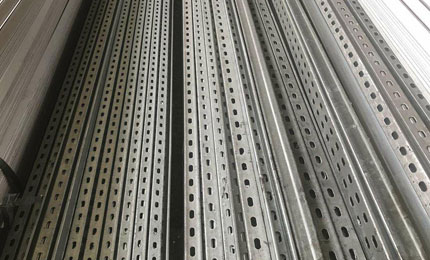

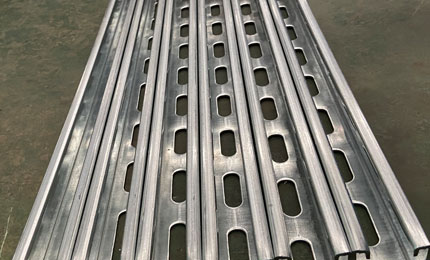

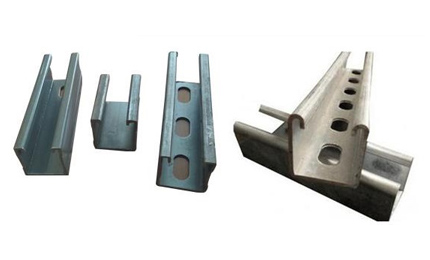

Finished Products

Finished ProductsFinished ProductsFinished ProductsFinished productsFinished products


Working Flow


Pre-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → pre-cutting to length → Roll Forming System → Output Manual Supporter/Auto Stacker(optional)


Post-cutting flow:


Decoiler (passive/auto) → Feeding and Guiding Table →leveling system → hole punching system (as profile requests) → Roll Forming System → Post-Cutting to length (Hydraulic) → Output Manual Supporter/Auto Stacker(optional)

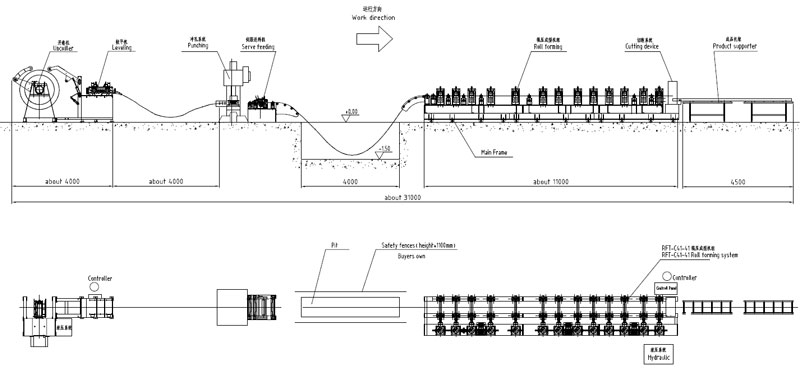

Producting Line Layout

Producting Line Layout

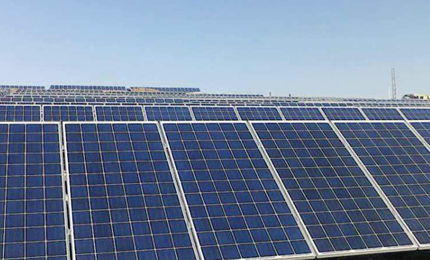

Installation


InstallationInstallation



Solar Photovoltaic Support Rolling Machine Application


As the features of green, solid, economical, durable, fast & easy to install and good looking, double-in-roll c-shaped steel photovoltaic bracket and other steel building materials are used more and more widely.


It suits for various light steel structure construction, kinds of shelves, ceiling frame and so on.


Solar Photovoltaic Support Rolling Machine ApplicationSolar Photovoltaic Support Rolling Machine Applicationg


Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 1.5-3.0(mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests


Technical Parameters of Double Inner Coil C-shaped Steel Photovoltaic Support


1.Installation location: ground or flat concrete roof

2.Main material: hot dip galvanized carbon steel

3.Design wind pressure: 0.55kN/m ^ 2

4.Design snow pressure: 0.5kN/m squared

5.Service life: 30 years


Production Line Components and Parameters

1. Decoiler3t/5t Motor/hydraulic motor/passive (optional)
2. Feeding table
3. Leveling device
4. Holes punching device        as profile requests
5. Roll forming system        12-15m/min
6. Safety cover               optional
7. Post cutting device
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for holes punching /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout12t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x20GP) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
