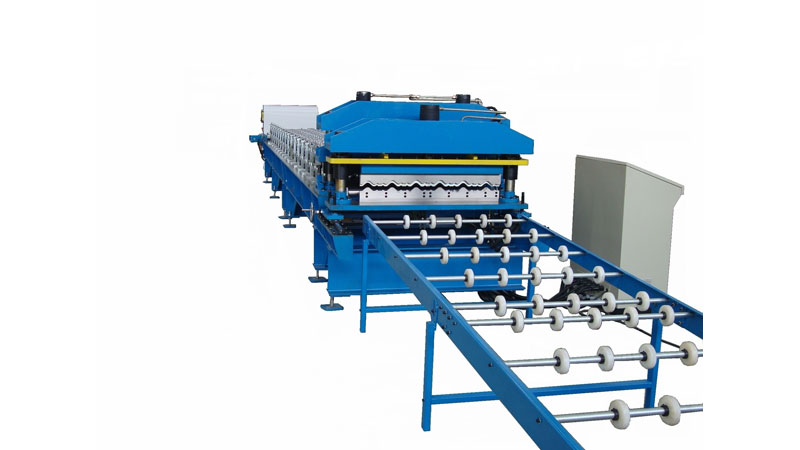

Metal Roofing Tile Former

This series of metal roofing equipment is used to make metal roofing tiles. Mainly including a step-pressing system, our steel roofing machines can effectively press the metal panels formed by the roll forming system. As one of the mature metal roofing machine manufacturers in China, Hangzhou Roll Forming Technology Co., Ltd. provides metal roof machines wholesale at reasonable prices. Feel free to contact us for more information.


Features and Advantages of Metal Roof Roll Forming Machine

  • This metal roof making machine series is for continuously roll forming and pressing step tiles sheets. The step length of these steel roofing machines can be set up and the depth of each step is adjustable.

  • The production speed of this series is about 8 m/min.

  • Similar to the roof tile roll forming machines in stock, this metal roofing machine series also possess multiple patents under CE Certified and EUROPEAN quality standards.

  • Prompt delivery of this model is available.


Raw Material for Metal Roof Roll Forming Machine

Material type: Color coated Steel, Aluminum sheet

Thickness: 0.4-0.6(mm)

Yield Strength: 230-350MPa optional

Width: 1200/1220/1250(mm)


Production Line Components and Parameters of Metal Roof Roll Forming Machine

1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device       optional
3. Front shear                optional
4. Lubricating device           no need

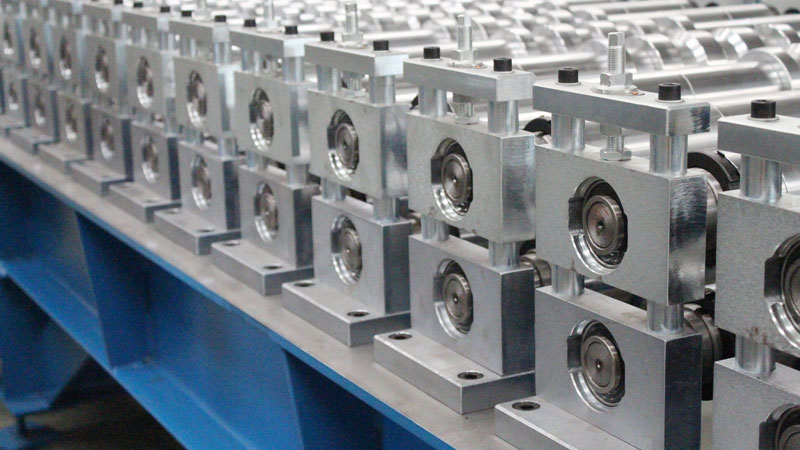

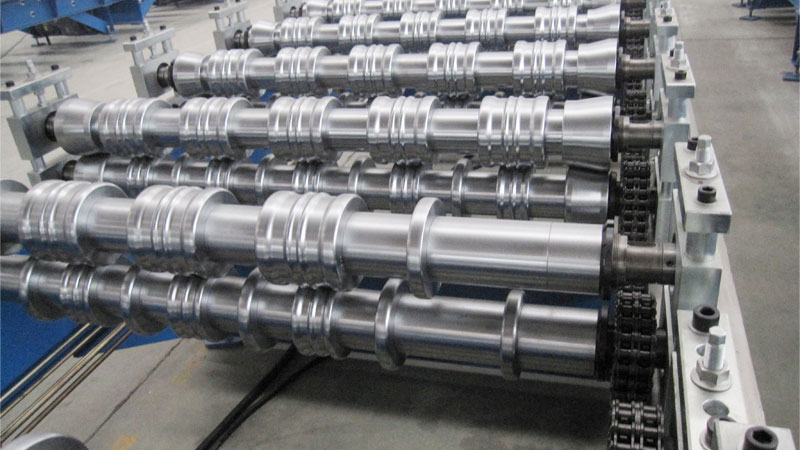

5. Roll forming system          individual standing column structure

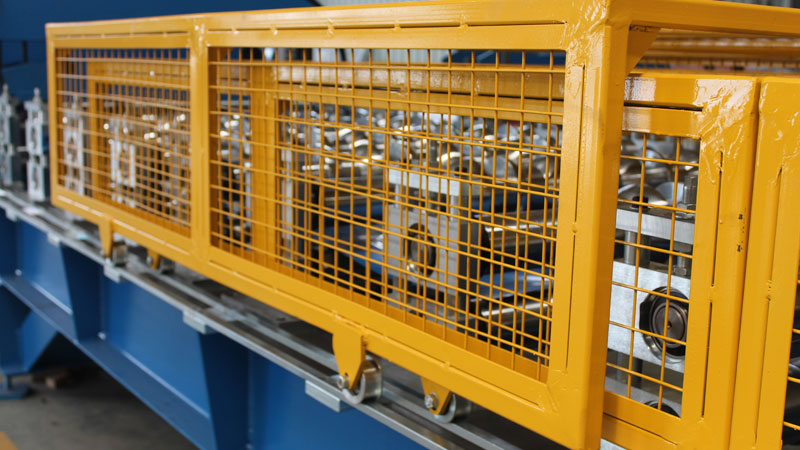

6. Safety cover                optional

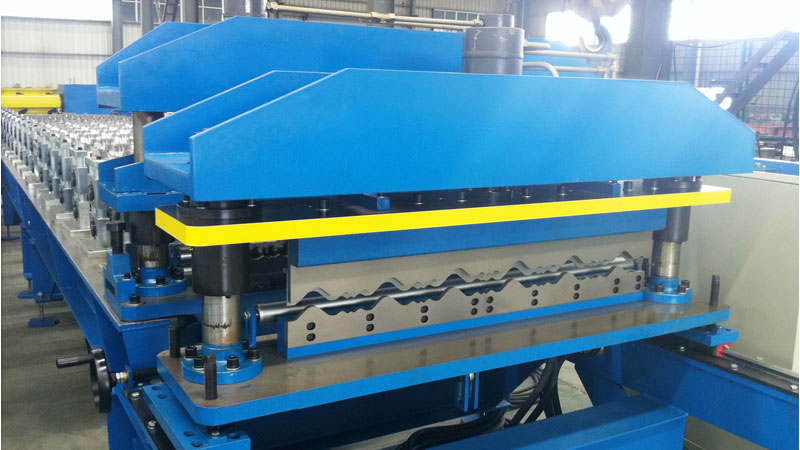

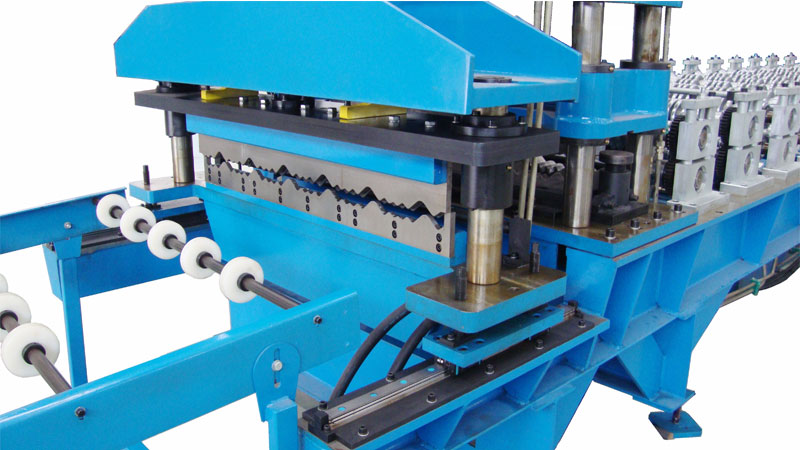

7. Step pressing unit     Step length, depth, head & end length is adjustable
8. Post cutting             hydraulic
9. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
10. Hydraulic systemPower supply for decoiler /post-cutting system
11. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Step Roof Tile Line Layout

Metal Roofing Tile Former Layout



Working Flow of Metal Roof Roll Forming Machine

Similar to the high-speed roofing tile-making machine, the working flow of the metal roof panel machine also goes through the following stages:

Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System


Application of Metal Roof Roll Forming Machine

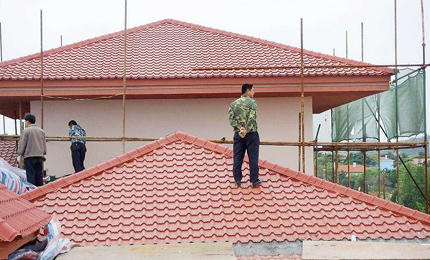

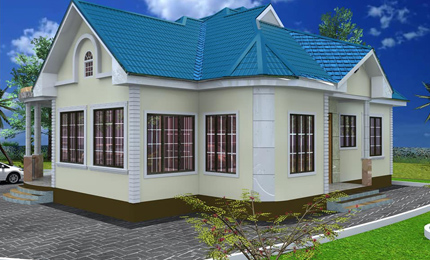

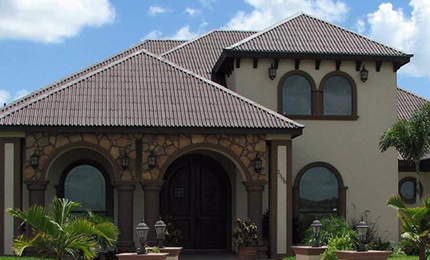

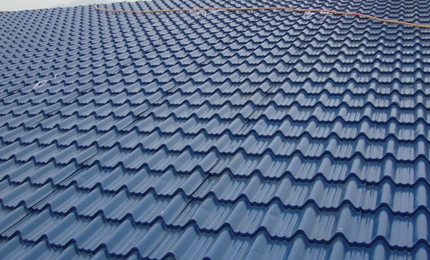

Metal Roofing tiles is suitable for every architectural design and it is much more convenient and takes a shorter time for installation. The following pictures show you several cases of colored metal roofing tiles.



Metal Sheet Roof Roll Forming MachineMetal Sheet Roof Roll Forming Machine

Metal Sheet Roof Roll Forming MachineMetal Sheet Roof Roll Forming Machine

Glazed Tiles Uses

  • The exquisite colored steel glazed tiles not only preserve the shape of traditional terracotta tiles but also show an elegant beauty, rich and bright colors.

  • The material for these metal roof bending machines is light and with high strength. The weight of colored steel glazed tiles is only about one-tenth of that of traditional terracotta tiles, and the strength is also unparalleled.

  • The surface of the long colored steel glazed tile has been treated with anti-corrosion and anti-rust many times, and it is not easy to be easily oxidized, usually up to 30.

  • Water-proof color steel glazed tile slopes are seamlessly connected. The sealing performance is quite excellent, with other roof building materials unmatched.

  • Short construction time. The color steel glazed tiles are fast paved, the construction time is shortened, the price is relatively reduced, and there is no seasonal impact during construction.

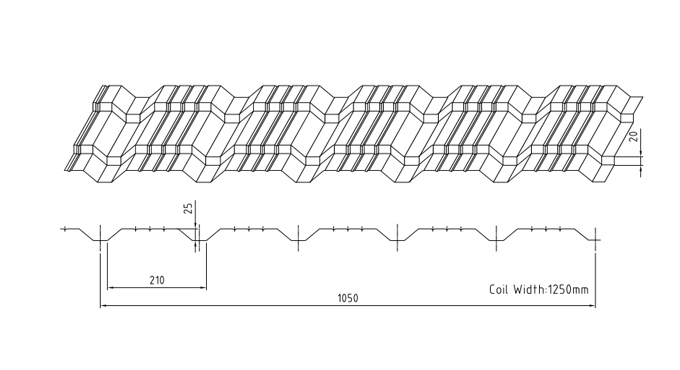

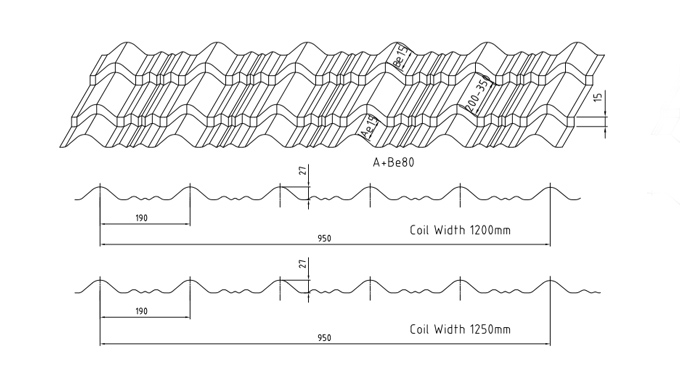

Roofing Profile Drawings of Metal Roof Roll Forming Machine


Metal Sheet Roof Roll Forming Machine

Metal Sheet Roof Roll Forming Machine

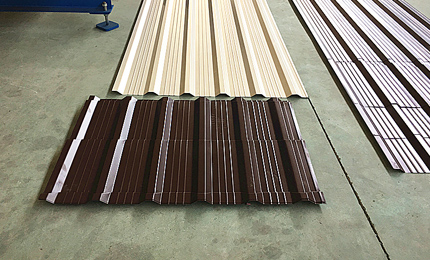

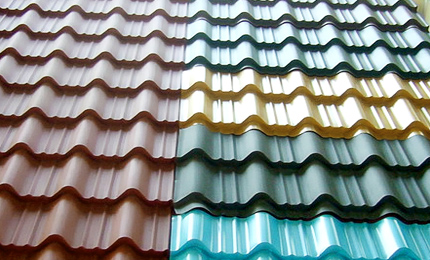

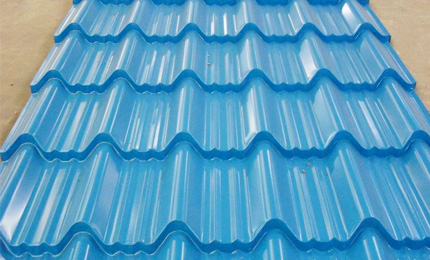

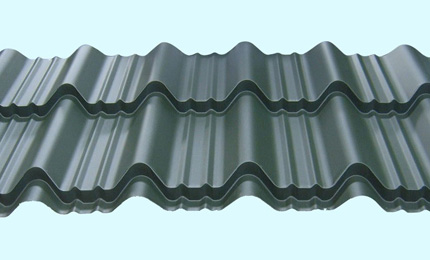

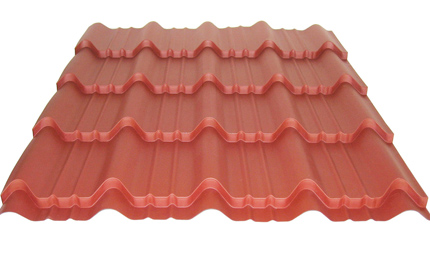

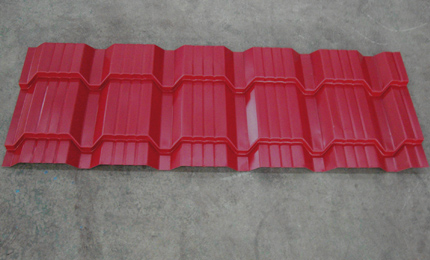

Sample Colored Tiles by Metal Roof Roll Forming Machine


Metal Sheet Roof Roll Forming MachineMetal Sheet Roof Roll Forming Machine

Metal Sheet Roof Roll Forming MachineMetal Sheet Roof Roll Forming Machine

Metal Sheet Roof Roll Forming MachineMetal Sheet Roof Roll Forming Machine


Specification of Metal Roof Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
