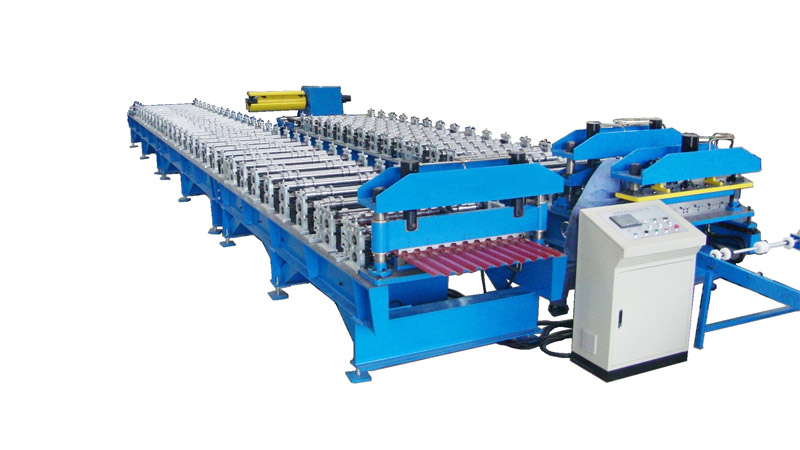

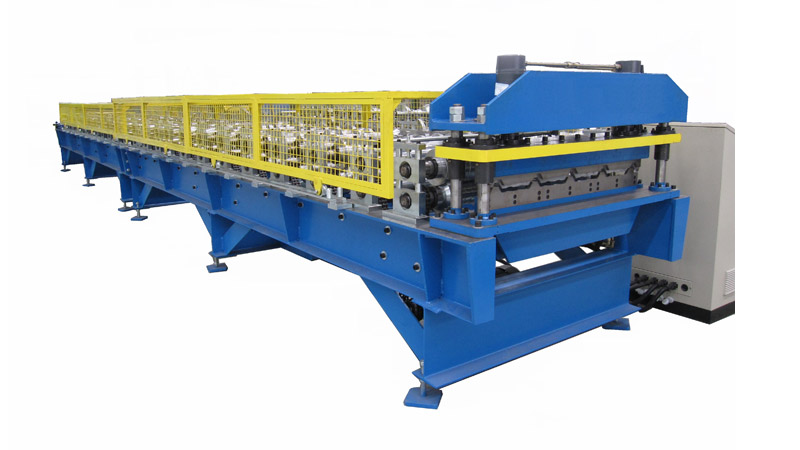

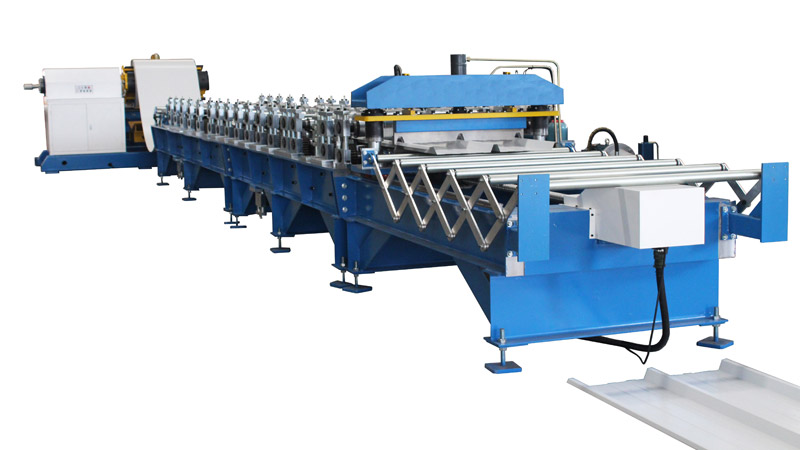

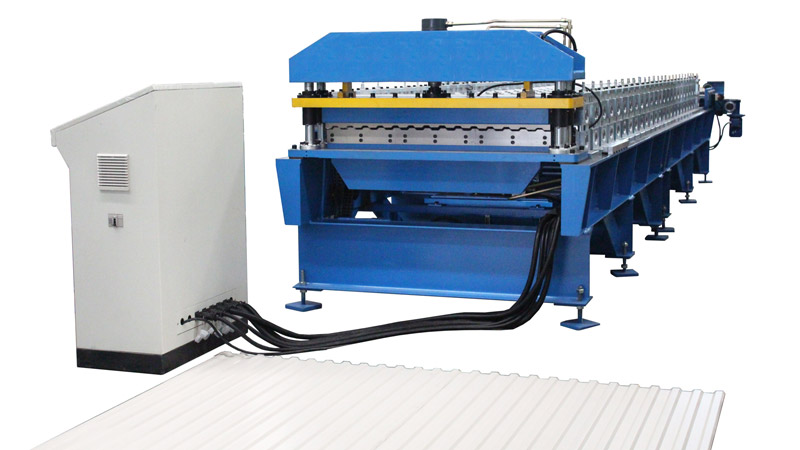

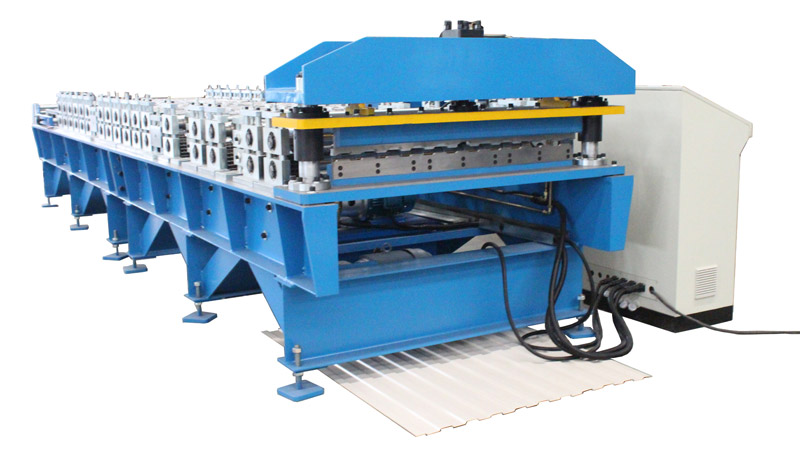

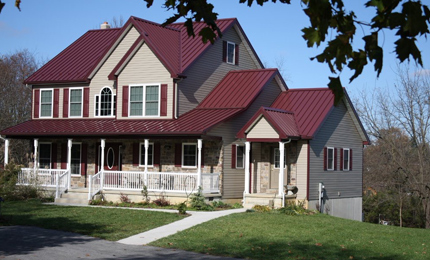

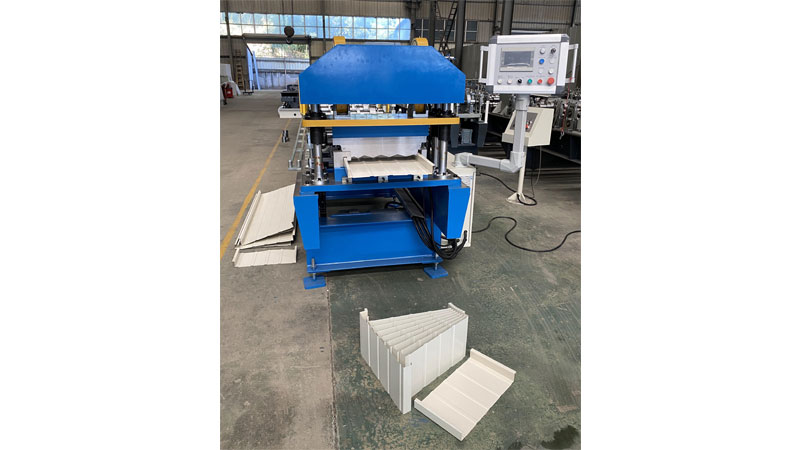

This metal cladding roll forming machine is used to roll-form metal roof panels and metal wall panels. The roll forming line usually includes metal decoilers, forming devices, output support table. The machines for popular profiles are available from stock. Our roll forming machine can also be customized and manufactured according to the customers' profile drawings.

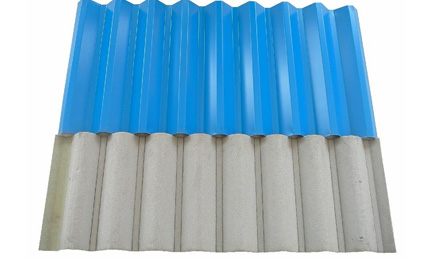

Specially designed for forming roofing corrugated sheet, siding panel, floor decking, under mass-production.
Production speed: 20/30/40/50/60 m/min optional.
Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.
Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
Most of the hot & popular profiles models, we have ready roof and wall panel roll forming machine in stock for prompt delivery.

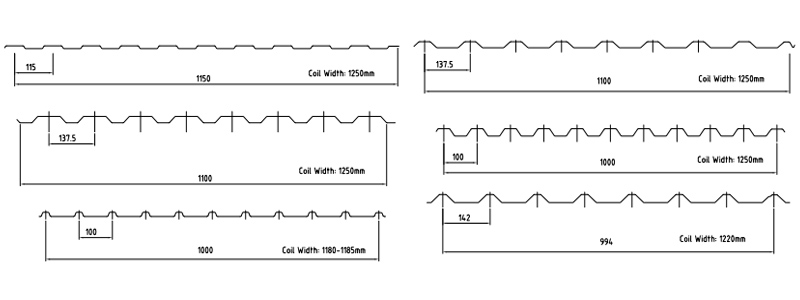

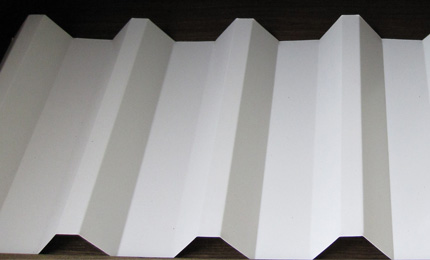

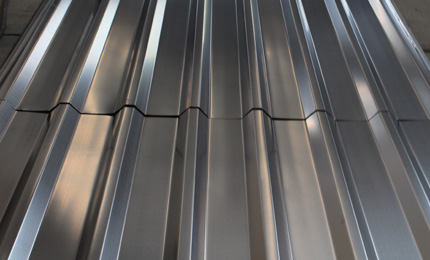

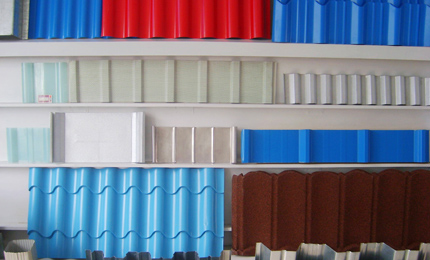

Popular Trapezoidal Profile Drawings
Working Flow of Roof Panel Roll Forming Machine
Coil Charging Car (optional)
Decoiler (passive/auto)
Front Shear(optional)
Feeding and Guiding Table
Filming Covering (optional)

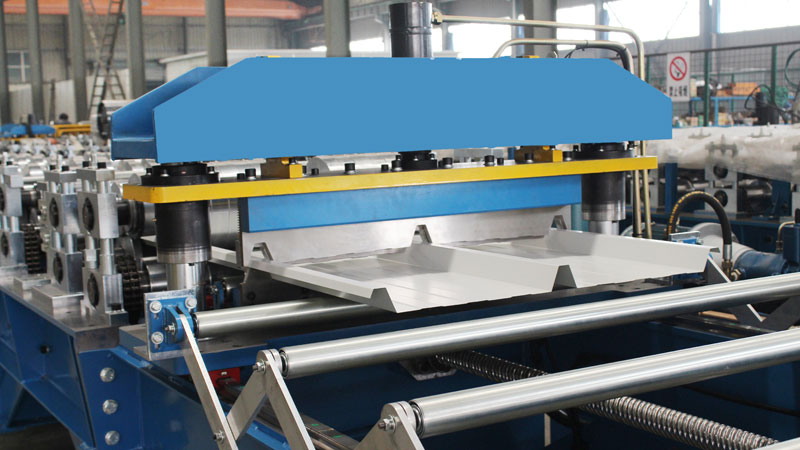

Roll Forming System
Post-Cutting to length (Hydraulic/Motor)
Output Manual Supporter/Stackmaster(optional)

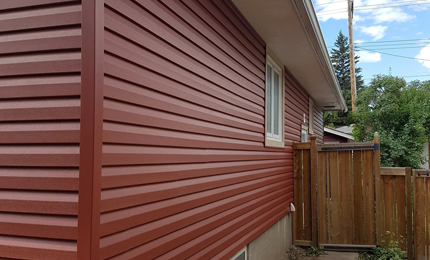

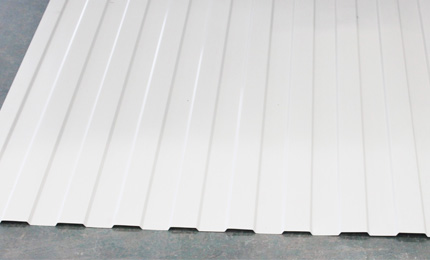

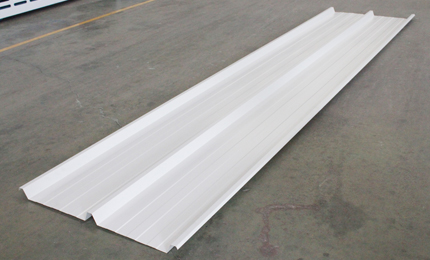

This series of the profile is designed to be economical wall cladding for residential, industrial, and commercial projects.
With a minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.
Suitable Coil Sheet Material
Suitable material: Colored/ Stainless/Galvanized Steel, Aluminum sheet
Thickness: 0.3-0.7(mm)
Yield Strength: 230-300/350/550-675(MPa) (optional)
Width: 1200/1220/1250(mm)
1. Decoiler: 5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device: optional
3. Front shear: optional
4. Lubricating device: no need
5. Roll forming system: 20/30/40/50/60 m/min (optional)
6. Safety cover: optional
7. Post cutting: Motor/hydraulic (optional)
8. Output System: Manual supporter/ Automatic Stacker (optional)
Stackmaster: (Output direction) Lateral/Longitudinal (optional)
9. Hydraulic system: Power supply for decoiler /post-cutting system
10. Electric control system: MITSUBISH/ SIEMENSE/AMS (optional or as requested)
| Machine Condition | Fully New, A-Grade quality |
| Panel Shape | As profile drawing and customer's requirements |
| Operator needed | 1-2 persons |
| Power Supply | 220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
| Equipment Weight | About 15t |
| Dimension | (L*W*H) about 25*3*2m |
| LOADING SIZE | Normally need 1x 40' (+ 1x 20GP) container |
| Equipment Color | Normally Blue/White, or as requests |
| Place of Origin | Zhejiang, China (Mainland) |
| Packing | Standard and careful export packing |
