API Pipe Mill For Oil Transportation is a series of machines that build longitudinal weld seam tubes and pipes with steel strips of certain width.


Pipe Applications


API pipe is widely used for a variety of pressure pipelines, especially for Petroleum, Natural gas, City gas, Pipe network, Chemical industry, Electricity, Steel truss, Water and Gas pipeline.

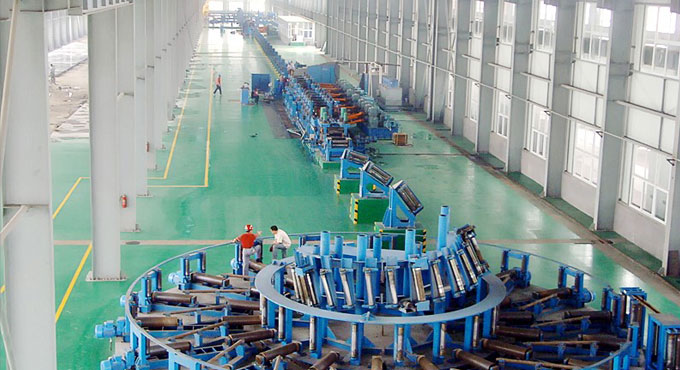

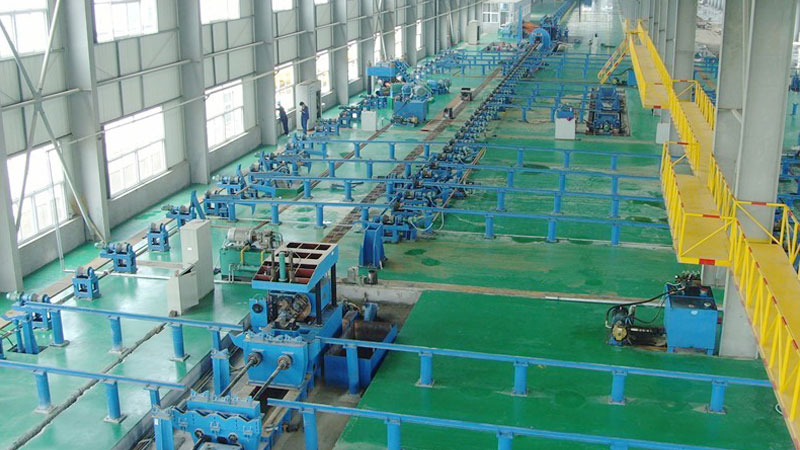

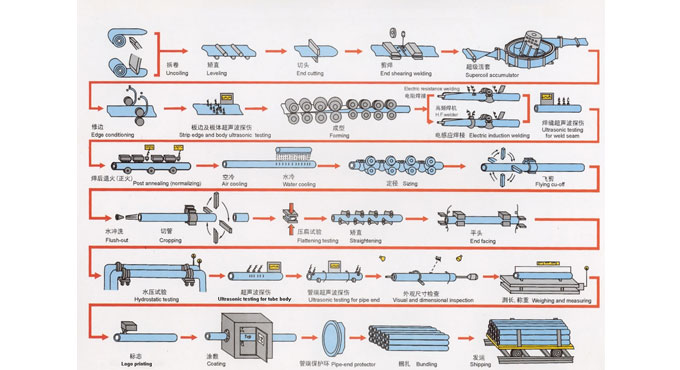

Full Production Flow of API Pipe Mill For Oil Transportation



working flow


working flow


Main Equipments Components

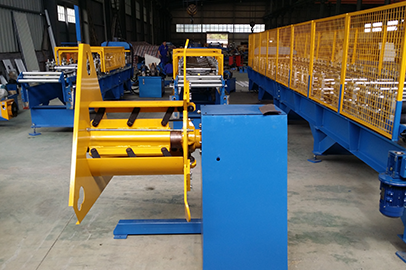

  • Decoiler

  • Hoop cage or Horizontal Accumulator

  • Main Machine

Forming Machine

Roller System of Forming

Seam Guide

High Frequency Induction Welding Machine

Roller System for Moving

Burr Removing Frame (Inside and outside Burr )

Water Cooling System

Sizing Machine

Roller System of Leveling

Speed Testing Wheel

Turkish Frame

Auto Flying Saw Controlled by Computer

Run out table

Electric Control Equipment

High Frequency Welding Machine

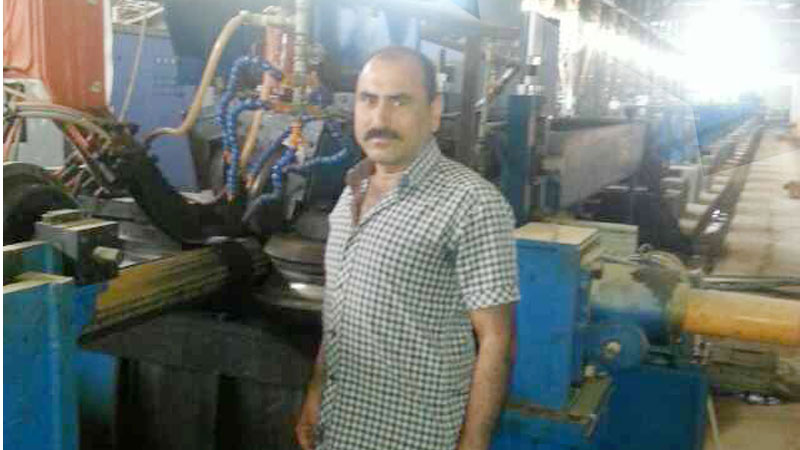

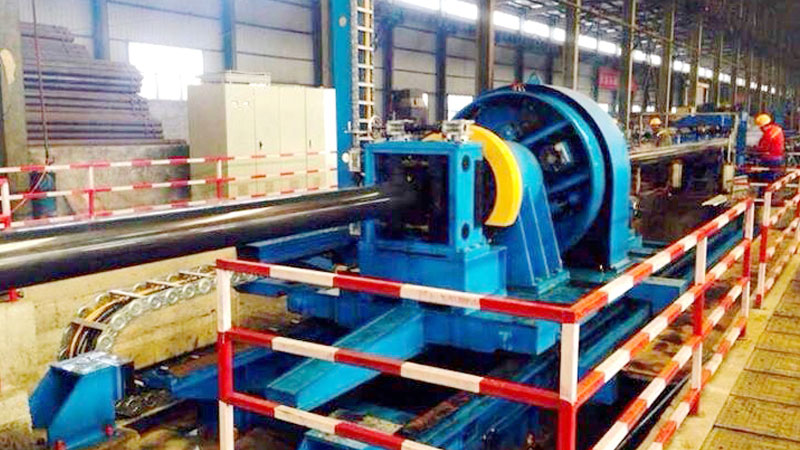

Operation Pictures

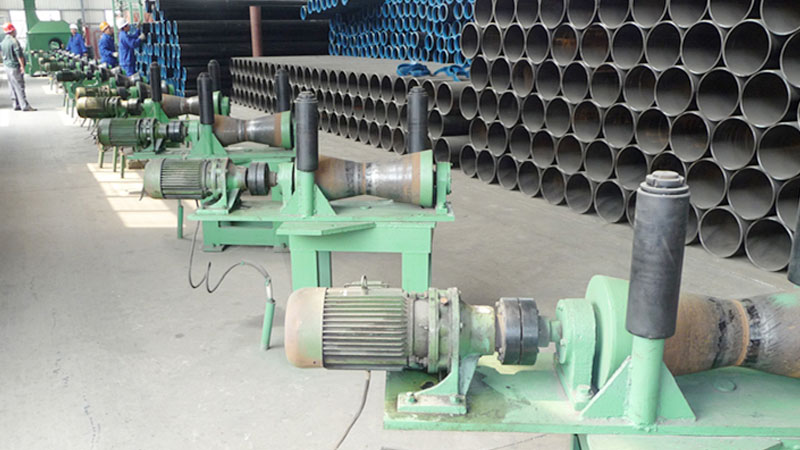

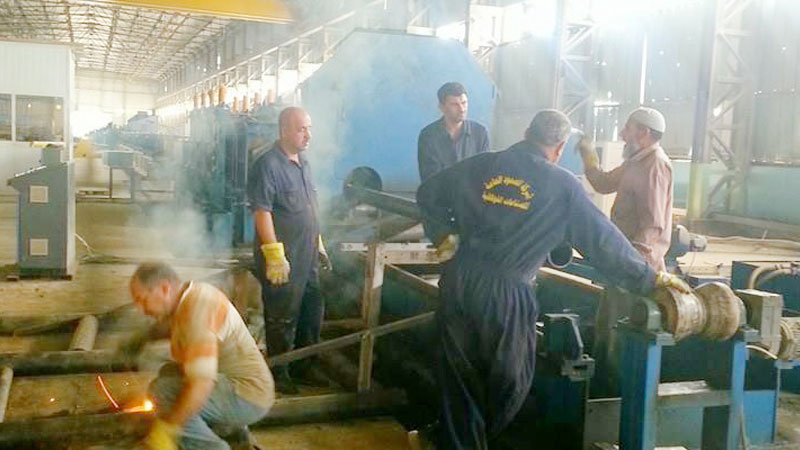

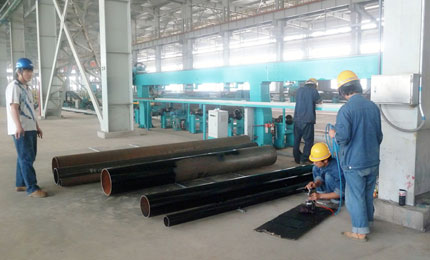

(Cutting and inspecting)

cutting and inspectingcutting and inspecting

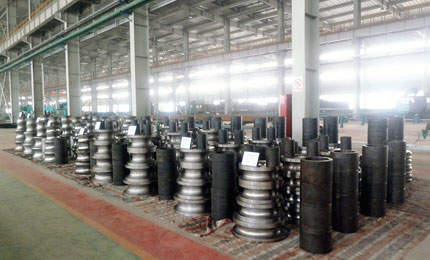

Roll Forming Moulds


forming moulds

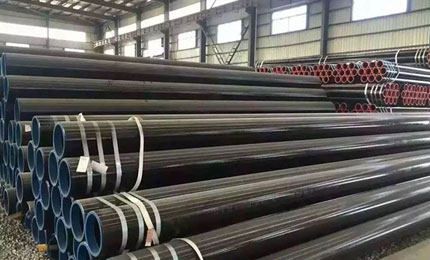

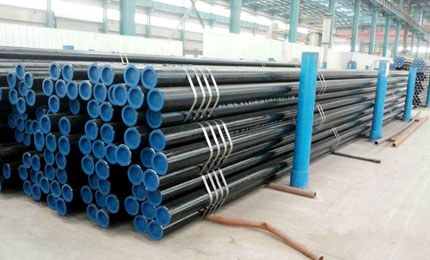

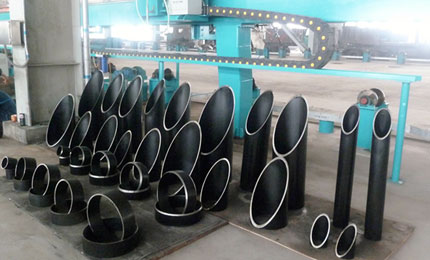

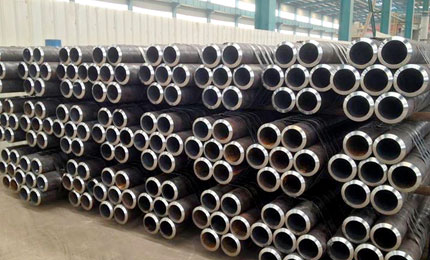

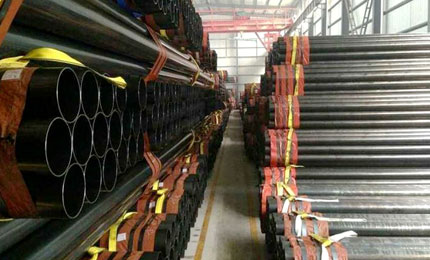

Finished Tubes


Finished TubesFinished Tubes

Finished TubesFinished Tubes

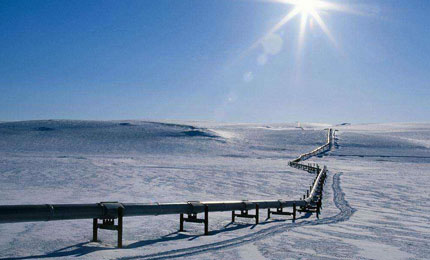

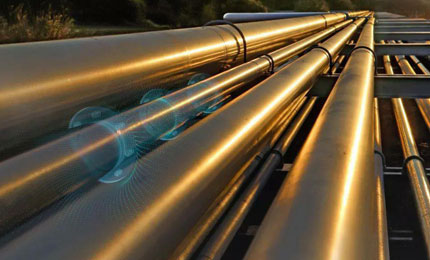

Applications of API Pipe Mill For Oil Transportation


applicationApplications of API Pipe Mill For Oil Transportation


Technical Parameters


ModelRound pipeSquare pipeThicknessSpeed
mmmmmmm/min
RFT-114Ф48-Ф11440x40-90x901.5-4.570
RFT-140Ф60-Ф14050x50-110x1102.0-5.060
RFT-165Ф76-Ф16560x60-130x1302.0-6.055
RFT-219Ф89-Ф21970x70-170x1702.0-8.050
RFT-273Ф114-Ф27390x90-210x2103.0-10.045
RFT-325Ф140-Ф325110x110-250x2504.0-12.740
RFT-377Ф165-Ф377130x130-280x2804.0-14.035
RFT-406Ф219-Ф406170x170-330x3306.0-16.030
RFT-508Ф273-Ф508210x210-400x4006.0-18.025
RFT-660Ф325-Ф660250x250-500x5006.0-20.020
RFT-720Ф355-Ф720300x300-600x6006.0-22.020


Remarks


1.Operator: 6-8 people (as size requests)

2.Casing tube, Oil pipe, API 5CTLine pipe, Oil pipe, API 5L

3.TRANSFERRING LOW PRESSURE LIQUID / OIL AND GAS

4.Oil tube is used for extracting oil or gas from wells

5.Casing tube is used in the wall of well

6.Line tube is used in the transportation of water, gas, and oil as well

7.Steel grade character: A,B,X42,X46,X52,X56,X60,X65....


Related Information


Machine ConditionFully New, A Grade quality
SizeAs requests
Power Supply220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 30ton-300ton
Dimension40m–400m (length) x 3.8m-40m (width)
LOADING SIZENormally need 4-30 x 40' containers
Equipment Colornormally Blue/Green/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
