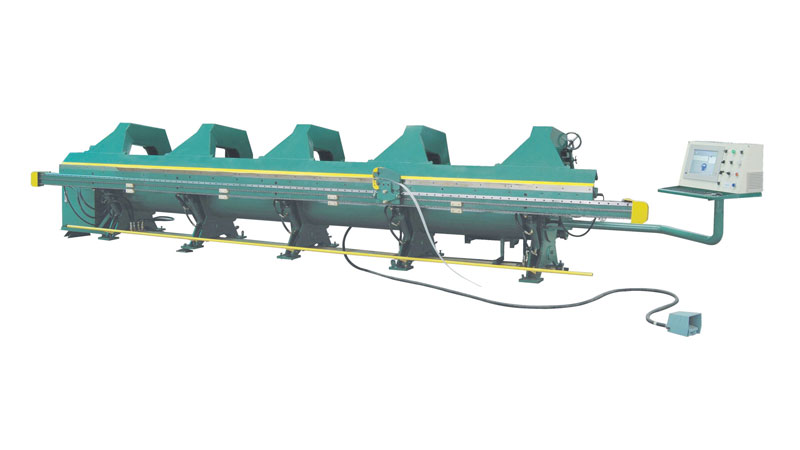

CNC Folder

Hangzhou Roll Forming Technology, a professional  CNC folding machine supplier, has high-quality sheet metal CNC folding machine for sale. The numerical control folder & slitter is flexibly used to fold and slit workpiece which is unsuitable for the traditional pressing system.


Are you looking for suitable CNC folding machine? As an experienced CNC folding machine manufacturer, we have the right steel folders for sale which can meet your requirement. You can check the details of our CNC folding machine for sale. If you have any questions, welcome to consult about CNC folding machine for sale.

Features and Advantages of CNC Folder for Sale

  • The folding design pattern of the sheet metal folder for sale can be multiple and designed as a profile drawing & requests.

  • We have 6.5m, 8m, and 10m models available for choice.

  • Most of the hot & popular profiles models, we have ready sheet metal folding machine for sale in stock for prompt delivery.

  • Our sheet metal folder for sale is certified with Multi-Patents; CE Certified, and EUROPEAN quality standard.


Applications of CNC Folder for Sale

The main application of CNC folding machine for sale is in the sheet metal fabrication industry. The CNC  folder is used to fold sheet metal into specific shapes and curves. This process is used to create parts for cars, aircraft, boats, furniture, and more. It is also used in the production of ducting systems, as well as other industrial applications.

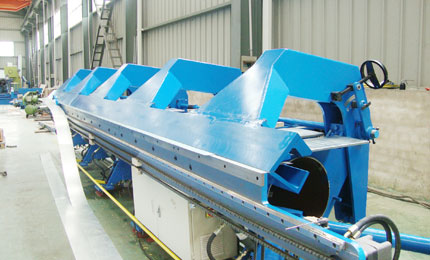

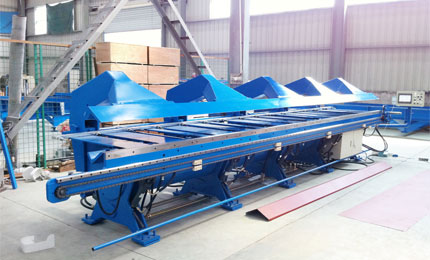

applicationsapplications

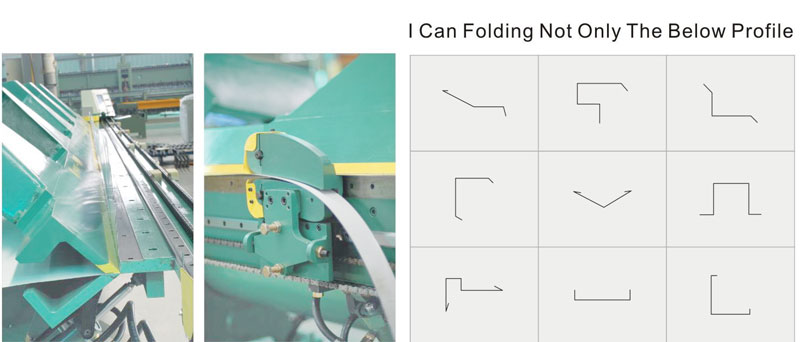

Folding Pattern Designs Profile Drawings of CNC Folder for Sale

CNC Folder profile drawing



Main Technical Parameters and Components of CNC Folder for Sale

Main Technical Parameters
Max. Folding length6500mm/8000mm/10000mm (for choice)
Throat depth800mm
Max. folding thickness1.50mm steel @ 250mpa
2.00mm soft aluminum
1.00mm stainless steel
Max. slitting thickness1.50mm steel @ 250mpa
2.00mm soft aluminum
1.00mm stainless steel
Max. Folding angle125 degrees
Weight5.400kg
Slitting speedAbout 800mm/sec
Slitting moldRotary slitter
Control systemPC with 12’ LCD
Components
Machine body1pc
Clamp unit1set
Folding equipment1set
Digital-control backstop1set
Slitting system1set
Work piece supporting equipment1set
Hydraulic system1set
PLC Control system1pc


Related information of CNC Folder for Sale

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator Needed1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 8t
Dimension(L*W*H) about 11*3*2m
Loading SizeNormally need 1x 40' container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
