Window Frame Making Machine Introduction


This machine is used to make various frames. Our machine is for manufacture of steel window frame, steel door frame, bronze window frame, bronze door frame, fire rated window/door frame and so on.

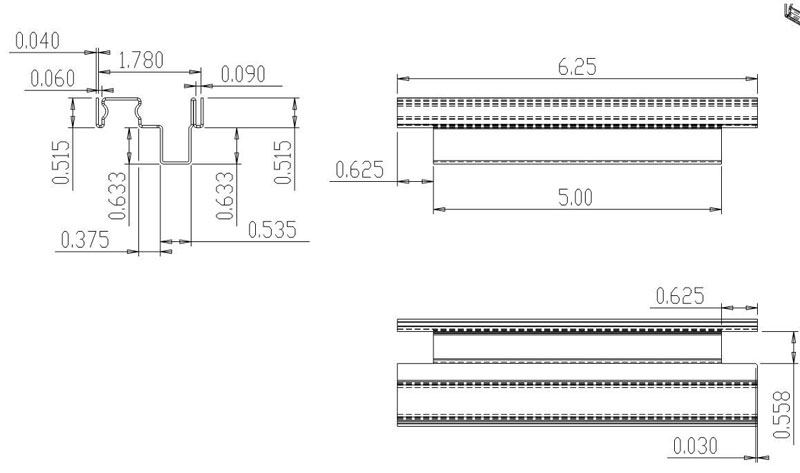

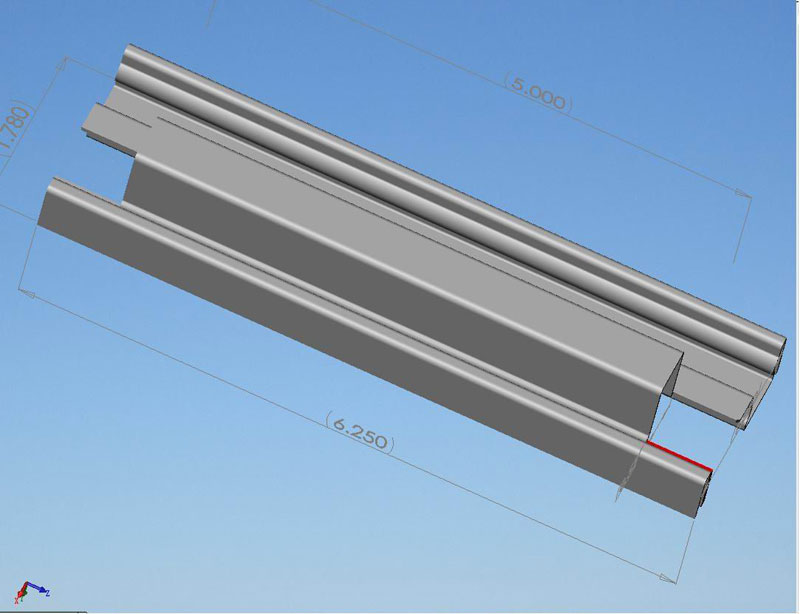

Window Frame Profile Drawings

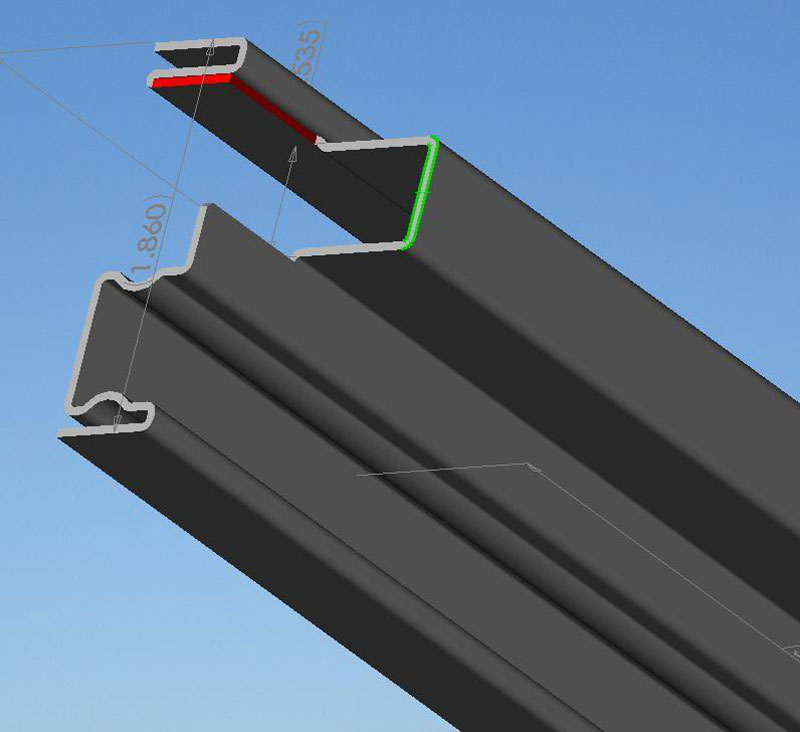

Profile drawings

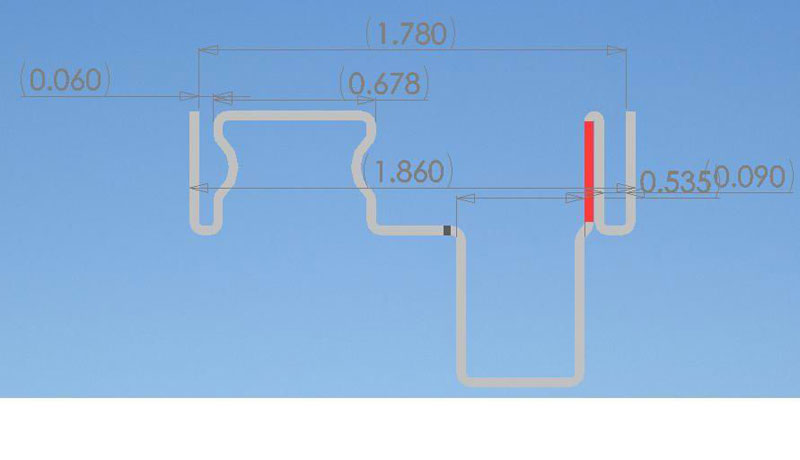

Profile drawings

Profile drawingsProfile drawings

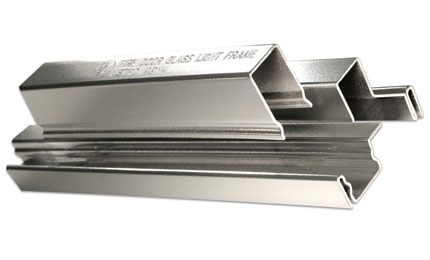

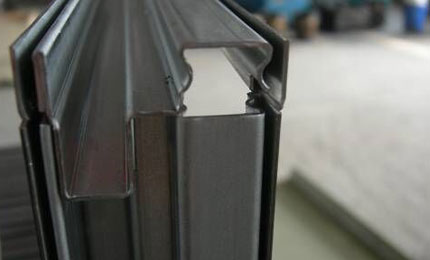

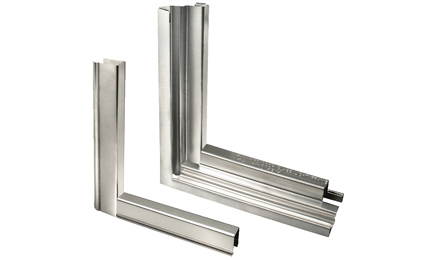

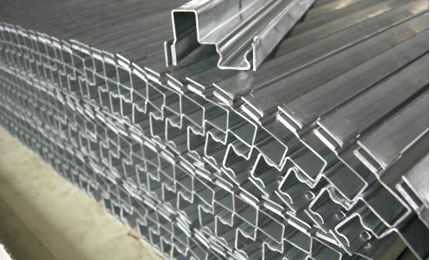

Finished Panels

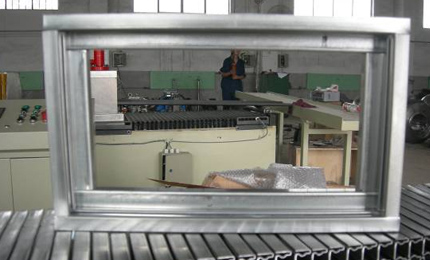

Finished panelsFinished panels

Finished panelsFinished panels


Features and Advantages of Window Frame Making Machine


  • Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.

  • Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.

  • With fully automatic non-stop standard configurations, the Max production speed can reach 30m/min

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.


Window Frame Making Machine Working Flow



  • Decoiler

  • Leveling device

  • Ground pit/ over ground accumulating unit (optional)

  • Servo feeding device

  • Hole punching device

  • Ground pit/ over ground accumulating unit (optional)

  • Guiding unit

  • Roll Forming System

  • Post-Cutting to length(flying cutting, tracking cutting and stop to cut are available for choice)

  • Output Manual Supporter/Auto Stacker(optional)

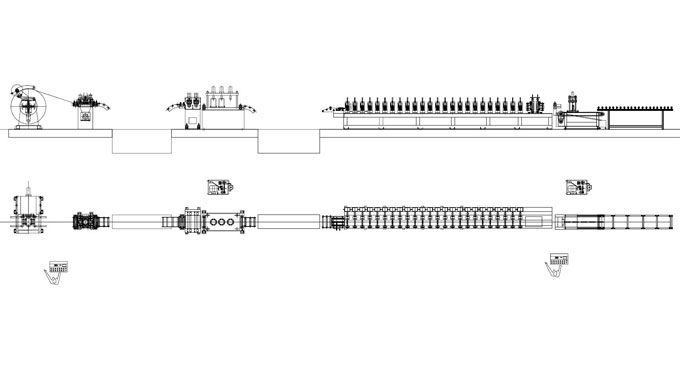

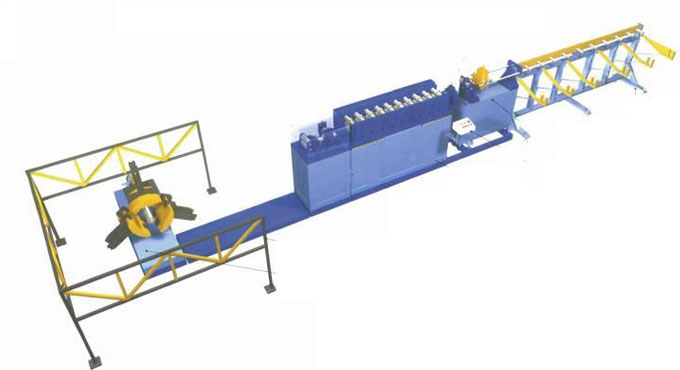

Window Frame Roll Forming Line Layout

layout

layout


Installation Type



Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.2/1.0 (mm)

Yield Strength: 230-300 (MPa)

Width: 300mm as profile requests


Production line Components and Parameters


Decoiler  3t/5t/8t
leveling device
ground pit/ over ground accumulating unit(optional)
Servo Feeding Device
Holes punching device
ground pit/ over ground accumulating unit(optional)
Guiding device
Roll forming system       20/30m/min
Safety cage             optional
Post cutting deviceflying cutting, tracking cutting and stop to cut are available for choice
Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for holes punching /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS/Omron (optional or as requested )



Related information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weightabout 18t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 2 x 40' container.
Equipment Colornormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Related Window Frame Making Machine
Video
Hangzhou Roll Forming Technology Co., Ltd - China, founded in 2003, is a professional manufacturer of high-end, non-standard construction machinery and equipment.
