Roof and Wall Panel

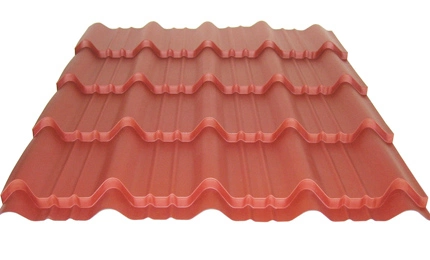

Introduction of Colored Steel Tile

Color steel tile, also known as: color pressure tile, is the use of color coated steel plate, by cold roll forming(rolling cold bending) into a variety of wave pressure plate.

It is suitable for industrial and civil buildings, warehouses, special buildings, large span steel structure roof, wall and exterior wall decoration, with light weight, high strength, rich color, construction convenient and fast, seismic, fire prevention, rain prevention, long life, free from maintenance and other characteristics, has been widely promoted and applied.

Characteristics of Colored Steel Tile

1. light weight: 10-14 kg/m2, equivalent to 1/30 of a brick wall.

2. thermal conductivity: lambda <=0.041w/mk.

3. High strength: it can be used as load-bearing plate of smallpox enclosure structure, anti-bending and anti-pressure; General building does not need beam column.

4. Bright color: no need for surface decoration, color galvanized steel anti-corrosion coating to maintain in 10-15 years.

⒌ installation fast and flexible: construction cycle can be shortened by more than 40%.

6. Pictures of the oxygen index :(OI)32.0 (provincial fire products quality inspection station).

Roof & Wall Panel Roll Forming Machine

Production of Roof & Wall panel Roll Forming Machine from Hangzhou Roll Forming Technology Co., Ltd is dignified and elegant, beautiful and novel, and the appearance of level off, even ripple, high utilization rate, strength, high production automation, low cost.


Hangzhou Roll Forming Technology Co., Ltd is a professional manufacturer and exporter. We provide all kinds of standard and non-standard roof wall panel roll forming machine: Roof Panel Roll Forming Machine, Box Profile Roofing Sheet Roll Forming Machine, Corrugated Sheet Roll Forming Machine, Roofing Tile & Glazed Tile Making Machine, High Speed Roofing Tile Making Machine, Metal Roofing Tile Former, AG Panel Roll Former, AG Panel Roll Former, Gutter Roll Former, Interlocking Panel Forming Machine etc.

Welcome both national and international customers to contact us for more information.

Roof Panel Machine Components Detail

  • Decoiler

Cantilevered Type

Hydraulic Expanding

Hydraulic Releasing

With Light control

Separate Hydraulic station and control

  • Guiding Device

 Adopting guiding bar and sliding block to control the width and position of the steel sheet. The sheet is guided in the correct position and runs to the roll forming equipment.


  • Roll Forming System

1)Machine frame: welding structure with blasting treatment

2)The roller is made by high quality no.45 steel with hard chrome-painted

3) Roller inner supporting structure type: guiding column

4)Planetary gear speed reducer motor driven, back/forward roller driven by chain, part of upper/lower rollers driven by gear.

5) Adjust the screw bar manually to adjust the distance between upper/lower rollers for different thickness of sheet.


  • Punching die and Cutting Device

1) The cutting blade material is Cr12 with quenched treatment, there is no material wasted.

2) The power of cutting is provided by Hydraulic station.

  •  Product Supporter

To support the finished panels manually and the length of each piece is 2 meters, two pieces.


  • Electrical Control System

With PLC control and frequency speed adjusting technology to realize the automatic production.1.System provide good interface machine screen, which can set the batches, plate length, and quantities.

Encoder calculation with the function of calculation and length measuring.


  • Hydraulic Station

1. Provide power to cutting.

2. Adopts separated hydraulic station

3. Main valve adopts China brand
