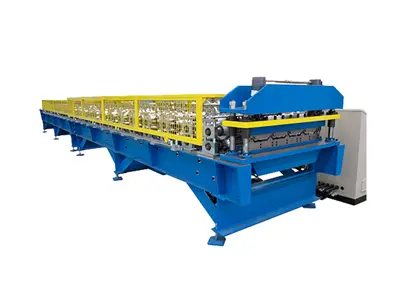

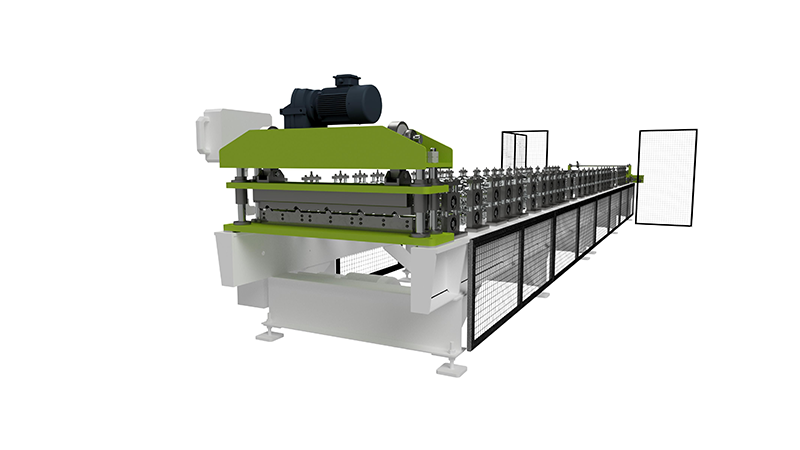

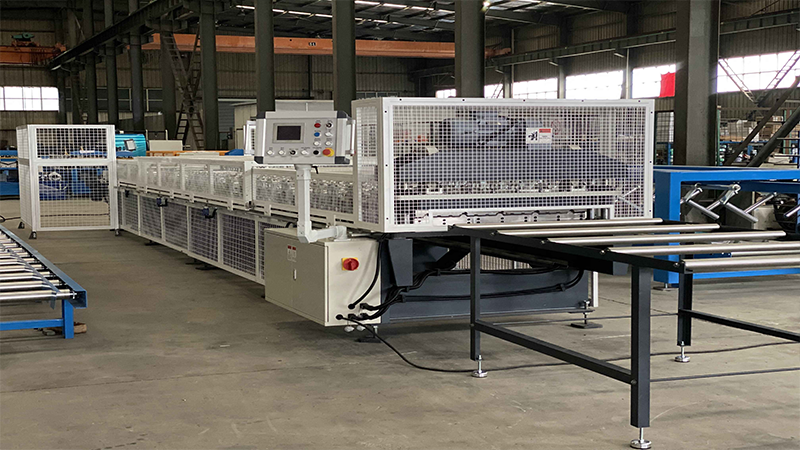

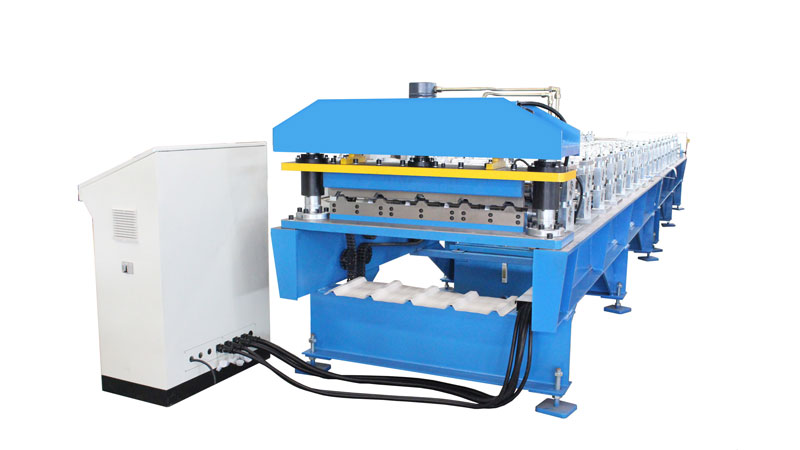

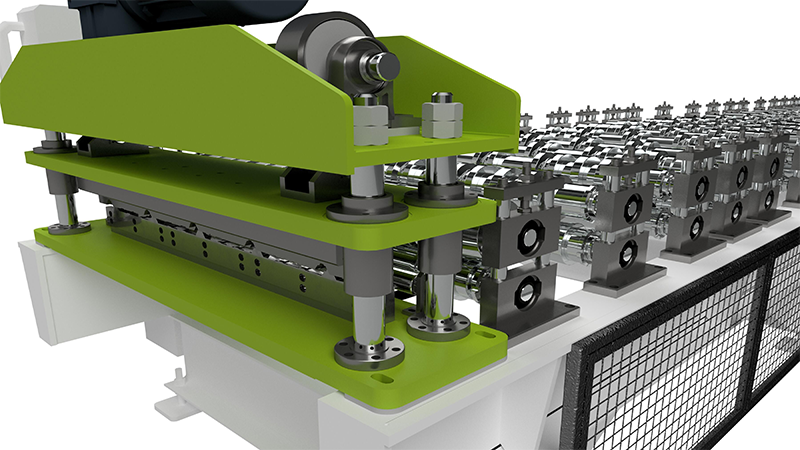

AG Panel Roll Former

This AG panel roll forming machine series is used to make high-quality AG panels. As a professional roof and wall panel roll forming machine manufacturer, Hangzhou Roll Forming Technology Co., Ltd. provides high-quality AG panel roll formers for sale at reasonable prices. Please feel free to contact us for more information.

Features and Advantages of AG Panel Roll Former

  • AG panel roll former, specially designed for forming roofing corrugated sheet, siding panel, floor decking, under mass-production.

  • Production speed: 20/30/40/50/60 m/min optional.

  • Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  • Cassette-type platform change rolling machine base for multi-profile purposes is available for choice.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have a variety of ready ag panel roll forming machines in stock for prompt delivery.




Suitable Raw Material for AG Panel Roll Former

Material type:
Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel
Thickness:
0.3-0.7(mm)
Yield Strength:
230-300/350/550-675(MPa) optional
Width:
1038,1055,1092 (mm)







Production Line Components and Parameters of AG Panel Roll Former

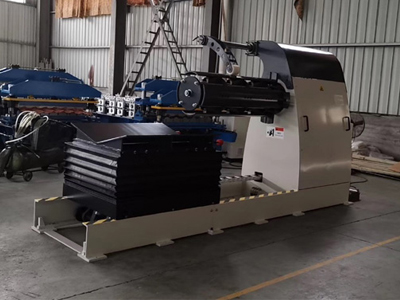

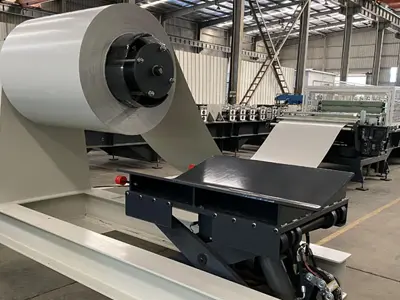

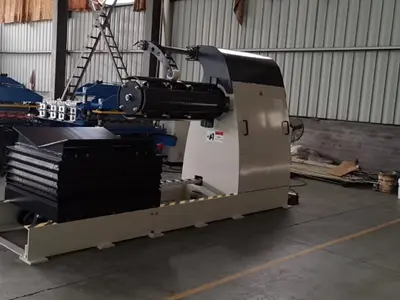

1. Decoiler5t/8t/10t//15t Motor/hydraulic motor/passive (optional)
2. Filming covering device       optional
3. Front shear                  optional
4. Lubricating device          no need
5. Roll forming system         20/30/40/50/60 m/min (optional)
6. Safety cover                optional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )

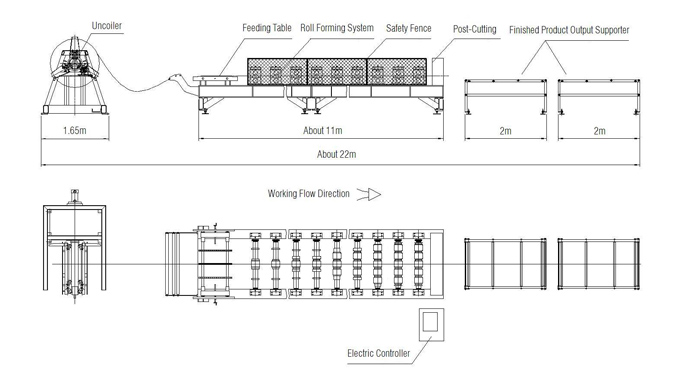

AG Panel Roll Former Layout

AG Roll Forming Line Layout


Working Flow of  AG Panel Roll Former

The working flow of our AG panel roll forming machines is as follows:  Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System - Post-Cutting to length (Hydraulic/Motor) - Output Manual Supporter/Stackmaster(optional)

Application of AG Panel Roofing

The Advantage Panel is a durable, weather-resistant metal roofing option for both residential and agricultural projects. These sturdy panels can provide excellent protection against harsh weather conditions and will increase the lifespan of your roof. Plus, AG-Panels are not only cost-effective & provide high-performance standards but they also lower the need for maintenance on your roof. Advantage panels are perfect for retro-fitting over existing composition shingles. These sheets of lower-profile metal roofing save time, labor, and disposal costs, which means a lower total project cost. The design with bold ribs, making it an exceptionally attractive and high-performance roofing and cladding.

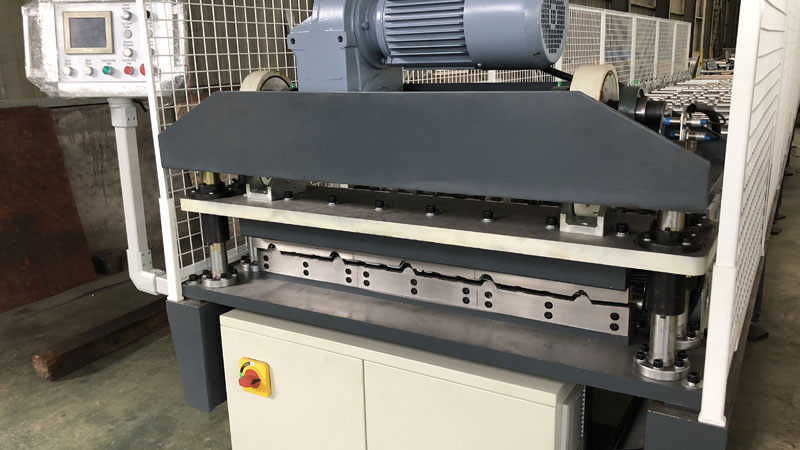

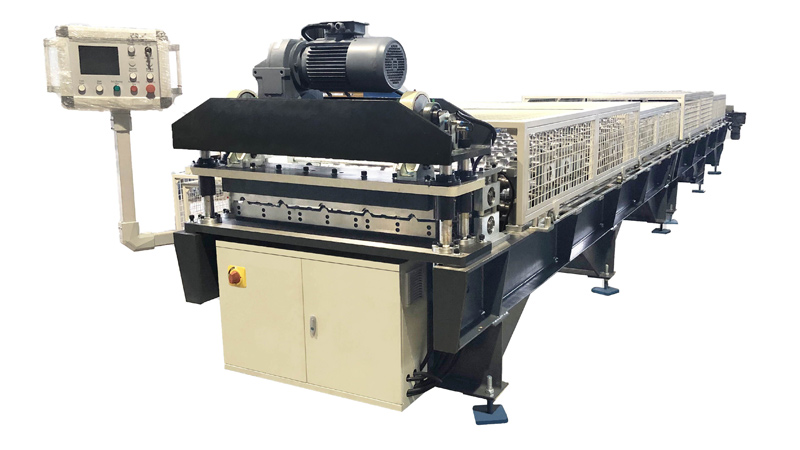

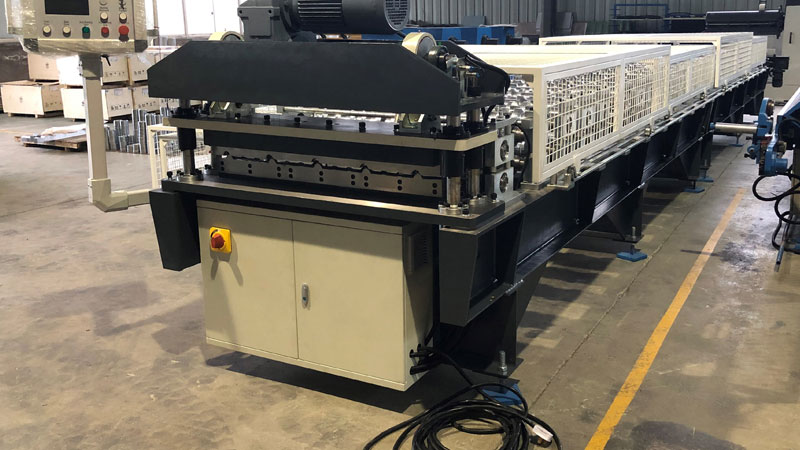

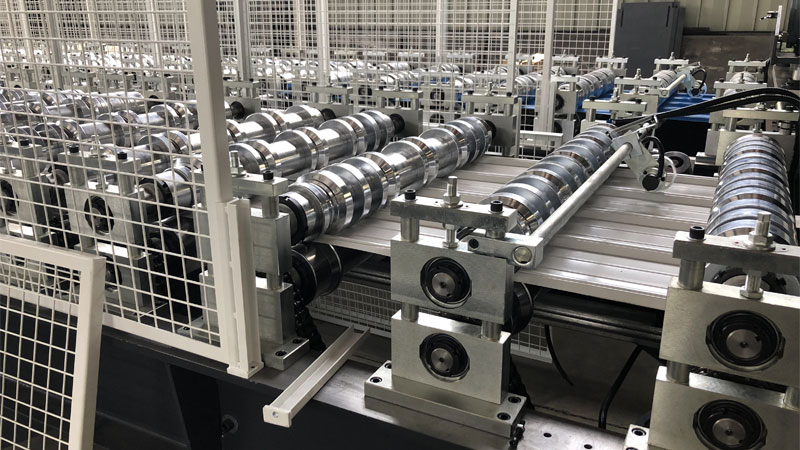

AG Panel Roll FormerAG Panel Roll Former

AG Panel Roll FormerAG Panel Roll Former

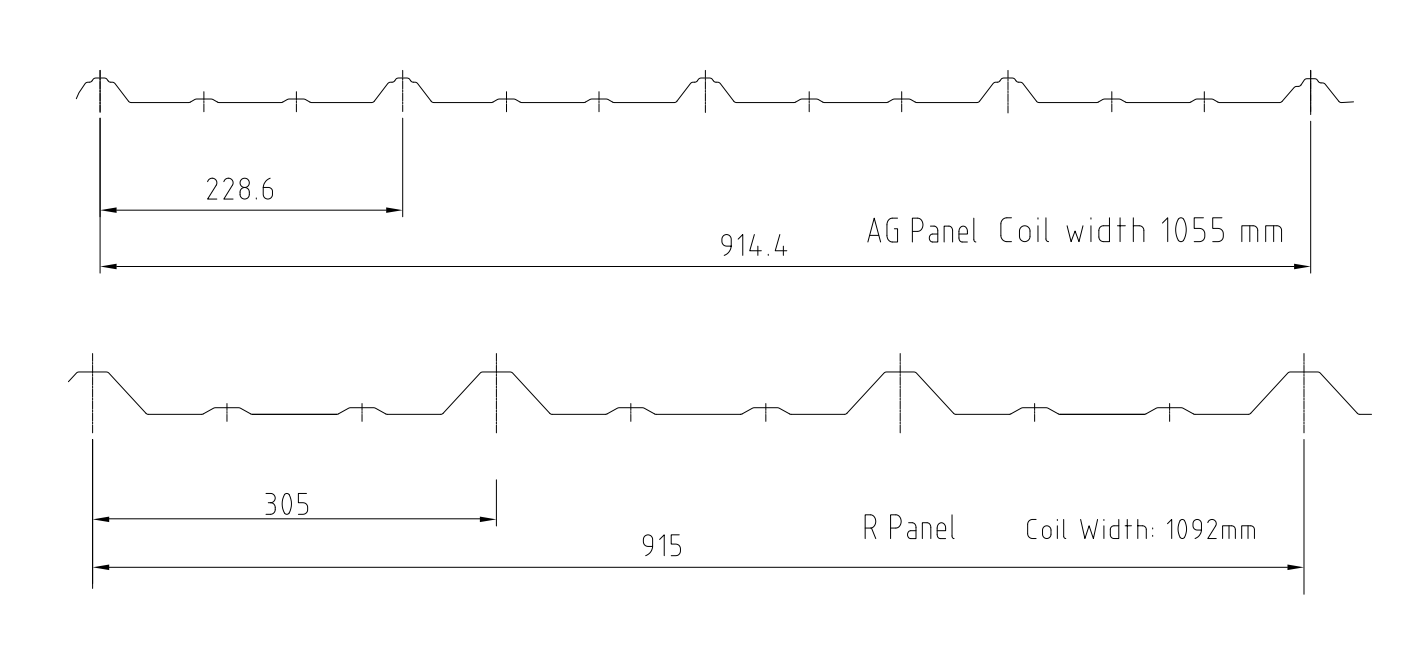

AG Roofing Profile Drawings

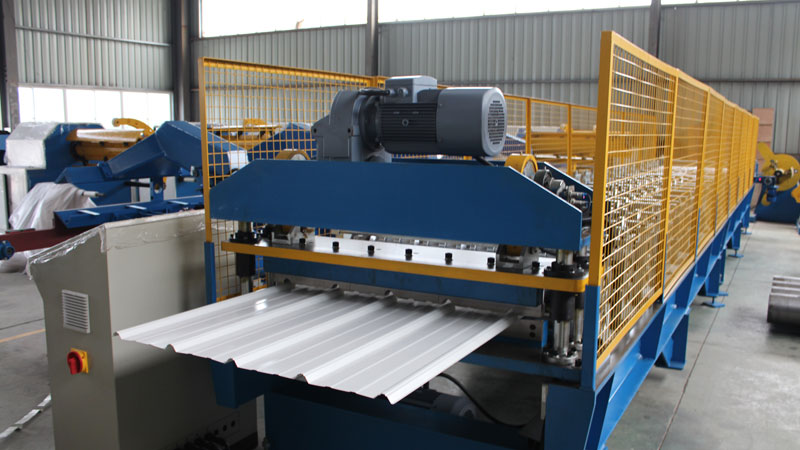

AG Panel Roll Former

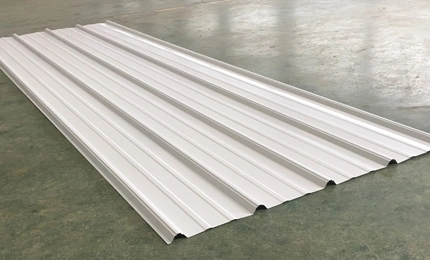

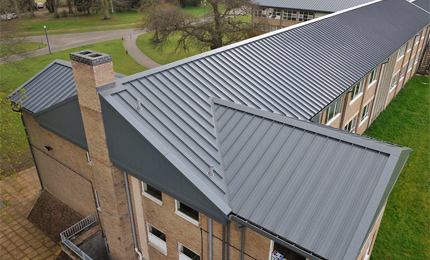

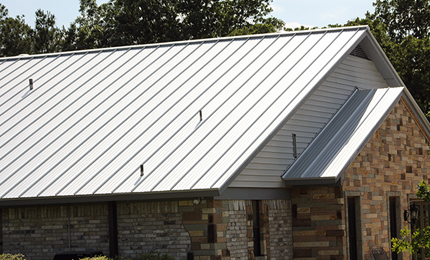

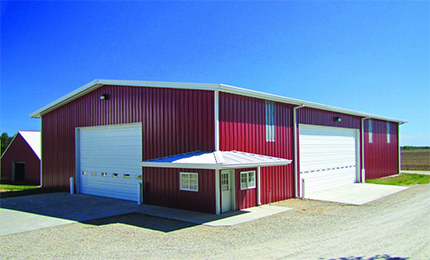

Finished AG Panel Metal Roof by AG Panel Roll Former

AG Panel Roll FormerAG Panel Roll Former

AG Panel Roll FormerAG Panel Roll Former


Specification of AG Panel Roll Former

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing


Products

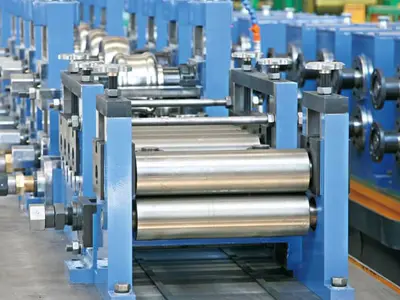

ROLL FORMING MACHINE & TUBE MILL
