Slitting Line

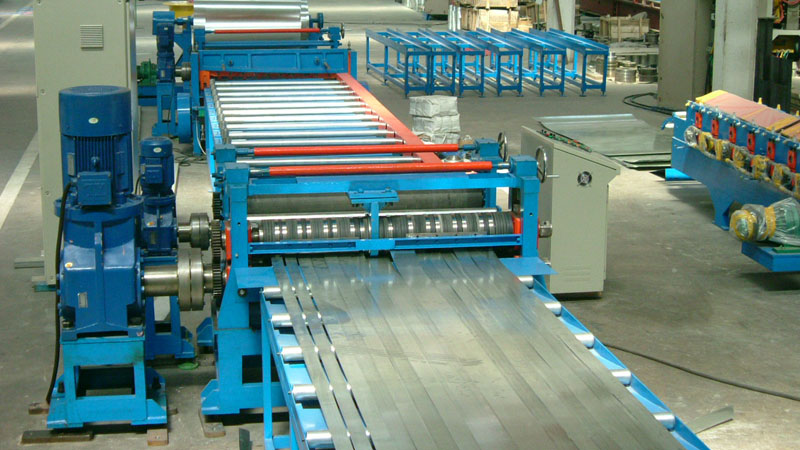

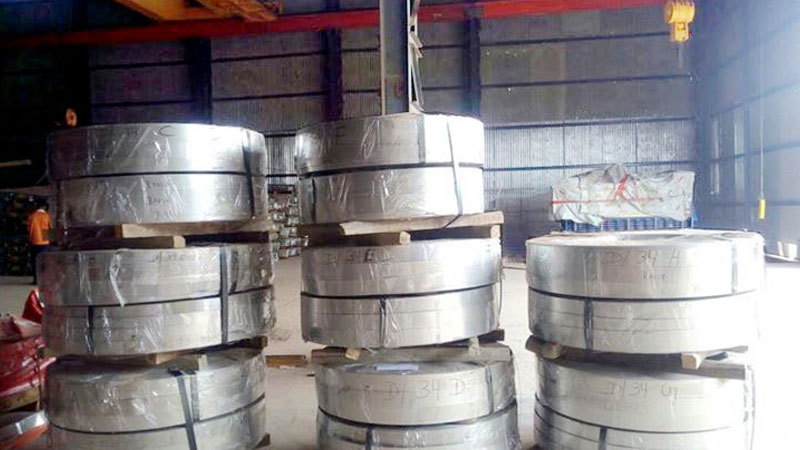

The slitting line is used for slitting wide steel coils into certain width strips coils. On the upper/lower blade axle of the steel coil slitting line, there is the round disk blade; it could be adjusted on the blade axle according to the slitting width, use screw, and sleeve to lock on the blade axle.

Among all coil slitting machine manufacturers in China, Hangzhou Roll Forming Technology Co.., Ltd. offers high speed slitting machines for all kinds of sheet metal coils of different materials.

Technical Parameter of Coil Slitting Line

Suitable materialAluminum/Hot rolled/cold rolled/galvanized/stainless steel coils
Material thickness0.3-25 mm(as requests)
Max. material width2000 mm
Max. production speed0-60, 100, 200 m/min(optional)
Max. outer diameter1600 mm
Coil inner diameter (for uncoiler)470-520 mm; 480-630 mm
Coil inner diameter (for recoiler)508 mm
Max. coil weight20t
Min. width of strip30mm
Tolerance of width after being slitted+-0.1 mm
The slitting burr+-0.02 mm
Straightness1 mm/m
Total capacityapprox 130 kW
Working directionfrom left to right or right to left(as requests)
Power supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Dimension of Steel Slitting Line35 m x 7 m x 3 m(approx)

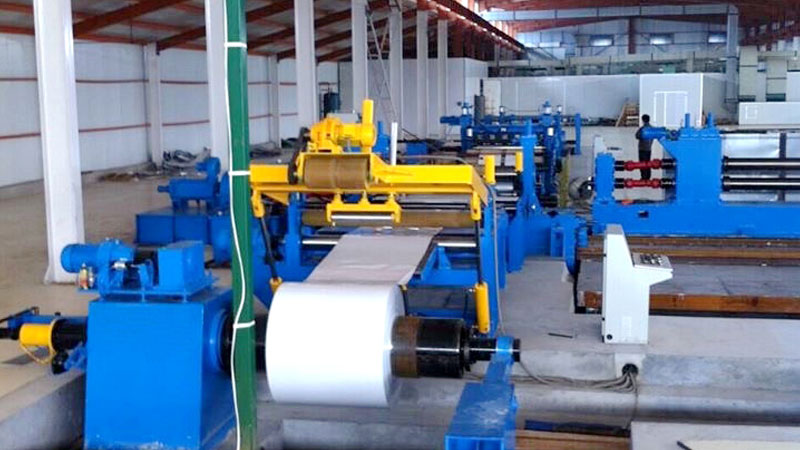

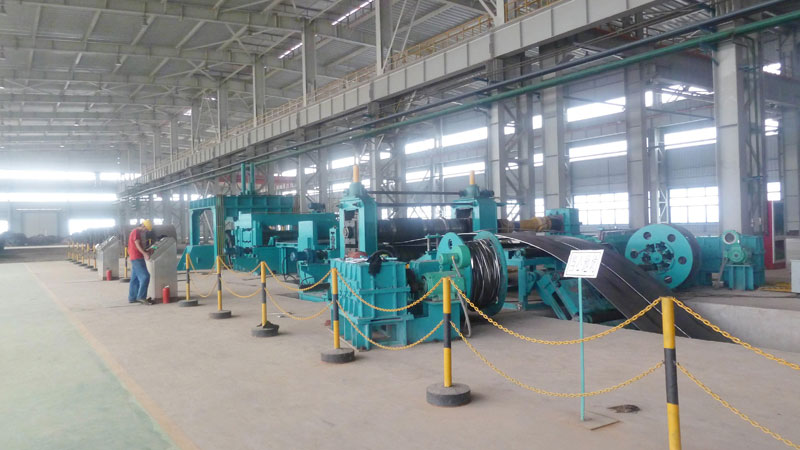

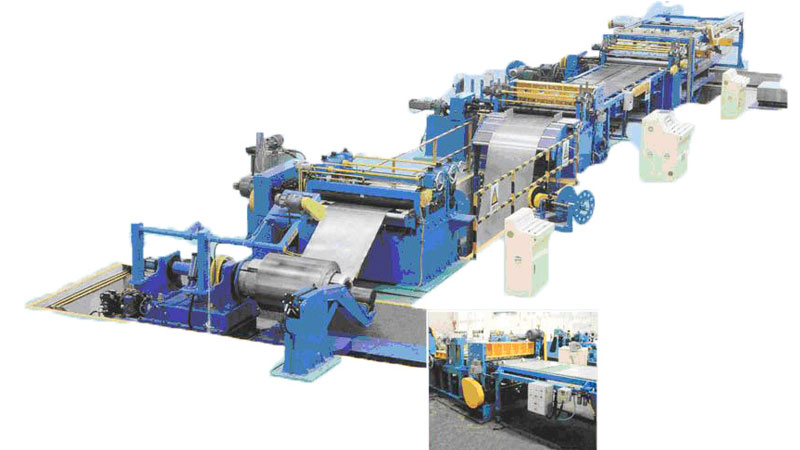

Production line Components of Coil Slitting Line

  • Entry coil car

  • Hydraulic uncoiler(double head type)

  • Pinch roll with leveler

  • Material head cutting machine

  • Transition bridge 1

  • Side guider

  • Slitter

  • Scrap winder

  • Transition bridge: 2

  • Separator and tension unit

  • Re-coiler

  • Discharge coil car

  • Hydraulic system

  • Pneumatic system

  • Electrical control system

  • Accessories follow machinery


Related information of Coil Slitting Line

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer's requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 25 t
Dimension(L*W*H) about 35*7*3m
LOADING SIZENormally need 2-3x 40' (+ 1x 20') container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
