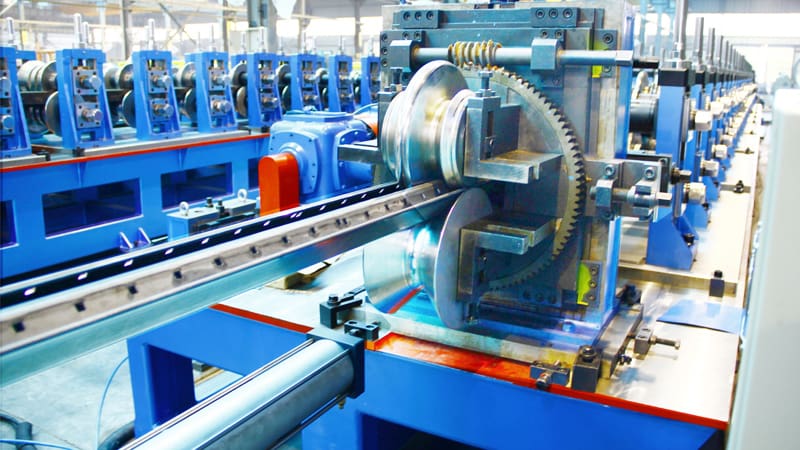

Shelf Column Roll Forming Machine uses a wide range, has been widely used in the city shelves, storage shelves, super heavy shelves, and other profiles of cold roll forming. Our shelf column forming machine adopts industrial control PLC, man-machine operation interface to realize production automation. By inputting parameters such as hole spacing, product length and quantity, punching, molding, and cutting are completed at one time during production.
Continuous production without shutdown, to ensure stable product quality, accurate size.
Using shelf equipment to produce shelf profile, low production cost, high efficiency, saving materials, and environmental protection, can be combined with production needs to manufacture automatic production equipment, saving labor, so that enterprises in the fierce market competition more competitive.
The automatic shelf column forming machine is mainly composed of decoiler, power leveling machine, servo feeding mechanism + punch punching mechanism, roller forming machine, electronic control system, hydraulic system, mechanical tracking shear mechanism, and other components.
The production line can produce 120× 69,100 × 69,80 ×69 shelf column profiles with a thickness of 1.2-2.5mm. At the same time, we can also customize production lines according to customer requirements.
Feeding, leveling, feeder, punching, forming machine, fixed-length cut off, receiving table, electrical cabinet (PLC control) and other components
1. The material of rolling roller is 40Cr, and the hardness is HB280 after tempering and tempering.
2. Transmission structure is gearbox transmission or chain transmission.
3. The machine adopts PLC full intelligent control, high automation program, safe and efficient.
4. The formed frame is welded with high-strength channel steel. High strength, long service life.
5. The material of the forming mold is GCr15, quenching, hardness: hrc56-62 ℃.
Hangzhou Roll Forming Technology Co., Ltd is a professional manufacturer and exporter of all kinds of standard and non-standard cold roll forming lines and tube mill/pipe mill lines. Our shelf column roll forming machine has the following characteristics:
First, the equipment adopts the unique punching die structure design, reduces the friction between the pipe and the die, avoids the damage of the material surface, so as to save the cost of secondary treatment of the material surface.
Second, the punching machine adopts a unique machine design, so that the punching process more streamline, simplify, reduce material handling again, so as to greatly improve the work efficiency.
Third, the drilling machine adopts unique circuit design, oil design, and safety system design, energy-saving, environmental protection, safe and convenient.
Four, the equipment mold automatic discharge and blanking, effectively improve the efficiency of punching and extend the service life of the mold.
Fifth, the store shelf column punching machine, automatic processing product consistency is good, the product quality is stable and guaranteed.
Welcome both national and international customers to contact us for more information.
Our roll forming machines can be customized by customers. So as long as it is a profile that the roll forming machine can do, we can manufacture the machines for customers.
We can make heavy duty roll forming machines for heavy duty racks.
We not only design and manufacture roll forming machines for roof panel, but alos we can design and manufacture high speed roll forming machines, for rack, metal deck, guardrail and so on.
