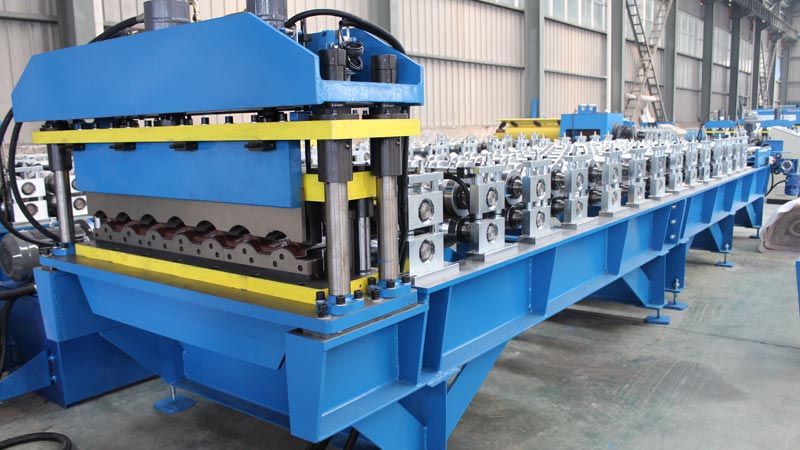

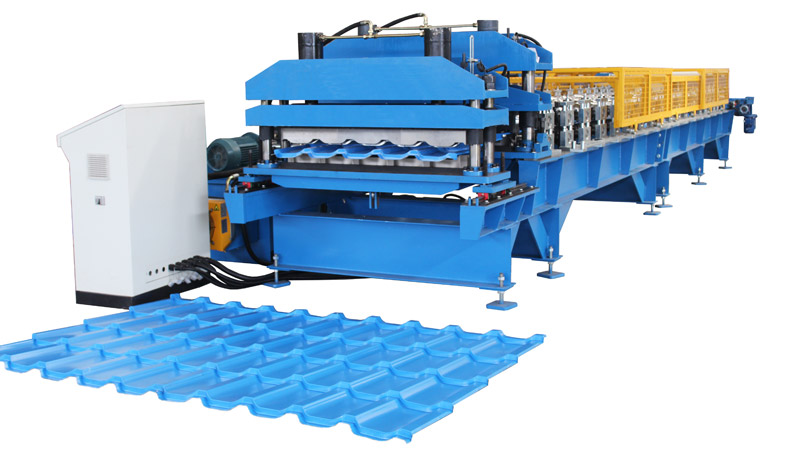

Glazed Roof Tile Roll Forming Machine
Glazed Roof Tile Roll Forming Machine
Glazed Roof Tile Roll Forming Machine
Glazed Tile Forming Machine
Glazed Tile Making Machine
Glazed Tile Roll Forming Machine

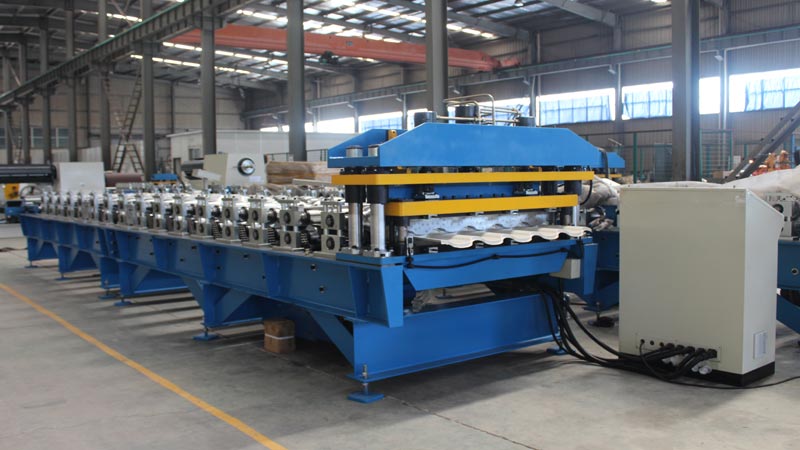

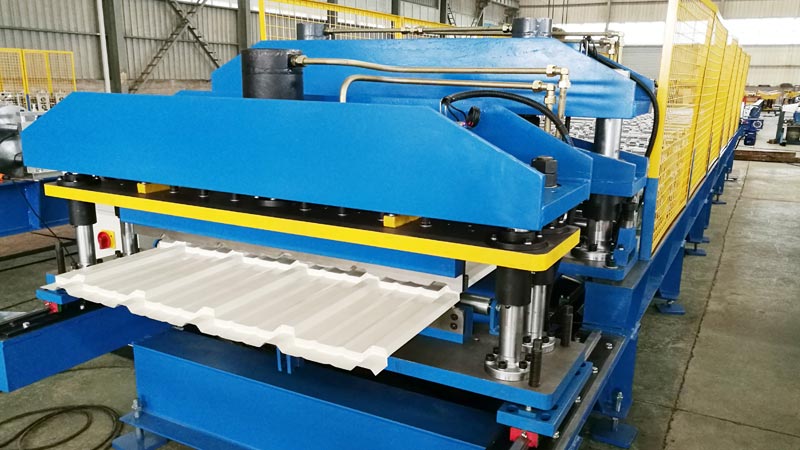

Roofing Tile & Glazed Tile Making Machine
Roofing Tile & Glazed Tile Making Machine
Roofing Tile & Glazed Tile Making Machine

Features and Advantages of Roofing Tile/Glazed Tile Making Machine


  • Roofing Tile & Glazed Tile Making Machine, is for continuously roll forming and pressing step tiles sheets. The step length can be set up and the depth of each step is adjustable

  • Production speed: about 10 m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of the hot & popular profiles models, we have ready roof tile forming machines in stock for prompt delivery.

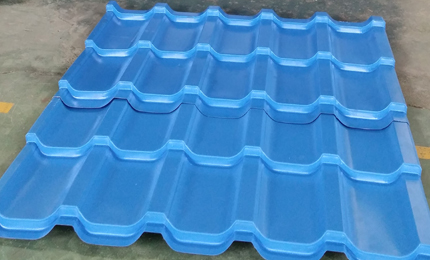

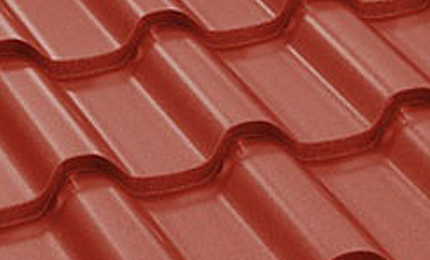

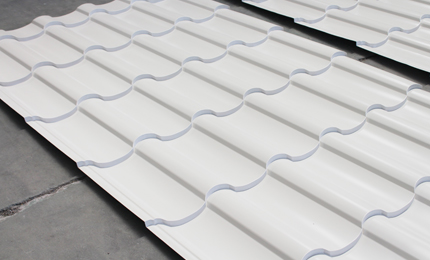

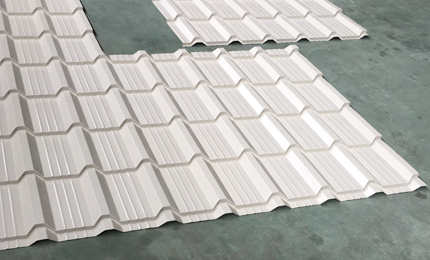

Finished Panels


Finished PanelFinished Panel

Finished PanelFinished Panel

Finished Panel

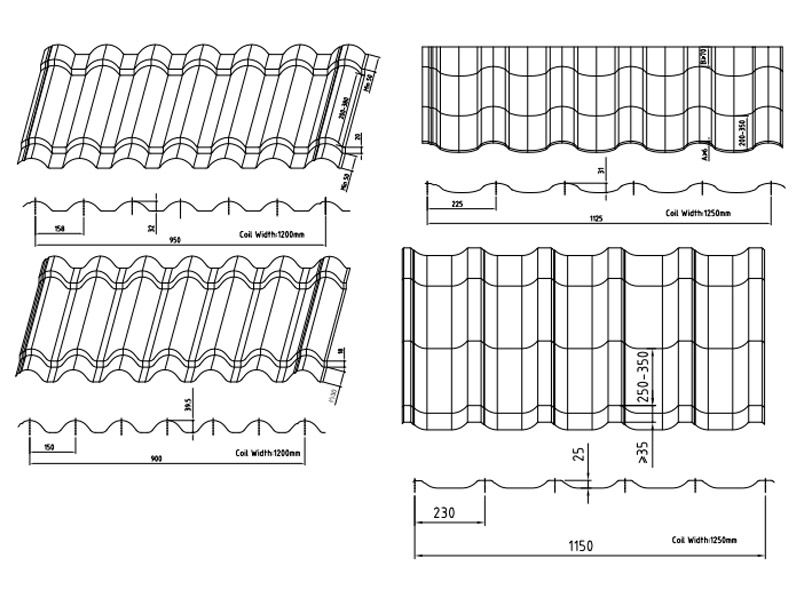

Popular Roofing Tile Profile drawings of Roofing Tile/Glazed Tile Making Machine



Roofing Tile/Glazed Tile Making Machine Working Flow


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Filming Covering (optional)

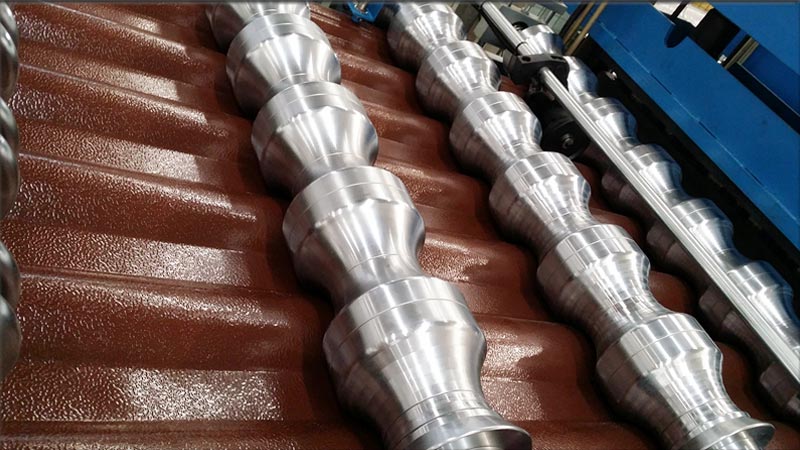

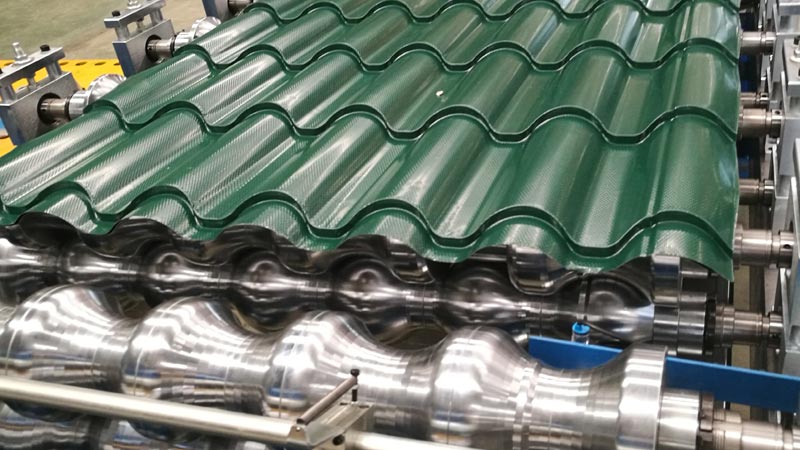

  • Roll Forming System

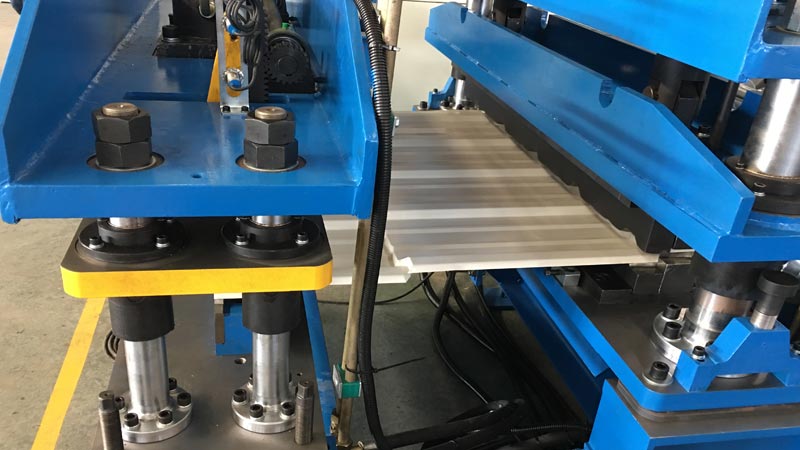

  • Step Pressing System

  • Post-Cutting to length (Hydraulic)

  • Output Manual Supporter/ Stackmaster (optional)

Step Roofing Tile Line Layout


Step Roofing Tile Line Lay Out

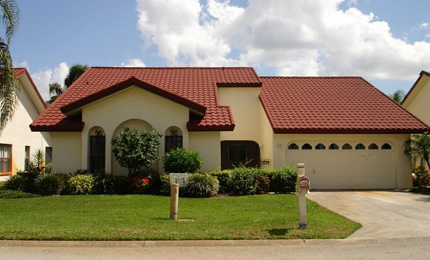

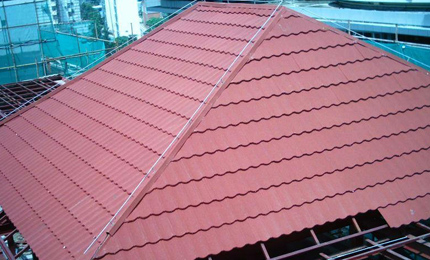

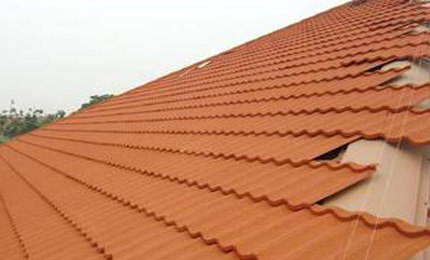

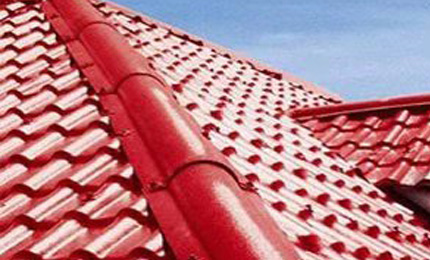

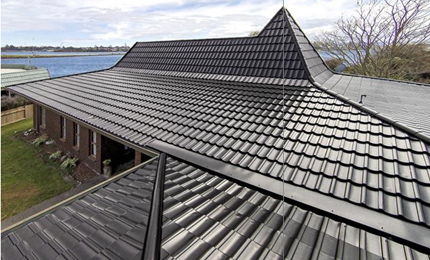

Roofing Tile/Glazed Tile Making Machine Application


Metal Roofing tiles reflect the look of traditional Mediterranean roofing with lightweight, strong strength and long last quality, giving you strength and safety along with the classic look.


Roofing Tile&Glazed Tile Making Machine Product ApplicationRoofing Tile&Glazed Tile Making Machine Product Application

Roofing Tile&Glazed Tile Making Machine Product ApplicationRoofing Tile&Glazed Tile Making Machine Product Application

Roofing Tile/Glazed Tile Making Machine ApplicationRoofing Tile/Glazed Tile Making Machine Application


Suitable Raw material


Material type: Color coated Steel, Aluminum sheet

Thickness: 0.4-0.6(mm)

Yield Strength: 230-350MPa (optional)

Width: 1200/1220/1250(mm)


Production line Components and Parameters

Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
Filming covering deviceoptional
Front shearoptional
Lubricating deviceno need
Roll forming systemindividual standing column structure
Safety coveroptional
Step pressing unitStep length, depth, head & end length is adjustable
Post cuttinghydraulic
Output SystemManual supporter/ Automatic Stacker (optional)
StackmasterPower supply for decoiler /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)


Related information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1x 40' (+ 1x 20GP) container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
