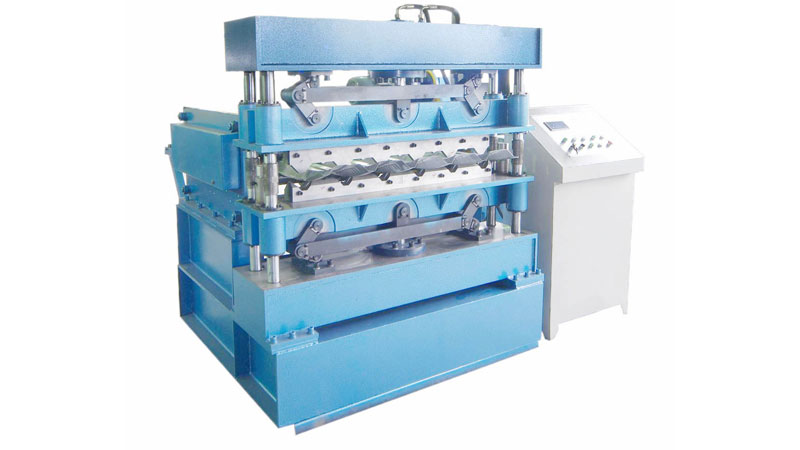

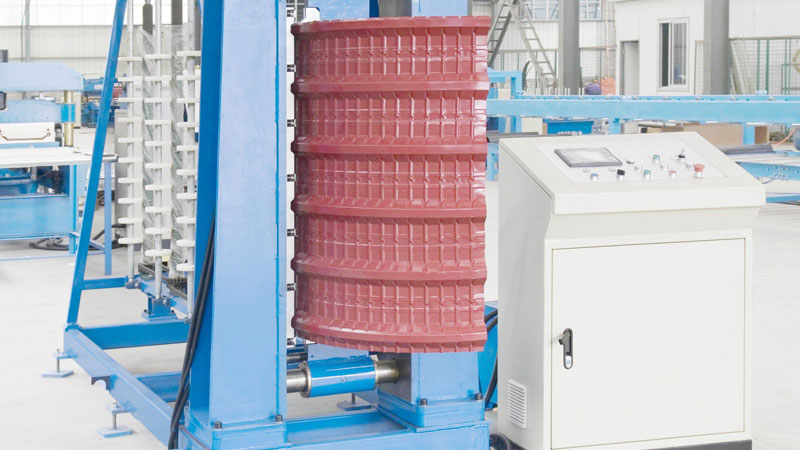

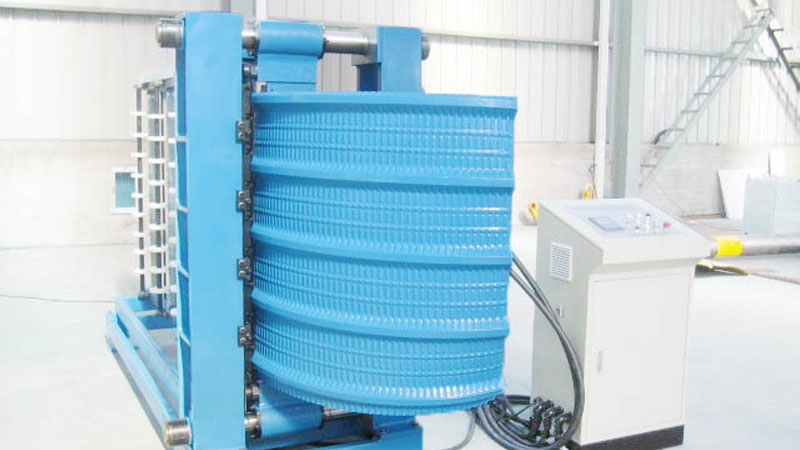

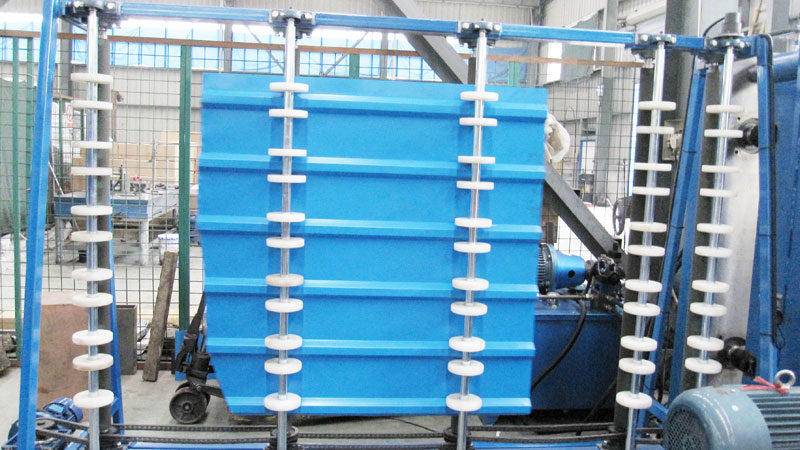

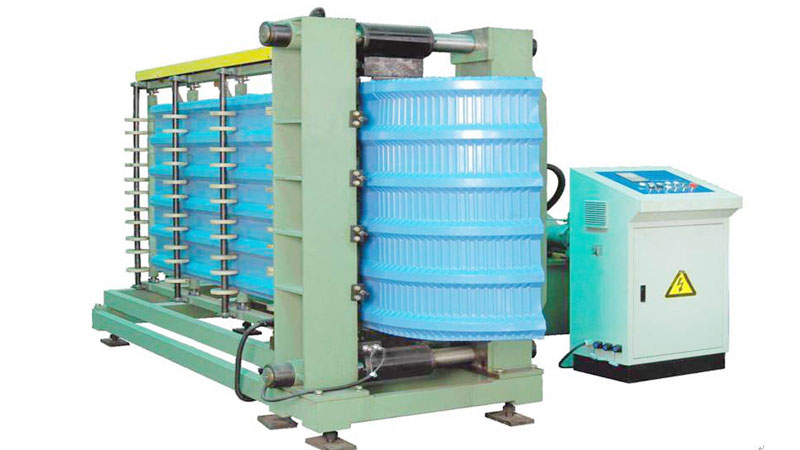

This machine is to curve formed panel through punching.


Working Flowing of Crimping&Curving Machine


  • Feeding Panel (put the panel into the transmitting device)

  • Automatic punching curving (punch-curving of panel under controlling system)

  • Take out the panel by manual

Technical Parameters and Components of Crimping&Curving Machine

Technical parameters
Profile yield strengthMax. 350Mpa
Material thickness0.3-0.7mm
Min curving radiusMin 500mm
Speed of punchingAbout. 2m/min
Punching mould materialNo.45 steel with chrome coated
Shaft materialHigh grade No.45 steel after heating and quenching
Motor powerHydraulic motor about 5.5Kw, feeding motor about 1.1 Kw (confirm after final design)
Components
Transmitting device1 set
Punch curving device1 set
Hydraulic system1 set
Control system1 set


Service and Terms of Crimping&Curving Machine

Prompt GoodsMost of models are in stock.
Fast Delivery30 days after receipt of payment and technical agreement
ManufacturerAll equipments are manufactured In-house.
Warranty20 months
Service1. Life long service;
2. All projects include engineering, drawings and project management and are treated similarly as a new metal forming equipment order.
3. quick maintenance and spare parts service
After-sales Service1. 7x24h before & after service team;
2. Experienced Engineers team for overseas market to handle all your troubleshooting and service needs for your roll forming, coil processing and tube equipment.
Payment TermsT/T, L/C
30% down payment upon order confirmation; balance before shipment
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
LOADING SIZENormally need 1x 20GP container.
