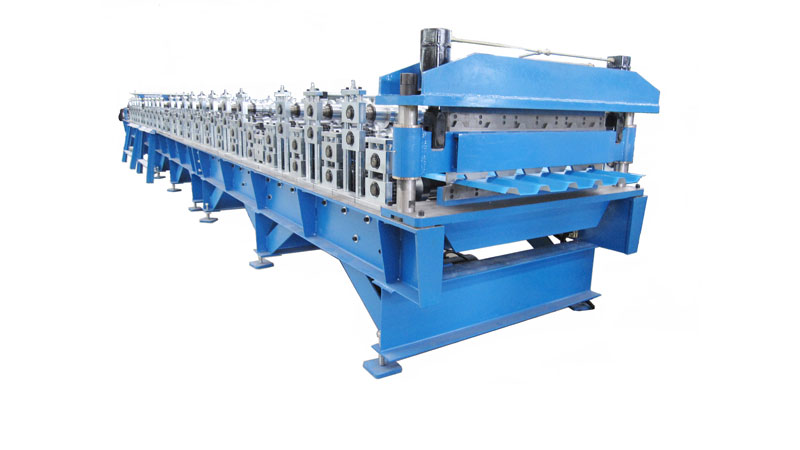

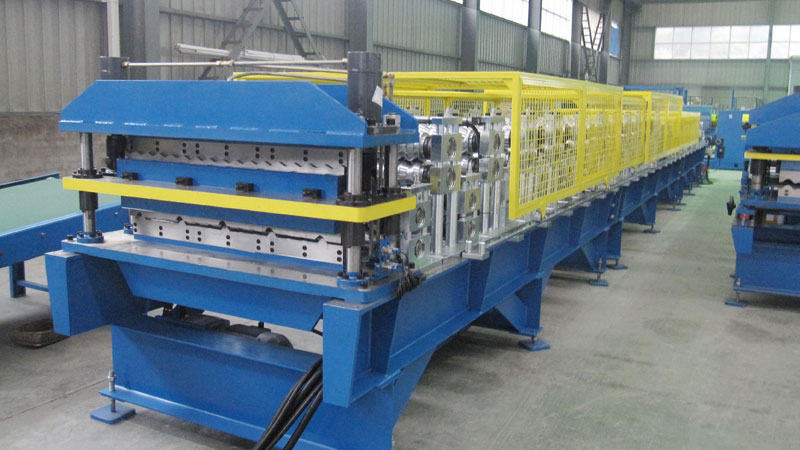

Double Layer Roof Wall Panel Roll Forming Machine

Double Layer Roofing Sheet Roll Forming Machine
Double Layer Roofing Sheet Roll Forming Machine
Double Layer Roofing Sheet Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine
Double Layer Roof Wall Panel Roll Forming Machine

Features and Advantages of Double Layer Roof Wall Panel Roll Forming Machine


  • With 2 layers of guiding tables, roll forming and cutting to length systems, it can produce 2 profile sheets on one machine.

  • Fast and easy changeover between 2 profiles: operate on PLC screen, no need change or adjust any roller tooling.

  • Save both space and cost for user.

  • Production speed: 20/30/40/50/60 m/min optional.

  • Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.

  • Hangzhou Roll Forming Technology Co., Ltd has a lineup of double layer roll forming machines for sale at the competitive price!

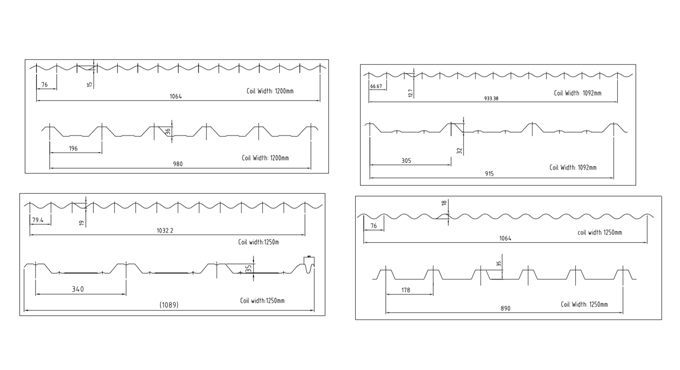

Profile Drawings

 Profile Drawings

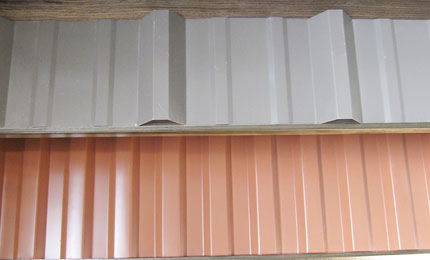

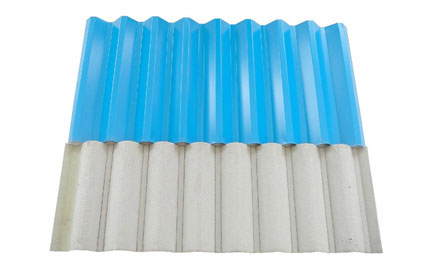

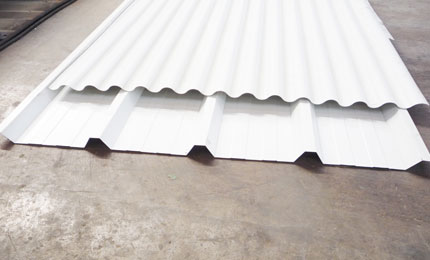

Finished Panels



Finished panelsFinished panels

Finished panels



 Double Layer Roof Wall Panel Roll Forming Machine Working Flow


  • Decoiler

  • Front Shear(optional)

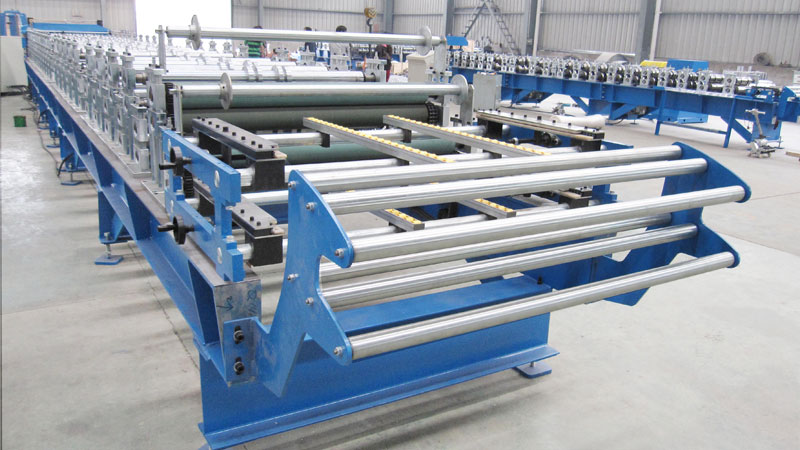

  • Double layer Feeding and Guiding Table

  • Double layer Filming Covering (optional)

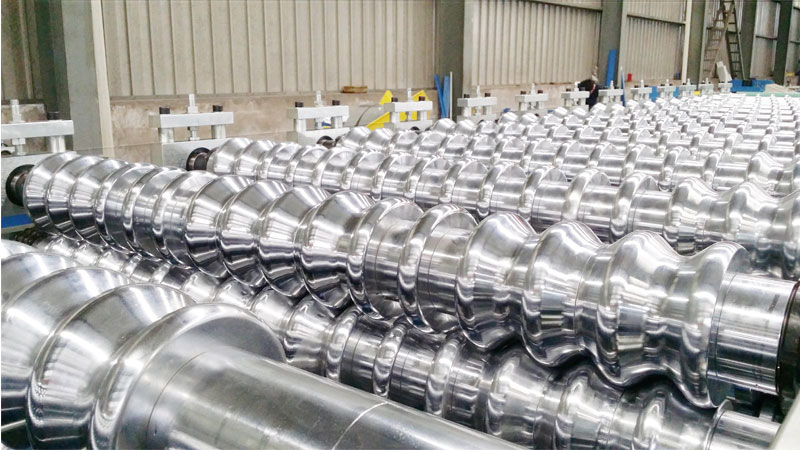

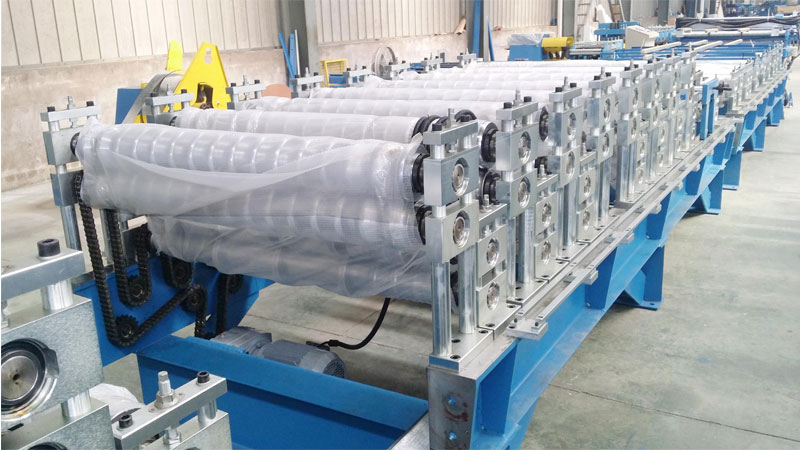

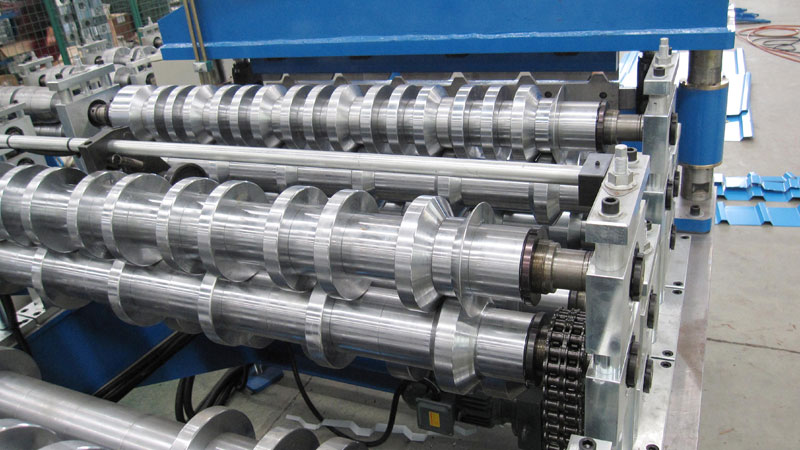

  • Double layer Roll Forming System

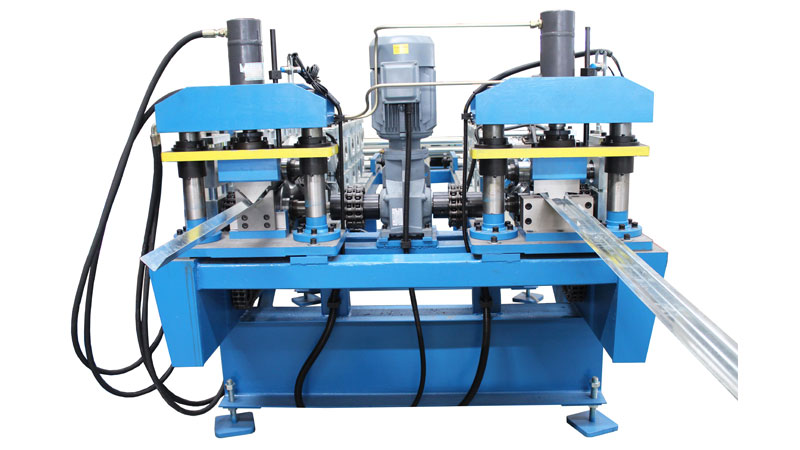

  • Double layer Post-Cutting to length (Hydraulic)

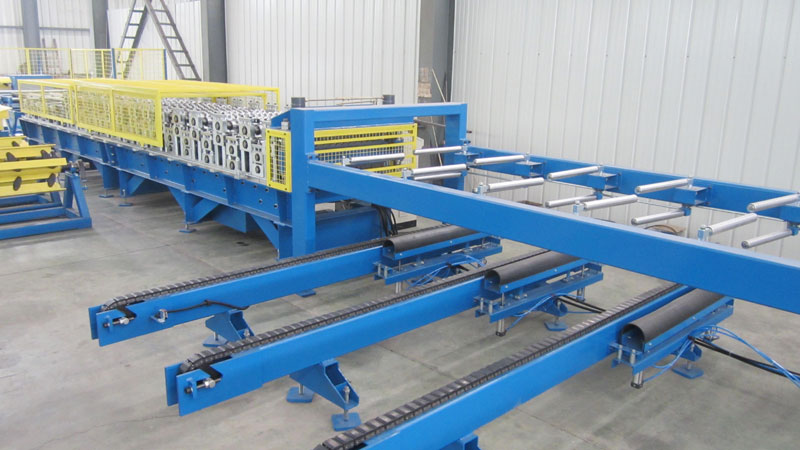

  • Output Manual Supporter/Auto Stacker(optional)

Roll Forming Line layout


Roll Forming line layout


Suitable Raw Material

Material typeColor coated Steel, Galvanized Steel, and Aluminum sheet
Thickness0.3-0.7(mm)
Yield Strength230-300/350/550-675(MPa) optional
Width1200/1220/1250(mm) as profile requests


Production line Components and Parameters

1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Front Shearoptional
3. Double layer Feeding and Guiding Table
4. double layer Filming Coveringoptional
5. double layer Roll Forming System: 20/30/45/ 60m/minoptional
6. double layer Post-Cutting to lengthHydraulic
7. Output Manual Supporter/Automatic Stackeroptional
Stackmaster(Output direction) Lateral/Longitudinal (optional)
8. Safety cage               optional
9. Post cuttingMotor/hydraulic (optional)
10. Output SystemManual supporter/ Auto Stacker (optional)
Auto Stacker(Output direction) Lateral/Longitudinal (optional)
11. Hydraulic systemPower supply for post-cutting system
12. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requests)


Related Information

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operator needed1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 20t
Dimension(L*W*H) about 25*3*2m

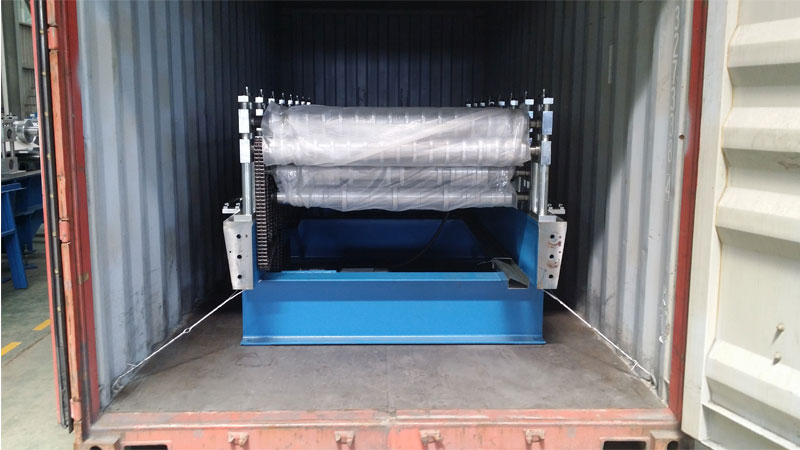

LOADING SIZENormally need 1 x 40'+1x20’container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
