Garage Door Guide Rail Roll Forming Machine

Garage Door Roll Former
Garage Door Roll Former
Garage Door Roll Former
Guide Rail Forming Machine
Guide Rail Rolling Machine

Garage Door Guide Rail Roll Forming Machine Introduction


This garage door roll former is used to make various guide rails. A guide rail is a device or mechanism to direct products, vehicles or other objects through a channel, conveyor, roadway or rail system. Our guide rail forming machine can make guide rails for garage door, roll shutter door, elevator or lift shafts and so on.

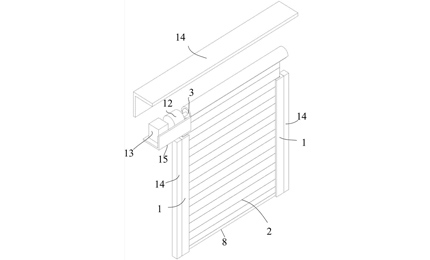

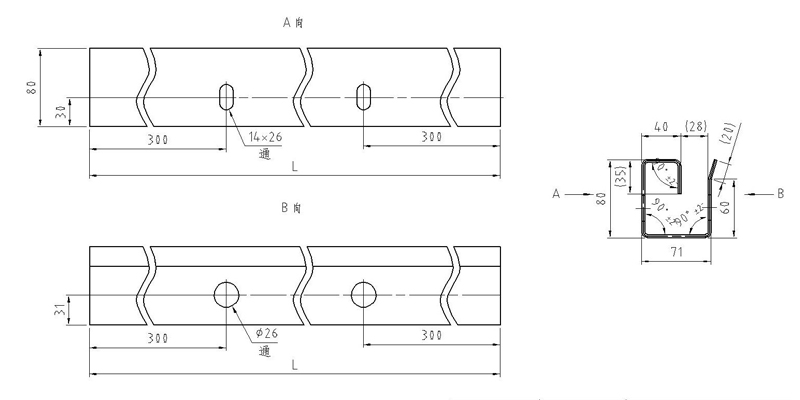

Garage Door Guide Rail Roll Forming Machine Profile Drawings

Roll Shutter Door Profile Drawings




Features and Advantages of Garage Door Guide Rail Roll Forming Machine


  • Garage Door Roll Forming Machine, specially designed for forming rolling shutter door panel, under mass-production.

  • Production speed: 20/30/40/50/60 m/min optional.

  • Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.

  • Cassette type platform quick change Machine base for multi-profile purposes is available for choice.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.


Garage Door Guide Rail Roll Forming Machine Working Flow


  • Coil Charging Car (optional)

  • Decoiler (passive/auto)

  • Front Shear(optional)

  • Feeding and Guiding Table

  • Filming Covering (optional)

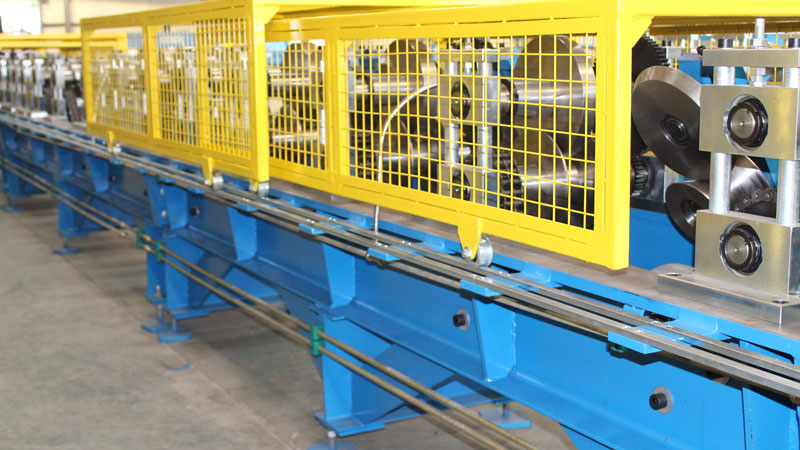

  • Roll Forming System

  • Post-Cutting to length (Hydraulic/Motor)

  • Output Manual Supporter/Stackmaster(optional)

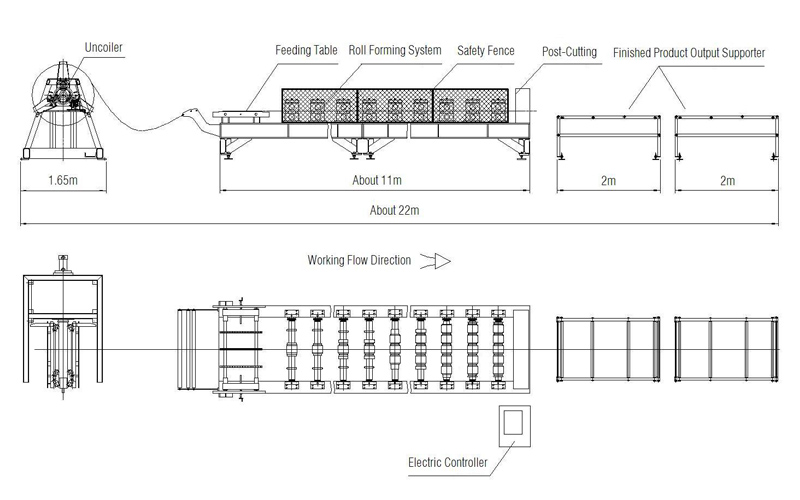

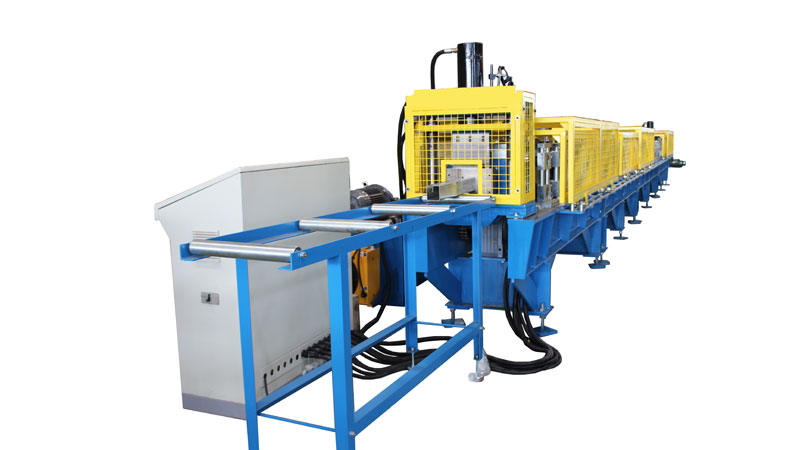

Garage Door Roll Former Line Layout

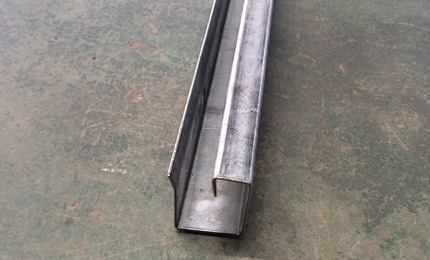

Finished Panels

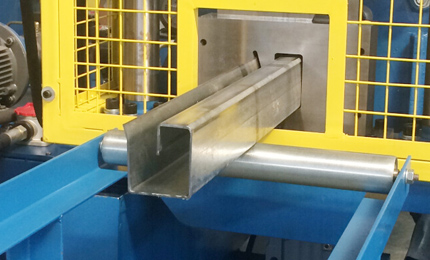

Finished Panelsgarage door guide rail roll forming machine finished panels


Garage Door Guide Rail Roll Forming Machine Application


Garage Door Guide Rail Roll Forming Machin ApplicationGarage Door Guide Rail Roll Forming Machin Application

Garage Door Guide Rail Roll Forming Machin ApplicationGarage Door Guide Rail Roll Forming Machin Application




Suitable Coil Sheet Material


Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 0.8-1.3/1.0-1.6/1.5-2.0 (mm)

Yield Strength: 230-300 (MPa)

Width: as profile requests


Production Line Components and Parameters of Garage Door Roll Former


1. Decoiler5t/8t/10t/15t Motor/hydraulic motor/passive (optional)
2. Filming covering device       optional
3. Front shear                  optional
4. Lubricating device           no need
5. Roll forming system        20/30/40/50/60 m/min (optional)
6. Safety coveroptional
7. Post cuttingMotor/hydraulic (optional)
8. Output SystemManual supporter/ Automatic Stacker (optional)
Stackmaster(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic systemPower supply for decoiler /post-cutting system
10. Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested)



Related Information of Garage Door Roll Forming Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1-2 persons
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 15t
Dimension(L*W*H) about 25*3*2m
LOADING SIZENormally need 1 x 40' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
