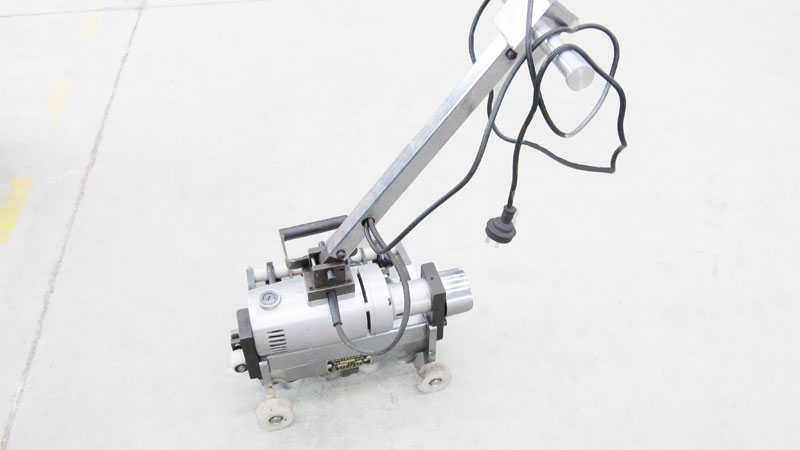

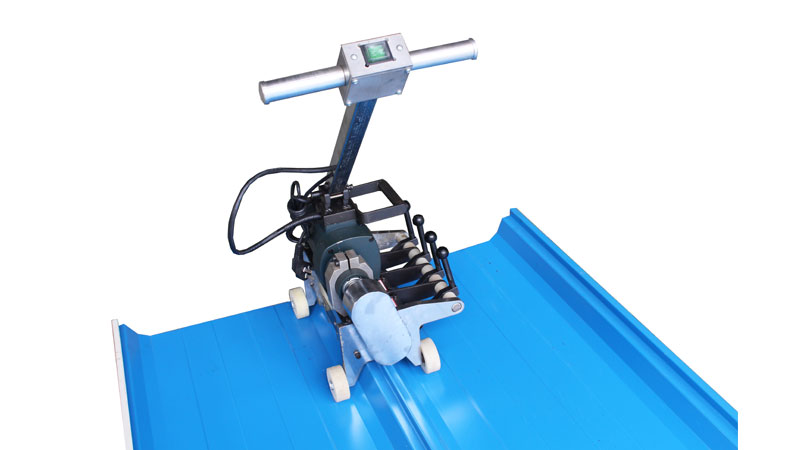

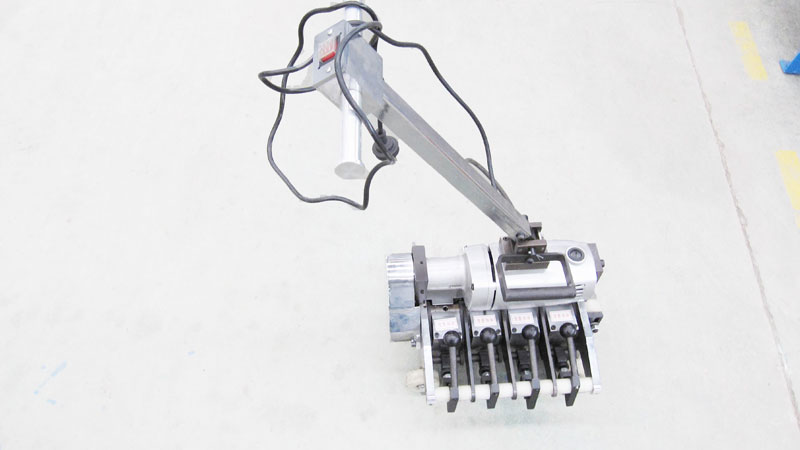

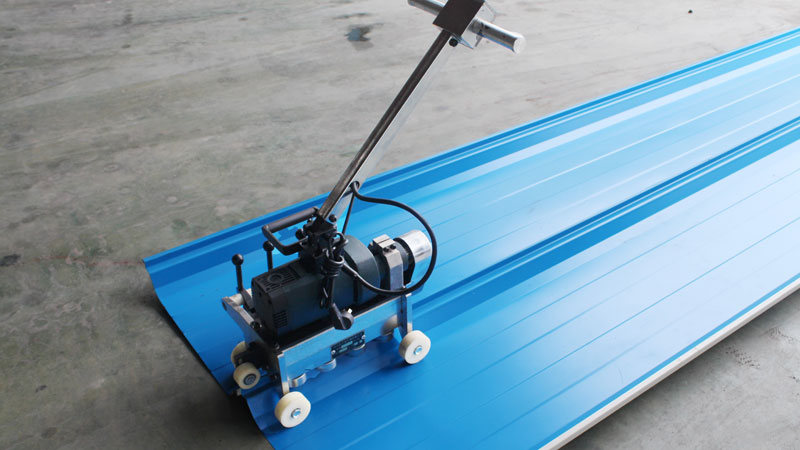

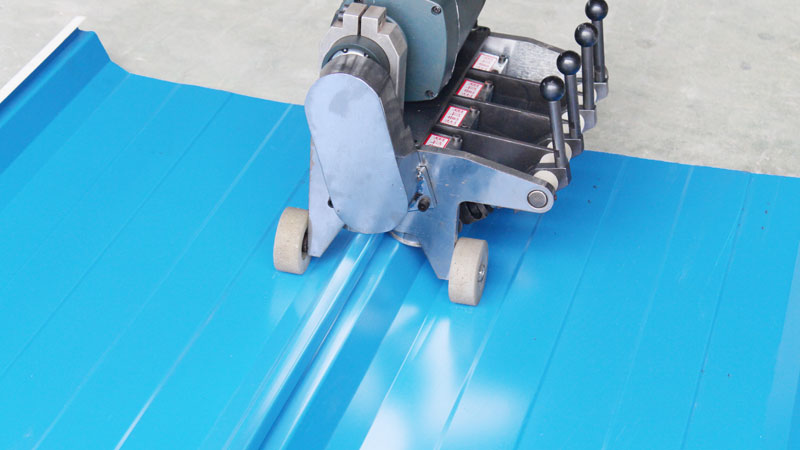

Automatic Roof Seaming Machine

This machine is assistant equipment for roof roll forming machine. It is used to seam the roof panels. It is featured by lightweight, small size, easy operation, and maintenance, especially considering the narrow edge of the starting point.


Composition and Description of Automatic Roof Seaming Machine

Automatic Roof Seaming Machine Layout Drawing

It mainly consists of frame, rollers, motor, and gear transmission system, etc.

Motor and gear transmission system drives fixed rollers and unfixed rollers to rotate.

Roller material adopts alloy steel with quenching treatment which makes it good hardness, seaming quality, and good duration.


Suitable Profiles of Automatic Roof Seaming Machine

Suitable profiles of Automatic Roof Seaming Machine


Technical Parameters of Automatic Roof Seaming Machine

Suitable materialType steel sheet
Thickness0.4-0.7mm
Yield stress235-345(MPa)
Working speedAbout 8(m/min)
Motor powerAbout 1.1(KW)
Roller materialNo. 45 steel
PowerAC220V,50Hz,1 phase
Machine dimension(length × width × height) 600×350×400(mm)


Service and Terms of Automatic Roof Seaming Machine


  • Prompt Goods: Most of models are in stock.

  • Fast Delivery: 7 days after receipt of payment and technical agreement

  • Manufacturer: All equipments are manufactured In-house.

  • Warranty: 20 months

  • Life long After-sales Service:

All projects include engineering, drawings and project management and are treated similarly as a new metal forming equipment order.

quick maintenance and spare parts service

7x24h before & after service team;

Experienced Engineers team for overseas market to handle all your troubleshooting and service needs for your roll forming, coil processing and tube equipment.
