Gutter Roll Former

This drip edge roll former is used to make gutter. Gutter systems have a slight downward pitch toward the corners of the home, encouraging rainwater or snowmelt to flow "downhill" through the gutters and into the downspouts. A downspout is a pipe that runs vertically along the side of the home. It is connected at the top to a hole in the gutter channel.


  • Fully automatic continuous drip edge roll former for sale, suitable for roofing gutter profile under mass-production.

  • The production speed of drip edge roll forming machine: 15/20/30m/min.

  • Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

  • For most of the hot & popular profile models, we have ready machines in stock for prompt delivery.

Suitable Raw Material

Material type: Color coated Steel, Aluminum sheet

Thickness: 0.3-0.6(mm)

Yield Strength: 230-300/350 (MPa) optional

Width: 461 (mm) as profile requests

Production line Components and Parameters


Gutter Roll Forming Line Layout



Production Line Components and Parameters of Drip Edge Roll Forming Machine

Decoiler            2T/3T/5T Motor/hydraulic motor/passive (optional)
Filming covering device     optional
Front shear                 optional
Lubricating device            no need
Roll forming system         15/20/30 m/min
Safety cover             optional
Post cuttingMotor/hydraulic (optional)
Output SystemManual supporter/ Automatic Stacker (optional)
Stack Master(Output direction) Lateral/Longitudinal (optional)
Hydraulic systemPower supply for decoiler /post-cutting system
Electric control systemMITSUBISH/ SIEMENSE/AMS (optional or as requested )


Popular Gutter Profile Drawings

Roof Guttering and down spout pipes are very important assets to any house.

A gutter system prevents water damage to walls and foundations by channeling water away from its base foundation.

A good gutter system also reduces erosion, prevents house leaks, and protects painted surfaces by reducing exposure to water.




Drip Edge Roll Forming MachineDrip Edge Roll Forming MachineDrip Edge Roll Forming Machine

Drip Edge Roll Forming Machine

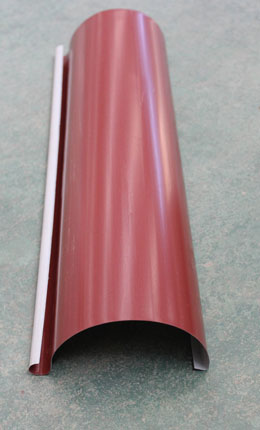

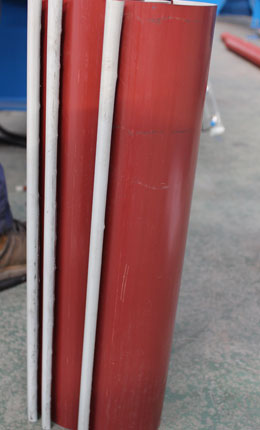

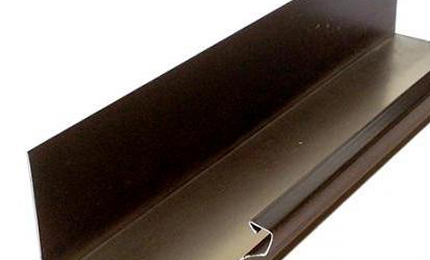

Finished Gutter Samples



Drip Edge Roll Forming MachineDrip Edge Roll Forming MachineDrip Edge Roll Forming MachineDrip Edge Roll Forming Machine


Specification of Drip Edge Roll Former for Sale

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer’s requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 7t
Dimension(L*W*H) about 20*2.5*2m
LOADING SIZENormally need 1x 20' container.
Equipment ColorNormally Blue/White, or as requests;
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing
