Drip Edge Roll Forming Machine

This fully automatic continuous rolling forming machine can produce drip edge profiles with different sizes and specifications in mass production. Normally, the production speed of this drip edge roll former is 15/20/30 m/min. And certified with different patents in accordance with CE Certified, EUROPEAN quality standards, our drip edge roll forming machine is well known for its stable performance. Prompt delivery for ready machines in stock is also available for this series.

Suitable Raw material for Drip Edge Roll Former Machine

Material type:
Color coated Steel, Aluminum sheet
Thickness:
0.3-0.6(mm)
Yield Strength:
230-300/350 (MPa) optional
Width:
385 (mm) as profile requests



Specifications of Drip Edge Roll Former Machine

Machine ConditionFully New, A Grade quality
Panel ShapeAs profile drawing and customer's requirements
Operatorneeded 1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 8t
Dimension(L*W*H) about 20*2.5*2m
LOADING SIZENormally need 1x 40' container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing



The Working Flow of Drip Edge Roll Former Machine

Coil Charging Car (optional) → Decoiler (passive/auto) → Front Shear(optional) → Feeding and Guiding Table → Filming Covering (optional) → Roll Forming System → step Punching unit(as profile requests) → Post-Cutting to length (Hydraulic/Motor) → Output Manual Supporter/Stackmaster(optional)



The Production Line Layout Drawing of Drip Edge Roll Former Machine

Drip Edge Roll Forming Machine Production Line

Popular Drip Edge Profile Drawings

Popular Drip Edge Profile Drawings

Popular Drip Edge Profile Drawings



Application of Drip Edge Roll Former Machine

The high-quality drip edge panels produced by our drip edge roll former for sale can be widely used for a variety of light steel structure construction and large building projects.

5-1 Drip Edge Application 5-2 Drip Edge Application


5-3 Drip Edge Application 5-4 Drip Edge Application

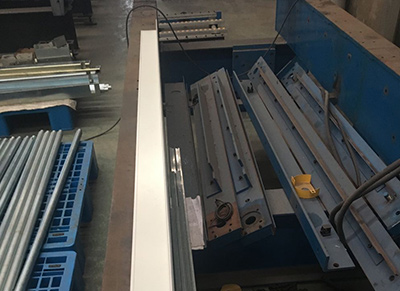

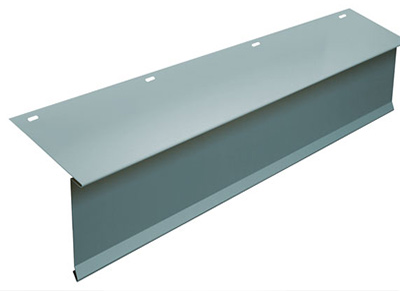

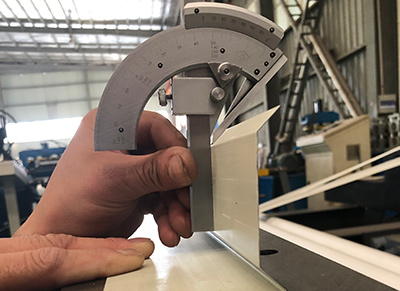

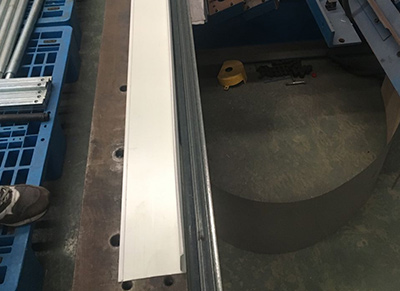

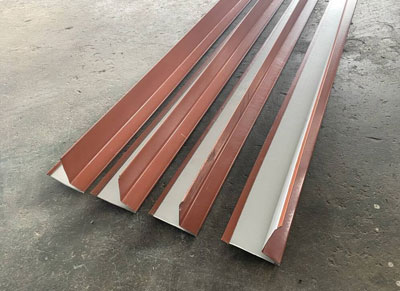

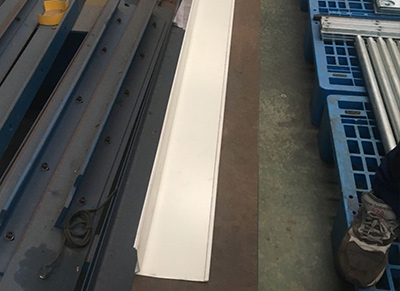

Finished Panels by Drip Edge Roll Former Machine

Drip Edge Profile Drip Edge Profile


Drip Edge Profile Drip Edge Profile


Drip Edge Profile Drip Edge Profile


Drip Edge Profile Drip Edge Profile



Production line Components and Parameters

1. Decoiler:  2t/3t/5t Motor/hydraulic motor/passive (optional)

2. Filming covering device: optional

3. Front shear:  optional

4. Lubricating device:  no need

5. Roll forming system:  15/20/30 m/min

6. Safety cover:  optional

7. Post cutting: Motor/hydraulic (optional)

8. Output System: Manual supporter/ Automatic Stacker (optional)

9. Stackmaster: (Output direction) Lateral/Longitudinal (optional)

10. Hydraulic system: Power supply for decoiler /post-cutting system

11. Electric control system: MITSUBISH/ SIEMENSE/AMS (optional or as requested )
